Genuine Custom S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
915PH010200300
Category
Label/Receipt Printers
Overview

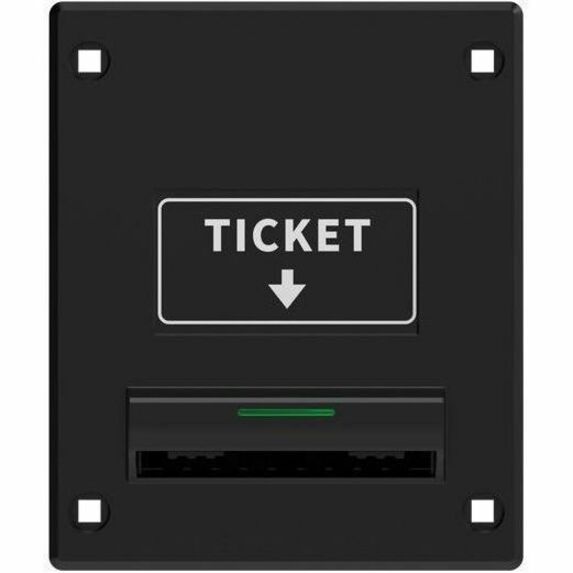

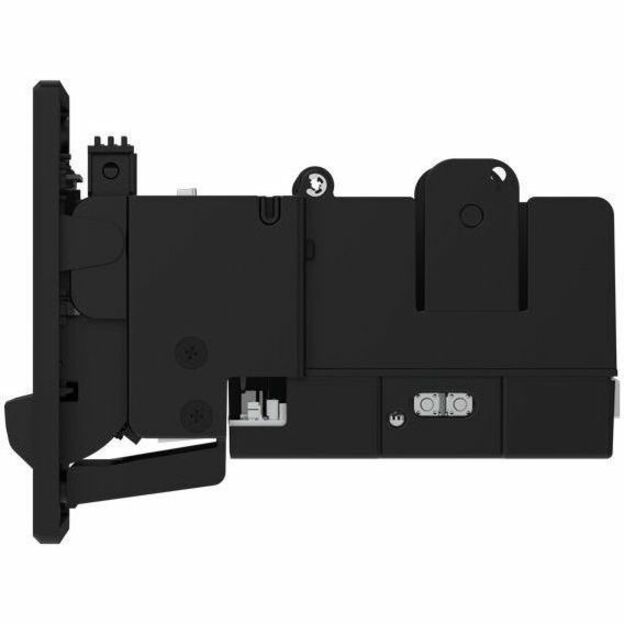

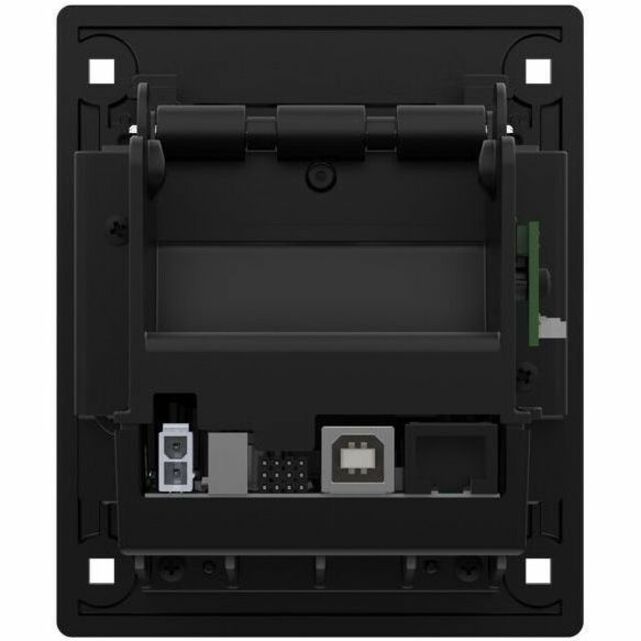

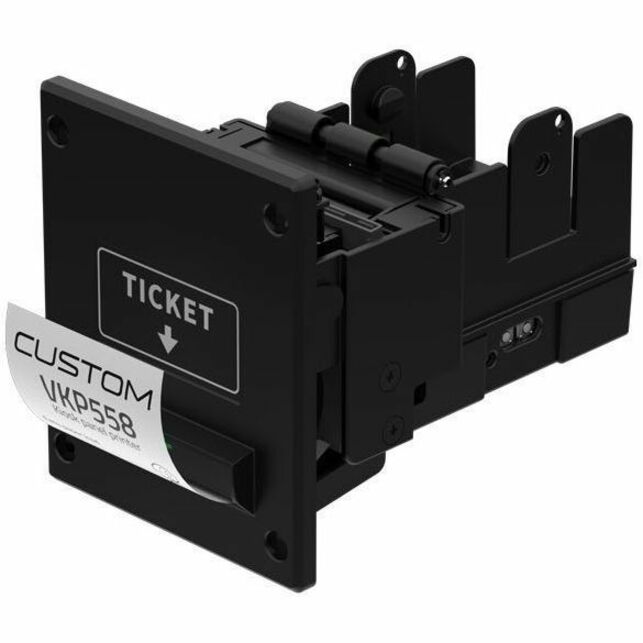

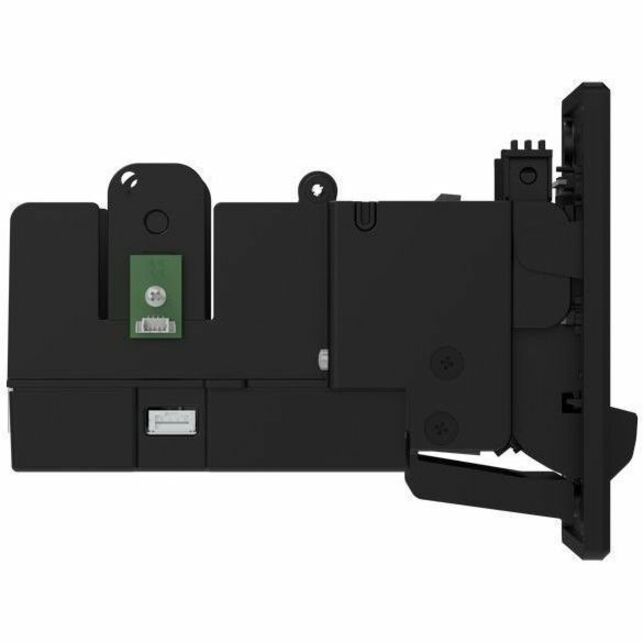

VKP558 is an extremely compact and versatile ticket printer, for easy installation and panel mounting. The device is equipped with black plastic bezel, a highly reliable total/partial cutter and easily inspectable paper path. VKP558 has the same panel mounting points as the TG02H and the same interfaces and emulations. The product comes with a paractical drop-in cradle for paper roll and features the new Centurion Security Suite, a software dedicated to the gaming market to authenticate winning tickets and discard the fake tickets.
Highlights
Ergonomic design for more secure ticket delivery
Easy paper load with no loose spindle
RGB LED and integrated cutter
Centurion Security Suite for ticket authentication
Easy inspectable paper path
Specifications
Cutter
Cutter
Yes
Cut Type
Full/Partial Cut
Cutter Life
500000 Cuts
Environmental Conditions
Operating Temperature
14°F (-10°C) - 140°F (60°C)
General Information
Manufacturer
Custom S.p.A
Manufacturer Part Number
915PH010200300
Brand Name
Custom
Product Model
VKP558
Product Name
VKP558 Extremely compact and versatile ticket printer
Product Type
Direct Thermal Printer
Interfaces/Ports
Serial Port
Yes
USB Host
Yes
USB
Yes
USB Standard
USB 2.0
Media Types & Handling
Media Type
Ticket, Receipt
Media Sensor
Paper Presence Sensor, Head Temperature Sensor
Media Thickness
2.56 mil
Maximum Roll Diameter
0.47"
Maximum Label Width
2.24"
Memory
Flash Memory
8 MB
Physical Characteristics
Height
4.7"
Width
3.9"
Depth
6.4"
Weight (Approximate)
1.06 lb
Power Description
Power Source
DC
Power Consumption
800 mA
Reliability
Print Head Life
100M
Technical Information
Recommended Use
Ticket Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
2.76 in/s
Maximum Print Resolution (dpi)
203
Maximum Print Width
1.89"
Barcode Symbology Supported
QR Code, PDF417, UPC-E, ITF, EAN-13, EAN-8, Code 39, Code 93, Code 128, Codabar, AZTEC, Data Matrix, UPC-A
