Black Box VDSL2 Ethernet Extender - 10/100/1000BASE-TX, 2-Port
Black Box

Black Box VDSL2 Ethernet Extender - 10/100/1000BASE-TX, 2-Port

2 x Network (RJ-45) - 984.25 ft Extended Range - 9842.52 ft Operating Distance

SKU
MEG101AE-R5
Category
Cable Extenders

MSRP$210.59

$165.27

Save 22%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MEG101AE-R5
Category
Cable Extenders

Overview

The MEG101AE-R5 extender uses G.993.2 VDSL2 standard technology to transmit data between LANs at up to 160-Mbps symmetric using only a single copper wire pair. It supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters. The unit is ideal for extending LAN to buildings, hotels, hospitals, or any location outside of the 100 meters reach of Ethernet UTP.

The extender features two 10/100/1000 Ethernet ports, a DIP switch to select Central Office (CO) or Customer Premise Equipment (CPE), 8 selectable bands, selectable SNRM level, and selectable G.INP. LED indicators include PWR, CO, and CPE.

Highlights

  • Transmits data between LANs using only a single copper wire pair
  • Supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters
  • Has (2) 10/100/1000 Ethernet ports
  • Supports a maximum line speed of 160 Mbps

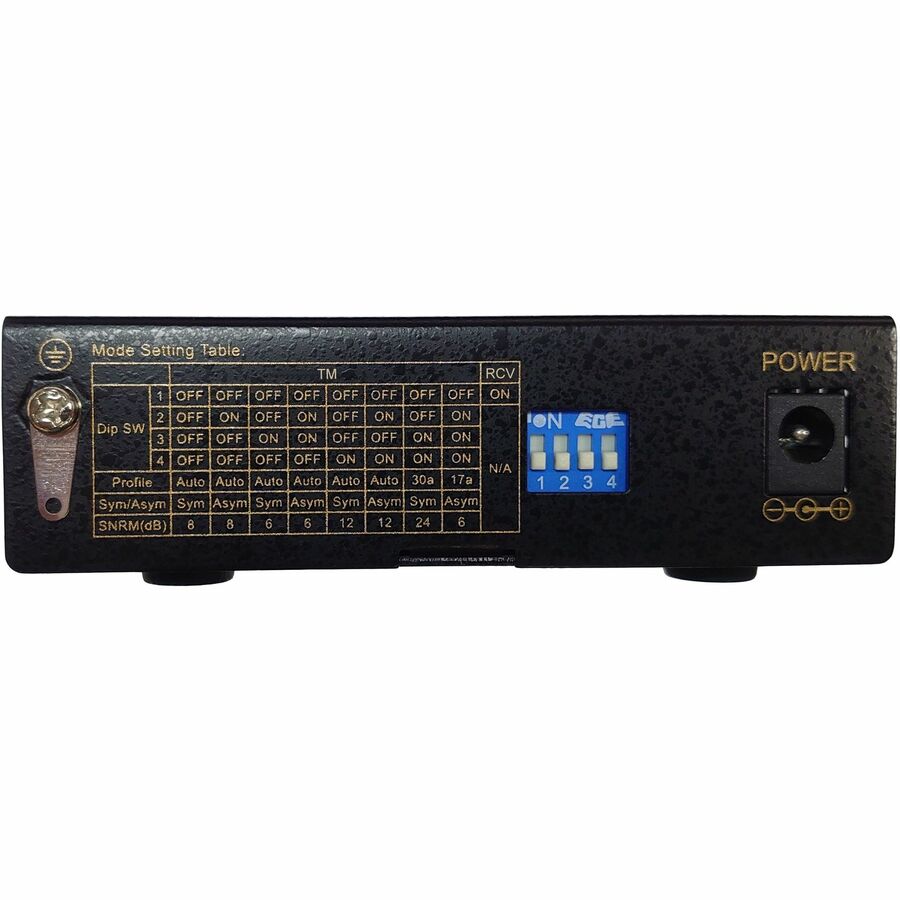

  • Uses a DIP switch to configure CO or CPE
  • Mounts on a wall or DIN-rail
  • Selectable SNRM level
  • Includes (3) LED indicators: PWR/CO/CPE

Specifications

Product TypeNetwork Extender
Input Voltage12 V DC
Manufacturer Part NumberMEG101AE-R5
Limited Warranty1 Year
ManufacturerBlack Box Corporation
Product NameVDSL2 Ethernet Extender - 10/100/1000BASE-TX, 2-Port
Brand NameBlack Box
Maximum Operating Distance9842.52 ft
Maximum Data Transfer Rate125 MB/s
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
TAA CompliantYes
Maximum Extended Range984.25 ft
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
