Overview
Send high-quality video and audio signals farther, without replacing the copper cable, with this HDMI 2.0 Extender. In compliance with HDR and HDCP 2.2 standards, it supports 4K at 60 Hz 4:4:4 resolution, Dolby and DTS HD audio, and bi-directional IR control, in a low-profile box.

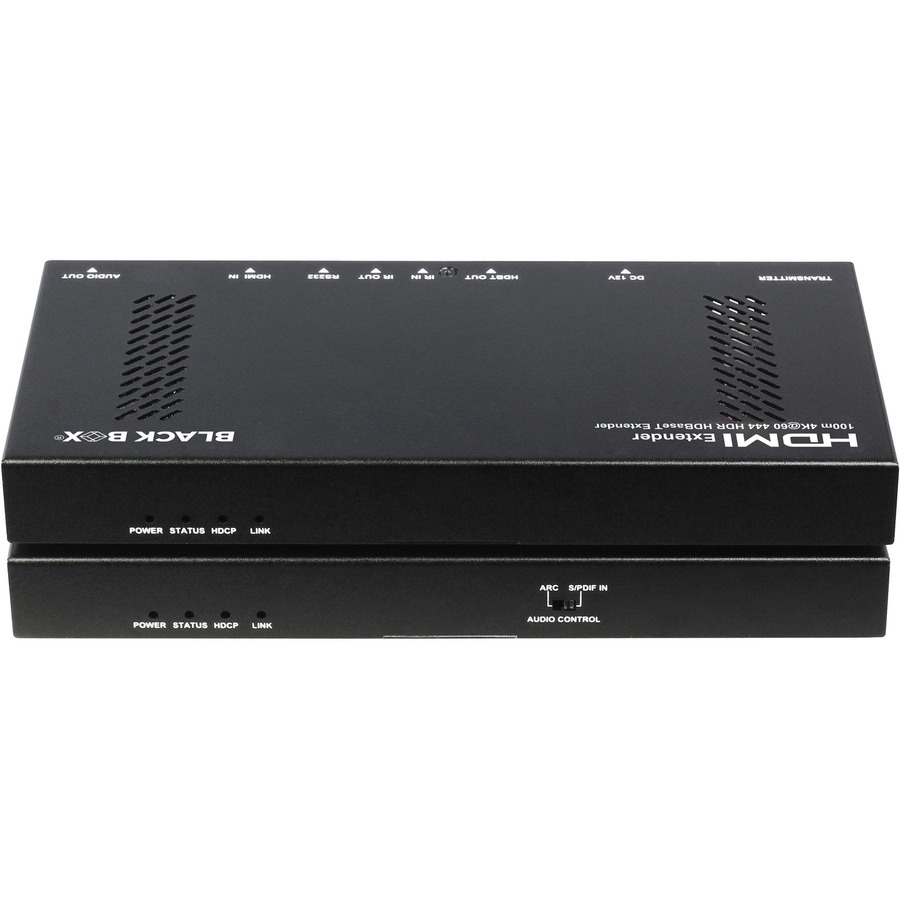

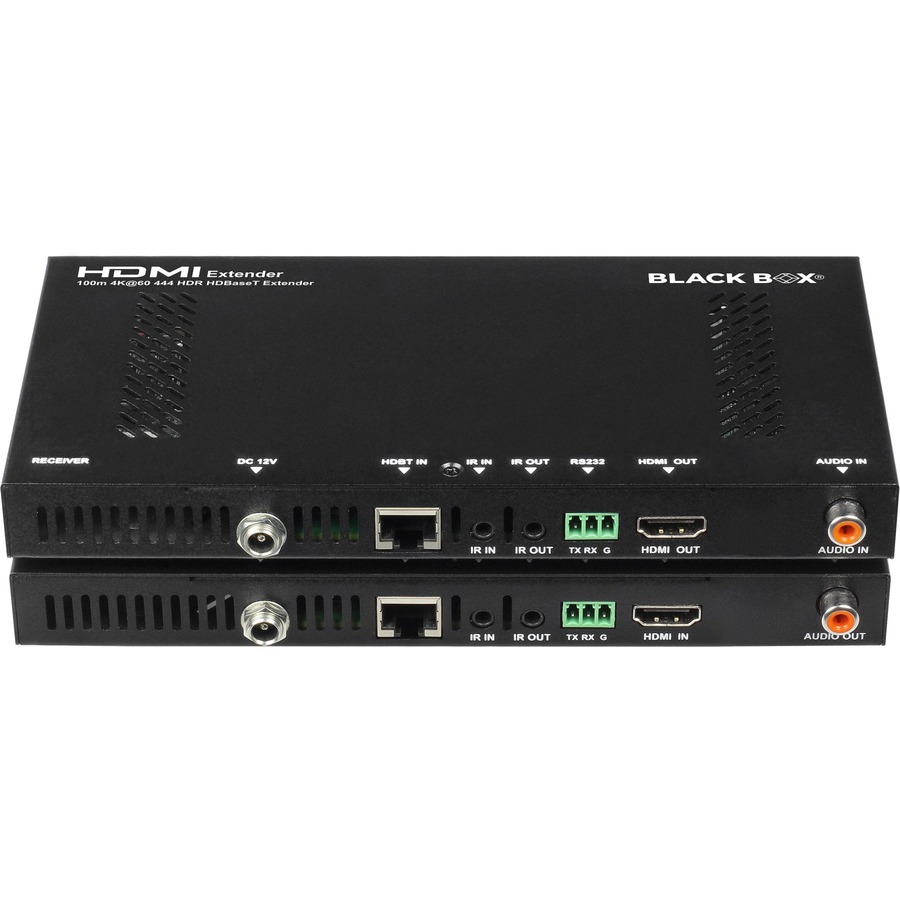

The extender consists of a transmitter and a receiver. Configure the ARC channel feed for a TV (with ARC support) or an auxiliary S/PDIF input port via an audio output DIP switch on the receiver. The extender uses proprietary one-way PoC technology to power the receiver from the transmitter. LEDs show power and signal status for established connections between devices.
With increased bandwidth up to 18 Gbps, you can extend signals over CATx cable up to 328 ft. while maintaining:
• Higher resolutions
• Higher frame rates
• Multiple full HD streams in the same pipe
• 21:9 aspect ratio
Secure and Compliant
A locking HDMI connector prevents accidental cable disconnects, and the extender has CE, FCC, IC, RCM, and VCCI approvals.
Warranty
Limited Warranty: 2 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Non-Returnable
HDCP 2.2 compliant
HD signal transmission via a single CAT5e/CAT6 cable up to 100 m (1080p) and 70 m (4K at 60 Hz YUV 4:4:4)|HD signal transmission via a single CAT6A/7 cable up to 100 m (1080p) and 100 m (4K at 60 Hz YUV 4:4:4)
IR pass-through allows you to control the source from the display location or control the display from the source location
Use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or display
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
AVX-HDMI2-HDB-R2
Brand Name
Black Box
Product Name
Audio/Video Extender
Product Type
Audio/Video Extender
Interfaces/Ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
HDMI
Yes
Number of HDMI Ports
2
Physical Characteristics
Product Color
Black
Height
0.8"
Width
6.8"
Depth
3.7"
Technical Information
Maximum Extended Range
328 ft
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
1 x Transmitter
1 x Receiver
1 x Power Adapter (12 VDC, 2 A)
2 x Phoenix Male Connectors (3.5-MM, 3-PIN)
1 x IR Emitter Cable
1 x IR Broadband Receiver Cable (30 KHZ - 50 KHZ)
4 x Mounting Brackets
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
