Genuine Bixolon through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
XT5-40NS
Category
Label/Receipt Printers
Overview

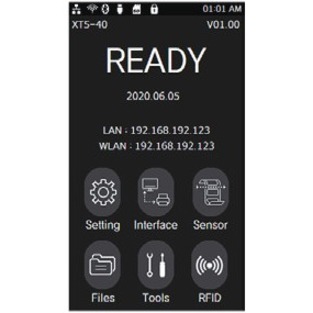

With a 4.3 inch full-colour touch display, the XT5-40N supports easy navigation of print settings including checkup of the printer status. Its industry-leading performance, durability and user-friendly design is ideal for Warehouse, Distribution Centres, Manufacturing and T&L Industries.
Highlights
The XT5-40NR supports UHF RFID print and encode capability
Extremely close-spaced RFID inlay encoding supported (minimum pitch of 0.6 inch / 16 mm)
RFID auto-calibration simply reads the RFID tag location
Aluminium body and special adhesiveness metal case
Space-saving design with double folding door
3.5-inch full colour or 4.3 inch full colour touch LCD display
Printing speed up to 14 ips (356 mm/sec)
203, 300 or 600 dpi resolution
The industry's fastest Ethernet (1Gbit/sec) embedded
Toolless maintenance of roller and print head
Specifications
Display & Graphics
Display Screen
Yes
Screen Size
4.3"
Display Screen Type
LCD
Environmental Conditions
Operating Temperature
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity
10% - 80%
Storage Temperature
68°F (20°C) - 140°F (60°C)
Storage Relative Humidity
10% - 90%
General Information
Manufacturer
Bixolon America, Inc
Manufacturer Part Number
XT5-40NS
Brand Name
Bixolon
Product Series
XT5-40
Product Model
XT5-40N
Product Name

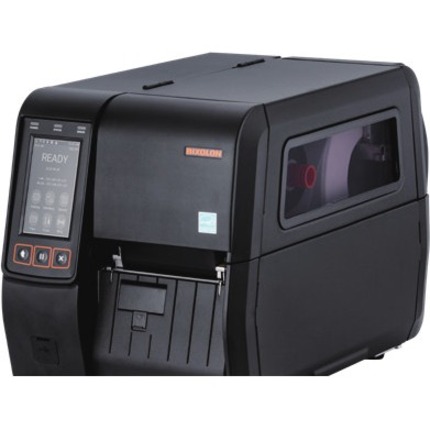

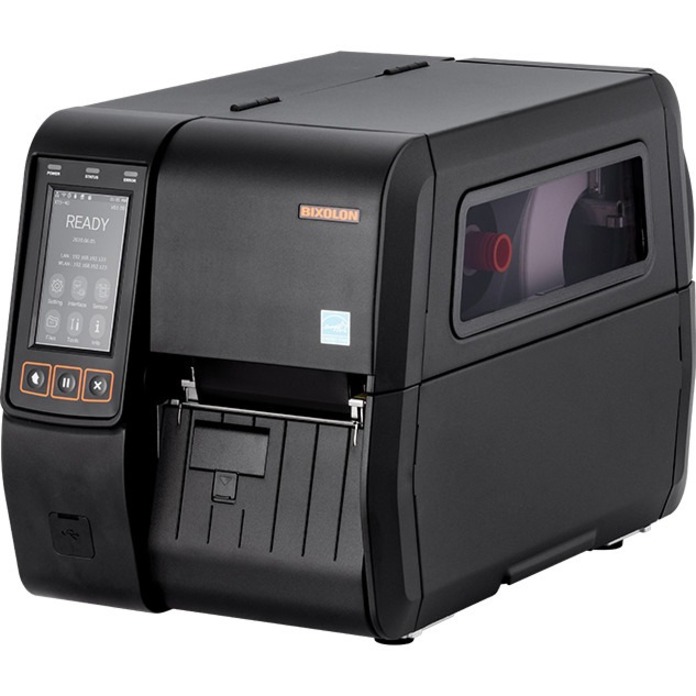

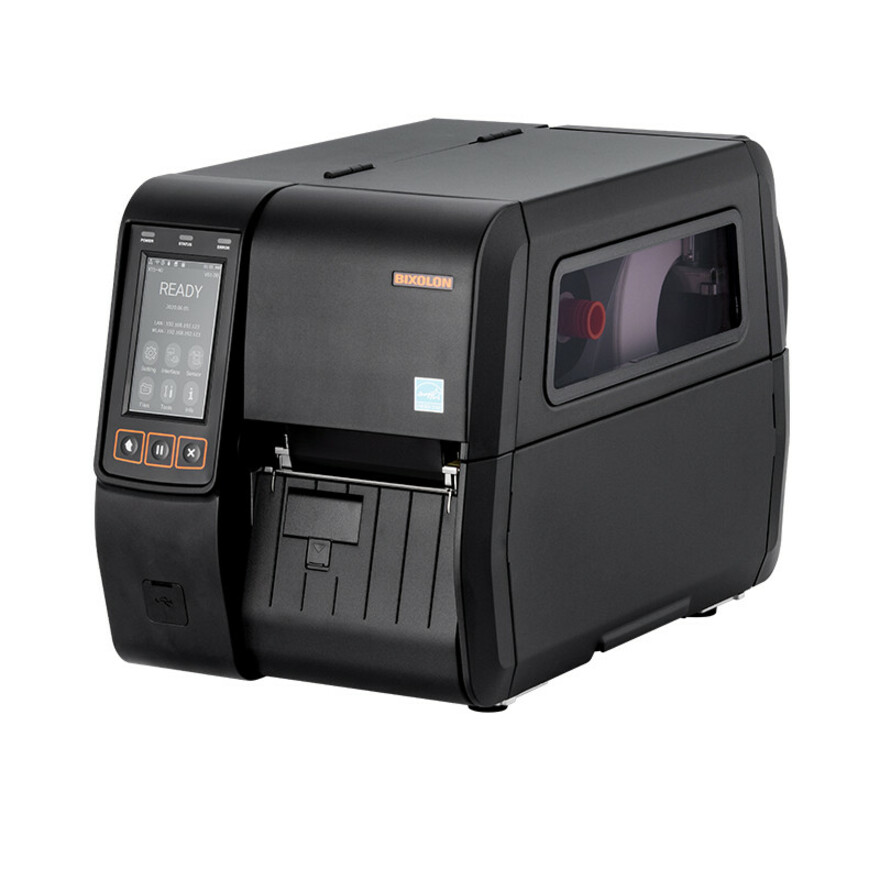

XT5-40 Series 4 inch Thermal Transfer Industrial Label Printer
Product Type
Thermal Transfer Printer
Interfaces/Ports
Serial Port
Yes
USB Host
Yes
USB
Yes
Media Types & Handling
Media Type
Label, Gap, Black Mark, Notch, Continuous Label, Fanfold
Media Sensor
Transmissive Media Sensor, Reflective Media Sensor
Maximum Roll Diameter
7.99"
Maximum Label Width
4.49"
Memory
Standard Memory
512 MB
Network & Communication
Ethernet
Yes
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Product Color
Black
Height
12.8"
Width
10.6"
Depth
19.3"
Weight (Approximate)
30.82 lb
Power Description
Power Source
AC Supply
Input Voltage
120 V AC, 230 V AC
Technical Information
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
14 in/s
Maximum Print Resolution (dpi)
203
Maximum Print Length
13.12 ft
Maximum Print Width
4.09"
Barcode Symbology Supported
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Plessey, POSTNET, Standard 2 of 5, UPC/EAN, UPC-A, UPC-E, IMB, Aztec Code, Codablock, Code 49, Data Matrix, Maxi Code, PDF417, QR Code, TLC 39, Micro PDF-417, GS1 DataBar (RSS-14)
Fonts Included
10 SLCS, One SLCS, 16 BPL-Z, One BPL-Z, 9 BPL-D, Two BPL-D, 5 BPL-E, 23 Code Page, Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
