SKU
M1000R-W
Category
Component Speakers
Overview
The M1000R-W is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead.
A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R-W. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.
Highlights
Sleek, Round Appearance Designed for Mounting in Open Plenum Areas Where Speakers May be Visible

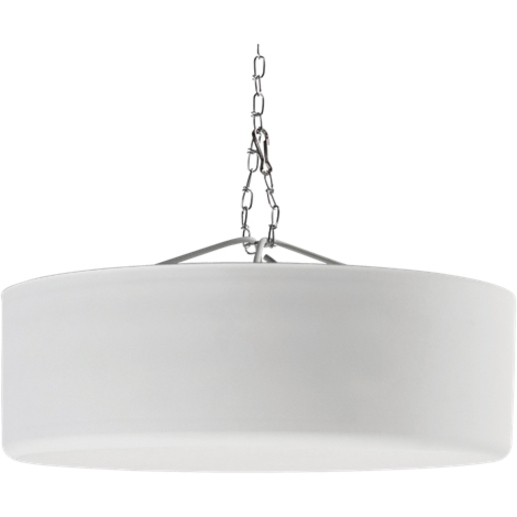

Balanced Enclosure Design to Ensure Level Orientation When Suspended (78" (2m) Suspension Chain Included)
Fully Assembled Package Includes 8" Transducer with High Quality Line Matching Transformer

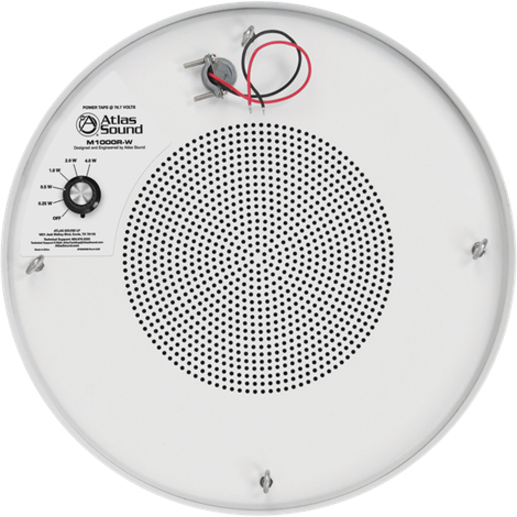

0.25 to 4 Watt (@70.7V) Power Selection (Plus OFF) via External Switch
382in3 (6.26L) Enclosure Volume for Accurate Low Frequency Masking Spectrum Reproduction

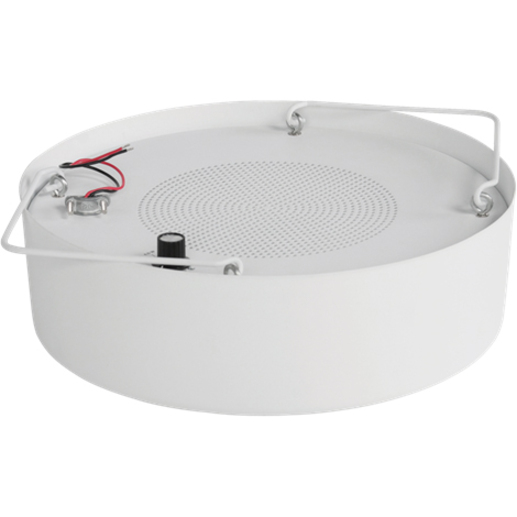

Strain Relief to Facilitate Input Termination
Tested and Approved to UL2043 Standard for Use in Air Handling (Plenum) Spaces
White Finish to Blend in with Almost Any Ceiling Décor
Safety Listed to UL 1480 & UL 2043
Specifications
Package Contents
8" Sound Masking Speaker With 70.7V-4W Transformer And Round Enclosure (White)
78" (2m) Suspension Chain
Product Type
Speaker
Manufacturer Part Number
M1000R-W
Weight (Approximate)
9.20 lb
Form Factor
Pendant Mount
Manufacturer
AtlasIED
Product Model
M1000R-W
Product Name
8" Sound Masking Speaker With 70.7V-4W Transformer And Round Enclosure (White)
