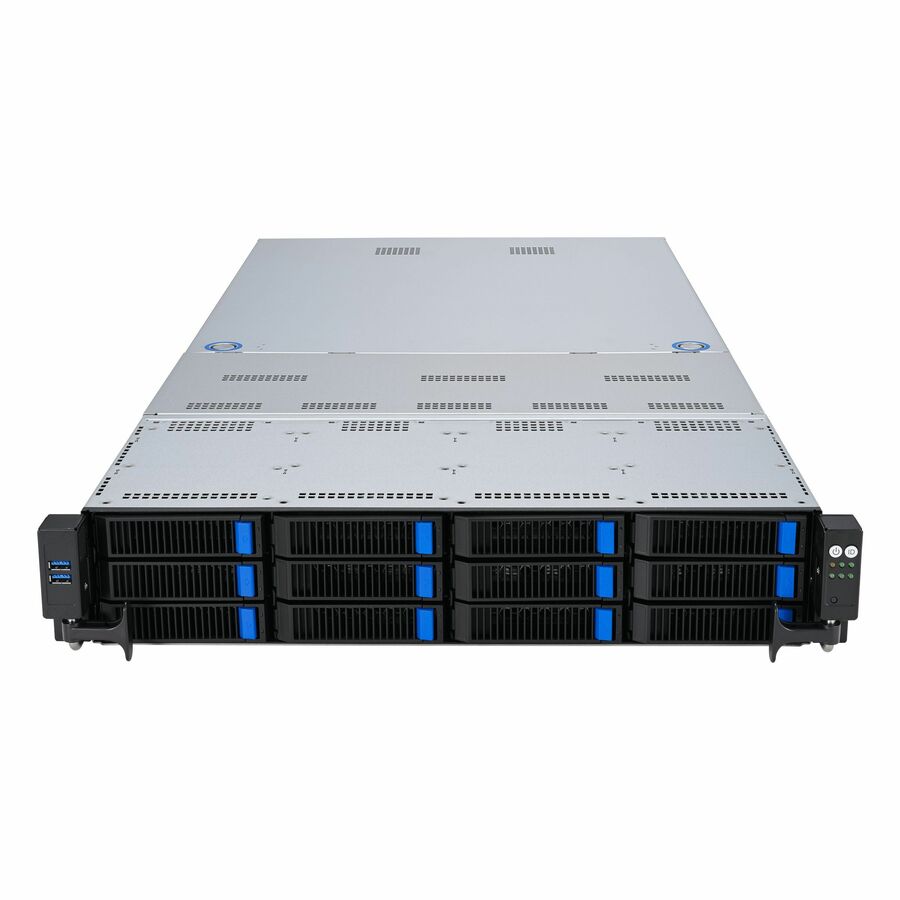

Asus RS720-E11-RS12U-16W10G Barebone System - 2U Rack-mountable - Socket LGA-4677 - 2 x Processor Support
ASUS Computer International

Asus RS720-E11-RS12U-16W10G Barebone System - 2U Rack-mountable - Socket LGA-4677 - 2 x Processor Support

Intel C741 Chip - 4 TB DDR5 SDRAM Maximum RAM Support - 32 Total Memory Slots - Serial ATA/600, NVMe Controller 64 MB Graphic(s) - 12 3.5" Bay(s) - Network (RJ-45) - 2 M.2 Interface(s) - 12 SATA Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Ethernet - Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux Supported Operating System - Intel Optane Memory Ready - 42

SKU
RS720-E11-RS12U-16W10G
Category
Barebone Systems

MSRP$3,300.00

$3,165.62

Save 4%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
RS720-E11-RS12U-16W10G
Category
Barebone Systems

Overview

PCIe 5.0Ready | Faster storage, graphics and networking capabilities

PCI Express ® (PCIe ® ) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Highlights

  • Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two NVMe in the real panel (optional), and 9 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Ready for AI and HPC workloads: GPU SKU supports up to four dual-slot GPUs, including Intel Data Center GPU Flex series and NVIDIA A100

Specifications

Product TypeBarebone System
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberRS720-E11-RS12U-16W10G
Maximum Memory Supported4 TB
Weight (Approximate)59.21 lb
Form FactorRack-mountable
ManufacturerASUS Computer International
Product ModelRS720-E11-RS12U-16W10G
Product NameRS720-E11-RS12U-16W10G Barebone System
Processor SupportedXeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze
Controller TypeSerial ATA/600, NVMe
Product SeriesRS720-E11-RS12U
Processor SocketSocket LGA-4677
Rack Height2U
Brand NameAsus
Operating System SupportedWindows Server 2019, Windows Server 2022, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux
Memory TechnologyDDR5 SDRAM
Height3.5"
Width17.6"
Depth33.1"
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelC741
Number of SATA Interfaces12
Number of Power Supplies Installed2
Graphics Memory Capacity64 MB
Number of Processors Supported2
Ethernet TechnologyEthernet
Number of Total Expansion Bays12
Number of 3.5" Bays12
Network (RJ-45)Yes
Total Number of USB Ports4
Number of VGA Ports2
Total Number of Expansion Slots9
Number of M.2 Interfaces2
Intel Optane Memory ReadyYes
Number of USB 3.2 Gen 1 Ports4
Total Number of Memory Slots32
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
AI-poweredYes
