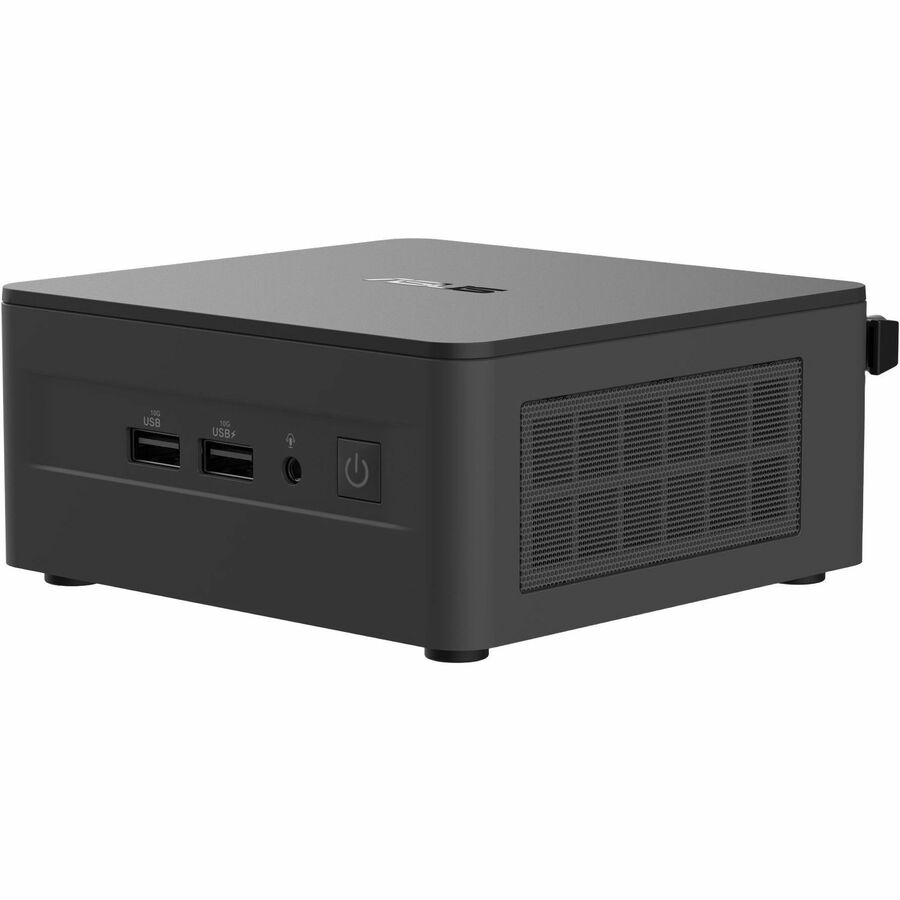

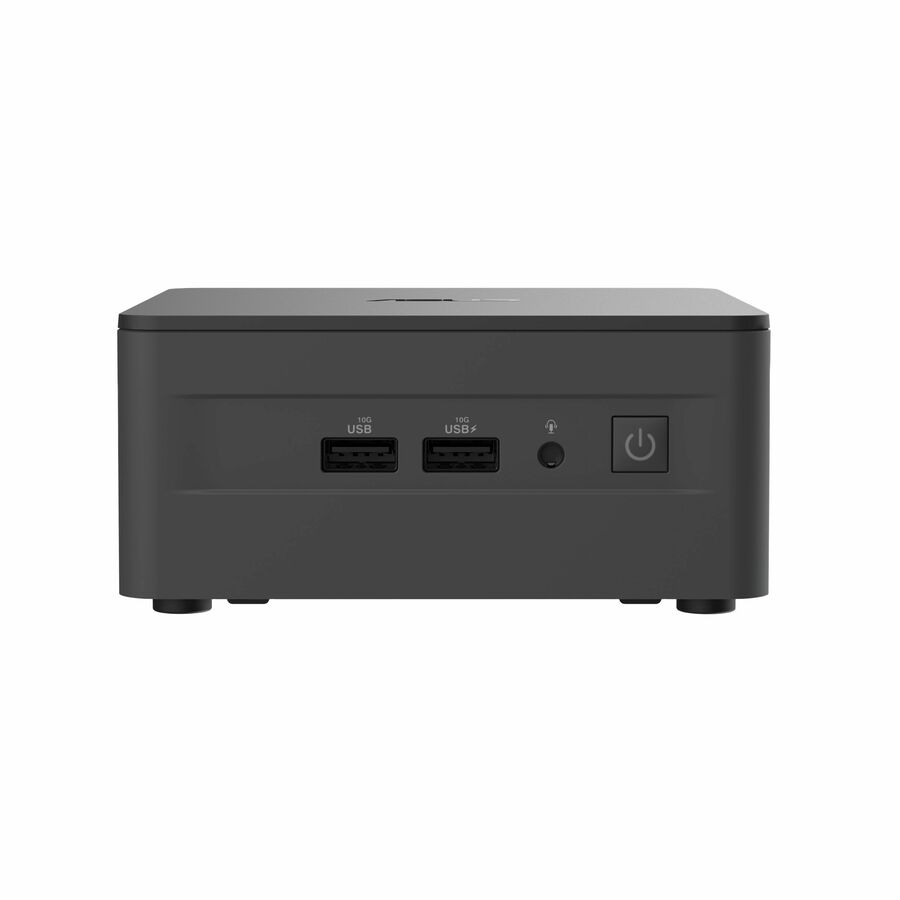

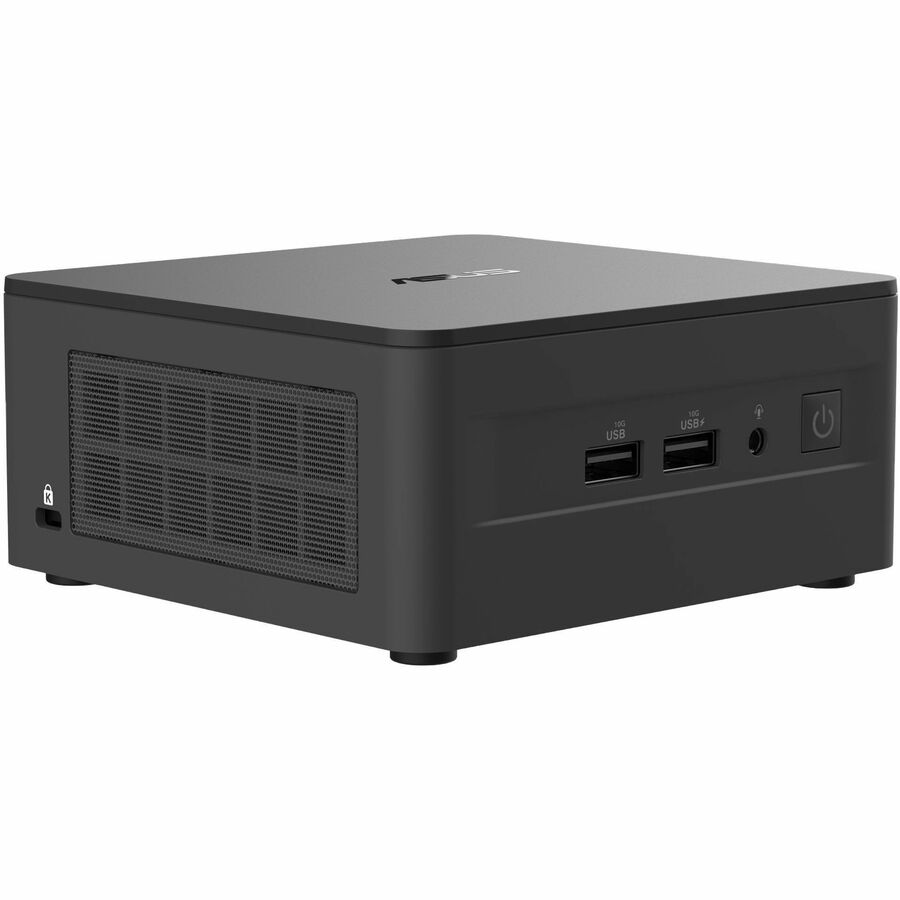

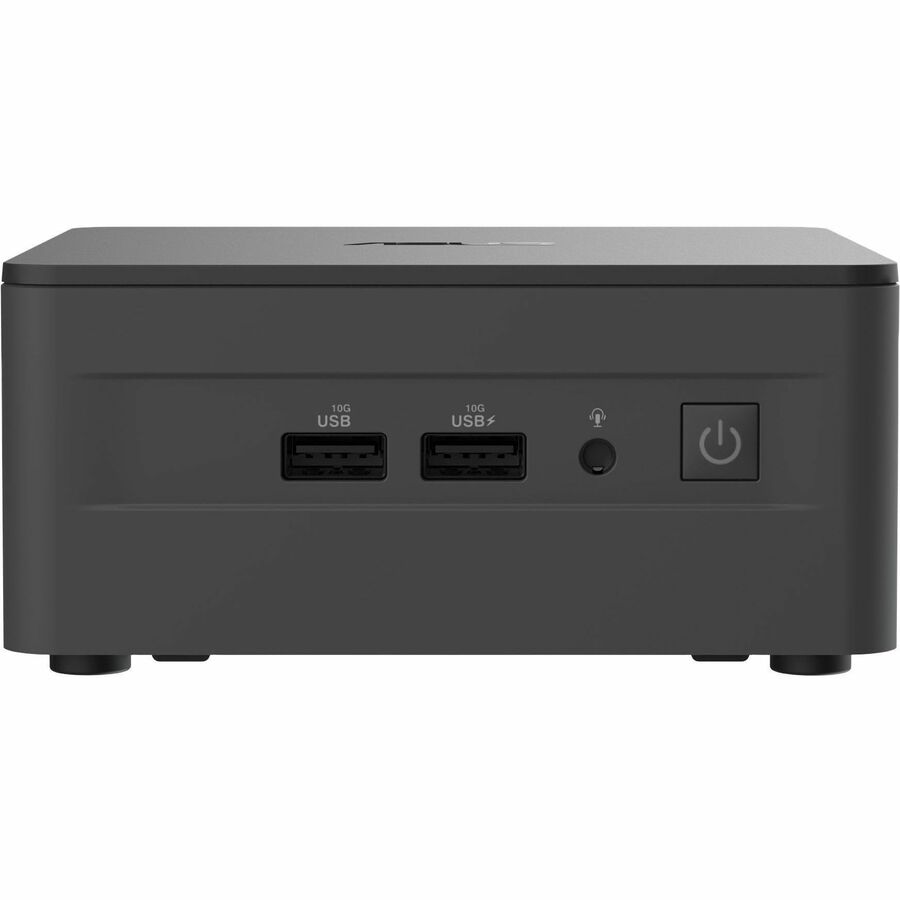

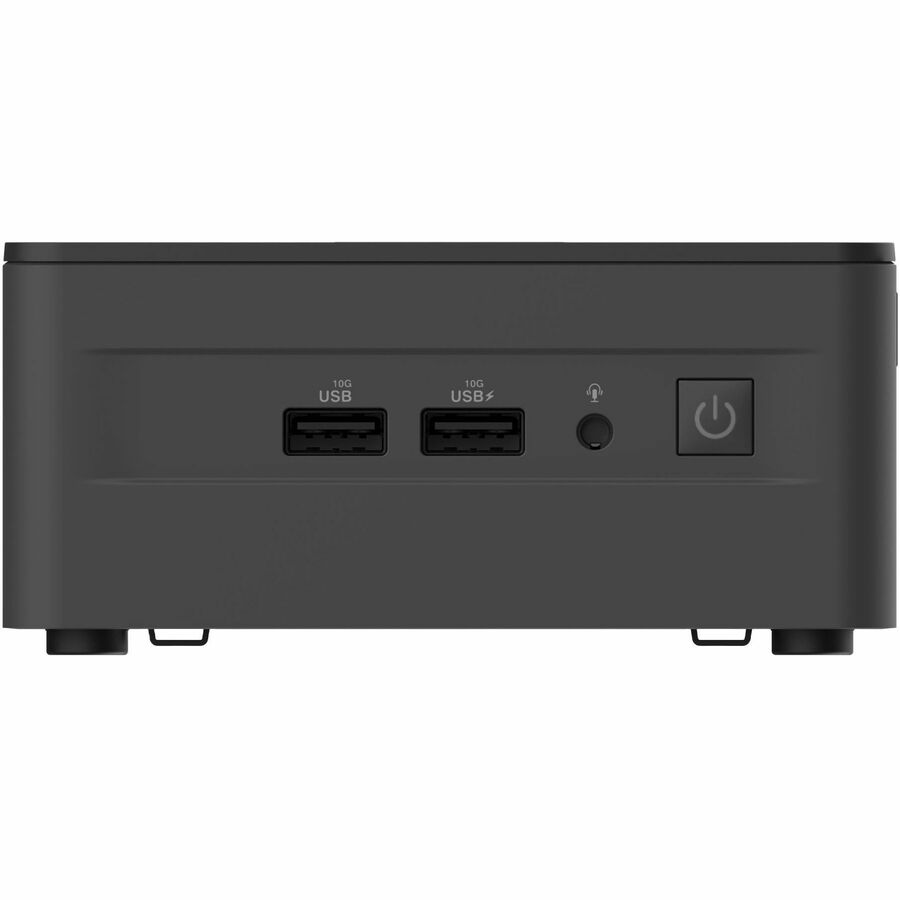

Intel Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - NVMe, Serial ATA/600 Controller - IEEE 802.11ax - Bluetooth 5.3 - HDMI - DisplayPort - Network (RJ-45) - 1 M.2 Interface(s) - 1 SATA Interface(s) - Processor Support (Core i3, Core i5, Core i7) - 2.5 Gigabit Ethernet - Windows 11 x64 Supported Operating System - 120 W - 3 Year
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Right Size for Modern Business
• 13 th Generation Intel ® Core i7/i5/i3 with integrated Intel ® Iris ® X e Graphics or Intel ® UHD Graphics, and Intel vPro ® Technology for selected SKUs.
• 14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
• For professional-grade performance, the 13th Gen Intel Core i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel ® Smart Cache, and 35W TDP
• For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel ® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1and Thunderbolt?4 ports give businesses flexibility to connect up to 4K extended displays
• Qualified for 24x7 operation
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Business Driver. Space Saver.
ASUS NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro ® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, ASUS NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
The Mini PC That Means Business | Built for Business
Drive business growth with the perfect combination of size, performance, and reliability ASUS NUC 13 Pro is ready to work.
Built for Business
Business-class features include remote power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
Additional Warranty Information: <p>3 year manufacturer warranty</p> Limited Warranty: 3 Year
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| Chipset | |
|---|---|
| Chipset Manufacturer | Intel |
| Controllers | |
| Controller Type | NVMe, Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90AR00C1-M00090 |
| Brand Name | Asus |
| Product Line | NUC 13 Pro |
| Product Model | NUC13ANHI5 |
| Product Name | NUC 13 Pro NUC13ANHI5 Barebone System |
| Package Type | Retail |
| Product Type | Barebone System |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 1 |

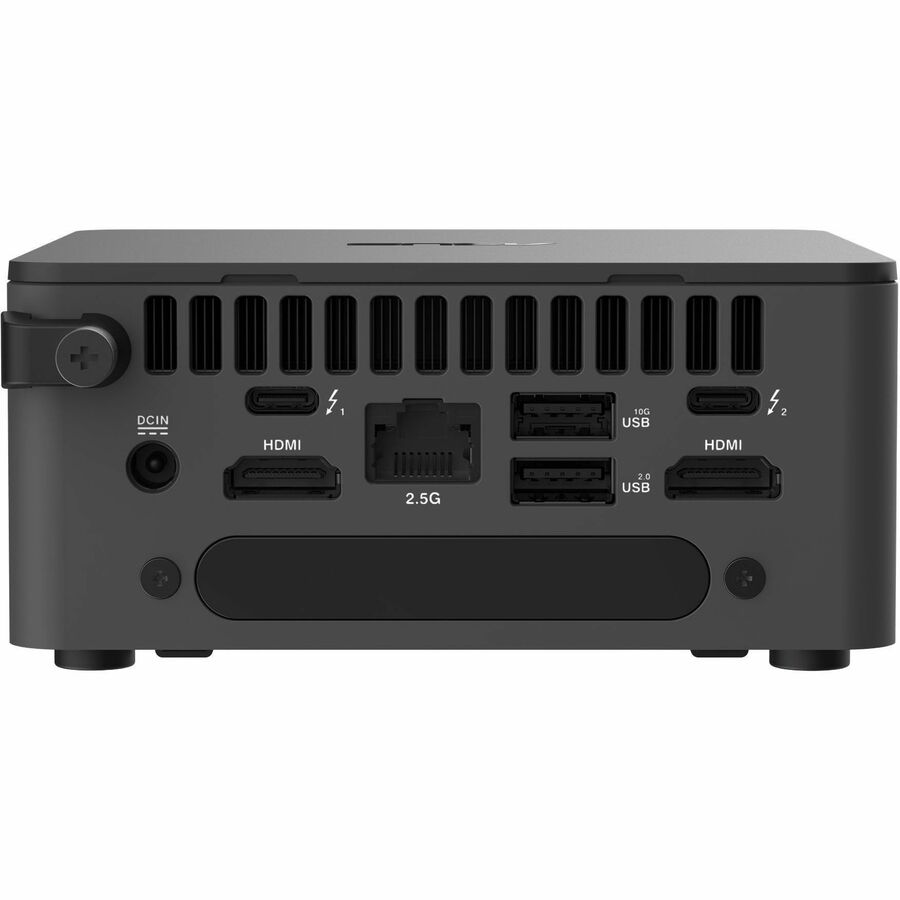

| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Operating System | |
| Operating System Supported | Windows 11 x64 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.1" |
| Width | 4.4" |
| Depth | 4.6" |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Supported | Core i3, Core i5, Core i7 |
| Processor Type | Core i5 |
| Processor Generation | 13th Gen |
| Processor Model | i5-1340P |
| 64-bit Processing | Yes |
| Technical Information | |
| AI-powered | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year manufacturer warranty |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
