SKU
8196
Category
Component Speakers
Overview
EXPAND AUDIO COVERAGE AT REDUCED COSTS

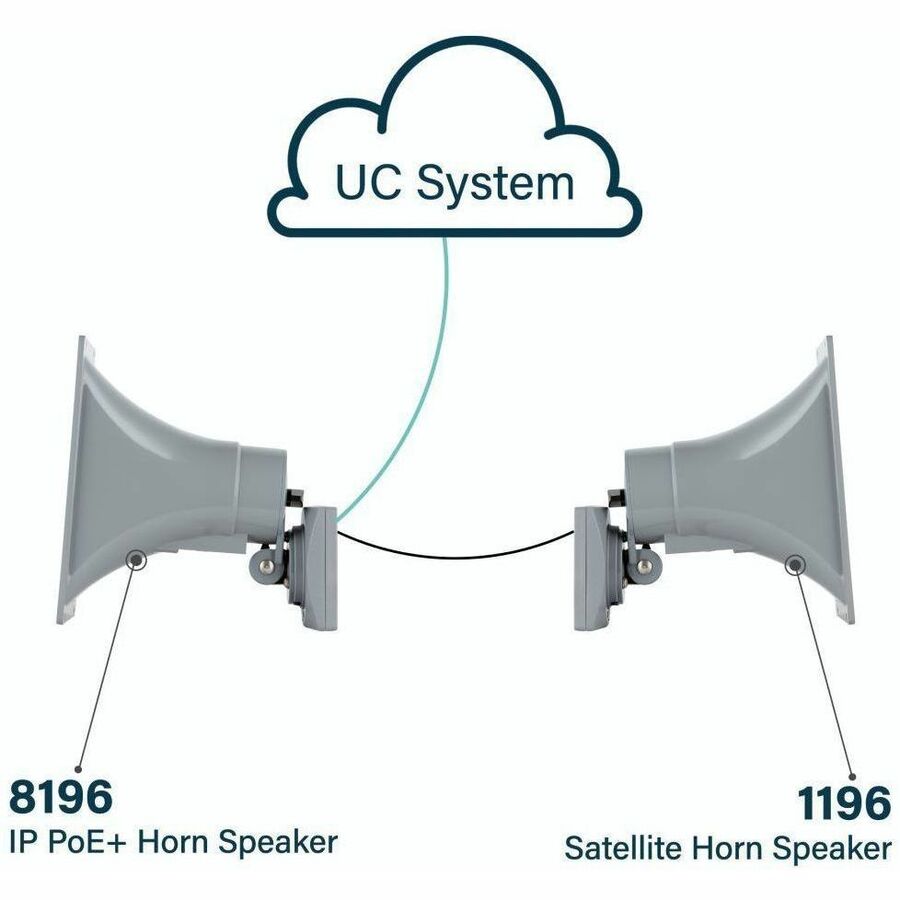

Using the Algo 8196 IP PoE+ Horn Speaker with Algo 1196 Satellite Horn Speakers is a cost-efficient way to connect and supervise multiple speakers while reducing required network ports and cable drops. Since only one network drop is required, you can reduce labor costs.

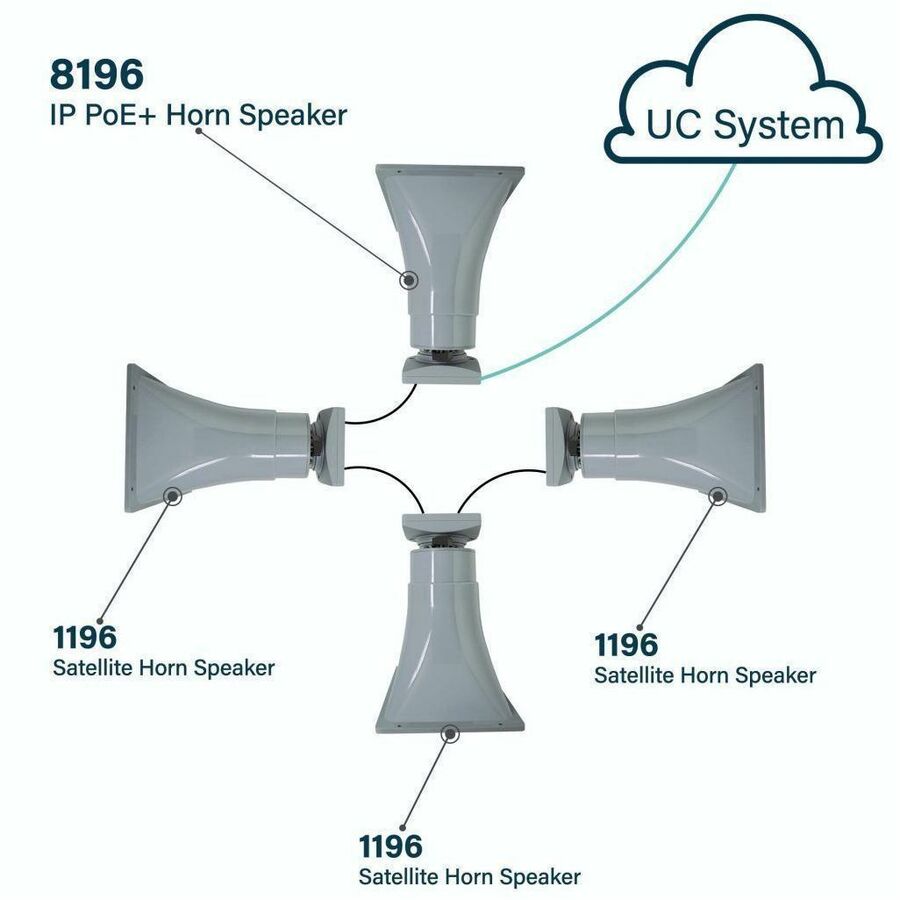

POWER AND SUPERVISE UP TO 3 SATELLITE SPEAKERS
The Algo 8196 IP PoE+ Horn Speaker can be deployed as a homerun IP speaker or in combination with satellite speakers. Satellite speakers can be connected by ethernet patch cable up to 50 ft long in a daisy chain fashion. This deployment option is ideal for environments where speakers are clustered or back-to-back on a pillar. In this case, the 8196 host speaker will split 16 W of power equally between the connected satellite speakers and use its builtin features, such as ambient noise detection, to manage the connected satellite speakers.
SIMPLIFY SPEAKER INSTALLATION
Less cabling means faster installation. When satellite speakers are connected to the Algo 8196 IP PoE+ Horn Speaker, you can automatically detect the connection status of each satellite speaker and continuously monitor activity. Both the 8196 and 1196 are designed to IP66 standards and suitable for both indoor and outdoor locations when properly installed.
Highlights
Significantly enhance the sound from your devices and drives, get immersed in sound quality
Omnidirectional Sound feature for maximum efficiency and convenience
Lets you conveniently connect to the Ethernet with port to offer maximum connection productivity
IP66 Ingress Protection (IP) rating provides effective protection against ingress of solid foreign objects, and people accessing hazardous parts of the building
Wall mount encourages collaboration, interactivity with maximum productivity
11" height for maximum coverage efficiency and feasible operation
6.6" width to ensure maximum usability and added power radiation feasibility
10.50" depth to ensure dependable sound output efficiency
5 lb Weight (Approximate) for placement, carrying, and fixing considerations
Indoor/outdoor Speaker application/usage for maximum listening and surround sound productivity with dependable usage
Specifications
General Information
Manufacturer
Algo Communication Products Ltd
Manufacturer Part Number
8196
Brand Name
Algo
Product Model
8196
Product Name
8196 IP POE+ Horn Speaker
Packaged Quantity
1
Product Type
Speaker
Physical Characteristics
Form Factor
Wall Mountable, Ceiling Mountable, Pole Mount
Height
11"
Width
6.6"
Depth
10.50"
Weight (Approximate)
5 lb
Power Description
Power Source
PoE, PoE+
Technical Information
Features
Omnidirectional Sound
Ingress Protection (IP) Rating
IP66
Miscellaneous
Application/Usage
Indoor/Outdoor, Paging, Emergency, Alert Notification, Public Address
