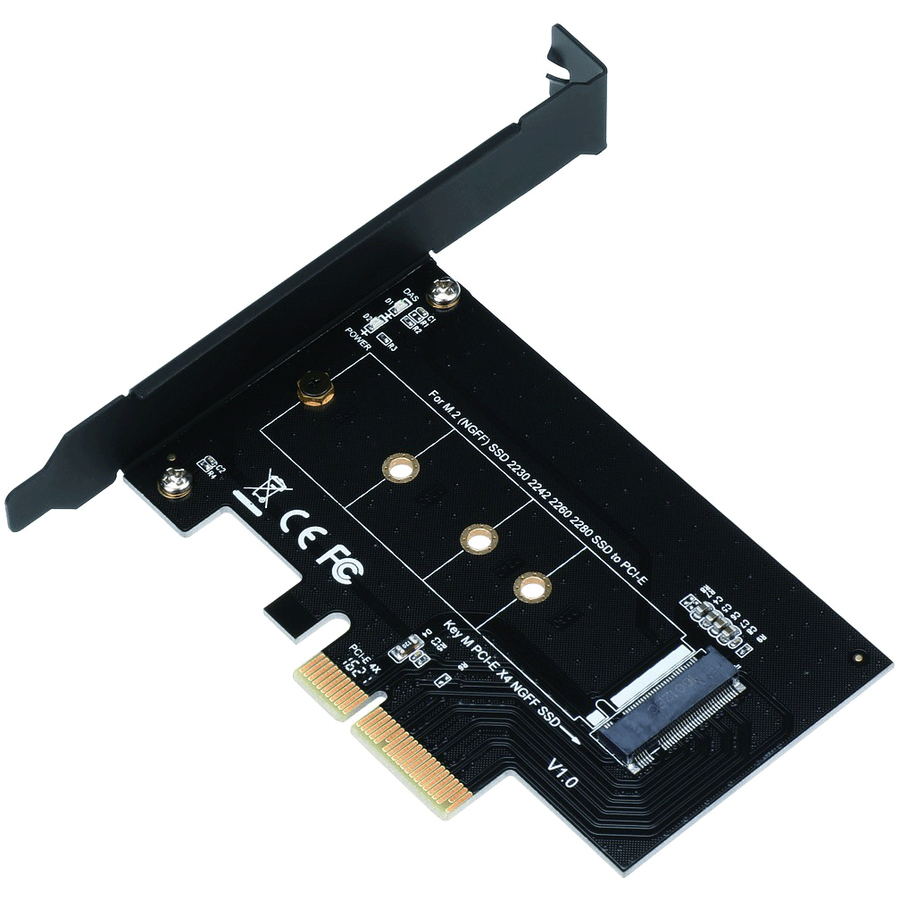

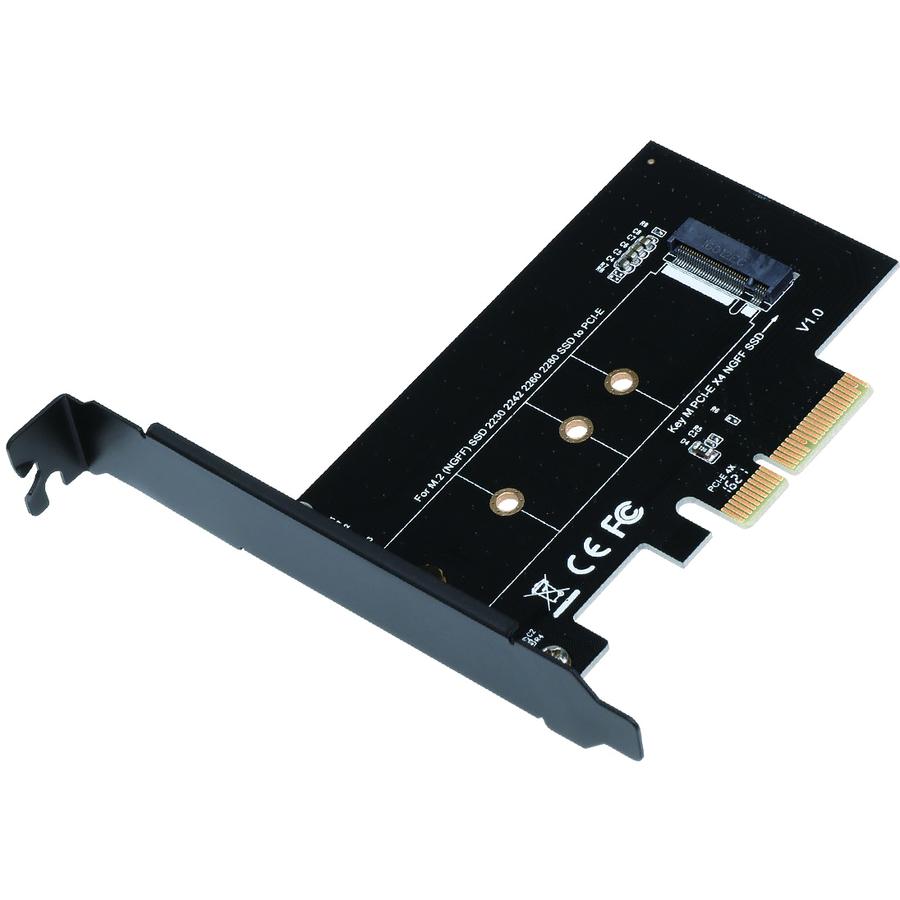

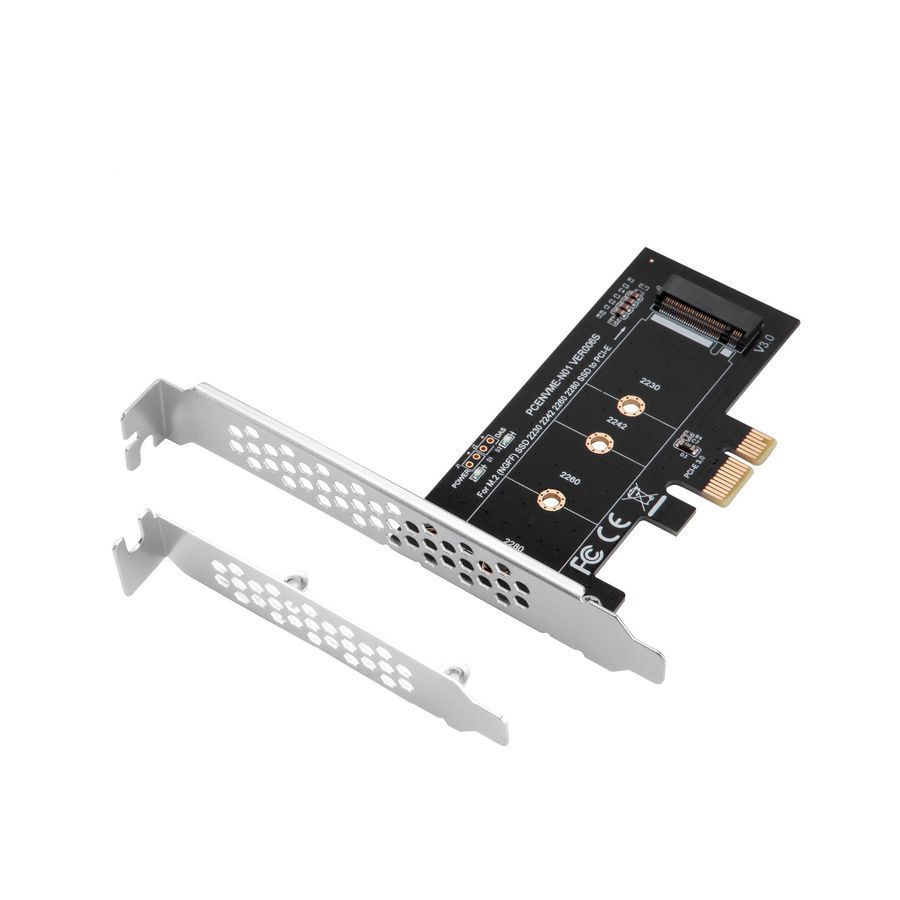

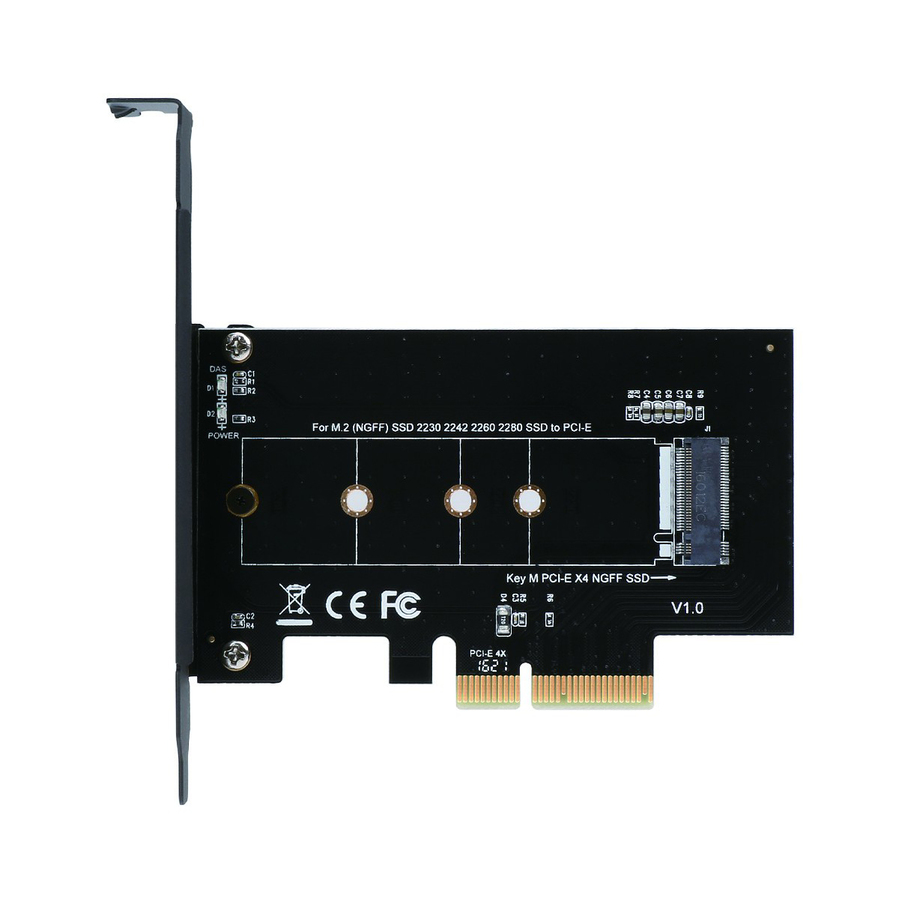

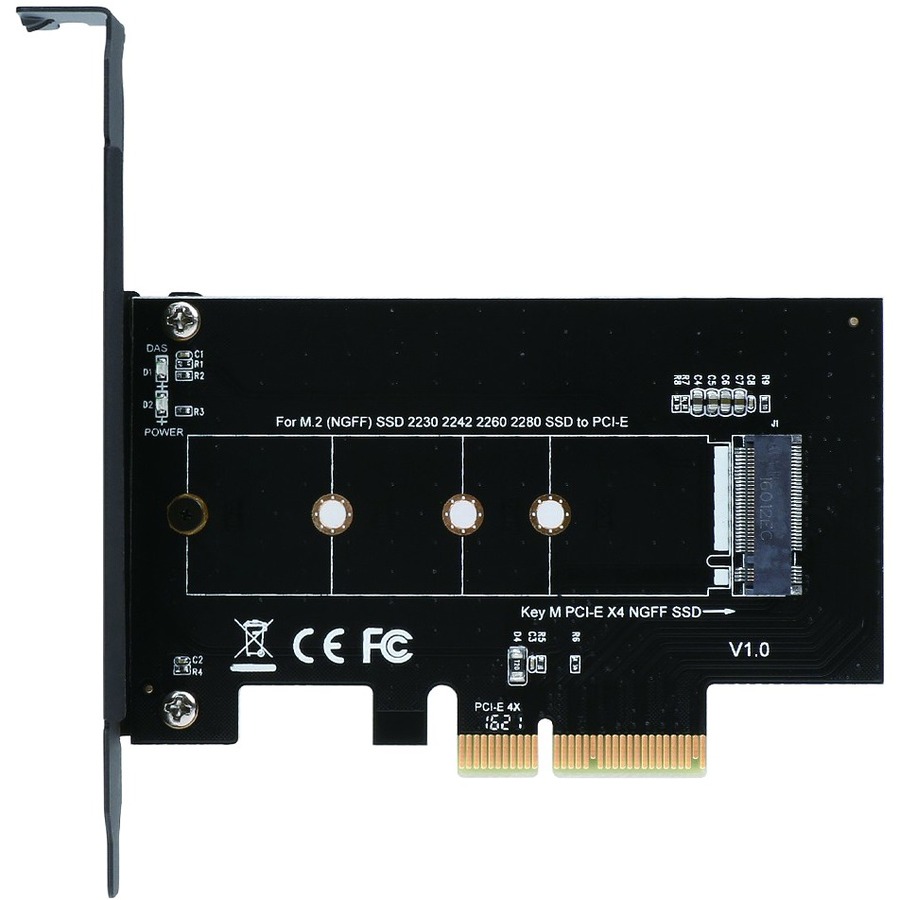

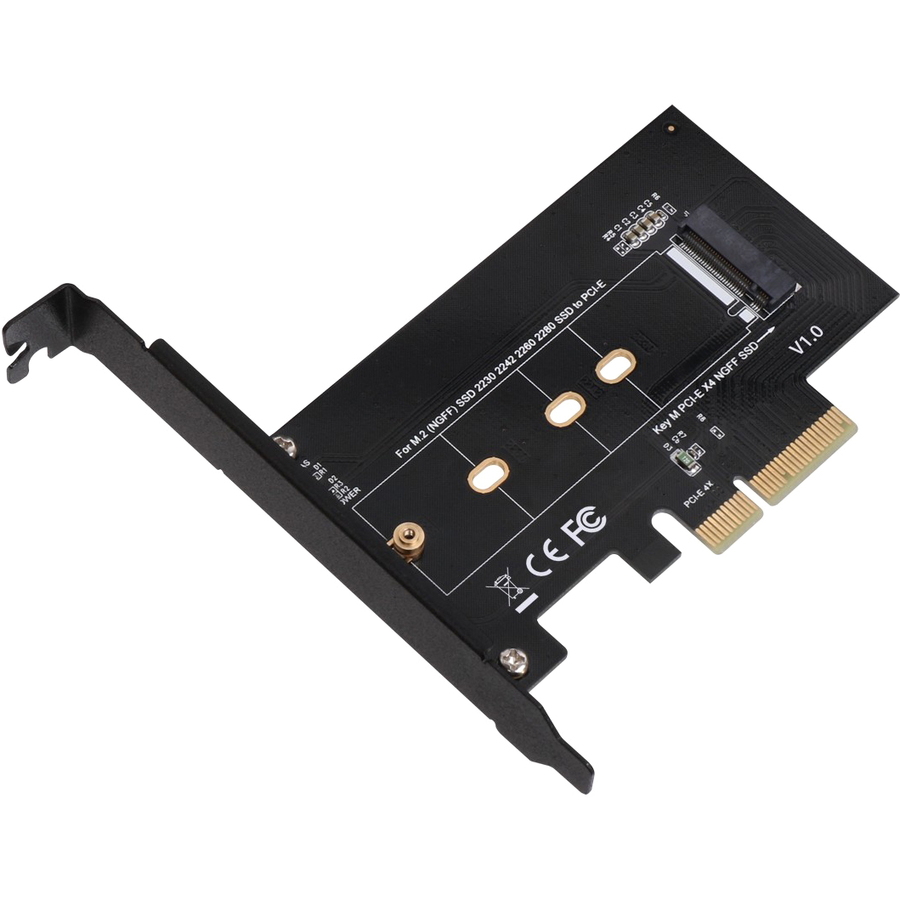

SIIG M.2 NGFF SSD PCIe Card Adapter
SIIG

SIIG M.2 NGFF SSD PCIe Card Adapter

SKU
SC-M20014-S1
Category
Hard Drive Adapters

$18.38

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SC-M20014-S1
Category
Hard Drive Adapters

Overview

SIIG's M.2 NGFF SSD PCIe Card Adapter adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer, dramatically increasing speed and performance. This M.2 NGFF SSD PCIe adapter card accommodates various form factor high performance M.2 PCIe (M key) SSDs via multiple mounting options. It is PCIe 3.0 compliant and installs into PCIe x4 or larger bus slots. With the included spare low-profile bracket, this adapter card can be installed into both standard-height and low-profile system chassis for the utmost versatility in system chassis installation. The M.2 NGFF SSD PCIe Card Adapter is the perfect high performance upgrade significantly enhancing system performance by adding M.2 PCIe (M key) SSD capability to your PCIe equipped desktop computer.

Highlights

  • Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance
  • Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes
  • Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0
  • Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
  • Built-in LEDs indicate power and data transfer status
  • Includes both low-profile and full-profile slot brackets for flexible system chassis installation
  • No driver installation required

Specifications

Package Contents
  • M.2 NGFF SSD PCIe Card Adapter
  • Spare Low Profile bracket
  • User Reference Guide
Product TypeM.2 to PCI Express Adapter
Manufacturer Part NumberSC-M20014-S1
Limited Warranty1 Year
Weight (Approximate)1.44 oz
Certifications & Standards
  • CE
  • FCC
ManufacturerSIIG, Inc
Product NameM.2 NGFF SSD PCIe Card Adapter
Brand NameSIIG
Country of OriginTaiwan
Height0.8"
Width4.7"
Depth3.5"
Environmentally FriendlyYes
Product ColorBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
