Asus M.2 to PCI Express Adapter
ASUS Computer International

Asus M.2 to PCI Express Adapter

SKU
HYPER M.2 X16 CARD V2
Category
Hard Drive Adapters

MSRP$54.99

$52.95

Save 4%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
HYPER M.2 X16 CARD V2
Category
Hard Drive Adapters

Overview

HYPER M.2 X16 Card supports up to four PCIe® 3.0 x4 M.2 drives, it can be setup with Intel VROC (Virtual RAID on CPU), a new I/O storage technology within the Intel® RSTe 5.x driver family. This feature allows users to use CPU PCIe lanes to create BOOTable RAID arrays. A CPU PCIe 3.0 x 16 slot can support data transfer rates up to 128 Gbps - that's four times faster than DMI the 32 Gbps limit of the DMI bus, and 22x faster than SATA 3.0.

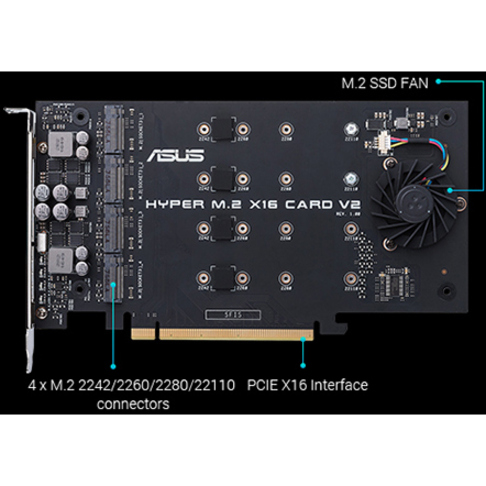

• Supports up to four PCIE® 3.0 M.2 drives, with transfer bandwidth up to 128Gbps

• Supports Intel VROC tchnology, allowing you to use CPU PCIe® lanes to create BOOTable RAID arrays

• Integrated blower-style fan to prevent throttling

Highlights

  • Intel® VROC ready and NVMe RAID support on AMD Ryzen? Threadripper?
  • New two-phase power solution with up to 14W output
  • Supports four additional NVMe M.2 drives using Intel® VROC for transfer speeds up to 128Gbps
  • PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots

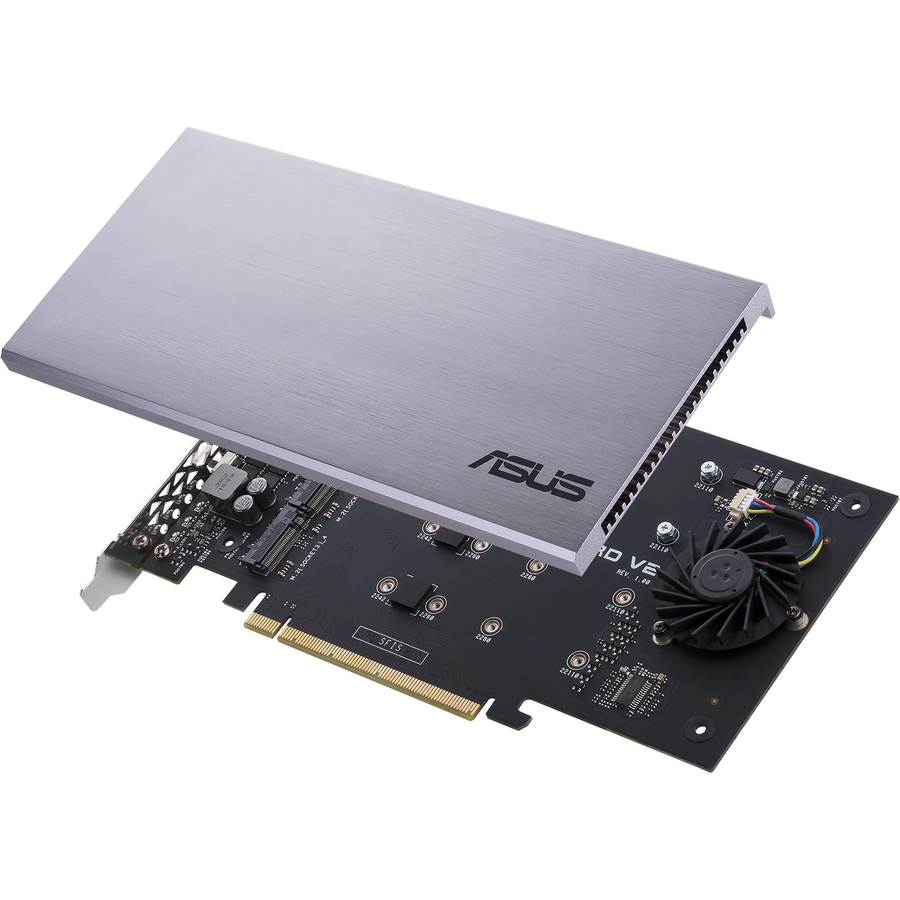

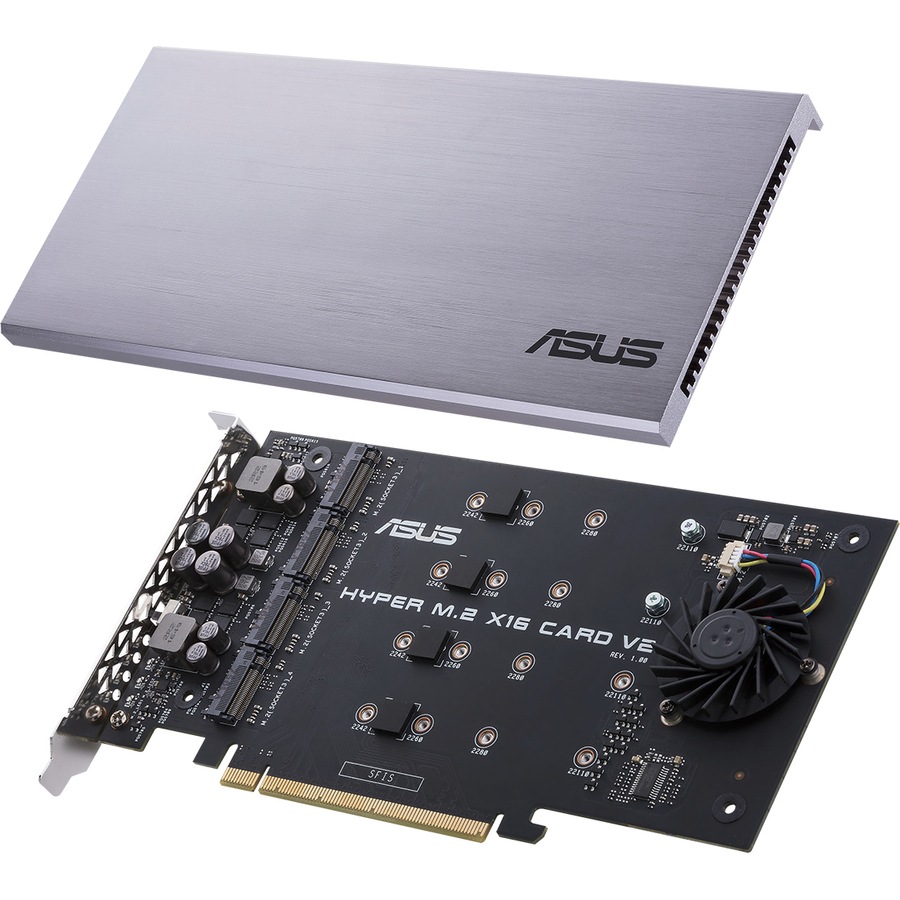

  • Stylish heatsink and integrated blower style fan prevent M.2 throttling

Specifications

Product TypeM.2 to PCI Express Adapter
Manufacturer Part NumberHYPER M.2 X16 CARD V2
Limited Warranty1 Year
Length8"
ManufacturerASUS Computer International
Product ModelHYPER M.2 X16 Card v2
Product NameM.2 to PCI Express Adapter
Brand NameAsus
Country of OriginChina
Height3.8"
Width0.5"
