DP input to 3-port DP output - 32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DisplayPort Monitors - Video Splitter for Extended Desktop Mode - DP 1.4 Multi-Stream Transport Hub / DSC / HBR3 / 7.1 ch audio - Reset button - 2 years warranty - MST for Windows PCs Only - Mac OS does not support MST function and only for Mirror mode
MSRP$129.99
$57.41
Save 56%In stock: 535
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

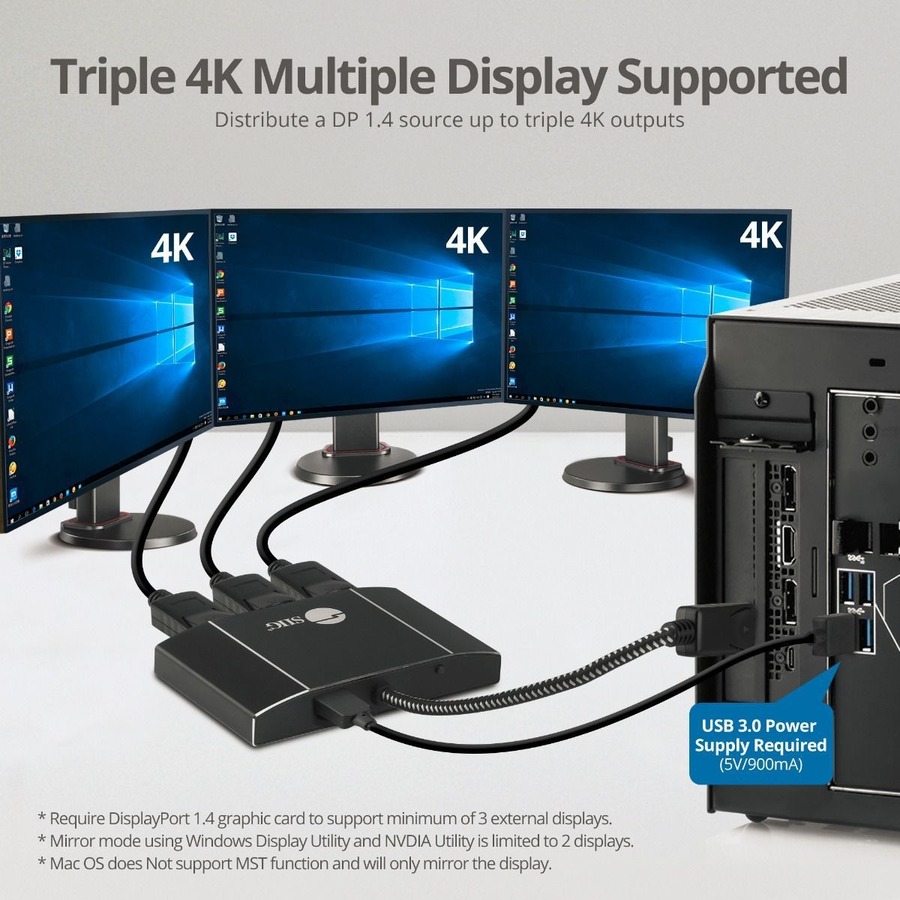

• Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
• Provides multiple display modes such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Note : Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
• Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.
Note : The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
• Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
• Supports 4K HDR and HDCP 2.2
• Reset button allows re-detection of all the displays if any of the displays are not detected
• Plug-n-play, trouble-free set up without complicated hardware or driver installation
• High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
Note : Replaces CE-DP0D12-S1
Compatibility Notes :
- Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
- Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
- Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-DP0P11-S1 |
| Brand Name | SIIG |
| Product Name | 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter |
| Product Type | A/V Cable |
| Physical Characteristics | |
| Product Color | Black |
| Weight (Approximate) | 0.28 lb |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Characteristic | Splitter Cable |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Female, Micro USB - Female |
| Connector on Second End Details | 3 x 20-pin DisplayPort 1.4 Digital Audio/Video - Female, 1 x 5-pin Micro USB - Female |
| Device Supported | Monitor, Graphics Card, Desktop Computer, Notebook, Tablet, Audio/Video Device |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Features | Multi-Stream Transport (MST) Support, HDR Support, HDCP 2.2, Plug & Play, EMI Protection, Display Stream Compression (DSC), Mirror Display Mode, Extended Display Mode, Eyefinity Technology |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Microsoft Surface Book Microsoft Tablet: Surface Pro 2 Surface Pro 3 Surface Pro 4 AMD Graphics Card: RX560 RX570 Radeon 7200 Series |
| Environmentally Friendly | Yes |
| Country of Origin | China |
