SKU
UN552VS-TMX9P
Category
Digital Signage Systems
Overview
NEC's complete 55" 3x3 LCD TileMatrix Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for
dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
• Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
• Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
• SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
• 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
• HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
• New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
• Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
• NEC Display Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
Warranty
Limited Warranty: 3 Year
Highlights
Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
Experience luminescent visual images with LCD display
Features full 1920 x 1080 HD resolution enabling sharp and clear images
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
Direct LED backlighting technology enabled for a bright and sharp display
Specifications
Display & Graphics
Number of Screens
9
Video Wall Configuration
3x3
Viewable Screen Size
55"
Screen Size Class
55"
Display Screen Type
LCD
Display Resolution
1920 x 1080
Backlight Technology
Direct LED
General Information
Manufacturer
Sharp
Manufacturer Part Number
UN552VS-TMX9P
Brand Name
NEC Display
Product Line
MultiSync
Product Model
UN552VS-TMX9P
Product Name
55" LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle
Product Type
Digital Signage Display

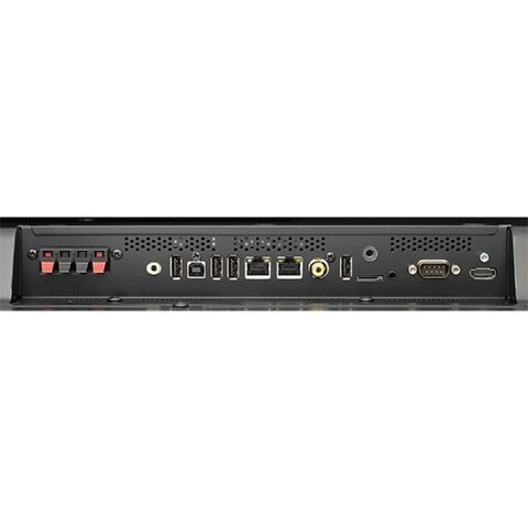

Interfaces/Ports
USB
Yes
DVI
Yes
HDMI
Yes
DisplayPort
Yes
Serial
Yes
Number of USB 2.0 Ports
2
Number of HDMI Inputs
2
Number of DisplayPorts
2
Network & Communication
Ethernet
Yes
Physical Characteristics
VESA Mount Standard
400 x 400
Mount Type
Panel Mount
Height
26.8"
Width
47.7"
Depth
3.9"
Weight (Approximate)
56.90 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Technical Information
Video Wall Compatible
Yes
Bezel Width (Top)
20 mil
Bezel Width (Bottom)
20 mil
Bezel Width (Left)
20 mil
Bezel Width (Right)
20 mil
Video
Scan Format
1080p
Brightness
500 Nit
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
55" LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle
