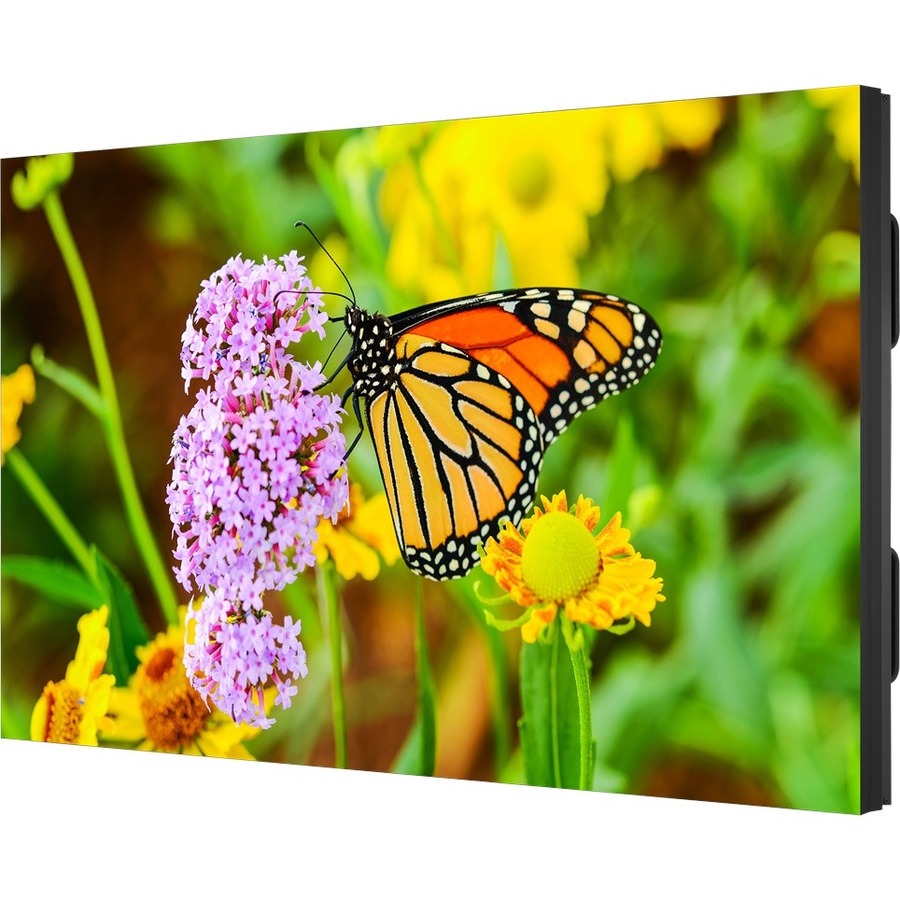

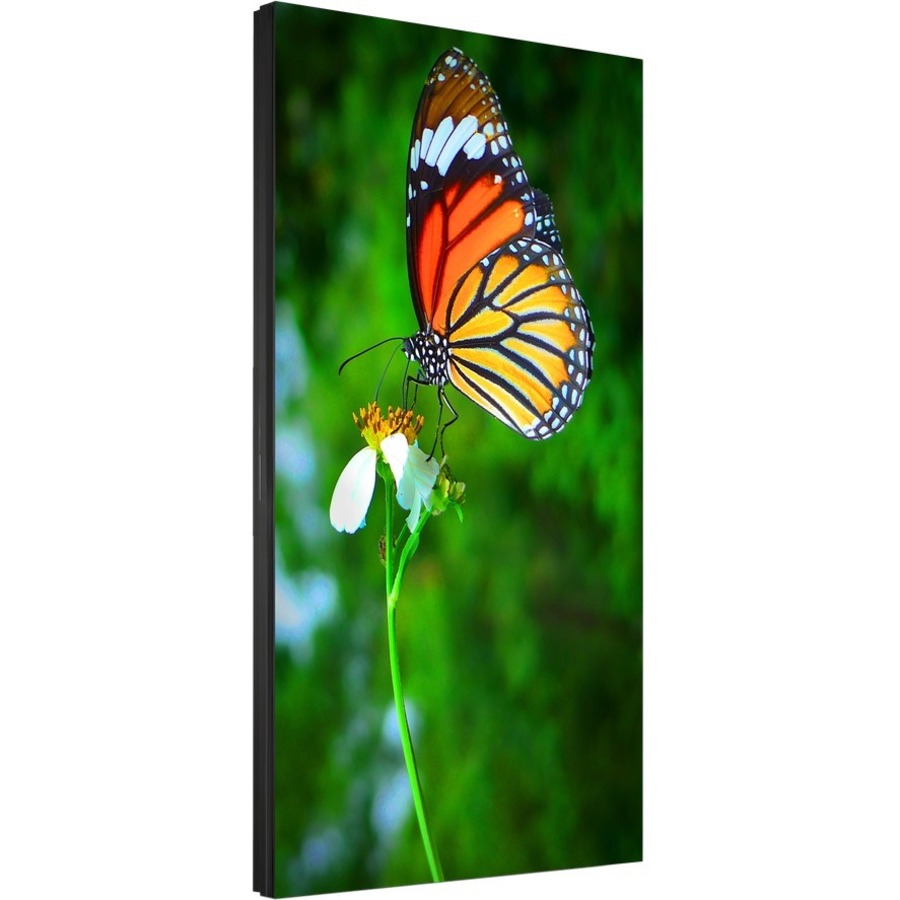

NEC Display 55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle
55" LCD - Super In-plane Switching (S-IPS) Technology - 2x2 Video Wall - 24 Hours/7 Days Operation - 1920 x 1080 - Direct LED - 700 Nit - 1080p - HDMI - USB - DVI - SerialEthernet
SKU
UN552S-TMX4P
Category
Digital Signage Systems
MSRP$33,089.00
$21,806.43
Save 34%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Sharp through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
UN552S-TMX4P
Category
Digital Signage Systems
Overview
NEC's complete 55" 2x2 LCD TileMatrix Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
• Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
• Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
• SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
• 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
• HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
• New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
• Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
• NEC Display Wall Calibrator , MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
Warranty
Limited Warranty: 3 Year
Highlights
Digital Signage Display - Ideal for rack, passageway, booth or display counter
Experience luminescent visual images with LCD display
Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
Direct LED backlighting technology enabled for a bright and sharp display
Specifications
Display & Graphics
Number of Screens
4
Video Wall Configuration
2x2
Viewable Screen Size
55"
Screen Size Class
55"
Display Screen Type
LCD
Display Resolution
1920 x 1080
Backlight Technology
Direct LED
General Information
Manufacturer
Sharp
Manufacturer Part Number
UN552S-TMX4P
Brand Name
NEC Display
Product Line
MultiSync
Product Model
UN552S-TMX4P
Product Name
55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle
Product Type
Digital Signage Display

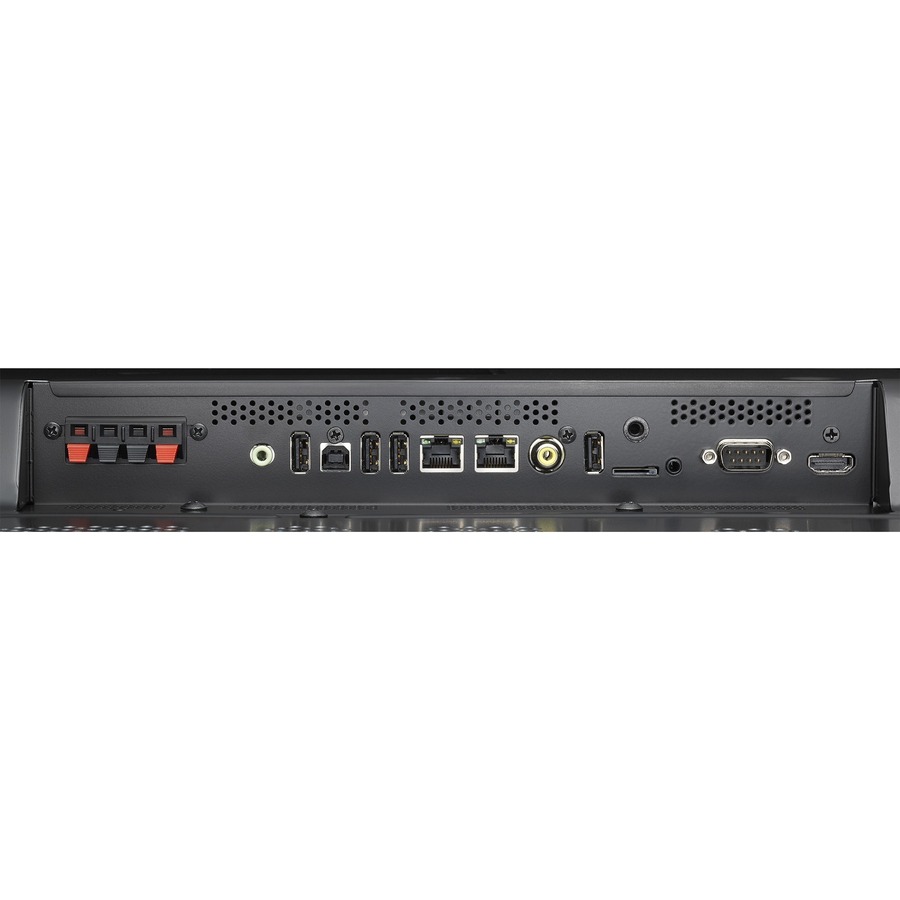

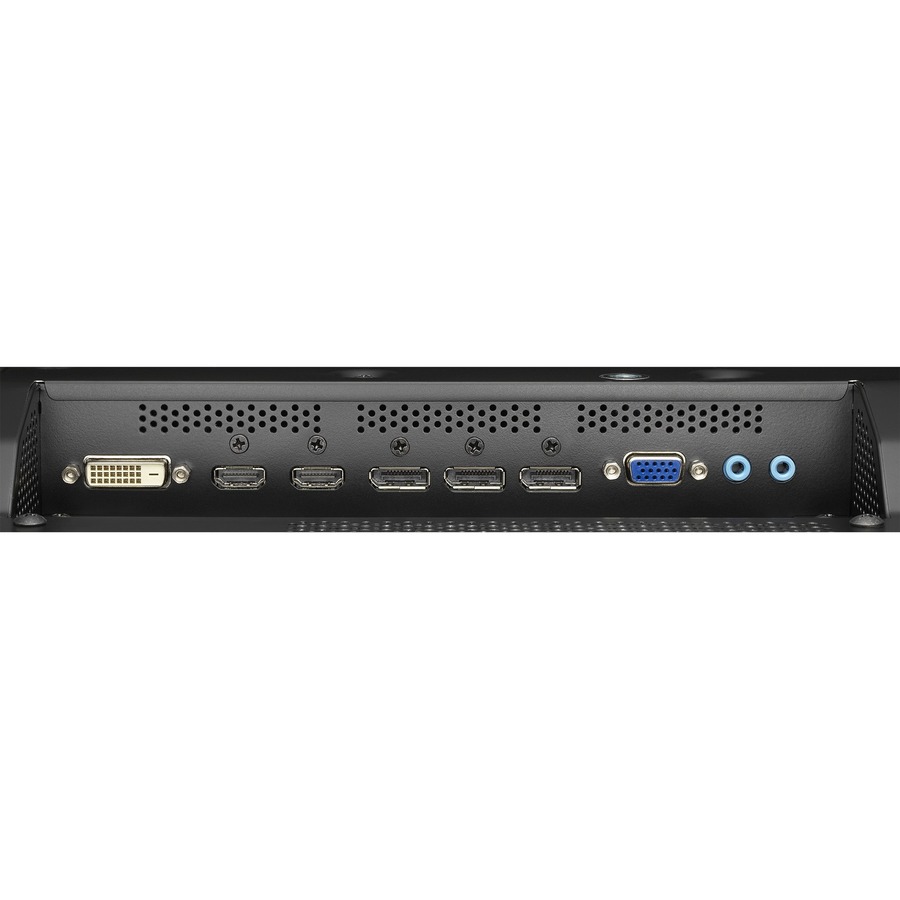

Interfaces/Ports
USB
Yes
DVI
Yes
HDMI
Yes
DisplayPort
Yes
Serial
Yes
Number of USB 2.0 Ports
2
Number of HDMI Inputs
2
Number of DisplayPorts
2
Network & Communication
Ethernet
Yes
Physical Characteristics
VESA Mount Standard
400 x 400
Height
26.8"
Width
47.7"
Depth
3.9"
Weight (Approximate)
56.88 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Technical Information
Video Wall Compatible
Yes
Bezel Width (Top)
17.3 mil
Bezel Width (Bottom)
17.3 mil
Bezel Width (Left)
17.3 mil
Bezel Width (Right)
17.3 mil
Panel Technology
Super In-plane Switching (S-IPS) Technology
Operation Hours
24 Hours/7 Days
Video
Scan Format
1080p
Brightness
700 Nit
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle
