11.50 ft LCD - ARM Cortex A55 1.50 GHz - 4 GB - 1920 x 1080 - 16:9 - Direct View LED - 500 Nit - 1080p - HDMI - USB - SerialEthernet - Android 13 - Black
MSRP$36,000.00
$29,124.53
Save 19%In stock: 4
Genuine Sharp through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

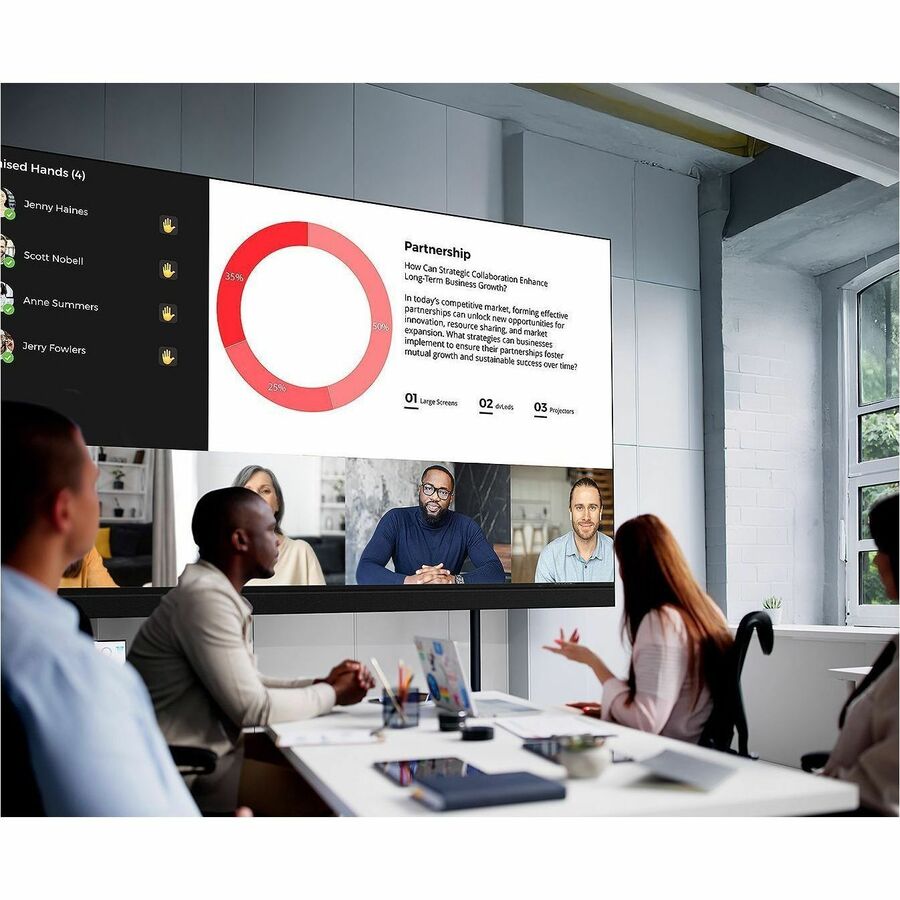

Sharp's new LD-AF Series of direct view LED displays offer a streamlined, user-friendly solution that differs from standard LED walls. Unlike traditional direct view LED displays, which often require additional components like external controllers or speakers, Sharp's LD-AF Series features built-in speakers, remote control functionality, and an intuitive interface for easy setup and operation. Designed for simplicity and convenience, these displays provide a unified user experience across Sharp's line of system-on-chip (SoC) displays, and a streamlined installation process. Available in 138" and 165" diagonal sizes, they deliver Full HD (1920x1080) imagery, making them perfect for environments like conference rooms and meeting spaces that need a high-quality, hassle-free display.
• Full HD (1920x1080) native resolution with a 138" class diagonal for crystal clear and immersive imagery
• Quick and easy installation process with a single power cable and a hassle-free installation process, the Sharp LD-AF Series can be implemented in as little as two hours

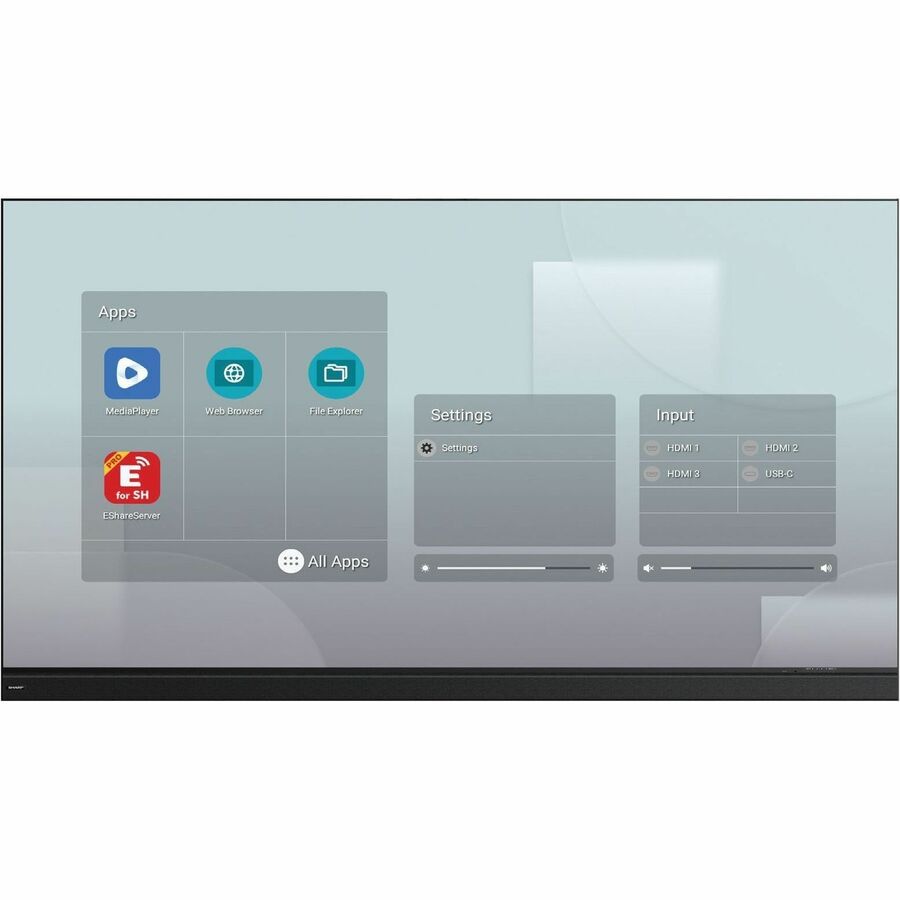

• Powerful System-on-Chip for versatile functionality powered by Android 13 with a high-end integrated media player, as well as support for third-party applications (APKs) as needed
• Integrated USB-C connection that not only allows for DP-Alt mode, but also upstream cababilities for controlling peripherals through the separate USB-A downstream connection
• NaViSet Administrator is Sharp's proprietary software solution that greatly eases administration and management of larger disply device installations. Control your entire Sharp display ecosystem through this optional software
• Fully compatible with Crestron Connected software as well as Crestron XiO Cloud Service
• To learn more about Sharp's LD-AF Series,
• Please contact Sharp or your local AV dealer for information on pricing including installation.
Limited Warranty: 2 Year
| Display & Graphics | |
|---|---|
| Number of Screens | 1 |
| Viewable Screen Size | 11.50 ft |
| Screen Size Class | 11.50 ft |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Module Resolution | 384 x 216 |
| Orientation | Landscape |
| Backlight Technology | Direct View LED |
| Aspect Ratio | 16:9 |
| Maximum LED Life | 11.4 Year |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 85% |
| General Information | |
| Manufacturer | Sharp |
| Manufacturer Part Number | LD-A1381F |
| Brand Name | Sharp NEC Display |
| Product Series | LD-AF |
| Product Model | LD-A1381F |
| Product Name | LD-A1381F Digital Signage Display |
| Product Type | Digital Signage Display |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of HDMI Inputs | 3 |
| RS-232C Input | Yes |
| Digital Audio Optical Output | Yes |
| Number of HDMI 2.0 Ports | 3 |
| Memory | |
| Standard Memory | 4 GB |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Wall Mountable |
| Mount Surface | Wall |
| Height | 72.2" |
| Width | 10 ft |
| Depth | 3" |
| Weight (Approximate) | 304.20 lb |
| Processor & Chipset | |
| Processor Manufacturer | ARM |
| Processor Type | Cortex A55 |
| Processor Speed | 1.50 GHz |
| Processor Core | Quad-core (4 Core) |
| Software | |
| Operating System | Android 13 |
| Technical Information | |
| Video Wall Compatible | Yes |
| Ingress Protection (IP) Rating | IP20 |
| Video | |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 6,500:1 |
| Brightness | 500 Nit |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Conference Room, Meeting Room, Indoor |
| Indoor/Outdoor | Indoor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
