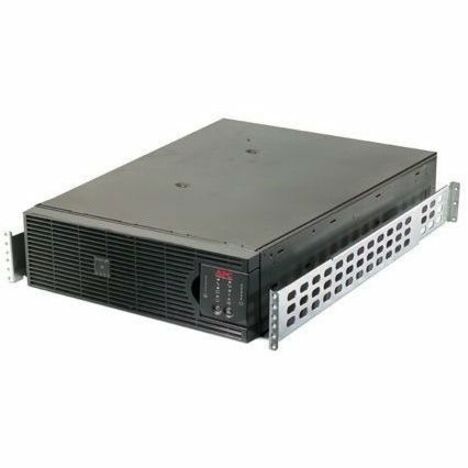

APC Smart-UPS RT 6kVA, 208V, Rack, 3U, 4x 5-20R, 1x L6-30R, 1x L14-30R NEMA outlets, with 208/240 (Split-Phase) to 120
Schneider Electric

APC Smart-UPS RT 6kVA, 208V, Rack, 3U, 4x 5-20R, 1x L6-30R, 1x L14-30R NEMA outlets, with 208/240 (Split-Phase) to 120

3U Rack-mountable - 2.50 Hour Recharge - 4.40 Minute Stand-by - 120 V AC, 208 V AC Input - 120 V AC, 208 V AC Output - Single Phase - Sine Wave - Serial Port - 1 x NEMA L14-30R, 1 x NEMA L6-30R, 4 x NEMA 5-20R Receptacle(s) - 6 x Battery/Surge Outlet

SKU
SURTD6000RMXLP3U
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SURTD6000RMXLP3U
Category
General Purpose UPS

Overview

Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChuteâ"¢ management software provides unattended graceful shutdown of network operating systems. All models 6 kVA and above include an integrated network management card for remote management (optional on models below 6 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.

Warranty

Limited Warranty: 2 Year

Highlights

  • Multiple output voltages - 48V DC, 24V DC, and 120V AC are available
  • Rack-mountable

Specifications

Battery ChemistryLead Acid
Package Contents
  • Smart-UPS RT 6000VA Rack-Mountable UPS
  • CD with software
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • User manual
Product TypeDouble Conversion Online UPS
Hot SwappableYes
Input Voltage120 V AC, 208 V AC
Manufacturer Part NumberSURTD6000RMXLP3U
Limited Warranty2 Year
Output Voltage120 V AC, 208 V AC
Weight (Approximate)128 lb
Form FactorRack-mountable
ManufacturerSchneider Electric SA
Product NameSmart-UPS RT 6000VA Rack-Mountable UPS
Product LineSmart-UPS
Surge Energy Rating480 J
Waveform TypeSine Wave
Product SeriesRT
Rack Height3U
Brand NameAPC
Plug/Connector TypeNEMA L14-30P
Cord Length10 ft
Height5.12"
Width17.01"
Depth25.98"
PhaseSingle Phase
Receptacle TypeNEMA L14-30P
Environmentally FriendlyYes
Serial PortYes
Backup/Run Time (Half Load)14.10 Minute
Backup/Run Time (Full Load)4.40 Minute
Battery CharacteristicsMaintenance-free, Sealed, Spill-proof
Load Capacity (VA)6000 VA
Load Capacity (Watt)4200 W
Number of Battery & Surge Outlets6
Typical Battery Recharge Time2.50 Hour
Product ColorBlack

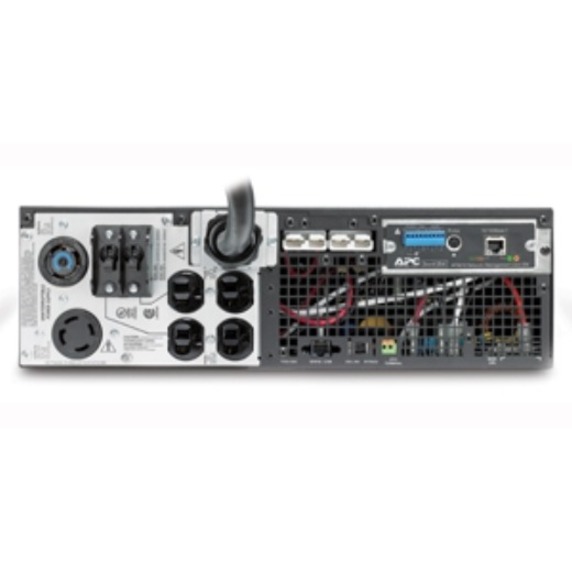

Receptacle Detail1 x NEMA L14-30R, 1 x NEMA L6-30R, 4 x NEMA 5-20R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping PackagingNo
