L6-20R & 3x L6-30R & 1x L14-30R NEMA outlets, w/transfo 208/240V to 120/208/240V
2U Tower - 1.50 Hour Recharge - 5.50 Minute Stand-by - 230 V AC, 240 V AC Input - 230 V AC, 240 V AC Output - Single Phase - Sine Wave - USB - LCD Display - 8 x NEMA 5-20R, 4 x NEMA L6-20R, 3 x NEMA L6-30R, 1 x NEMA L14-30R Receptacle(s)
SKU
Category
General Purpose UPS
Request pricing
Confirmed with stock before any payment. TAA verified on request.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
General Purpose UPS
Overview

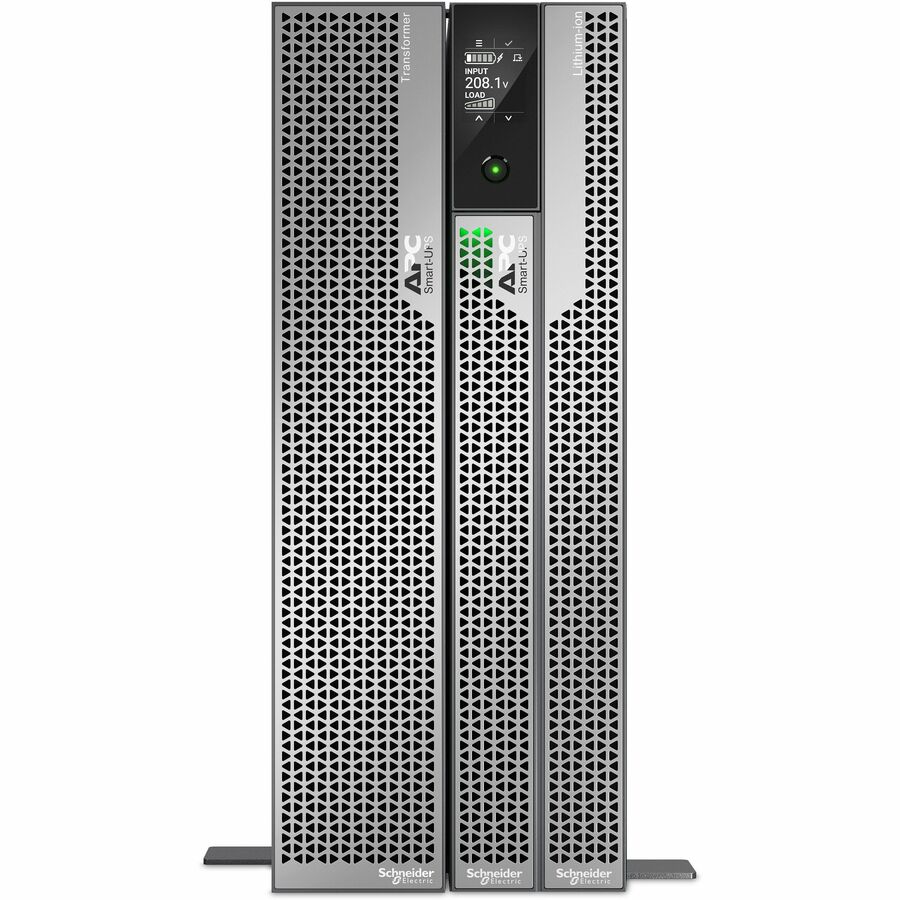

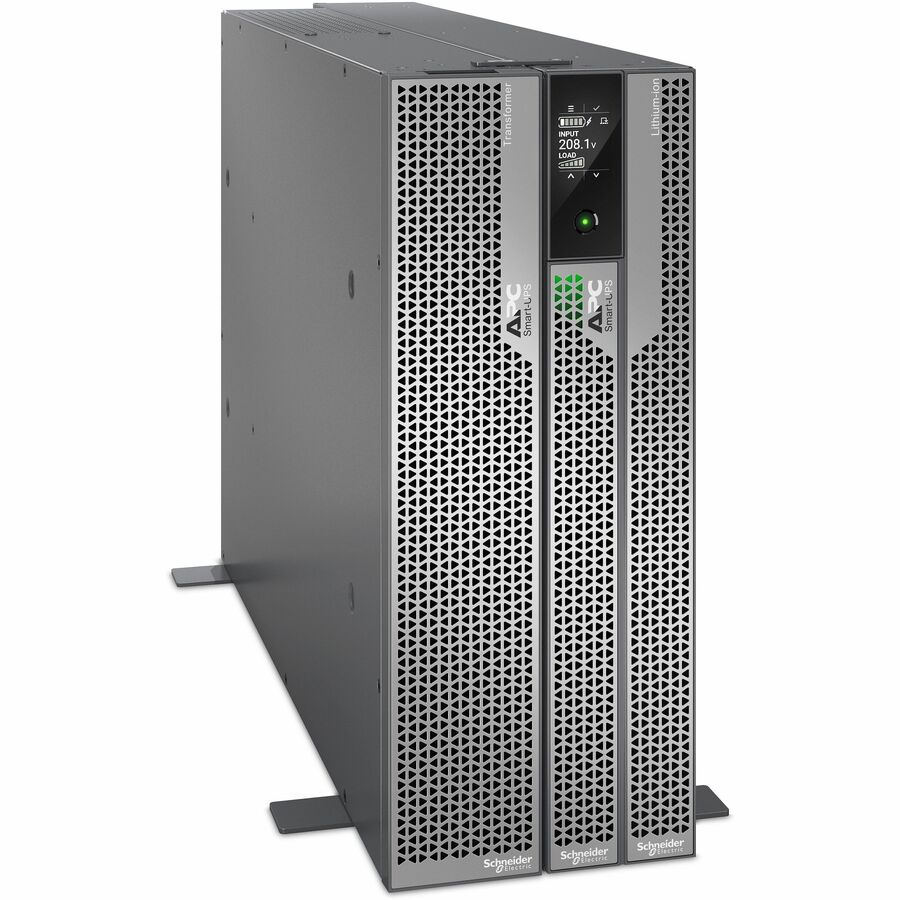

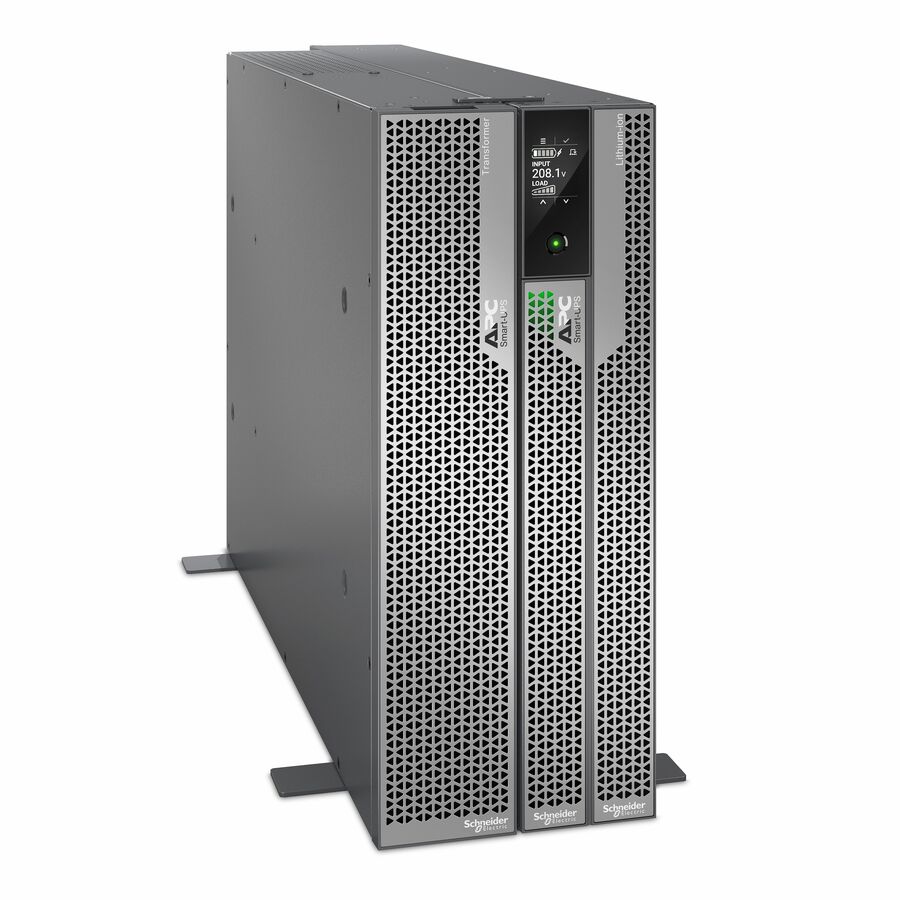

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Standard warranty, 5 years repair or replace.
Warranty
Limited Warranty: 5 Year
Highlights
Smart-UPS Ultra 5kW UPS & stepdown transformer
2U UPS and 3U height stepdown transformer
Provides 120V output for 208V UPS
(2) L6-30R (1)L5-13R (2)5-20R
1-Year Secure Network Management Card subscription included
Standard warranty 5 years repair or replace
Specifications
Battery Information
Battery Chemistry
Lithium Ion (Li-Ion)
Battery Energy
2304 kJ
Backup/Run Time (Full Load)
5.50 Minute
Backup/Run Time (Half Load)
11.90 Minute
Battery Life
10 Year
Typical Battery Recharge Time
1.50 Hour
Display & Graphics
Display
LCD
Environmental Conditions
Maximum Operating Elevation
10000 ft
Maximum Operating Temperature
104°F (40°C)
Maximum Storage Elevation
50000 ft
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity
95%
Sound Emission (A-Weighted)
55 dB(A)
Thermal Dissipation
306.85 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SRTL5KRM2UT-5KTF
Brand Name
APC
Product Line
Smart-UPS Ultra
Product Name
Smart-UPS Ultra 5000VA Tower UPS
Packaged Quantity
1
Product Type
Double Conversion Online UPS
Interfaces/Ports
USB
Yes
EPO Port
Yes
Management
Network Management
Network Management Card 3 (NMC3)
Physical Characteristics
Product Color
Black
Height
17.13"
Width
8.66"
Depth
28.31"
Rack Height
2U
Form Factor
Tower
Weight (Approximate)
189.38 lb
Power Description
Load Capacity (VA)
4900 VA
Load Capacity (Watt)
4900 W
Input Voltage
230 V AC, 240 V AC
Input Voltage Range
100 V AC - 275 V AC
Output Voltage
230 V AC, 240 V AC
Input Frequency
70 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Surge Energy Rating
1260 J
Technical Information
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-30P

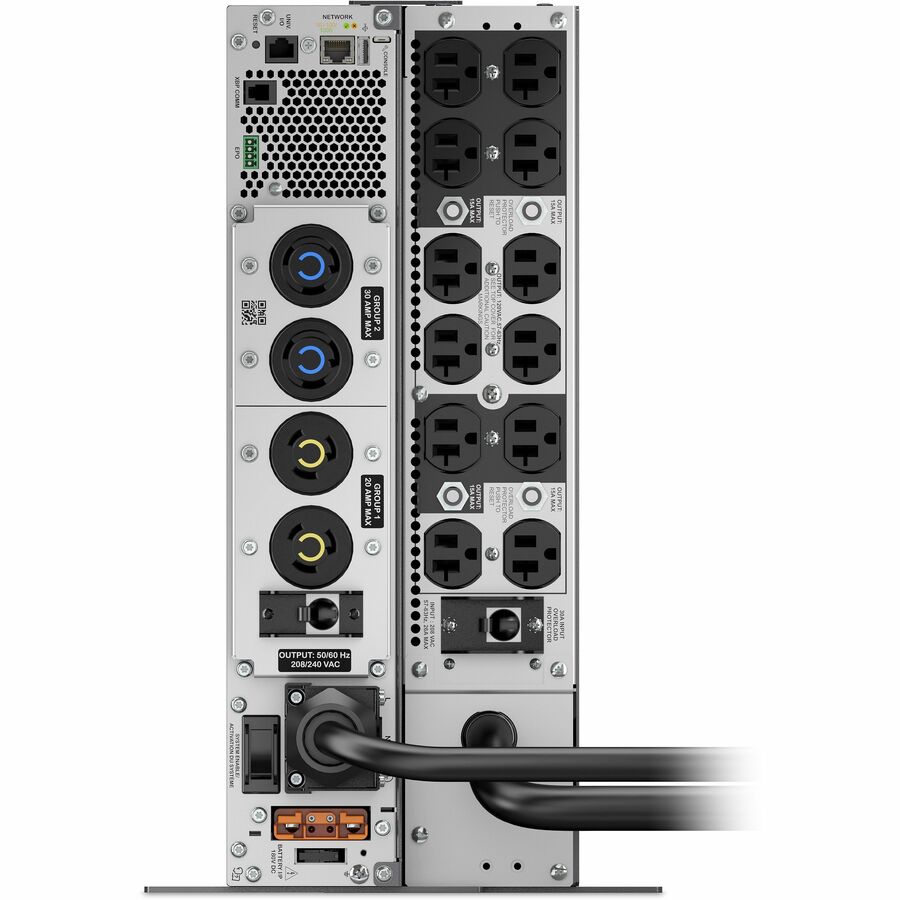

Receptacle Detail
8 x NEMA 5-20R, 4 x NEMA L6-20R, 3 x NEMA L6-30R, 1 x NEMA L14-30R
