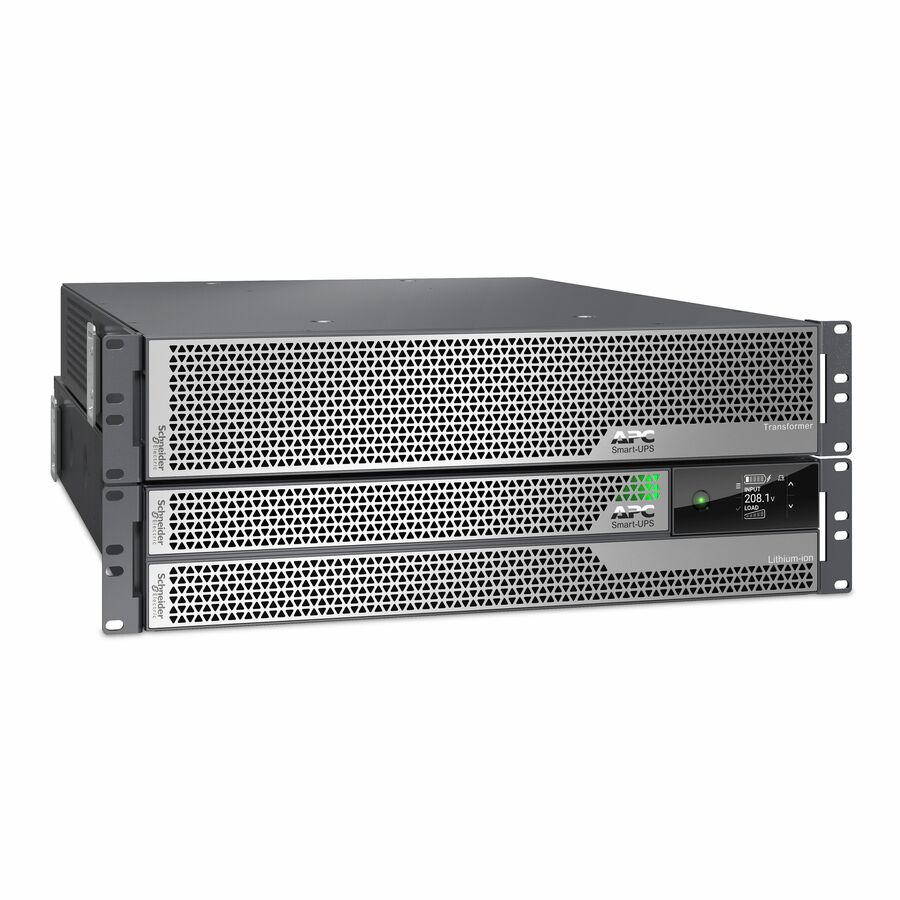

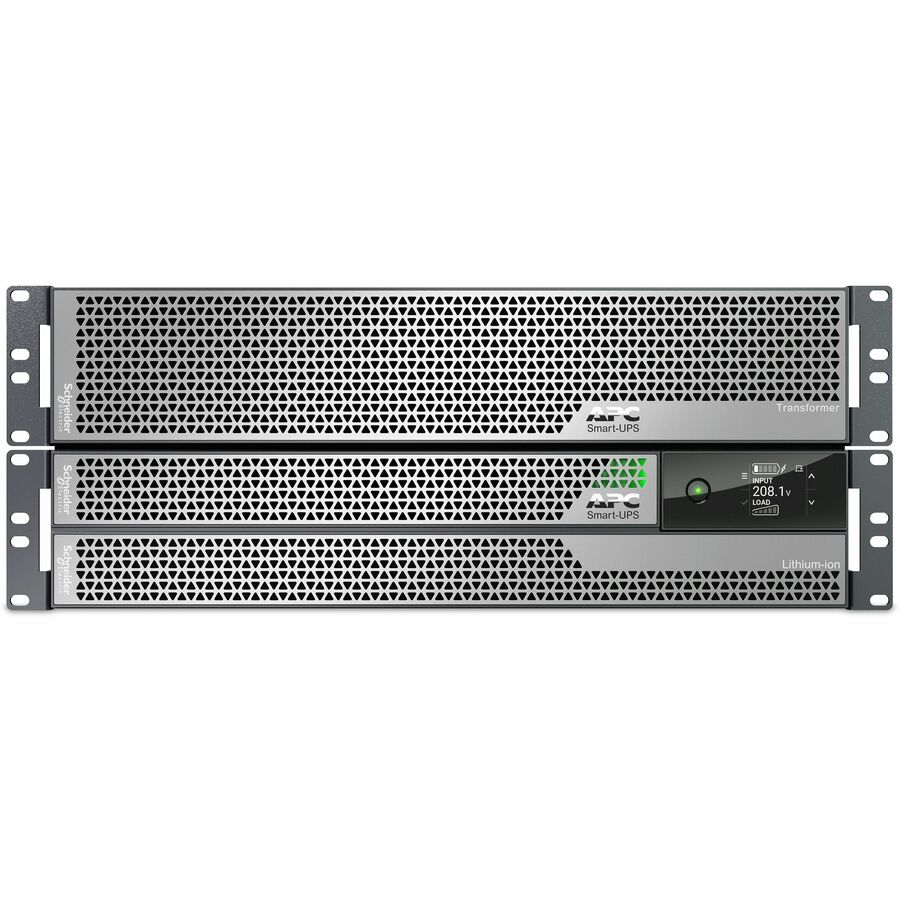

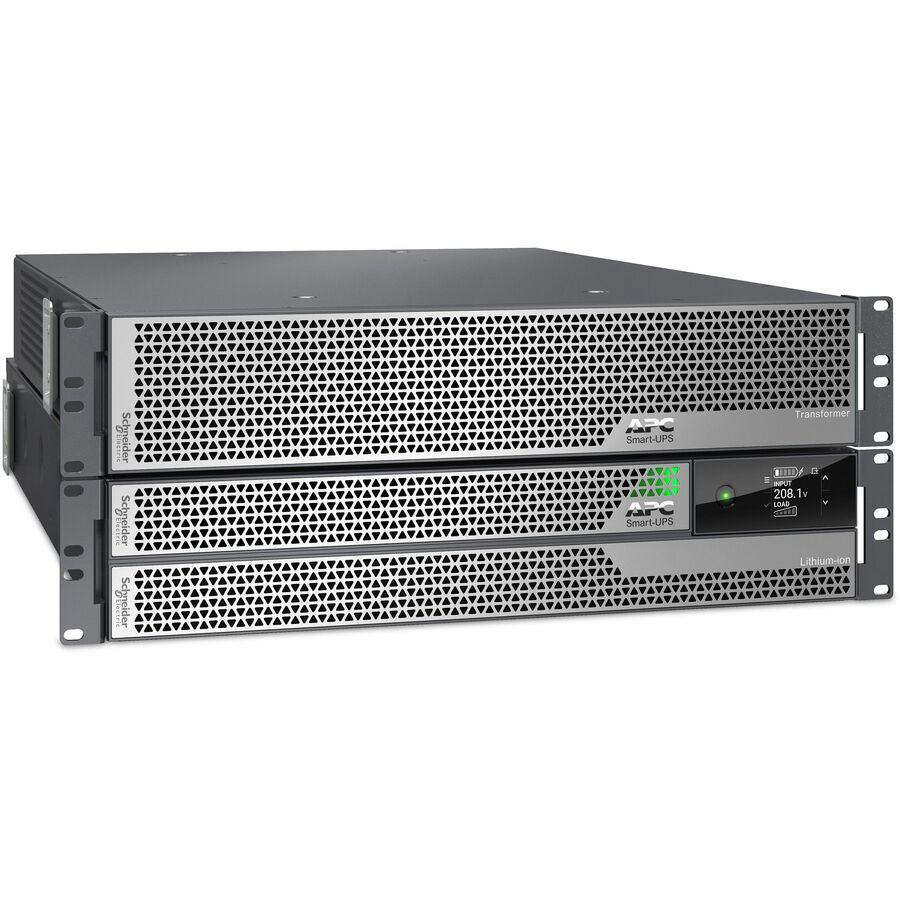

APC Smart-UPS Ultra, 5kVA, Rackmount 4U, 208V, 12x 5-20R+2x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V
4U Rack-mountable - 1.50 Hour Recharge - 5.50 Minute Stand-by - 208 V AC Input - 120 V AC Output - Single Phase - Sine Wave - USB - 12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s)
- SKU
- SRTL5KRM2UT-5KRMTF
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRTL5KRM2UT-5KRMTF
- Category
- General Purpose UPS
Overview

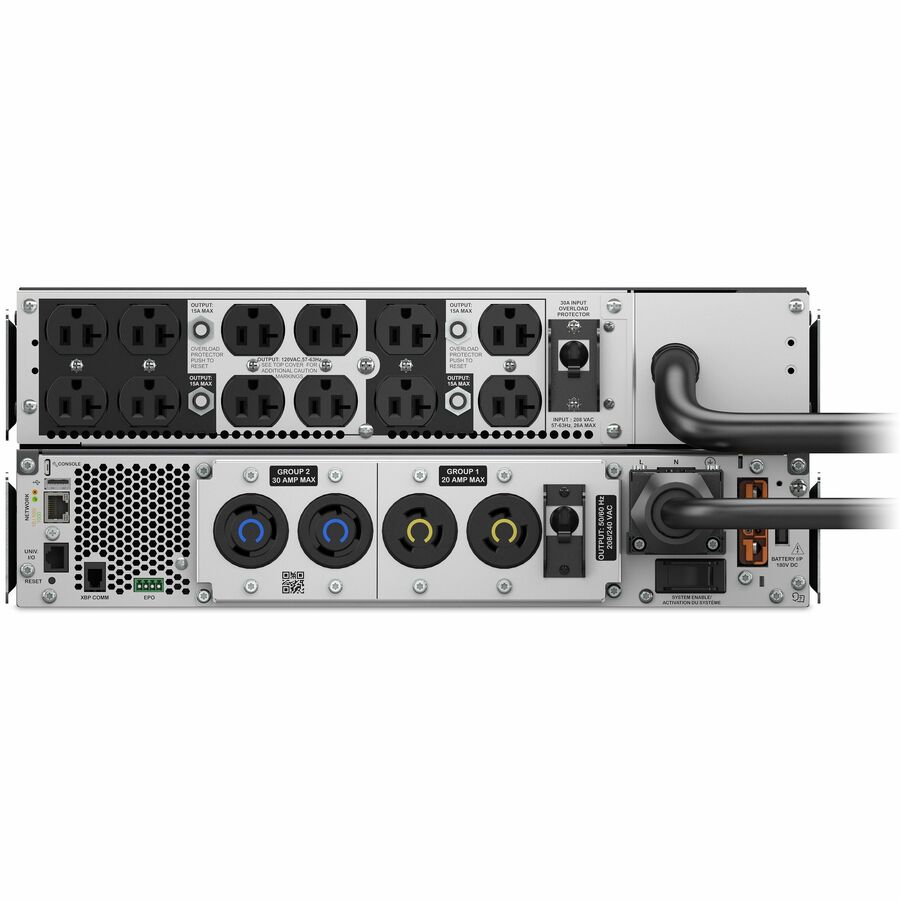

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R. Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker.
Warranty
Limited Warranty: 5 Year
Highlights
- Smart-UPS Ultra 5kW UPS & stepdown transformer
- 2U UPS and 2U height stepdown transformer
- Provides 120V output for 208V UPS
- 1-Year Secure Network Management Card subscription included
- Standard warranty 5 years repair or replace
- (4) 5-20R outlets
Specifications
| Battery Life | 10 Year |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 208 V AC |
| Manufacturer Part Number | SRTL5KRM2UT-5KRMTF |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 159.37 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 5kVA Rack-mountable UPS |
| Network Management | Network Management Card 3 (NMC3) |
| Product Line | Smart-UPS Ultra |
| Surge Energy Rating | 1260 J |
| Thermal Dissipation | 306.85 W |
| Waveform Type | Sine Wave |
| Rack Height | 4U |
| Brand Name | APC |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 100 V AC - 275 V AC |
| Output Frequency | 60 Hz |
| Cord Length | 10.01 ft |
| Height | 6.93" |
| Width | 17.01" |
| Depth | 28.31" |
| Input Frequency | 70 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-30P |
| Environmentally Friendly | Yes |
| Battery Energy | 2304 kJ |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Load Capacity (VA) | 4900 VA |
| Load Capacity (Watt) | 4900 W |
| Energy Star | Yes |
| EPO Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Typical Battery Recharge Time | 1.50 Hour |
| Product Color | Black |
| Receptacle Detail | 12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
