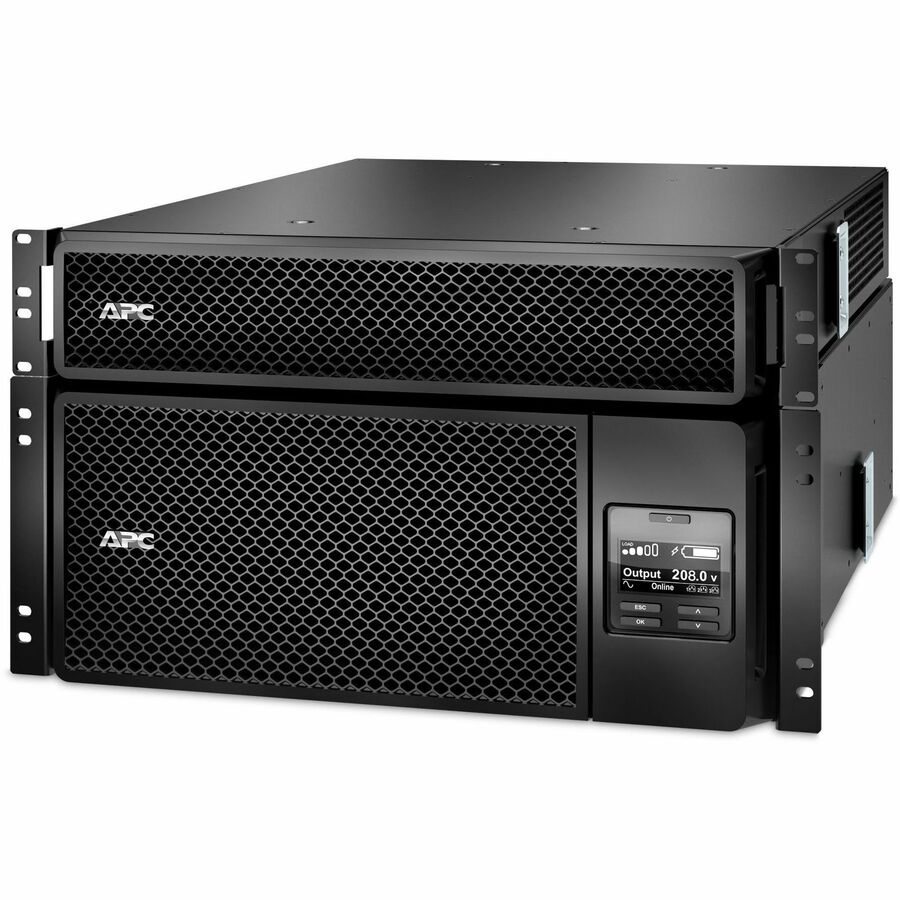

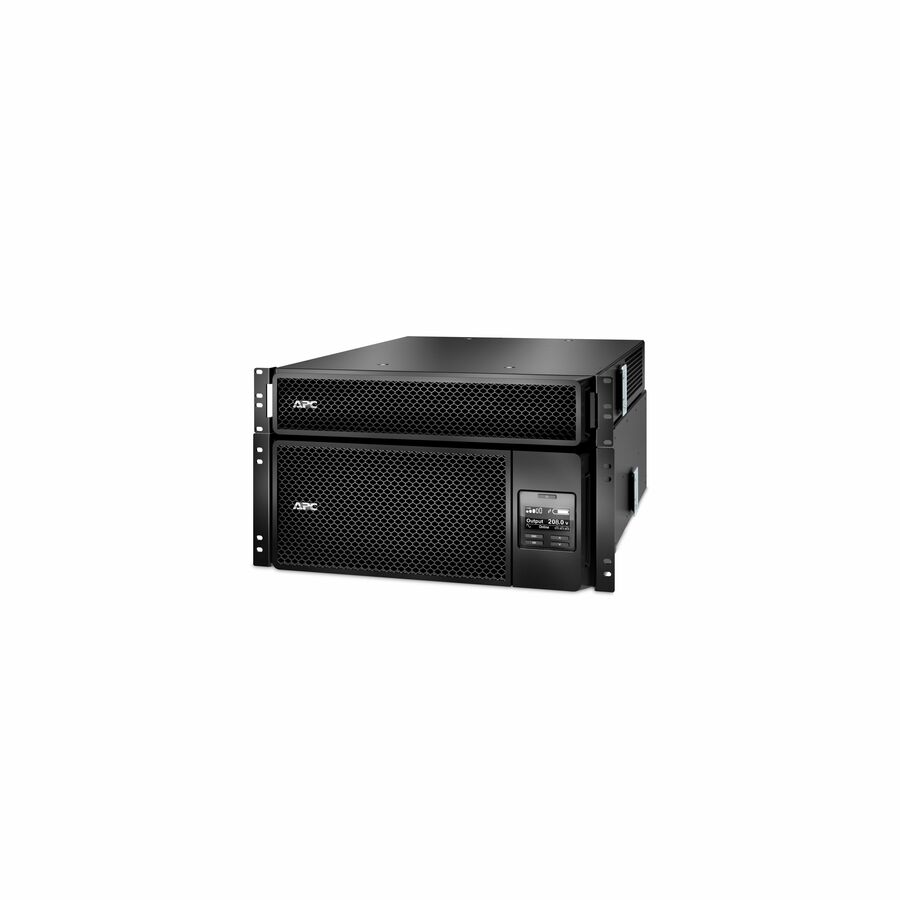

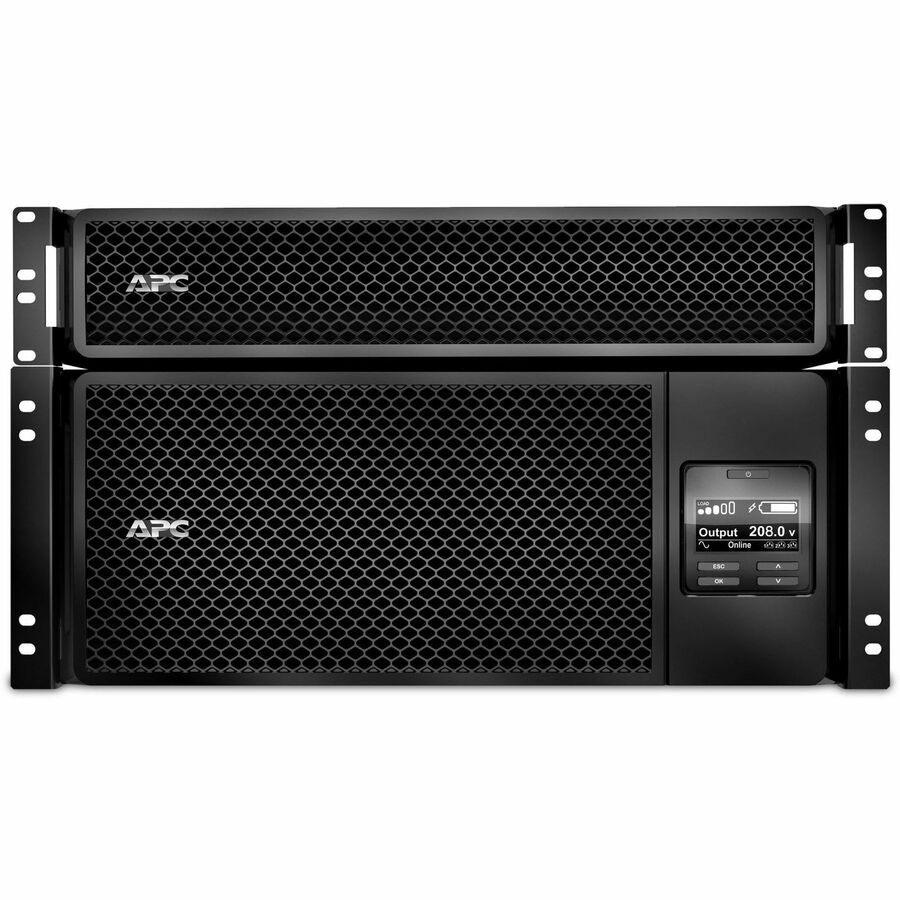

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 6U, 208V, 12x 5-20R+2x L6-20R+2x L6-30R NEMA, Network Card+SmartSlot, W/ transformer 208V-120V, W/ rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 12x NEMA 5-20R, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Key Features

Specifications and Software

Hot Spots

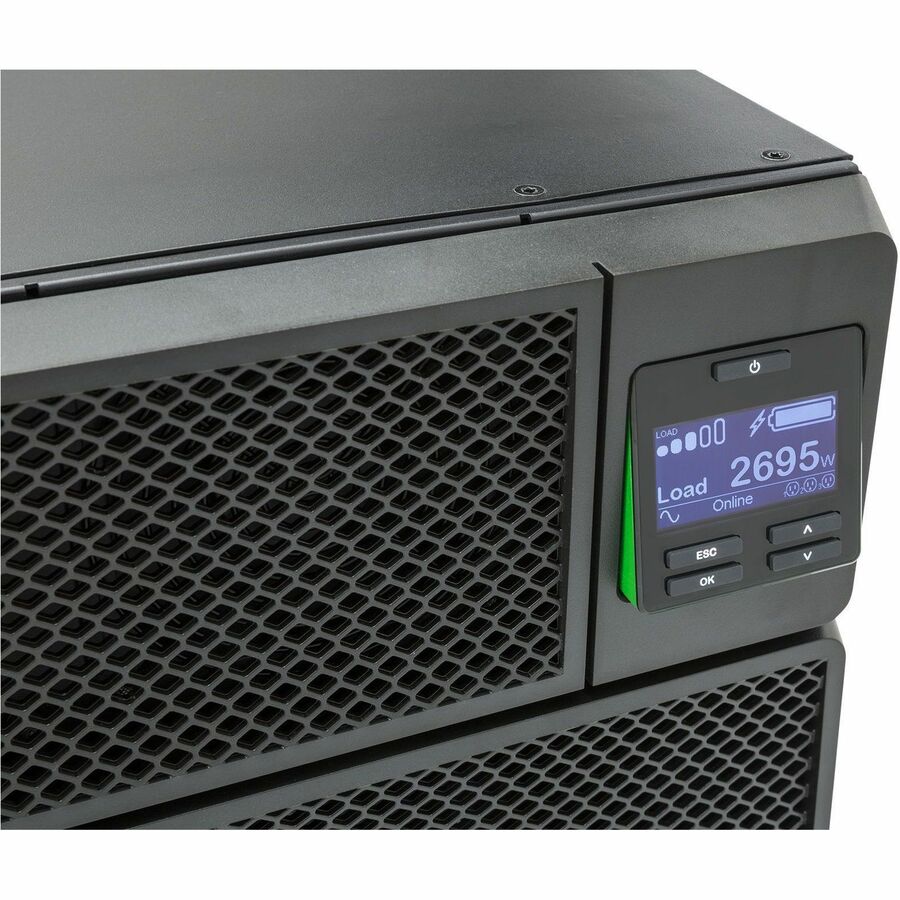

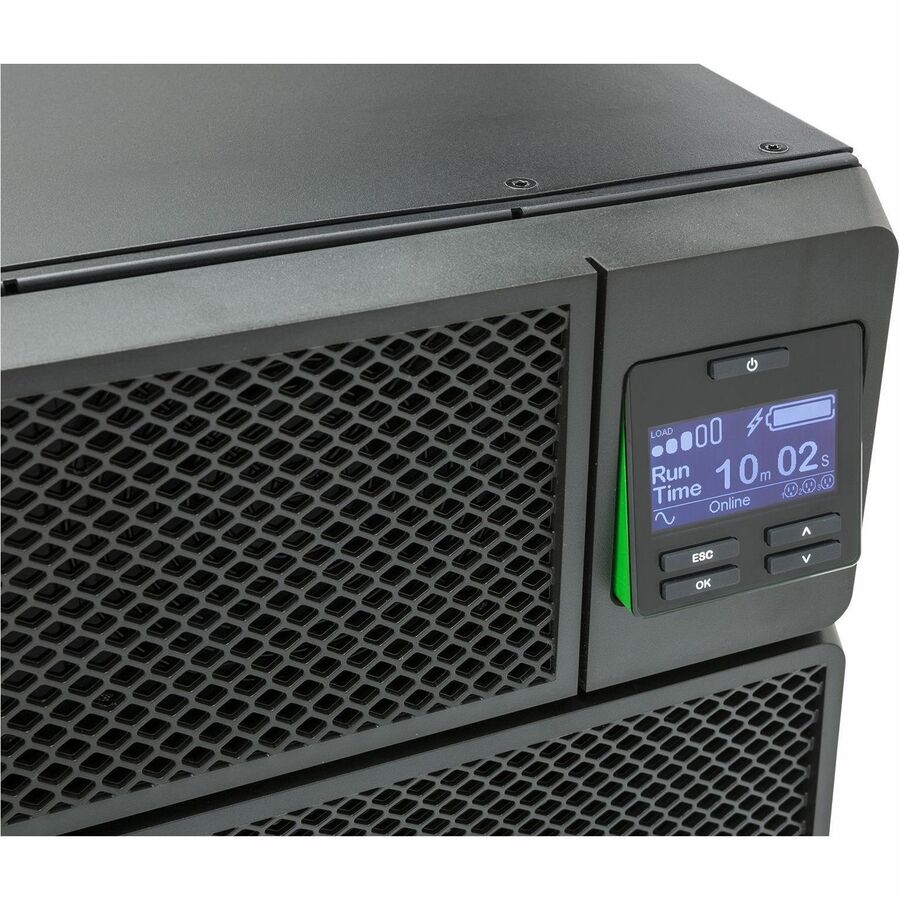

Graphical LCD display

Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

Transformer

UPS comes with a step-down transformer (208V to 120V)

Embedded network management card

Enables network-based monitoring and management of UPS

SmartSlot™

Add an accessory card or a network management card

EcoStruxure™ ready

Connect to EcoStruxure™ IT via the embedded network port

Extended runtime option

Connect up to 10 external battery packs for extended runtime needs

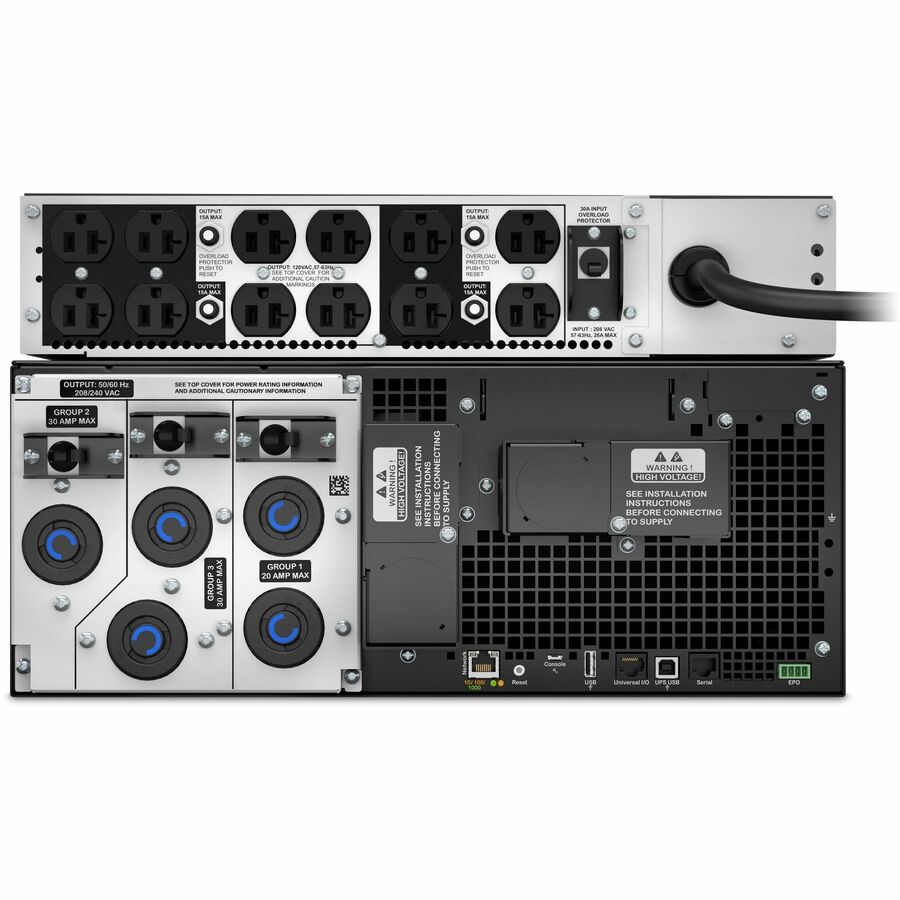

4 outlets in UPS

2 NEMA L6-20R, 2 NEMA L6-30R, including 3 switched outlet groups

12 outlets in transformer

12 NEMA 5-20R

FAQ

Can I add external battery packs? How many?

Yes, Smart-UPS Ultra SRT6KRMXLT-5KTF supports up to 10 APC external SRT192RMBP battery packs.

What are my options for UPS management and software?

Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Software.

Does this UPS come with PowerChute Network Shutdown software?

PowerChute Network Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.

What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?

PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.

Comparison Table

About APC

APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
