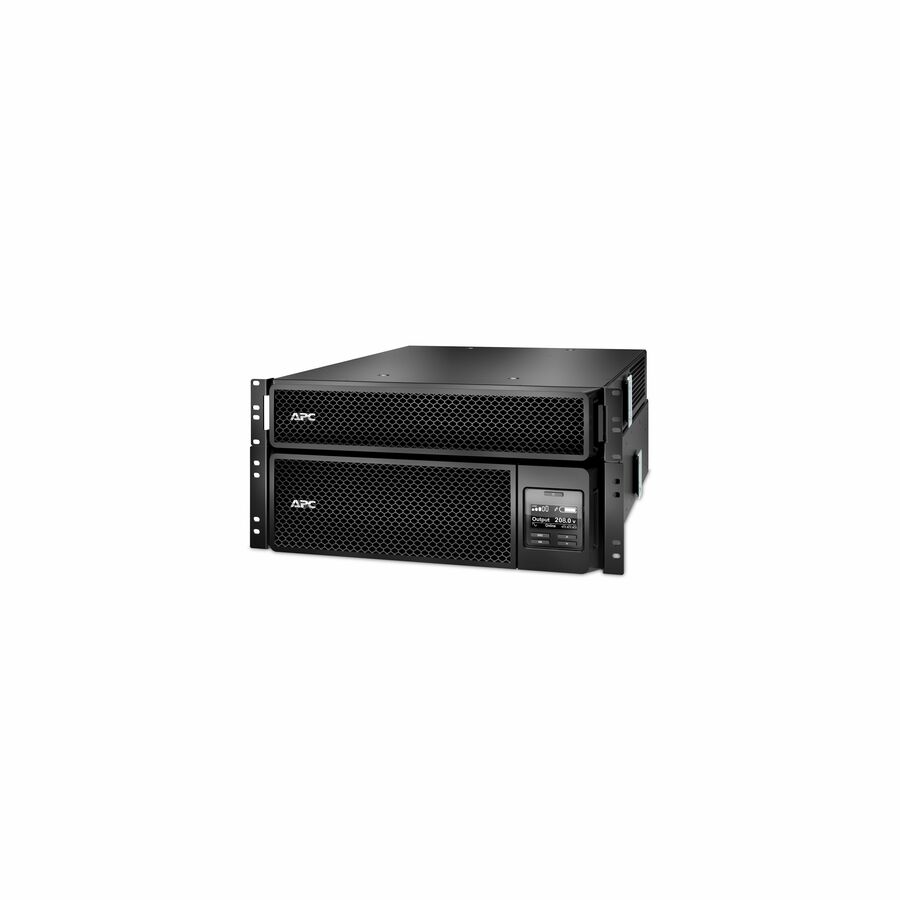

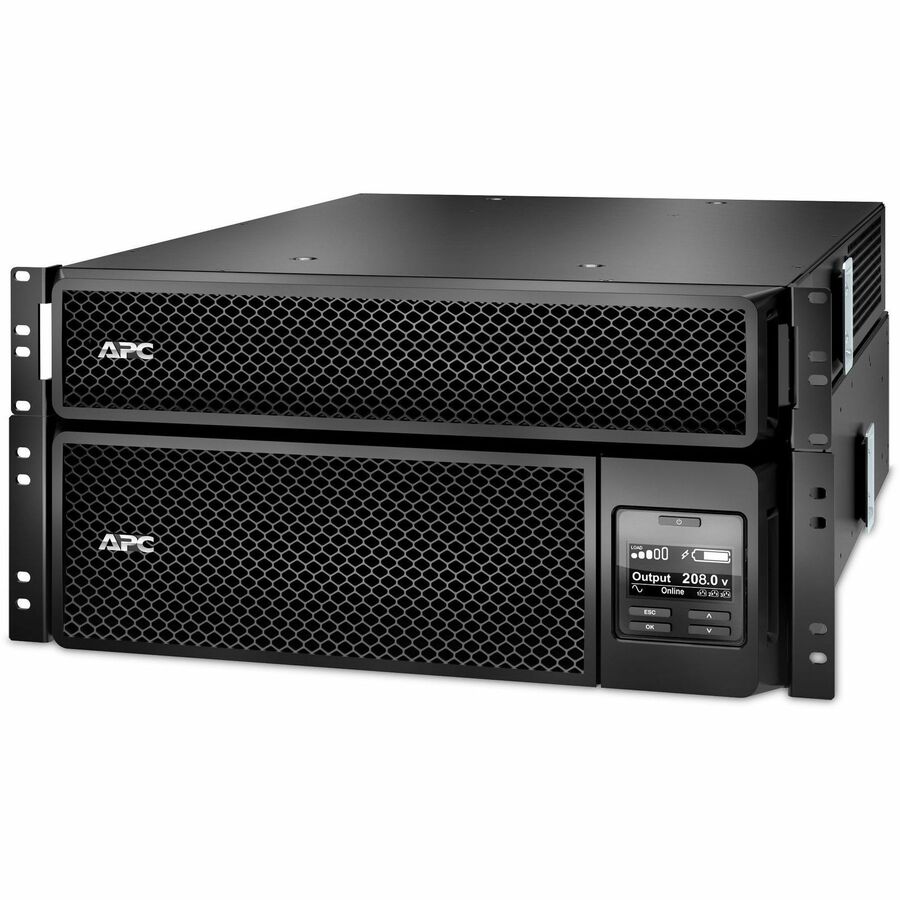

APC Smart-UPS On-Line, 5kVA, Rackmount 5U, 208V, 12 5-20R+2 L6-20R+2 L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V
5U Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - 15 x Battery/Surge Outlet
- SKU
- SRT5KRMXLT-5KTF
- Category
- General Purpose UPS
MSRP$12,505.00
$8,008.34
Save 36%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRT5KRMXLT-5KTF
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 12 NEMA 5-20R, 2 NEMA L6-30R, and 2 NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
More from the Manufacturer
Key Features
Specifications
Hot Spots
(1)

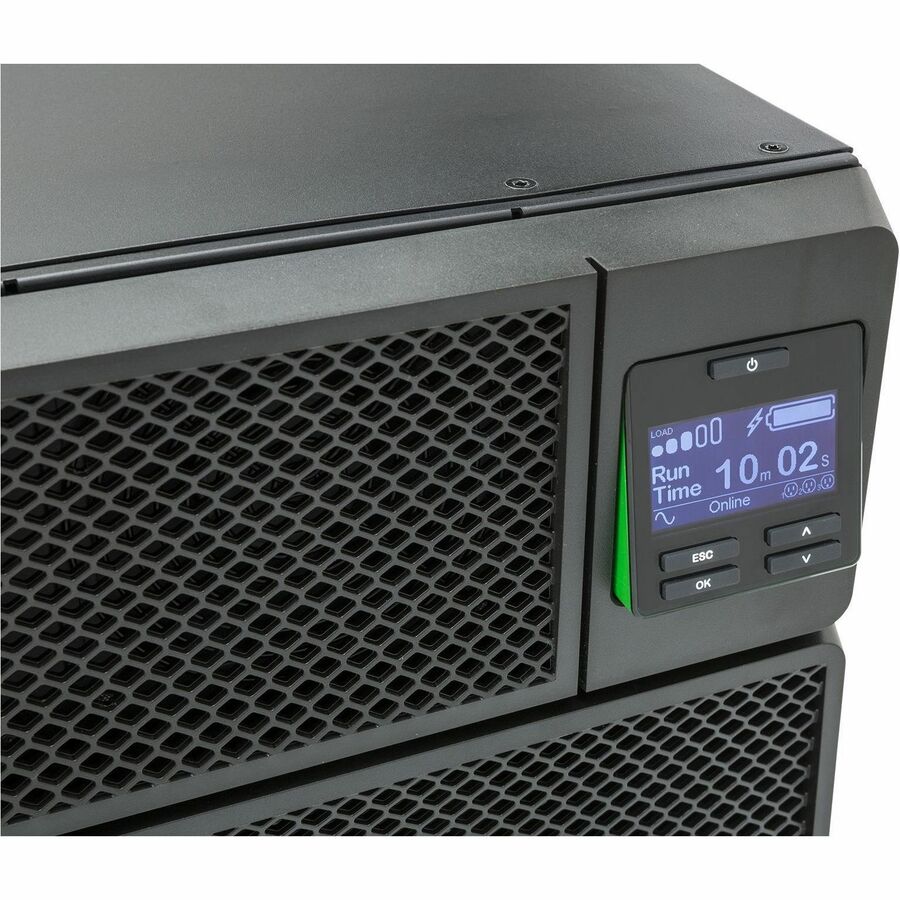

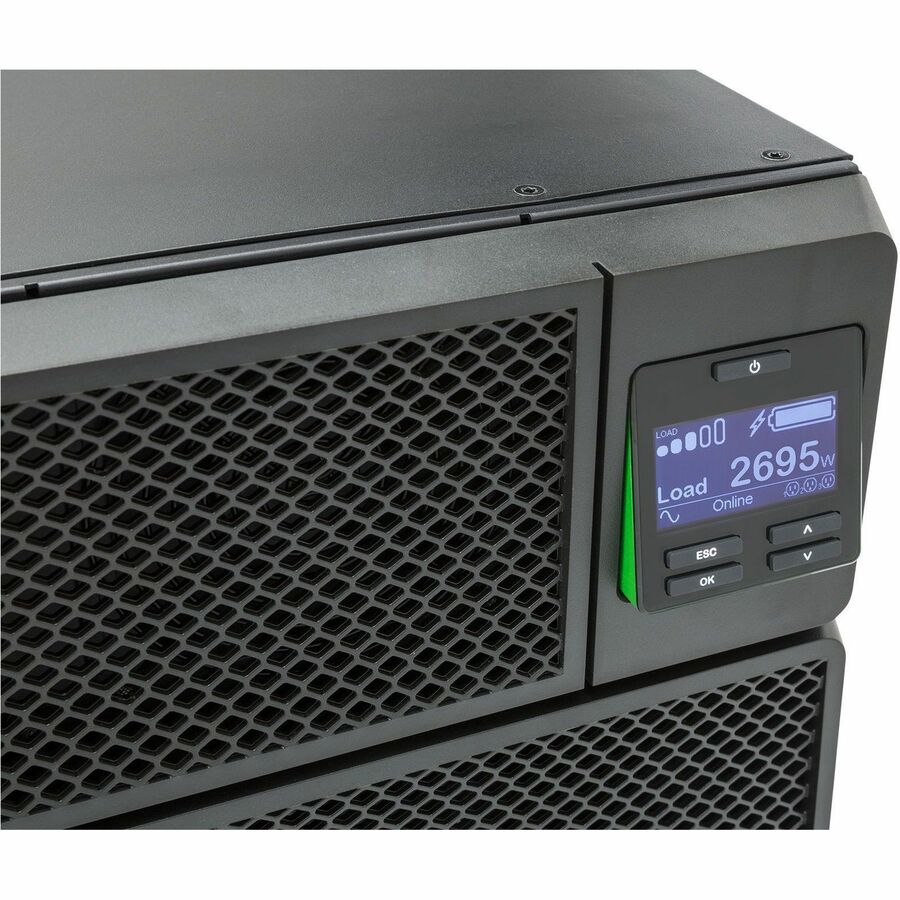

Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.
(2)
Embedded network management card
Enables network-based monitoring and management of UPS
(3)
SmartSlot™
Add an accessory card or a network management card
(4)
EcoStruxure™ ready
Connect to EcoStruxure™ IT via the embedded network port
(5)
Extended runtime options
Connect up to 10 external battery packs for extended runtime needs
(6)
16 outlets in 5U
(12) NEMA 5-20R, (2) NEMA L6-20R, (2) NEMA L6-30R , including 2 switched outlet groups
FAQ
Can I add external battery packs? How many?
Yes, Smart-UPS Ultra SRT5KRMXLT-5KTF supports up to 10 APC external SRT192RMBP battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Network Shutdown Software.
Can I use the step-down transformer in the input of the SRT5KRMXLT-5KTF?
No, this transformer should be used in the output pf the product as the input voltage of the UPS is 208Vac.
Is the step-down transformer included on this product providing the galvanic isolation?
Yes
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.
Comparison Table
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Warranty
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
Highlights
- 5kVA/4.8kW double-conversion on-line pure sine wave 5U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications

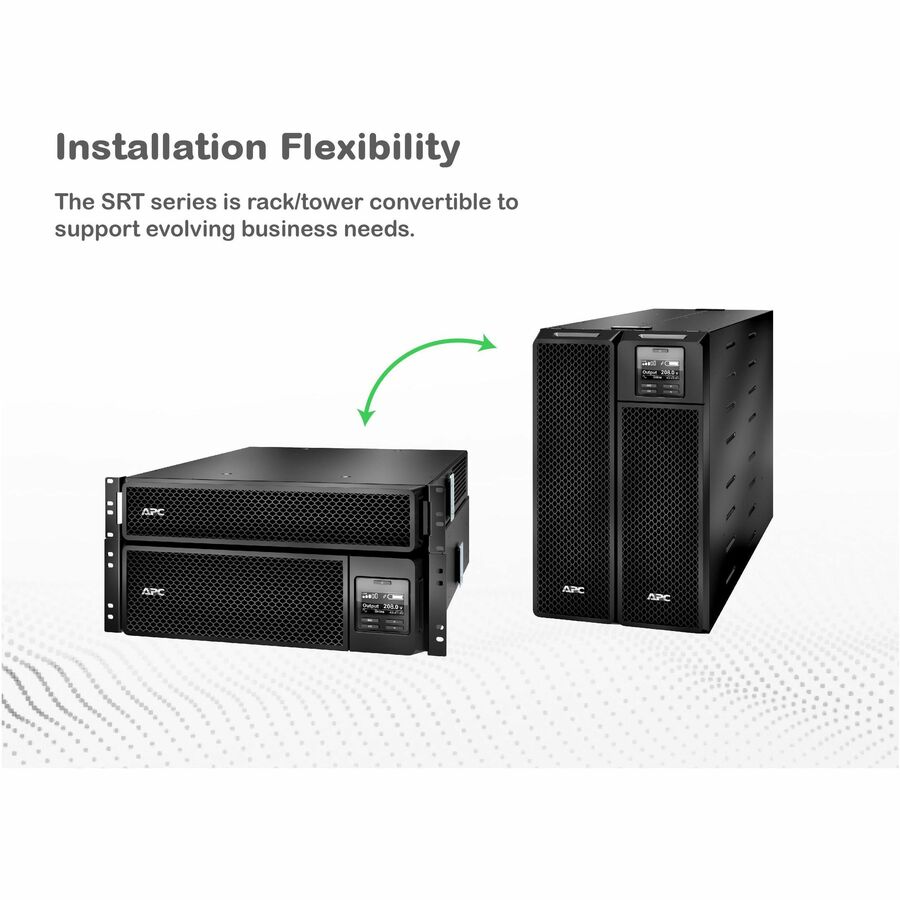

- Rack/Tower convertible (rail kit included)
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SRT192RMBP) for extended runtime
- Embedded Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- SmartSlot for additional communication options
- Delivers clean power with zero transfer time for critical or sensitive devices
Specifications
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 208 V AC |
| Manufacturer Part Number | SRT5KRMXLT-5KTF |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 217.99 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer |
| Product Line | Smart-UPS On-Line |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Rack Height | 5U |
| Brand Name | APC |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10.01 ft |
| Height | 8.58" |
| Width | 17.01" |
| Depth | 28.31" |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-30P |
| Environmentally Friendly | Yes |
| Backup/Run Time (Full Load) | 4 Minute |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4250 W |
| Energy Star | Yes |
| Number of Battery & Surge Outlets | 15 |
| Typical Battery Recharge Time | 1.50 Hour |
| Product Color | Black |
| Receptacle Detail | 12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
