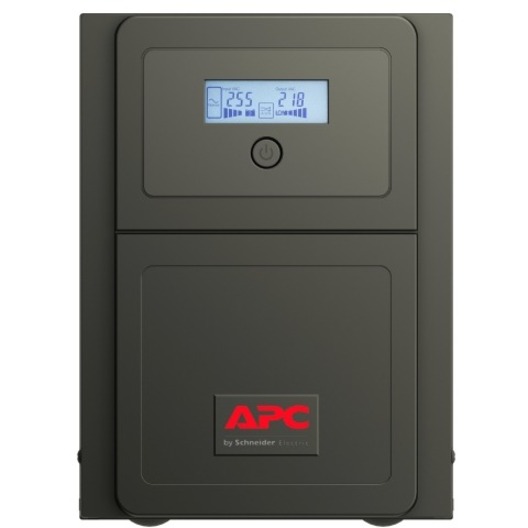

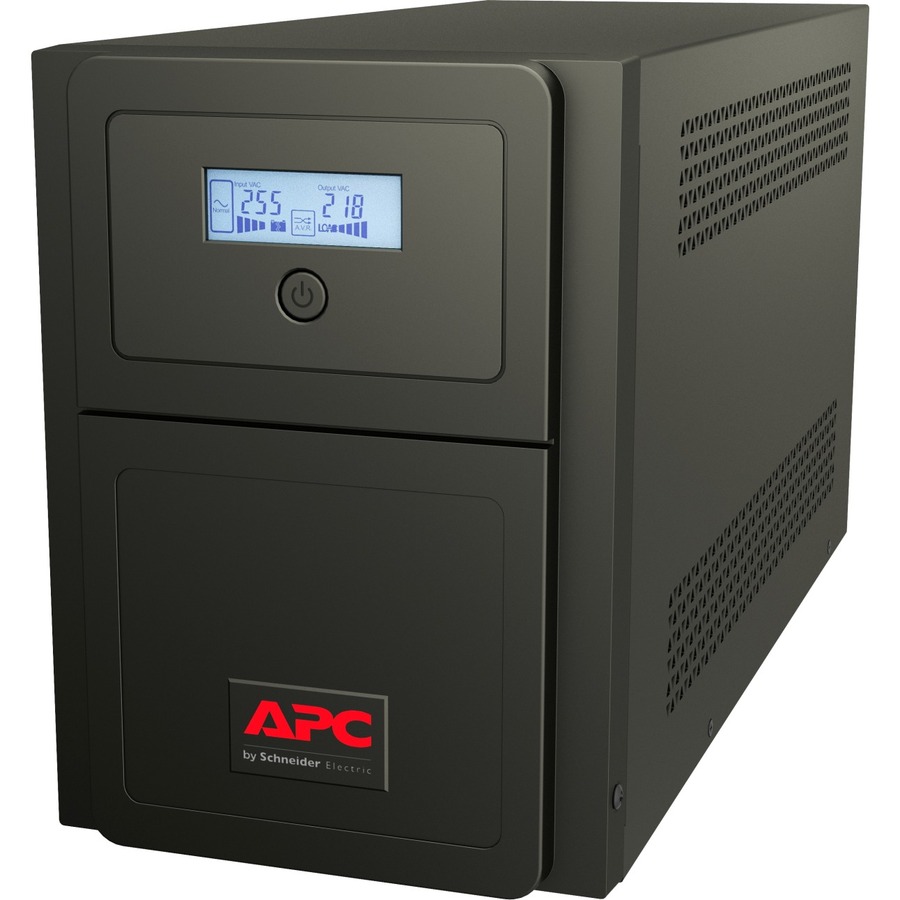

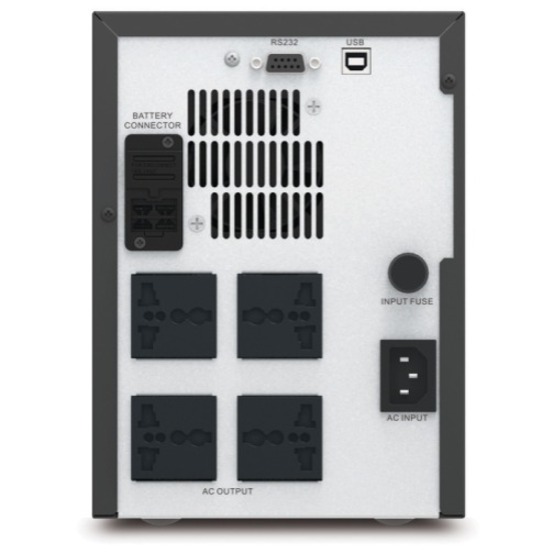

APC by Schneider Electric Easy UPS Line-interactive SMV 750VA 230V, Universal Outlet
0U Tower - AVR - 4 Hour Recharge - 4.77 Minute Stand-by - 230 V AC Input - 230 V AC Output - Sine Wave - 4 x AC Power Receptacle(s) - 4 x Battery/Surge Outlet
- SKU
- SMV750I-MS
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMV750I-MS
- Category
- General Purpose UPS
Overview
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
For our home and small office customers APC by Schneider Electric delivers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions while also delivering the quality millions of professionals trust around the world.
Easy UPS BV Series provides basic power protection ensuring consistent and reliable connectivity at the most critical moments.
Easy UPS SMV Series is a Line-Interactive UPS with Sinewave output developed to handle a wide voltage range in regions with inconsistent power conditions.
Warranty
Limited Warranty: 2 Year
Highlights
- Automatic Voltage Regulation (AVR) - Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Specifications
| Application/Usage | Server, POS Terminal, Router, Network Hub, Network Switch, Network Device |
|---|---|
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | SMV750I-MS |
| Limited Warranty | 2 Year |
| Output Voltage | 230 V AC |
| Weight (Approximate) | 29.98 lb |
| Form Factor | Tower |
| Status Indicators | LCD graphics display |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS Line-interactive SMV 750VA 230V, Universal Outlet |
| Product Line | Easy UPS |
| Surge Energy Rating | 190 J |
| Waveform Type | Sine Wave |
| Rack Height | 0U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 165 V AC -290 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload |
| Height | 8.66" |
| Width | 6.30" |
| Depth | 16.14" |
| Input Frequency | 65 Hz |
| Battery Energy | 244.8 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 13.83 Minute |
| Backup/Run Time (Full Load) | 4.77 Minute |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 525 W |
| AVR | Yes |
| DC System Voltage | 24 V DC |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Number of Battery & Surge Outlets | 4 |
| Storage Temperature | 14°F (-10°C) - 104°F (40°C) |
| Transfer Time | 6 ms |
| Typical Battery Recharge Time | 4 Hour |
| Product Color | Black |
| Receptacle Detail | 4 x AC Power |
| Sound Emission (A-Weighted) | 45 dB(A) |
