SKU
Category
General Purpose UPS
Overview
Highly efficient 20 to 150 kW (480 V), 10 to 150 kW (400 V), and 10 to 75 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.

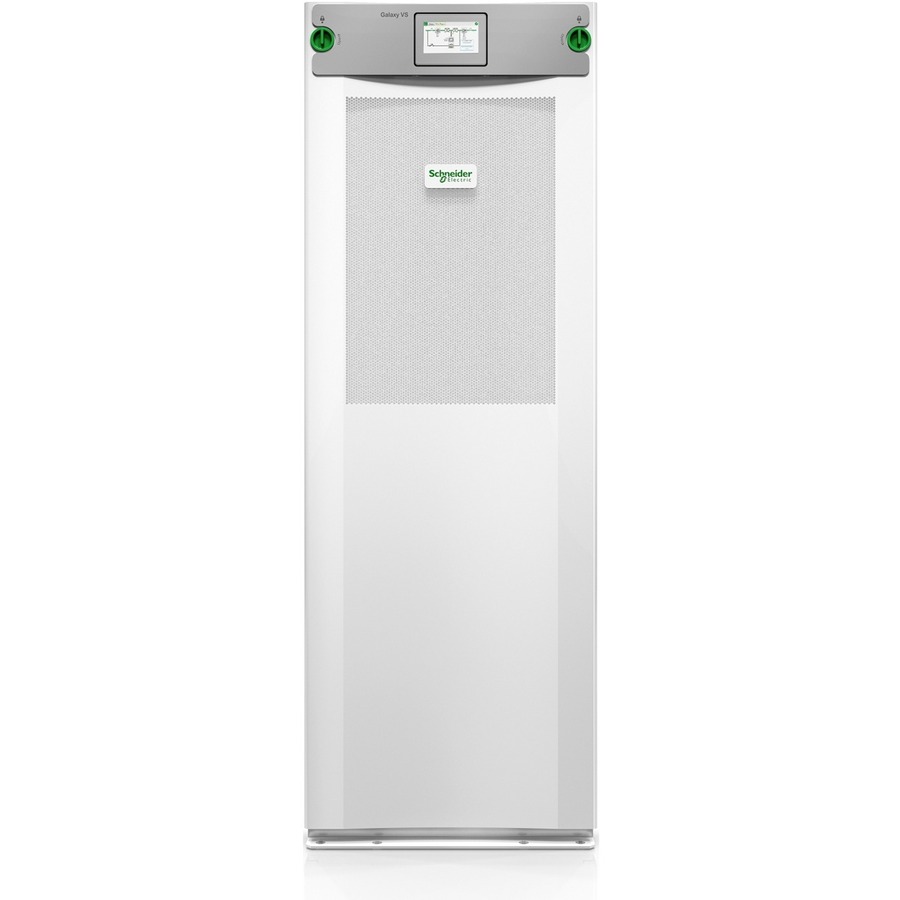

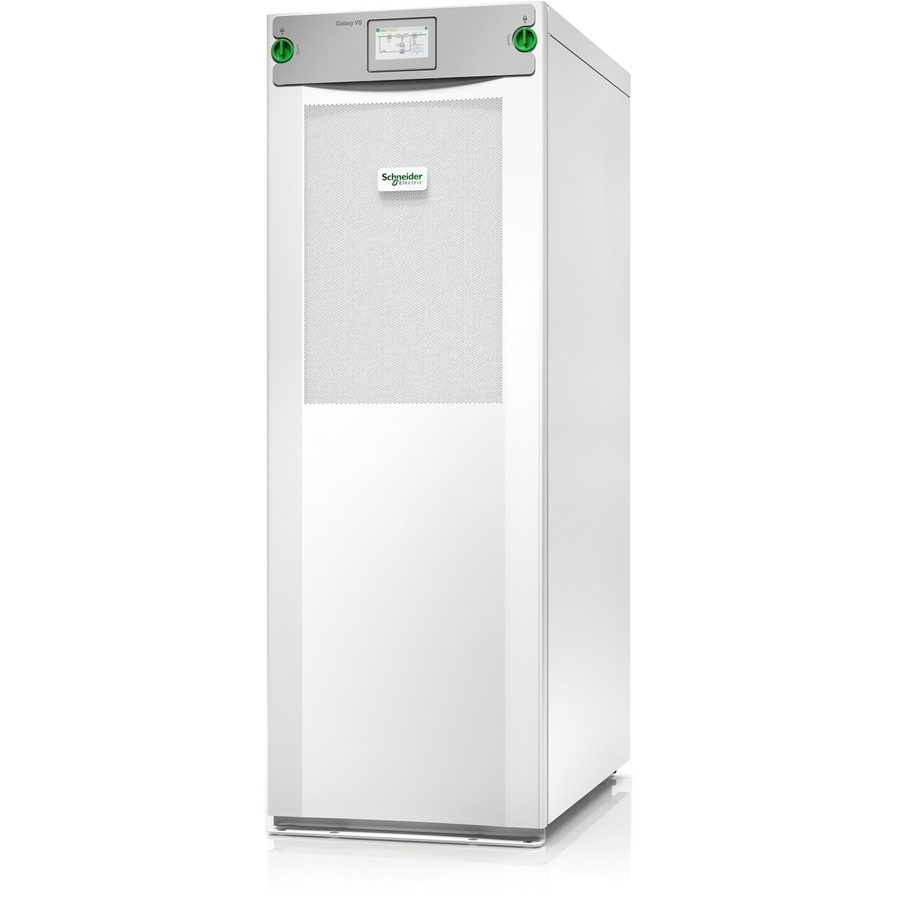

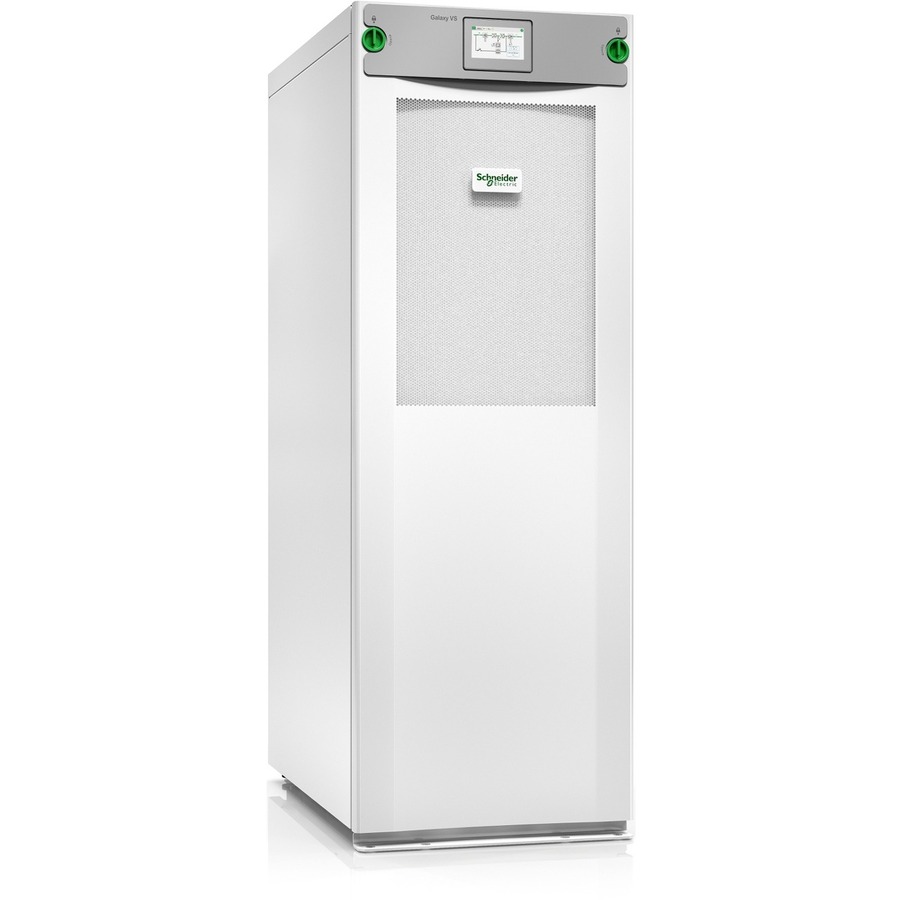

Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 150 kW (480 V), 10 to 150 kW (400 V), and 10 to 75 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure connected to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Warranty
Limited Warranty: 1 Year
Highlights
Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
Prevent critical data loss by staying powered during a blackout with up to 10 kW load capacity
10000 VA load capacity provides sufficient backup during power failures
Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
Hard Wire 4-wire (3P + E) plug/connector type for maximum usability with added reliability
Hard Wire 4-wire (3P + E) receptacle type offers maximum safety, convenience, and increased usability
Three Phase phase for your convenience and optimal usage
Double Conversion Online UPS with commercial application/usage to ensure maximum usability and reliable power supply
230 V AC input voltage for optimal performance with maximum usability
208 V AC output voltage for maximum dependability and added productivity
Specifications
Battery Information
DC System Voltage
480 V DC
Environmental Conditions
Maximum Operating Elevation
3281 ft
Maximum Operating Temperature
104°F (40°C)
Maximum Storage Elevation
50000 ft
Storage Temperature
-13°F (-25°C) - 131°F (55°C)
Sound Emission (A-Weighted)
65 dB(A)
Thermal Dissipation
554.20 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
GVSUPS10KFS
Brand Name
APC by Schneider Electric
Product Line
Galaxy VS
Product Name
Galaxy VS UPS 10kW 208V for External Batteries, Start-up 5x8
Product Type
Double Conversion Online UPS
Management
Network Management
SNMP, Modbus RTU, Modbus TCP, Web, EcoStruxure IT
Physical Characteristics
Height
58.46"
Width
20.51"
Depth
33.35"
Form Factor
Tower
Weight (Approximate)
462.97 lb
Power Description
Load Capacity (VA)
10000 VA
Load Capacity (Watt)
10 kW
Input Voltage
230 V AC
Input Voltage Range
177 V AC - 239 V AC
Output Voltage
208 V AC
Input Frequency
70 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Plug/Connector Type
Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
Receptacle Type
Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
Receptacle Detail
1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E)
Overload Protection
Yes
Phase
Three Phase
Application/Usage
Commercial, Industry, Data Center, Critical System
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
Galaxy VS UPS 10kW 208V for External Batteries, Start-up 5x8
