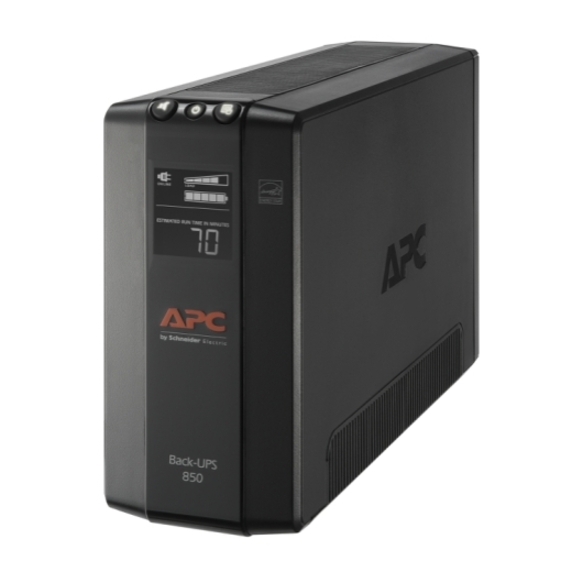

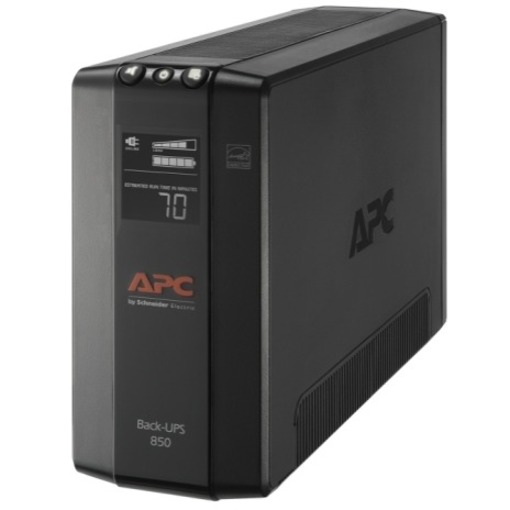

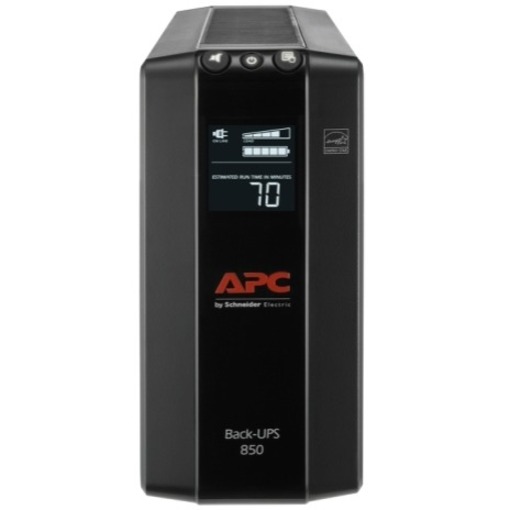

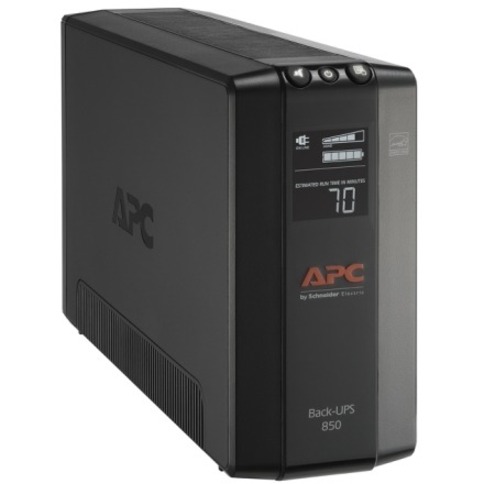

APC by Schneider Electric Back-UPS Pro BX850M-LM60 850VA Tower UPS

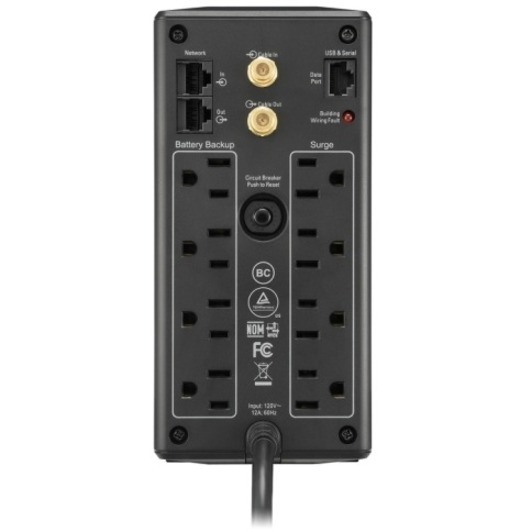

Tower - AVR - 12 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Stepped Sine Wave - Serial Port - 8 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet
- SKU
- BX850M-LM60
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BX850M-LM60
- Category
- General Purpose UPS
Overview
Back-UPS Pro
High Performance Computer and Electronics UPS for Premium Power Protection
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
Warranty
Limited Warranty: 3 Year
Highlights
- Audible alarms - Provides notification of changing utility power and UPS power conditions
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery backup and surge protection - Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Battery replacement without tools - Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
- Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
- Building Wiring Fault Indicator - This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
Specifications
| Application/Usage | Home, Office, Gaming Console, Computer System, Network Device, Router, Modem, Business, Electronic Device, Storage Device, Network Equipment, Critical Low-power Device, Transformer |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | PowerChute Personal Edition |
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | BX850M-LM60 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 14.99 lb |
| Dataline Protection | Coax, RJ-45 |
| Form Factor | Tower |
| Status Indicators | Multi-function LCD |
| Manufacturer | Schneider Electric SA |
| Product Model | BX850M-LM60 |
| Product Name | Back-UPS Pro BX850M-LM60 850VA Tower UPS |
| Product Line | Back-UPS Pro |
| Surge Energy Rating | 1103 J |
| Thermal Dissipation | 14.21 W |
| Waveform Type | Stepped Sine Wave |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload |
| Height | 7.48" |
| Width | 3.58" |
| Depth | 12.20" |
| Input Frequency | 60 Hz |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 8.90 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 510 W |
| Replaceable Battery | Yes |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 10000 ft |
| Operating Humidity | 0% - 95% |
| Number of Battery & Surge Outlets | 8 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 12 Hour |
| Product Color | Black |
| Receptacle Detail | 8 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
