SKU
Category
General Purpose UPS
Overview
The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.
Warranty
Limited Warranty: 2 Year
Highlights
Experience higher efficiency with lower energy cost
Prevent critical data loss by staying powered during a blackout with up to 900 W load capacity
1600 VA load capacity - work without any interruption during power outages
24V battery size for maximum productivity with added dependability
7000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
8 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
Lead Acid battery chemistry delivers energy to the computer through an easily controlled reaction
Line-interactive UPS with computer application/usage to ensure maximum productivity with added feasibility
120 V AC input voltage for maximum feasibility and added productivity
Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
Specifications
Battery Information
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Size
24V
Battery Capacity
7000 mAh
Battery Life
5 Year
Typical Battery Recharge Time
8 Hour
Controls/Indicators
Status Indicators
LED Indicators: Battery On On-Line
Environmental Conditions
Maximum Operating Elevation
9842.52 ft
Maximum Operating Temperature
104°F (40°C)
Maximum Storage Elevation
9842.52 ft
Storage Temperature
5°F (-15°C) - 104°F (40°C)
Sound Emission (A-Weighted)
40 dB(A)
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
BX1600M-LM
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
Product Name

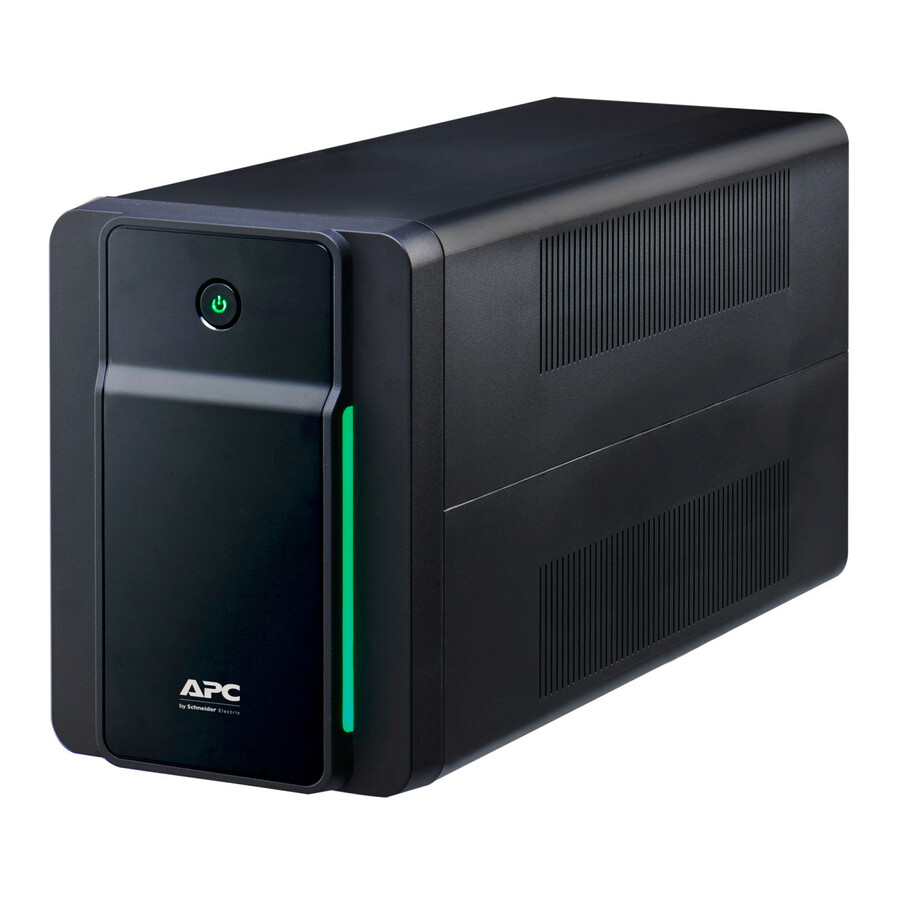

Back-UPS 1600VA Tower UPS
Packaged Quantity
1
Product Type
Line-interactive UPS
Interfaces/Ports
USB (HID Compliant) Port
Yes
Management
Alarm
On Battery, Low Battery
Physical Characteristics
Product Color
Black
Height
7.48"
Depth
15.35"
Form Factor
Tower
Weight (Approximate)
22.71 lb
Power Description
Load Capacity (VA)
1600 VA
Load Capacity (Watt)
900 W
Input Voltage
120 V AC, 230 V AC
Input Voltage Range
140 V AC - 300 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Stepped Approximated Sine Wave
Surge Energy Rating
350 J
Technical Information
AVR
Yes
Dataline Protection
RJ-45
Transfer Time
10 ms
Application/Usage
Computer, Network, Gaming Console, Electronic, Home, Business
Warranty
Limited Warranty
2 Year
Miscellaneous
Software Included
PowerChute Personal Edition
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
