Schneider Electric

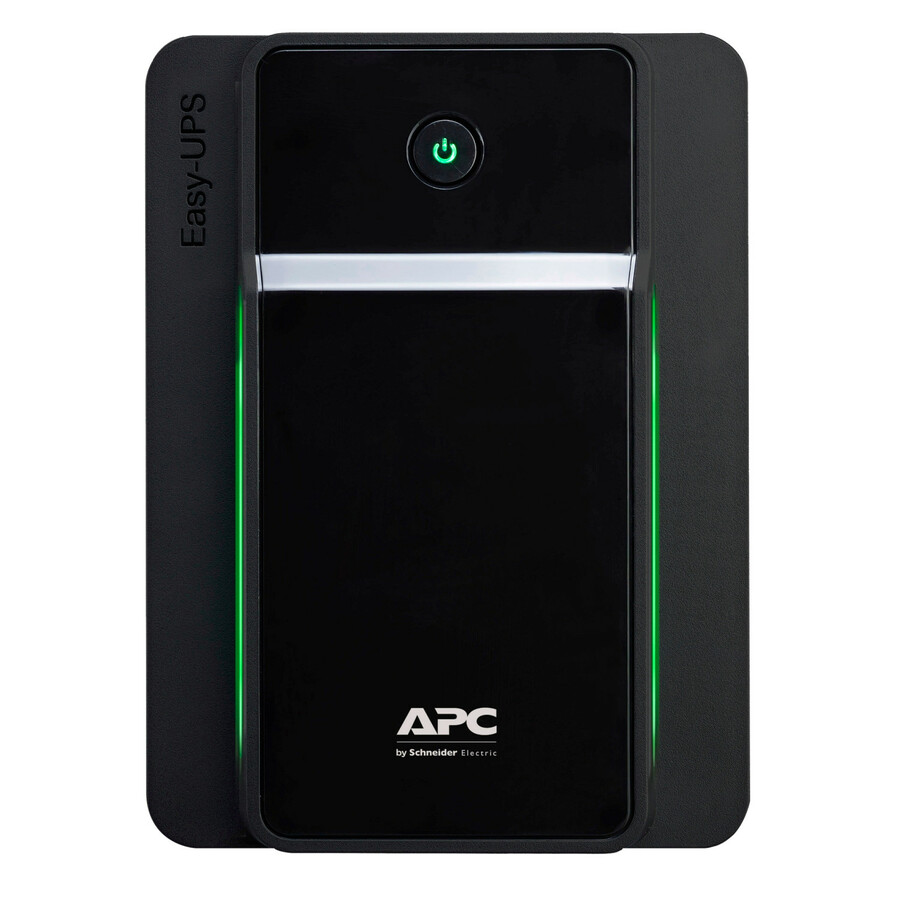

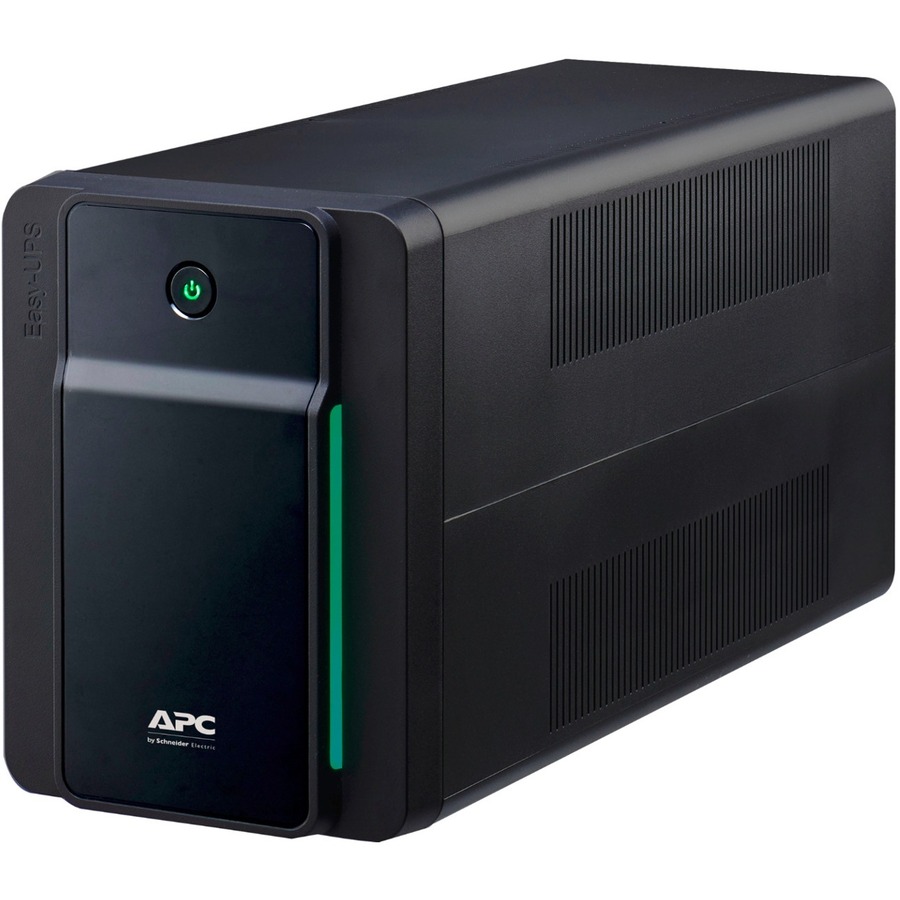

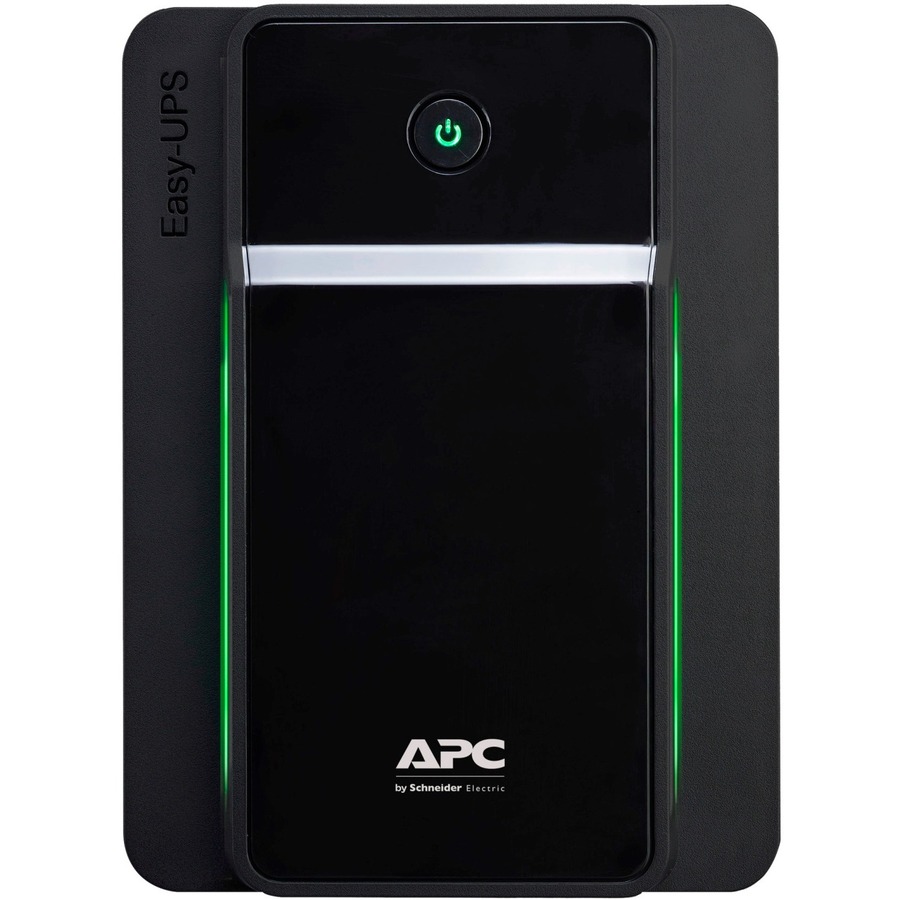

APC by Schneider Electric Back-UPS 1200VA Floor Mountable UPS
AVR - 8 Hour Recharge - 1 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase
- SKU
- BVX1200L-LM
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BVX1200L-LM
- Category
- General Purpose UPS
Overview
1200VA / 650W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Supports Auto-start Enables the UPS to restart automatically when mains recovers after a complete battery discharge Ideal for Home and Office Users ready to use
Highlights
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 1 minute at full load
- 650 W load capacity - backup power for your valuable electronics
- 1200 VA load capacity - work without any interruption during power outages
- 12V battery size for better reliance and optimal performance
- 9000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 8 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
Specifications
| Application/Usage | Home, Office |
|---|---|
| Battery Life | 3 Year |
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | BVX1200L-LM |
| Packaged Quantity | 1 |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 16.53 lb |
| Form Factor | Floor Mountable |
| Status Indicators | LED Status: On Line On Battery |
| Manufacturer | Schneider Electric SA |
| Product Name | Back-UPS 1200VA Floor Mountable UPS |
| Product Line | Back-UPS |
| Surge Energy Rating | 350 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 89 V AC - 145 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery |
| Height | 7.48" |
| Width | 5.51" |
| Depth | 15.35" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Capacity | 9000 mAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 6 Minute |
| Backup/Run Time (Full Load) | 1 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1200 VA |
| Load Capacity (Watt) | 650 W |
| AVR | Yes |
| USB (HID Compliant) Port | No |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 9842.52 ft |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| Product Color | Black |

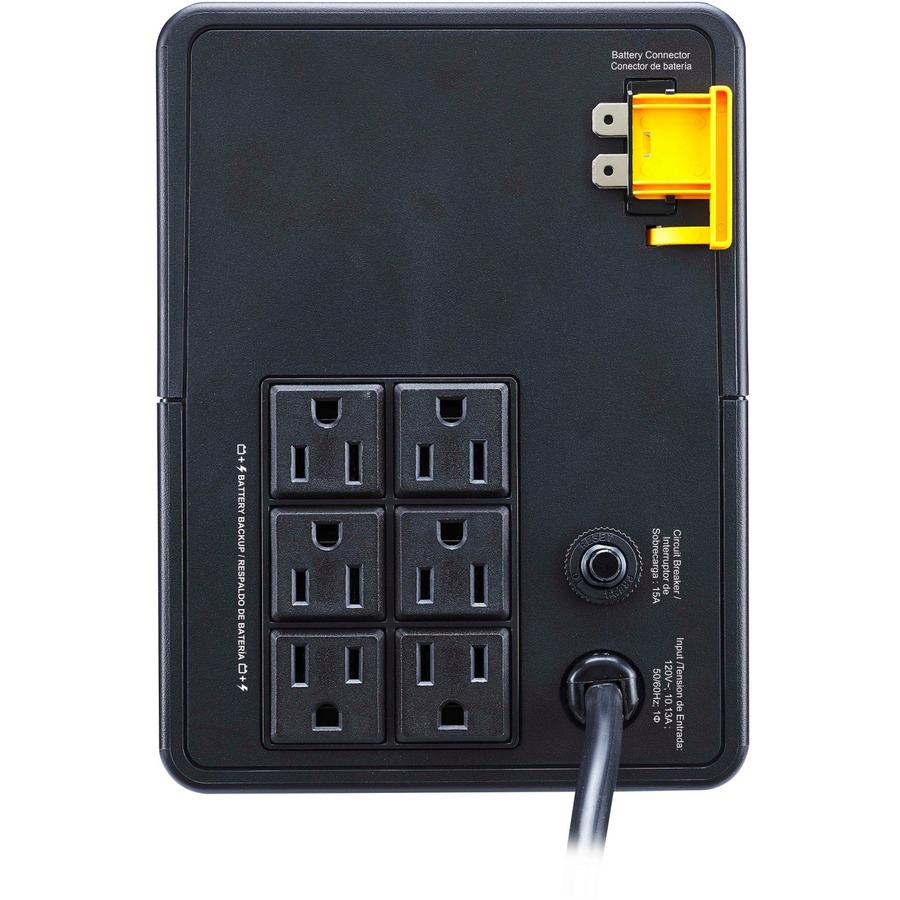

| Receptacle Detail | 6 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
