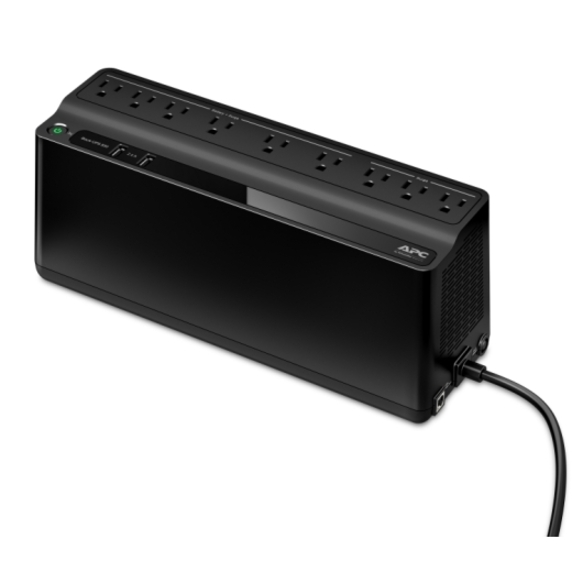

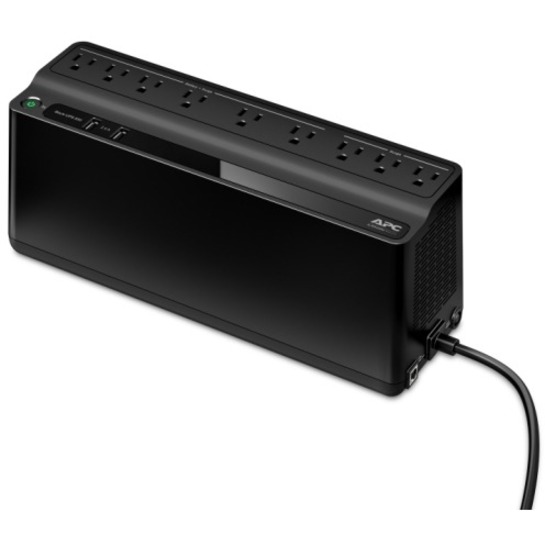

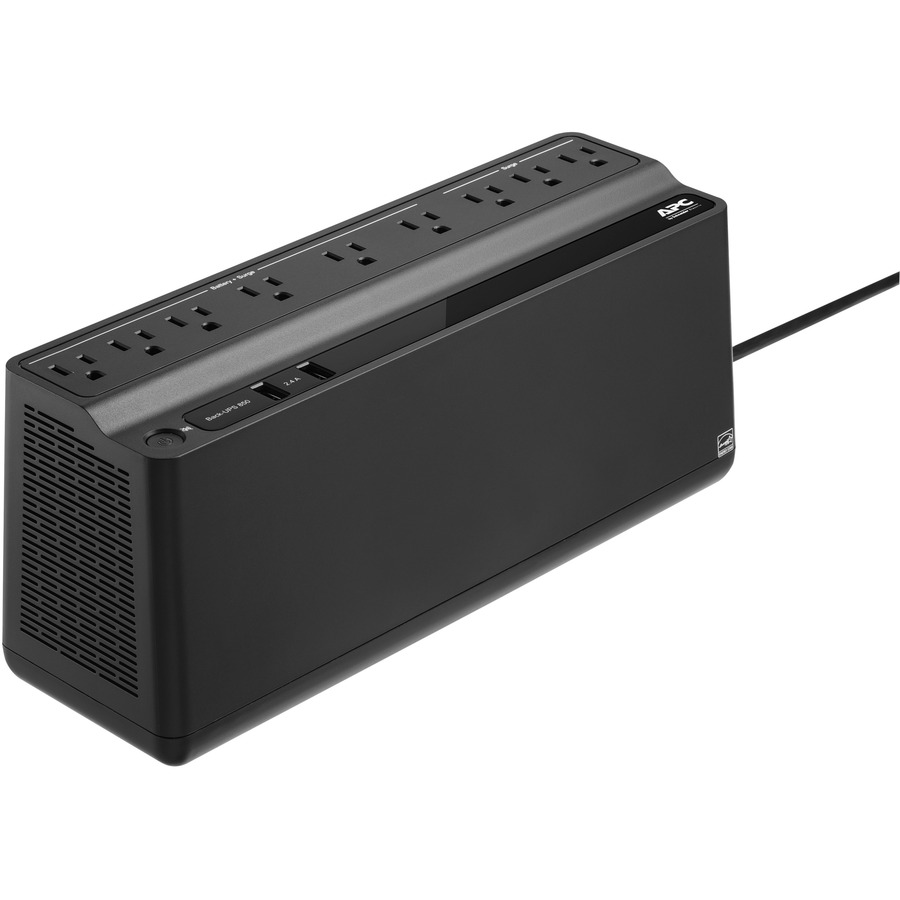

APC by Schneider Electric Back-UPS ES 850VA, 2 USB Charging Ports, 120V
Tower - 8 Hour Recharge - 120 V AC Input - 120 V AC Output - Stepped Sine Wave - 9 x NEMA 5-15R, 2 x USB Receptacle(s) - 9 x Battery/Surge Outlet
- SKU
- BE850M2-LM
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BE850M2-LM
- Category
- General Purpose UPS
Overview
Turn On the Back-UPS
Press the POWER button. It will illuminate green and a single short beep indicating that the Back-UPS is on and providing protection for connected equipment.
The Back UPS battery will charge regardless of whether the Back-UPS is switched on or off as long as it is connected to AC power. The UPS will have full runtime capability after the initial 24-hour charging period, connected to AC power.
If the red Building Wiring Fault indicator (located on the end near the power cord) is lit, your building wiring may present a shock hazard that should be corrected by a qualified electrician.
Turn Off the Back-UPS
Press the POWER button for at least 2 seconds. At the first beep, release the button and the UPS will turn off. A 2 second delay has been added to mitigate unintentional contact with the POWER button.
Quick Mute
The Back-UPS is able to temporarily mute user correctable alarms such as: On Battery, Battery disconnected and Overload.
During such alarms, a short press (less than 2 seconds) of the POWER button will temporarily mute the alarm until the condition has been reset. A short double beep will confirm that Quick Mute has been activated. Pressing the POWER button for more than 2 seconds will turn off the UPS.
Other critical events such as Battery replacement and Charger notification can not be temporarily muted. The unit in these cases must be turned off.
On Battery Indicator Modes
With the UPS turned on, configuring the On Battery Indicator modes below is done by holding down the POWER button and waiting for the third beep. At the third beep, the POWER button will cycle red / green. Release the POWER button and its color will indicate the mode the UPS is in. Press the POWER button to cycle through each mode. See the table below for the 3 mode selection colors. Once the mode has been selected, wait 5 seconds and the setting will be committed to the UPS.
Warranty
Limited Warranty: 3 Year
Highlights
- Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Audible alarms - Provides notification of changing utility power and UPS power conditions
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Building Wiring Fault Indicator - This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Simple battery replacement - Increases UPS availability by allowing quick, easy battery replacement.
- Transformer Block Spacing - Connect bulky transformer block plugs without covering up other outlets.
Specifications
| Application/Usage | Computer, Gaming Console, Electronic Device, Network |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Standby UPS |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | BE850M2-LM |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 9.04 lb |
| Form Factor | Tower |
| Manufacturer | Schneider Electric SA |
| Product Model | BE850M2-LM |
| Product Name | Back-UPS ES 850VA, 2 USB Charging Ports, 120V |
| Product Line | Back-UPS |
| Waveform Type | Stepped Sine Wave |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 92 V AC - 139 V AC |
| Height | 5.47" |
| Width | 12.87" |
| Depth | 4.13" |
| Receptacle Type | NEMA 5-15R, USB |
| Environmentally Friendly | Yes |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 450 W |
| Energy Star | Yes |
| Number of Battery & Surge Outlets | 9 |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| Product Color | Black |
| Receptacle Detail | 9 x NEMA 5-15R, 2 x USB |
