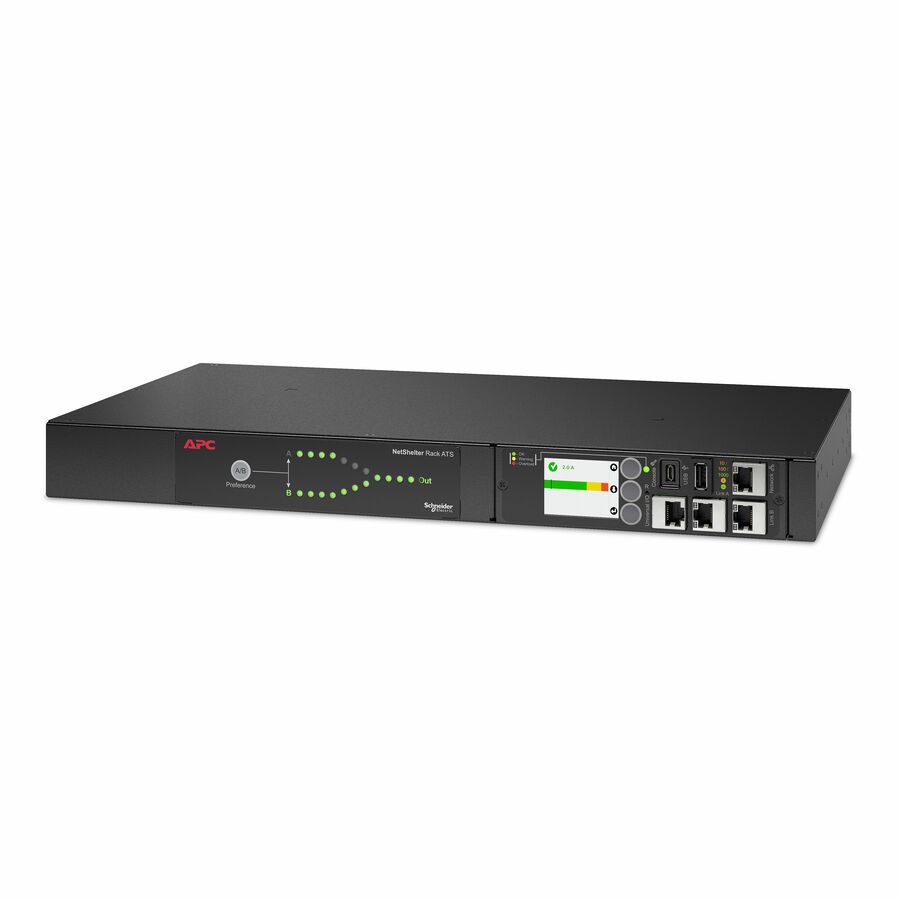

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz
Schneider Electric

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz

12 x IEC 60320 C13 - 230 V AC - 10 A

SKU
AP4421A
Category
Transfer Switches

MSRP$2,420.00

$1,616.23

Save 33%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AP4421A
Category
Transfer Switches

Overview

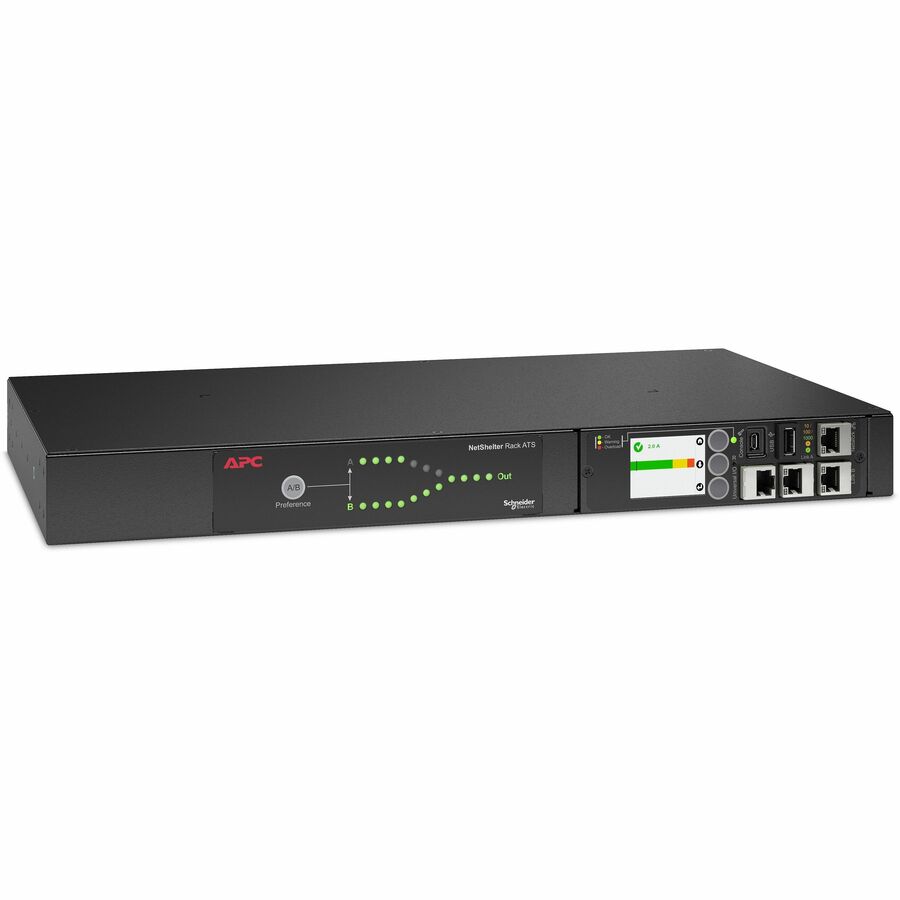

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Warranty

Limited Warranty: 2 Year

Highlights

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Gigabit Ethernet support for faster Communication
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert
  • APC NMC3 integrated for enhanced cyber security

Specifications

Package Contents
  • NetShelter Automatic Transfer Switch
  • Mounting Hardware
  • Rack Mounting Brackets
  • Serial Configuration Cable
Product TypeAutomatic Transfer Switch
Input Voltage230 V AC
Manufacturer Part NumberAP4421A
Limited Warranty2 Year
Output Voltage230 V AC
Weight (Approximate)8.66 lb
Current10 A
Form FactorRack-mountable
ManufacturerSchneider Electric SA
Product NameNetShelter Automatic Transfer Switch
Product LineNetShelter

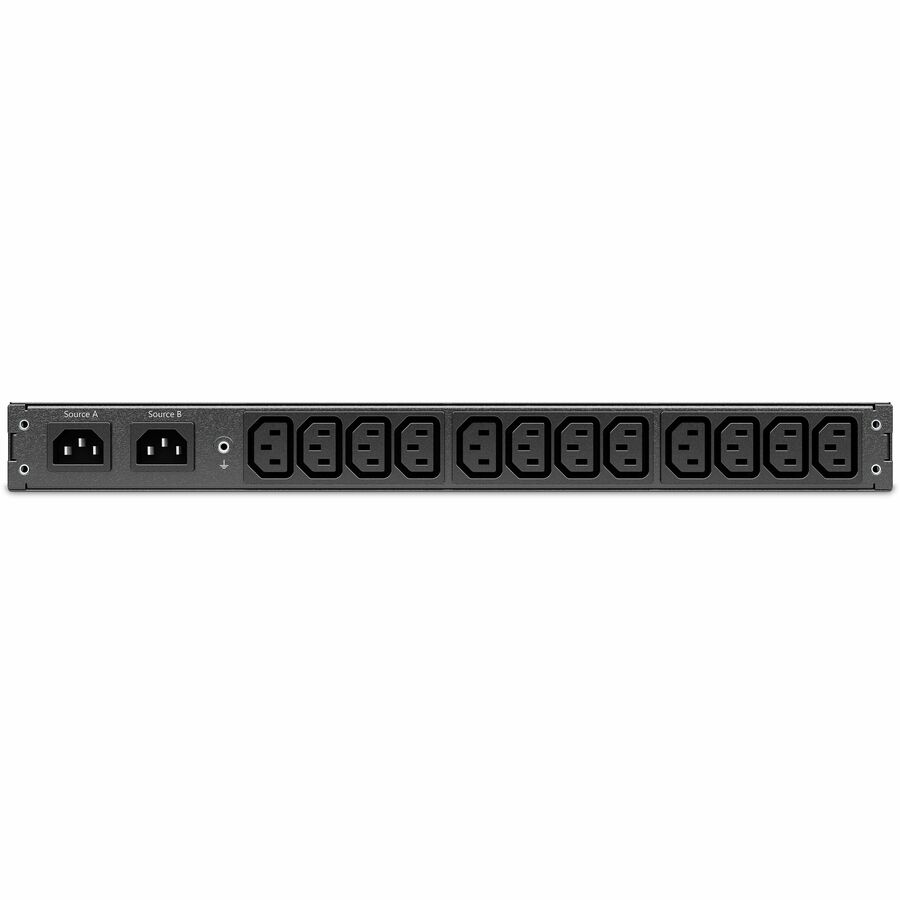

Receptacles12 x IEC 60320 C13
Rack Height1U
Brand NameAPC
Plug/Connector TypeIEC 60320 C14 10A (2P + E)
Country of OriginPhilippines
Height1.7"
Width17"
Depth9.3"
Environmentally FriendlyYes
Product ColorBlack
Color FamilyBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping PackagingNo
