For Laptop, Computer, PC, Mac, Workstation - Thunderbolt 5 - Black
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Other World Computing through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Expand Your Capabilities Effortlessly
We get that you love your marvelously slender Mac or PC, but also understand you often wish it offered more functionality. Now with the OWC Mercury Helios 5S, you can give your notebook, small form factor, or "all in one" desktop machine pro grade, full-size workstation capabilities. Whether you want to use an ultra-fast storage, 8K video capture, audio DSP, or high-speed networking PCIe card, Mercury Helios 5S makes it easy via a single Thunderbolt or USB4 connection and with no tools required. Plus, with three additional Thunderbolt 5 ports, it also gives you a handy next-gen connectivity hub. Embodying the heritage of innovation that has made OWC the global leader in Thunderbolt solutions, Mercury Helios 5S expands your capabilities effortlessly so you can think outside the traditional bulky desktop box when it comes to PCIe-based workflows.
• Internal Class Speed: Up to 6000MB/s bandwidth available for simultaneous read/write
• Widely Compatible: Use with Thunderbolt 5/4, USB4 Macs and PCs, and Thunderbolt 3 Macs
• Expands Small Machines: Use video capture, high-speed fiber/Ethernet, NVMe RAID, audio I/O, and other cards to unlock the potential of MacBooks, Mac Studio, Mac mini, and other space-constrained computers lacking a PCIe slot
• Whisper Quiet: Aircraft grade aluminum housing with high-efficiency, adjustable speed cooling fan provides cool, nearly silent operation
• Pro Level Card Ready: (1) PCIe 4.0 x4 (x16 mechanical slot) for half-length, full-height, single or double-width (including those with daughter board) cards
• Easy Card Installs: Captive thumb screws so no tools required

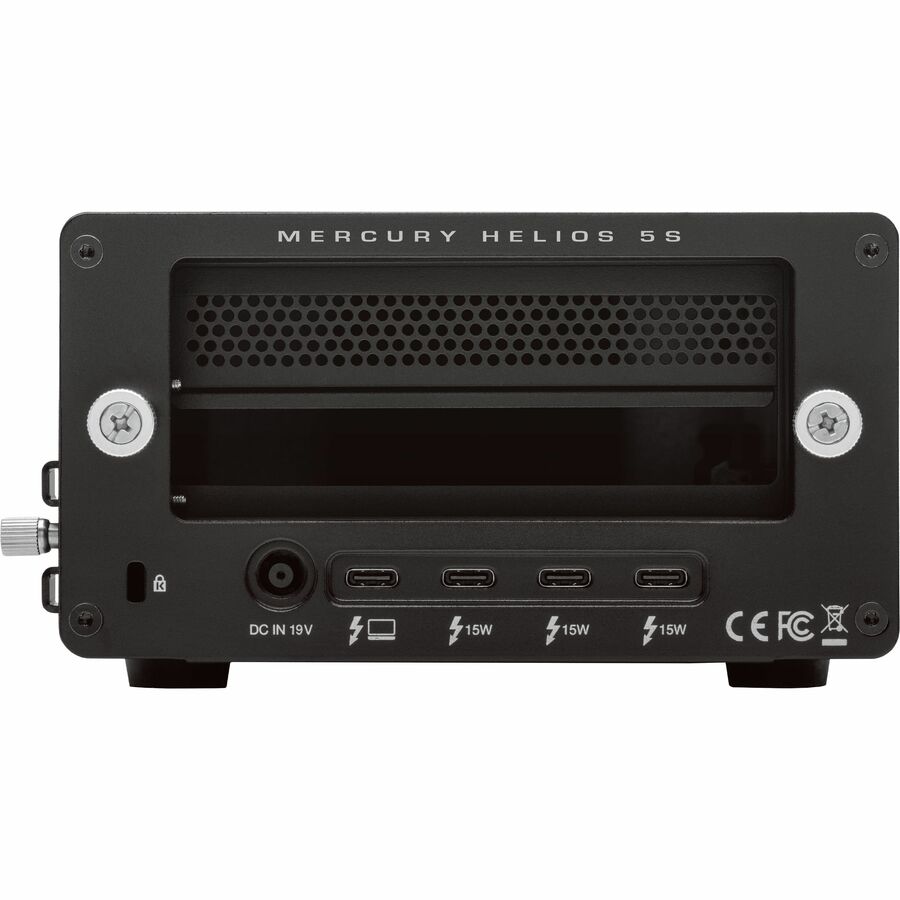

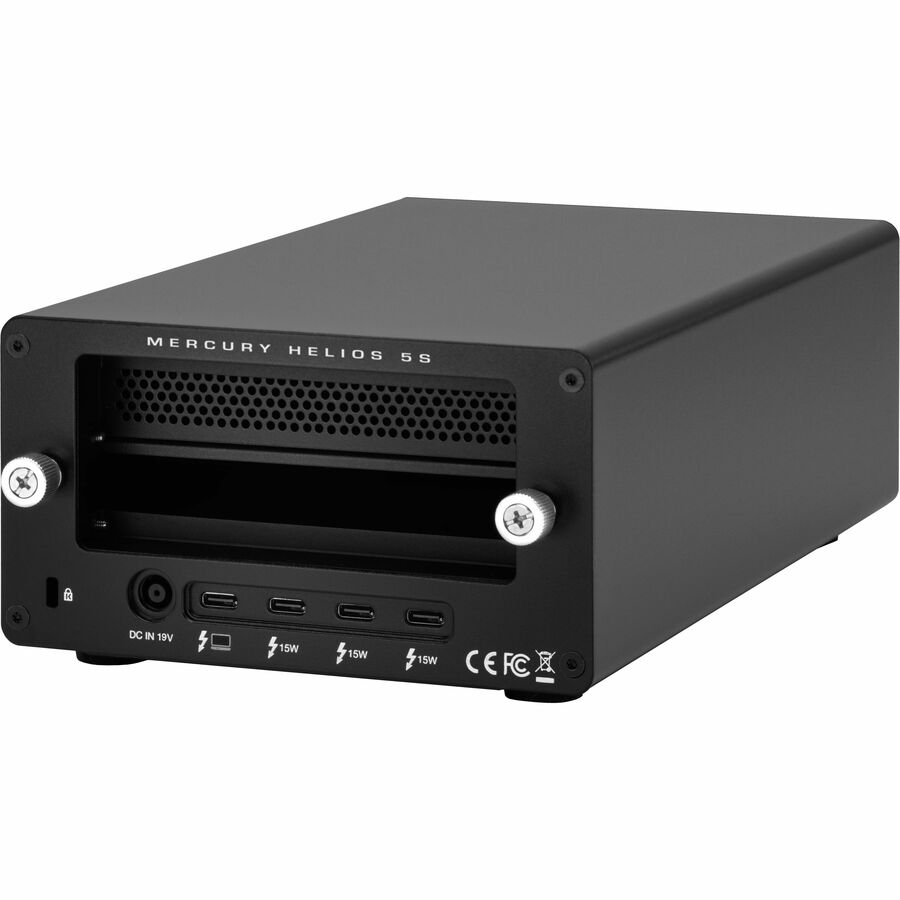

• Expanded Connectivity: Three Thunderbolt 5 (USB-C) 80Gb/s ports each with 15W power delivery for more device, display, and drive possibilities
• Complete, Secure, and Convenient: Includes Thunderbolt 5 80Gb/s cable, power cord retainer, and auto power on/off with your computer
Full-Speed PCIe Performance Ahead
Forget the belief that internal is always faster than external. The Mercury Helios 5S delivers up to 6000MB/s of bandwidth so you can run modern PCIe 4.0 cards at full speed while still accommodating data-hungry external Thunderbolt drives. Whether you're editing multi-cam 8K footage, running real-time audio processing, or transferring terabytes across a 25GbE network card, Mercury Helios 5S gives you the performance you'd expect from an internal PCIe slot with the flexibility of an external one.
More from the Manufacturer
Mercury Helios 5S
The powerfully simple way to use PCIe cards with Thunderbolt 5/4/3 and USB4 notebooks and small form factor computers like the Mac Studio + add more Thunderbolt 5 ports.
Expand Your Capabilities Effortlessly
We get that you love your marvelously slender Mac or PC, but also understand you often wish it offered more functionality. Now with the OWC Mercury Helios 5S, you can give your notebook, small form factor, or “all in one” desktop machine pro grade, full-size workstation capabilities. Whether you want to use an ultra-fast storage, 8K video capture, audio DSP, or high-speed networking PCIe card, Mercury Helios 5S makes it easy via a single Thunderbolt or USB4 connection and with no tools required. Plus, with three additional Thunderbolt 5 ports, it also gives you a handy next-gen connectivity hub. Embodying the heritage of innovation that has made OWC the global leader in Thunderbolt solutions, Mercury Helios 5S expands your capabilities effortlessly so you can think outside the traditional bulky desktop box when it comes to PCIe-based workflows.
Internal Class Speed
Up to 6000MB/s bandwidth available for simultaneous read/write
Widely Compatible
Use with Thunderbolt 5/4, USB4 Macs and PCs, and Thunderbolt 3 Macs
Expands Small Machines
Use video capture, high-speed fiber/Ethernet, NVMe RAID, audio I/O, and other cards to unlock the potential of MacBooks, Mac Studio, Mac mini, and other space-constrained computers lacking a PCIe slot
Whisper Quiet
Aircraft grade aluminum housing with high-efficiency, adjustable speed cooling fan provides cool, nearly silent operation
Pro Level Card Ready
(1) PCIe 4.0 x4 (x16 mechanical slot) for half-length, full-height, single or double-width (including those with daughter board) cards
Easy Card Installs
Captive thumb screws so no tools required
Expanded Connectivity
Three Thunderbolt 5 (USB-C) 80Gb/s ports each with 15W power delivery for more device, display, and drive possibilities
Complete, Secure, and Convenient
Includes Thunderbolt 5 80Gb/s cable, power cord retainer, and auto power on/off with your computer
Full-Speed PCIe Performance Ahead
Forget the belief that internal is always faster than external. The Mercury Helios 5S delivers up to 6000MB/s of bandwidth so you can run modern PCIe 4.0 cards at full speed while still accommodating data-hungry external Thunderbolt drives. Whether you're editing multi-cam 8K footage, running real-time audio processing, or transferring terabytes across a 25GbE network card, Mercury Helios 5S gives you the performance you'd expect from an internal PCIe slot with the flexibility of an external one.
Install Cards in Seconds
Ideal for creative professionals, post-production houses and VFX teams, IT personnel, and developers whose jobs demand easy-to-use, time-saving solutions, Mercury Helios 5S features a tool-free design. Compatible with half-length, full-height, single or double-width pro-level PCIe cards from leading brands like AJA, Apogee, ATTO, AudioScience, Avid Pro Tools, Blackmagic Design, Intel, RME Audio, Solid State Logic, Universal Audio, and OWC, you can use a wide range of pro-level options in seconds:
Disconnect the Thunderbolt cable and power cord from Mercury Helios 5S
Loosen the two captive thumb screws to install or swap a card. If your PCIe card is double-width or includes a daughterboard, the Helios 5S mesh panel is removable
Reconnect the Thunderbolt cable and power cord to Mercury Helios 5S
Note: If your PCIe card requires a driver, always follow the manufacturer's instructions for installation
Triple Your Possibilities
With three Thunderbolt 5 (USB-C) ports, each capable of 80Gb/s throughput and 15W of power delivery, you can easily connect high-performance drives, 8K displays, or other peripherals. Whether you want to create a daisy chain of self-powered Thunderbolt devices or connect USB-C devices up to 80Gb/s, your connectivity options are unlimited with Helios 5S.
Ready for Today and Yesterday
Whether you’re pushing a Thunderbolt 5 machine to its max or still relying on a trusty Thunderbolt 3/4 Mac, Mercury Helios 5S offers plug-and-play expansion across Thunderbolt and USB4 generations. Your PCIe card is secured in an aircraft-grade aluminum chassis with a nearly silent high-efficiency fan so you and the Mercury Helios 5S stay cool under pressure.
OWC Thunderbolt Cable Included
OWC Mercury Helios 5S comes with a certified 0.7M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection,
OWC Thunderbolt 5 (USB-C) Cables
are the perfect choice.
Limited Warranty: 3 Year
About OWC For more than 35 years, OWC has had a simple goal. To create innovative DIY solutions to give you the most from your technology. At OWC, we feel that technology can be instrumental in changing the world for the better if it’s done right. Whether you use it to communicate, create, or safeguard, we believe that technology should be simple, affordable, and easy to use. It should just work and do what you need it to do. At OWC, it is our mission to deliver that seamless level of experience to you with every solution that we make, and in every interaction that we have. We are working to build a better world through our solutions, and it is our mission to create solutions that improve the lives of everyone that touches them. At OWC we promise to: Respect your time. Whether that is through our solutions that aim to get the tech out of the way and keep it out so you can focus on what’s important to you or through our service getting you the advice or help you need. Maximize your budget. That means in the short term in having fair prices, but most importantly in the long term by focusing on quality solutions that are built to last. Our solutions aren’t the cheapest because we know how much of a pain it is to swap out parts in your set up and we know how much you rely on your OWC gear. Support you. Every solution is backed and supported by knowledgeable representatives, not just before the sale, but during and after. You can always call, email or chat with OWC over the lifetime of the product. And that support is always free (outside of the few noted exceptions). Educate. It’s a fast moving world out there. We geek out on the tech so you don't have to. Our solutions help make complicated tasks fast and easy, our install videos demystify and our blog helps you do more with what you have and wade through the marketing-speak. Give it our all. All components in our solutions go through a strict qualification process to make sure they will perform as needed. External drive solutions are additionally tested after assembly, with some tests taking hours or even days to certify that they will go the distance. Channel you. Our solutions are tested using many different workflows so we can ensure when you plug it in, it just works. Complete the circle. There are many, many different options out there and while our hardware and software solutions are designed to work together, they are also designed to work within your setup. What We Do We empower our customers to take their technology further and ensure the investment that they made a couple years ago doesn’t have to be thrown out the door and recycled for something new. How It All Started “I started OWC because it was difficult for me to get to a local store to upgrade my own Apple. On top of that, it was very very expensive to do so and it drove me to number one do my own updgrades, but share that information and offer these upgrades so that others can benefit the same.” Environmental Sustainability We have worked tirelessly to build sustainable practices into all levels of our business operations. Join Our Team At OWC we strive to empower our customers through groundbreaking advancements in upgrades and solutions for Mac, PC, and mobile devices. With an emphasis on superior service, quality, value, and environmental responsibility, we are committed to the creation of technology that inspires the imagination and a world where everything is possible.
| General Information | |
|---|---|
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB5HELIOS5S |
| Brand Name | OWC |
| Product Line | Mercury Helios 5S |
| Product Name | Mercury Helios 5S |
| Packaged Quantity | 1 |
| Product Type | Expansion Chassis |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 5 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Aluminum |
| Height | 3.2" |
| Width | 5.6" |
| Length | 9.2" |
| Weight (Approximate) | 3.75 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Laptop, Computer, PC, Mac, Workstation |
| Compatibility | Apple Products: Mac Studio + MacBooks Mac Studio Mac Mini |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
