Middle Atlantic 42RU SNE Server Rack - 24in Width Server Data Rack - 36in Depth Data Rack Cabinet
For LAN Switch, Patch Panel, Server, Video Encoder, Power Module, Network Equipment, Data Center - 42U Rack Height x 19" Rack Width x 32.48" Rack Depth - Floor Standing Open Frame - Black Powder Coat - Steel - 12000 lb Maximum Weight Capacity
SKU
Category
Rack Equipment
MSRP$3,971.00
$3,151.59
Save 21%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Rack Equipment
Overview

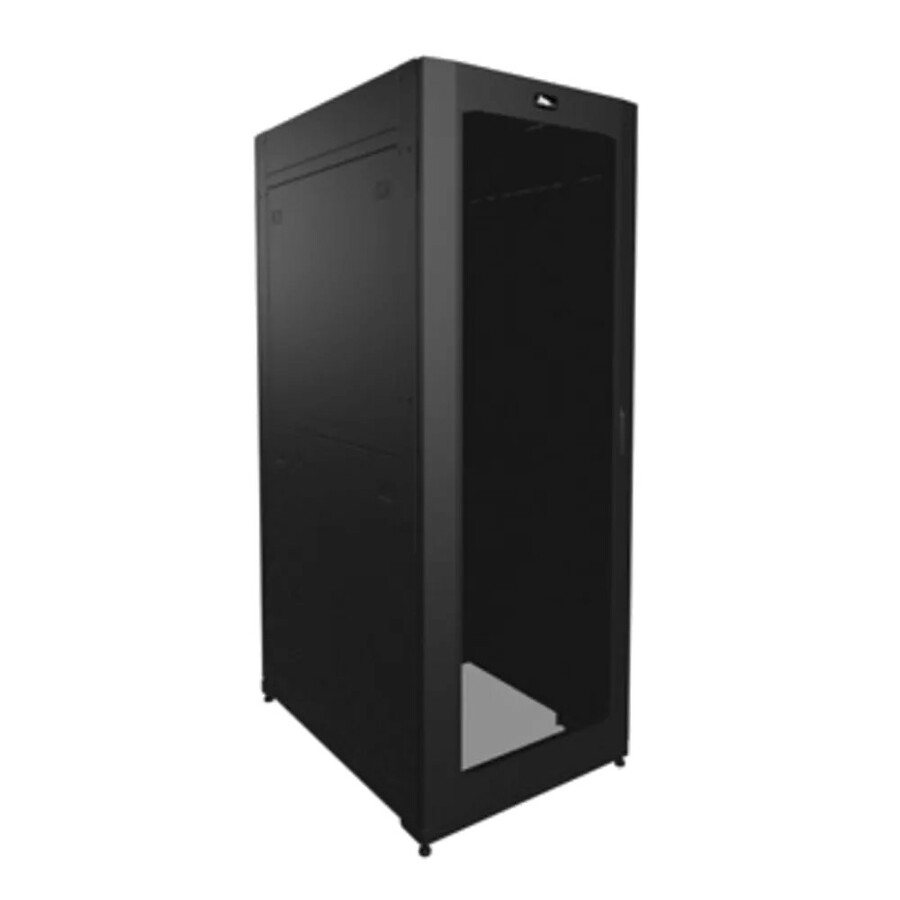

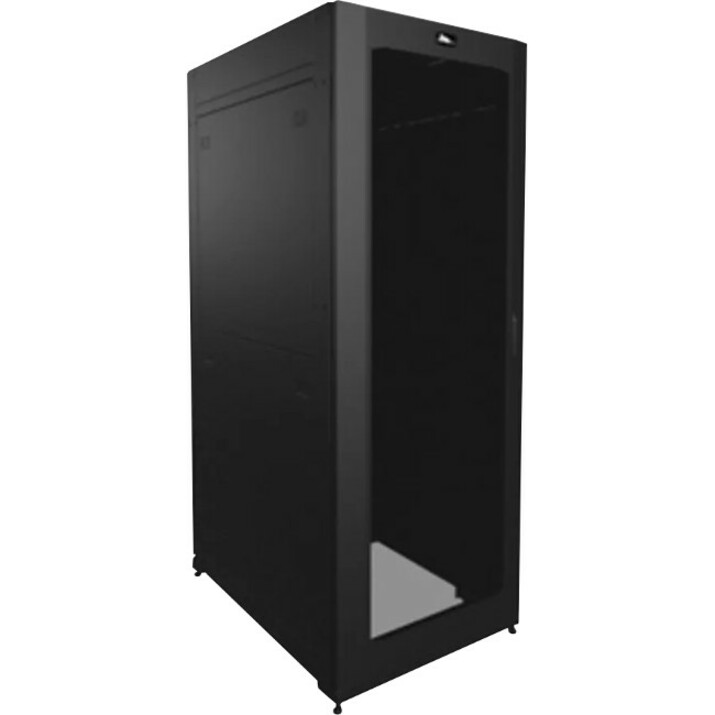

The Middle Atlantic SNE24D-4236-P1 server rack is expertly configured for digital (IP-based) security systems, accommodating high-density cabling, network equipment, and servers. Designed for modern data centers, this network server rack features passive ventilation for efficient cooling from front to rear, a 70% open area vented front door, and a split rear door for optimal airflow. The server rack cabinet includes a pair of split flush mount locking side panels, two pairs of adjustable cage-nut rack rails compatible with 6mm hardware, and is Lever Lock compatible, accepting all vertical 21" accessories. With dimensions of 24" width, 36" overall depth, and 42 rack spaces, this server data rack comes with 100 6mm cage nuts and rack screws, a solid top with brush cable pass-through, and is configured for passive front-to-back cooling. Additionally, this open frame server rack is UL/ETL listed and seismic certified, ensuring reliability and safety. The data rack cabinet also includes four leveling feet and four casters for easy positioning, making it an ideal choice for robust and efficient housing of digital security systems in data centers.
• Tool-Free Lever Lock System: Optional system for easy installation of small devices such as encoders, power supplies, and access control systems.
• Ventilation: 70% open area vented front door and split rear door for optimal airflow.
• Side Panels: Pair of split flush mount locking side panels for secure access.
• Rack rails: Includes 2 pairs of adjustable cage-nut rack rails, compatible with 6mm hardware.
• Lever Lock Compatibility: Accepts all Lever Lock vertical 21" accessories for versatile mounting options.
• Hardware: Comes with 100 6mm cage nuts and rack screws.
• Top Panel: Solid top with brush cable pass-through for organized cabling.
• Cooling: Configured for passive front-to-back cooling.
• Certification: UL/ETL listed and seismic certified for reliability and safety.
• Mobility: Includes 4 leveling feet and 4 casters for easy positioning.
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Rack Cabinet allows quick and easy retrieval of your items with better organizing and feasible mounting
Comes in black powder coat color for an elegant and fashionable look
Built with steel to offer great resistance to damage and deterioration
Floor Standing form factor for added reliability and dependability
LAN Switch application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
Casters can be used to conveniently transport rack enclosures and open frame racks to their desired location without any hassle
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
SNE24D-4236-P1
Brand Name
Middle Atlantic
Product Series
SNE
Product Name
SNE Rack Cabinet
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Floor Standing
Color Family
Black
Product Color
Black Powder Coat
Product Material
Steel
Maximum Weight Capacity
12000 lb
Height
79.5"
Width
24"
Depth
36"
Rack Height
42U
Rack Width
19"
Rack Depth
32.48"
Technical Information
Rack Type
Open Frame
Application/Usage
LAN Switch, Patch Panel, Server, Video Encoder, Power Module, Network Equipment, Data Center
Ventilation
Yes
Features
Casters, Adjustable Rear Rail, Vented, Lockable Side Panel, Leveling Feet, Front Door, Rear Door
