Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
999-5655-000
Category
Surveillance Control Panels
Overview

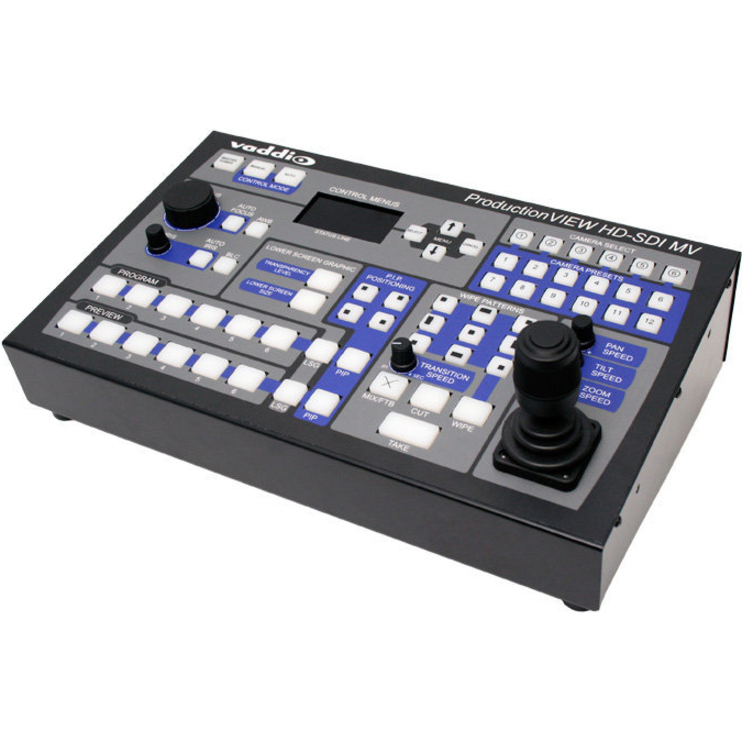

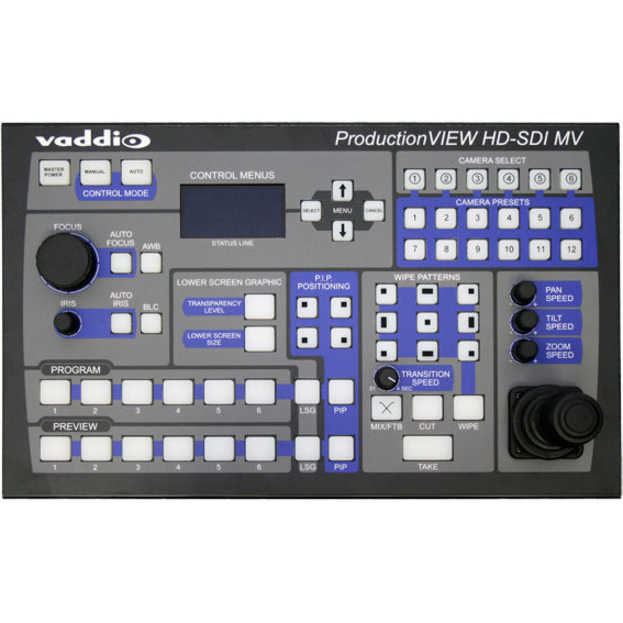

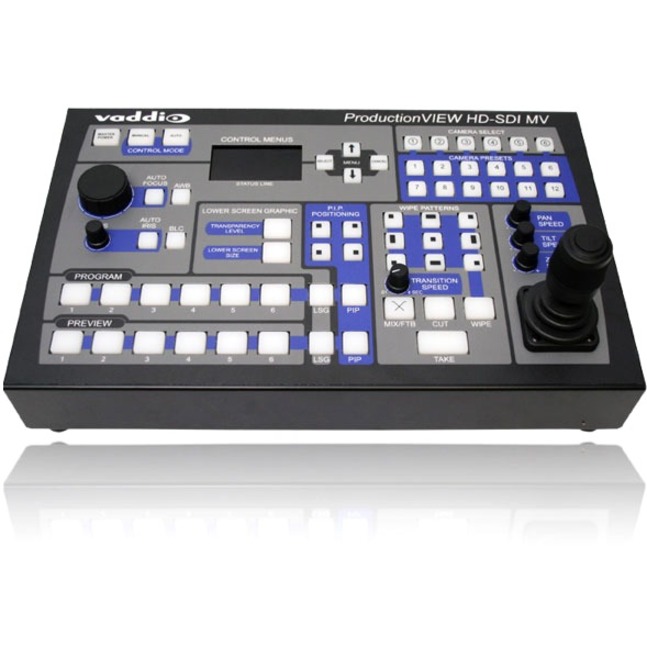

The ProductionVIEW HD-SDI MV is an all-in-one camera control console with HD-SDI/SDI video switching/mixing, a built-in multiviewer, lower screen graphics and automated control functionality.
New Multi-View Input Screens allow the user to select between screen layouts that display four, five or six inputs. When set up with four or five preview windows, the preset video thumbnails become larger on the bottom of the screen. In addition the Preview and Program windows can be swapped on the multiviewer output.
With Vaddio's TeleTouch touch screen monitors, all live video feeds can be selected and up to 12 video thumbnail presets can be created, recalled and stored by simply touching the monitor. The thumbnails are a snapshot of what the camera preset shot looks like, to make storing and recalling presets even easier. Simply touch a thumbnail and the camera will pan, tilt and zoom to that position. The Cut, Wipe and Fade buttons illuminate on the multiviewer display, giving a visual indication of which effect is active.
An additional capability of the system is Dual Bus Multiview output. This allows the user to switch between Preview and Program as discrete outputs - with one going to an IMAG Projector and the other going to a recording device.

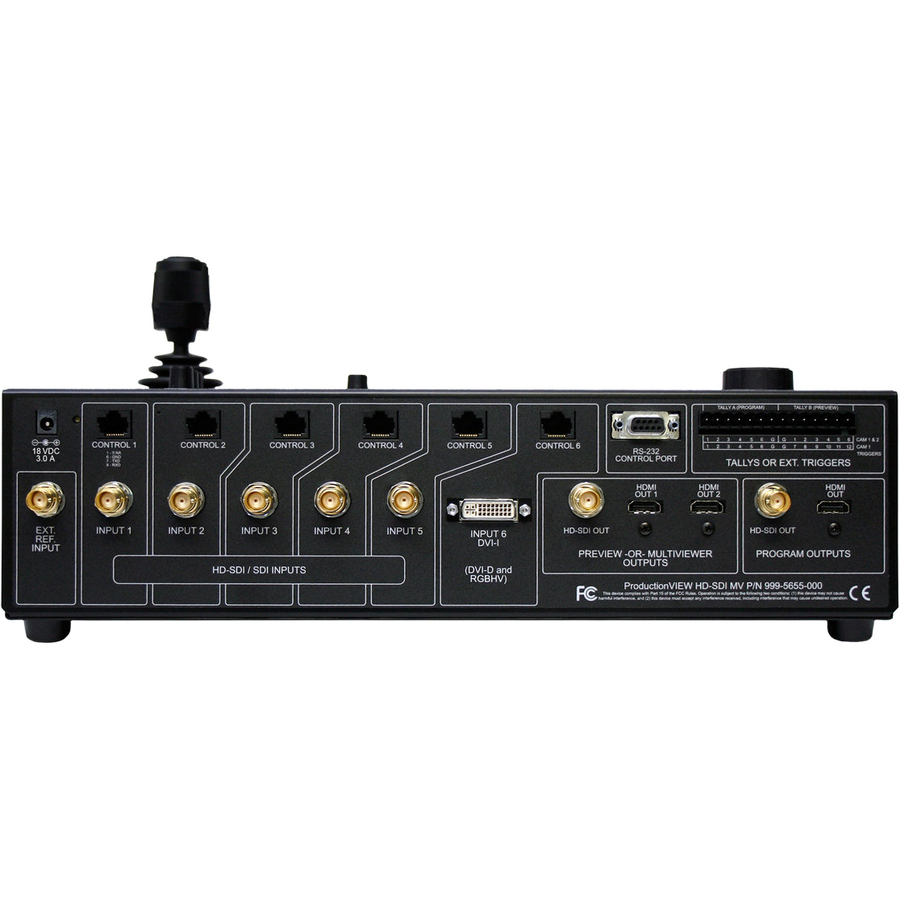

All inputs are autosensing for video resolution, control and camera type. Video inputs include five HD-SDI/SDI (480i to 1080p) inputs on BNC connectors and a single DVI-I input on channel six that allows for multiple formats (DVI-D, YPbPr, RGBHV and HDMI) with 36 additional input resolutions.
Warranty
Limited Warranty: 2 Year
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets.
Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
HD-SDI/SDI (480i to 1080p) and DVI-I Inputs
HD-SDI and HDMI outputs
Optional TeleTouch Multiviewer Touch Screen
Up to 12 stored preset video thumbnails
Transitions including cross fade, nine wipes, cut and fade to black
Lower Screen Graphics feature for inserting graphics over video
Specifications
Display & Graphics
Display Type
LCD
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-5655-000
Brand Name
Vaddio
Product Line
ProductionVIEW HD-SDI MV
Product Name
ProductionVIEW HD-SDI MV Surveillance Control Panel
Product Type
Surveillance Control Panel
Physical Characteristics
Height
4"
Width
16"
Depth
10"
Weight (Approximate)
9.50 lb
Technical Information
Joystick Type
3D
Features
On Screen Display
Warranty
Limited Warranty
2 Year
Interfaces/Ports
Serial
Yes
Miscellaneous
Package Contents
ProductionVIEW HD-SDI MV Surveillance Control Panel
