Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Honeywell International through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Barcode Scanners
Overview

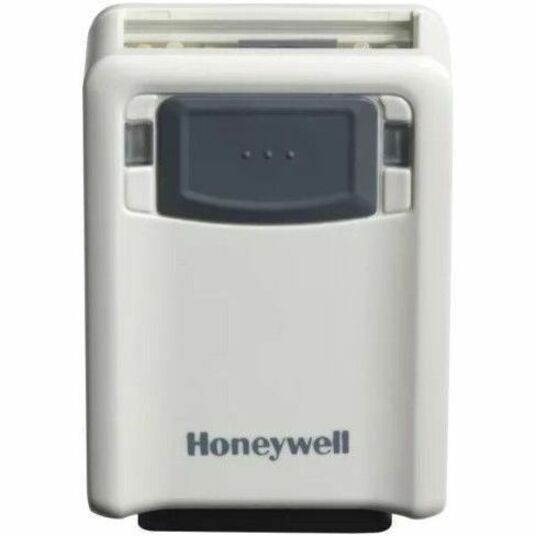

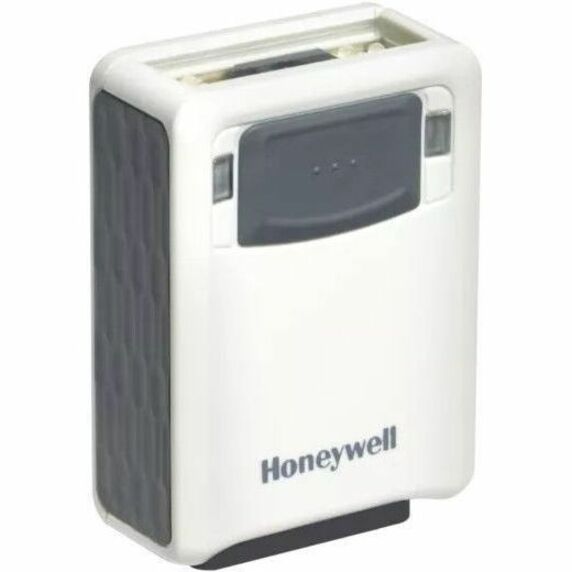

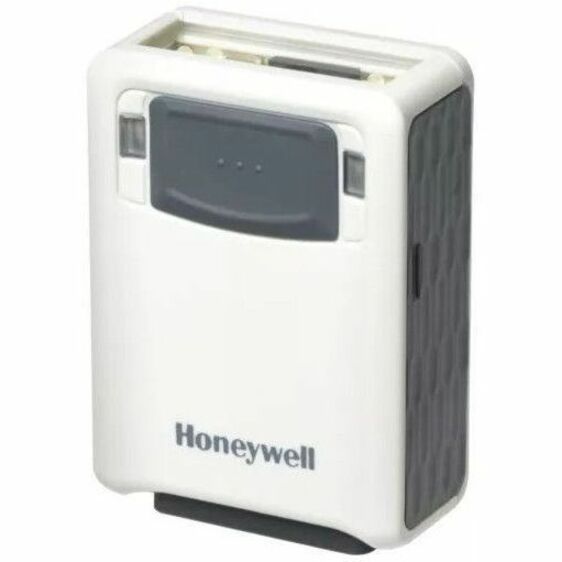

The Honeywell Vuquest 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments.
Powered by Adaptus Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
The TotalFreedom 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies.
The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products.

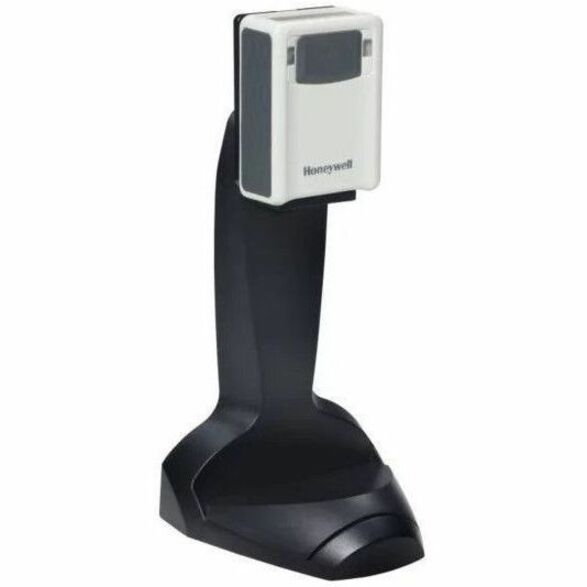

With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks.
Warranty
Limited Warranty: 2 Year
Highlights
The intelligent multi-interface design supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes with automatic interface detection.
TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modifications while offering expanded decoding and data formatting functionality.
Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.
Specifications
Environmental Conditions
Operating Temperature
32°F (0°C) to 104°F (40°C)
Storage Temperature
-4°F (-20°C) to 158°F (70°C)
Humidity (Non-condensing)
5% to 95%
General Information
Manufacturer
Honeywell International, Inc
Manufacturer Part Number
3320GHD-4-N
Brand Name
Honeywell
Product Line
Vuquest
Product Model
3320g
Product Name
Vuquest 3320g Area-Imaging Scanner
Product Type
Barcode Scanner
Interfaces/Ports
Host Interface
USB, Serial, Keyboard Wedge
Physical Characteristics
Form Factor
Desktop
Color Family
Gray
Product Color
Gray
Durability
Drop Resistant
Height
1"
Width
2"
Length
2.9"
Weight (Approximate)
2.72 oz
Power Description
Maximum Operating Power Consumption
2.30 W
Standby Current
90 mA
Technical Information
Connectivity Technology
Cable
Scanning Capability
1D, 2D
Barcode Symbology Supported
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Image Sensor Type
Imager
Scan Pattern
Area
Scanner Range
Short Range
Scanning Distance
17.10"
Features
Notification LED, Data Formatter, Ergonomic Design, Scan Button
