Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FG2102-08-BL
Category
A/V Control Panels
Overview

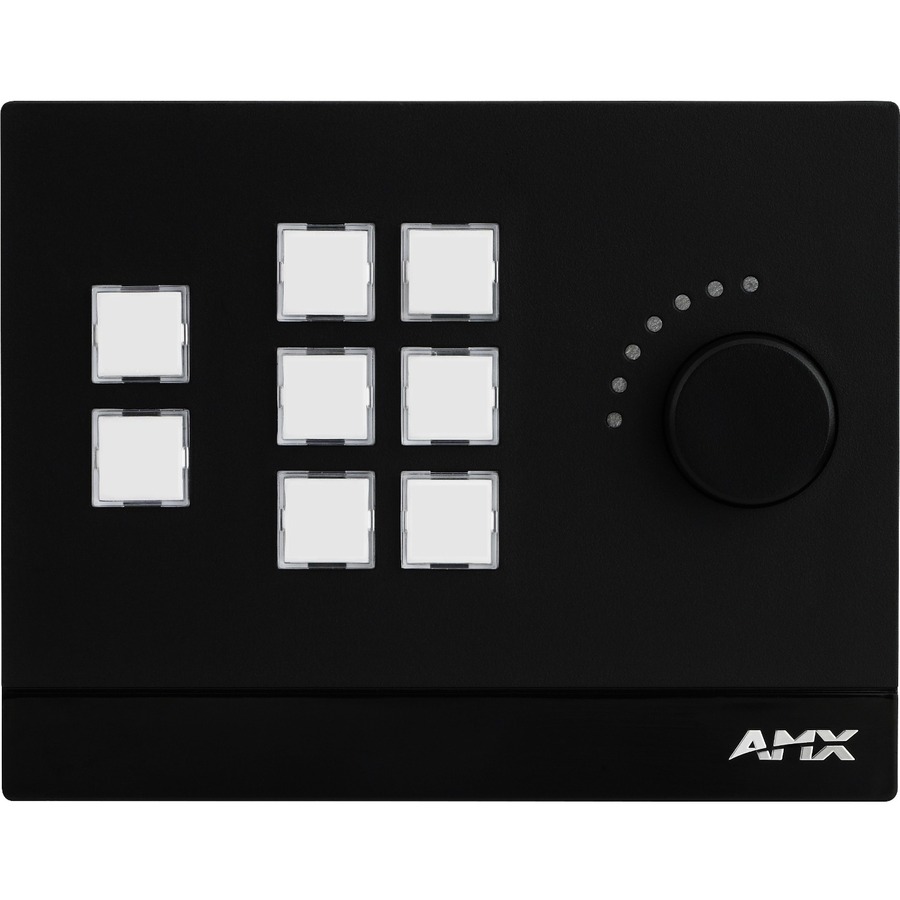

The MCP-108 / 8-Button Massio ControlPad with Knob combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 2 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-108 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.
COMMON APPLICATION
• NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise.
• Massio ControlPads are a perfect solution for huddle spaces and small conference rooms, where Massio's combination of controller, user interface and configuration with RPM provides an inexpensive way to add AV control to small spaces
• The MCP-108's security features and secure wall-mount options make it ideal for Higher Education breakout rooms and small classrooms.
• The MCP-108's rugged design and attractive price point also make it perfect for K-12 (Primary Education) classrooms.
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG2102-08-BL
Brand Name
AMX
Product Line
Massio
Product Model
FG2102-08-BL
Product Name
Massio 8-Button ControlPad with Knob (US, UK, EU)
Product Type
A/V Control Panel
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Gang Box Mount
Height
4.7"
Width
6"
Depth
1"
Weight (Approximate)
6.70 oz
Miscellaneous
Package Contents
Massio 8-Button ControlPad with Knob (US, UK, EU)
1 x Metal Mounting Bracket
1 x 2-Pin Female Connector
1 x 3-Pin Female Connector
1 x Sheet of 70 Pre-Printed Button Labels
2 x M3.5 x 30MM Screws
2 x #6-32 x 1.25 Screws
Environmentally Friendly
Yes
Country of Origin
Mexico
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
