SKU
AVS-CTRL8
Category
A/V Control Panels
Overview
Each of the 8 buttons can be user programmed, using the included software, to send IR, relay control, or bi-directional RS-232 and RS-485 commands simultaneously to control third-party devices.

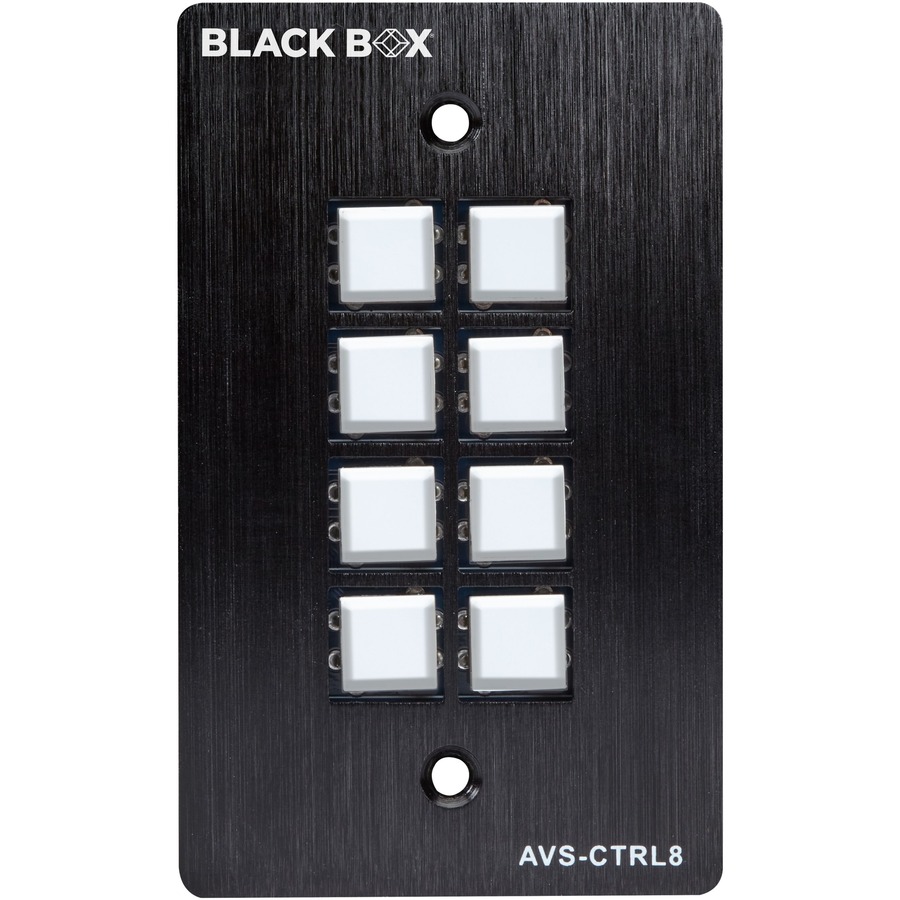

The panel is designed in a high quality black metal finish with LED back lit buttons, and fits into a standard single gang outlet box.
Warranty
Additional Warranty Information: <p>Extended Double Diamond Warranty Available (3 Additional Years) </p> <p></p>
Limited Warranty: 3 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Designed to operate any AV or KVM switches or scalers with RS-232 control, or other AV devices with either RS-232, RS-485, IR, or relay control.
Eight fully programmable buttons.
Sleek black metal wallplate design
ID looping function
Maximum 99-unit programmable control panels can be looped and controlled together.
Supports page, toggle, compare, and delay settings.
The backlit brightness is controllable.
The labels are customizable and changeable.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
AVS-CTRL8
Brand Name
Black Box
Product Model
AVS-CTRL8
Product Name
Wallplate Control Panel - RS-232, 8-Button
Product Type
A/V Control Panel
Physical Characteristics
Color Family
Black
Product Color
Sleek Black
Product Material
Metal
Form Factor
Wall Plate, Wall Mountable, Gang Box Mount
Height
1.1"
Width
2.8"
Depth
4.5"
Weight (Approximate)
5.28 oz
Technical Information
Connectivity Technology
Wired
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Extended Double Diamond Warranty Available (3 Additional Years)
Miscellaneous
Environmentally Friendly
Yes
Country of Origin
China
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
