Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AC266
Category
Component Speakers
Overview

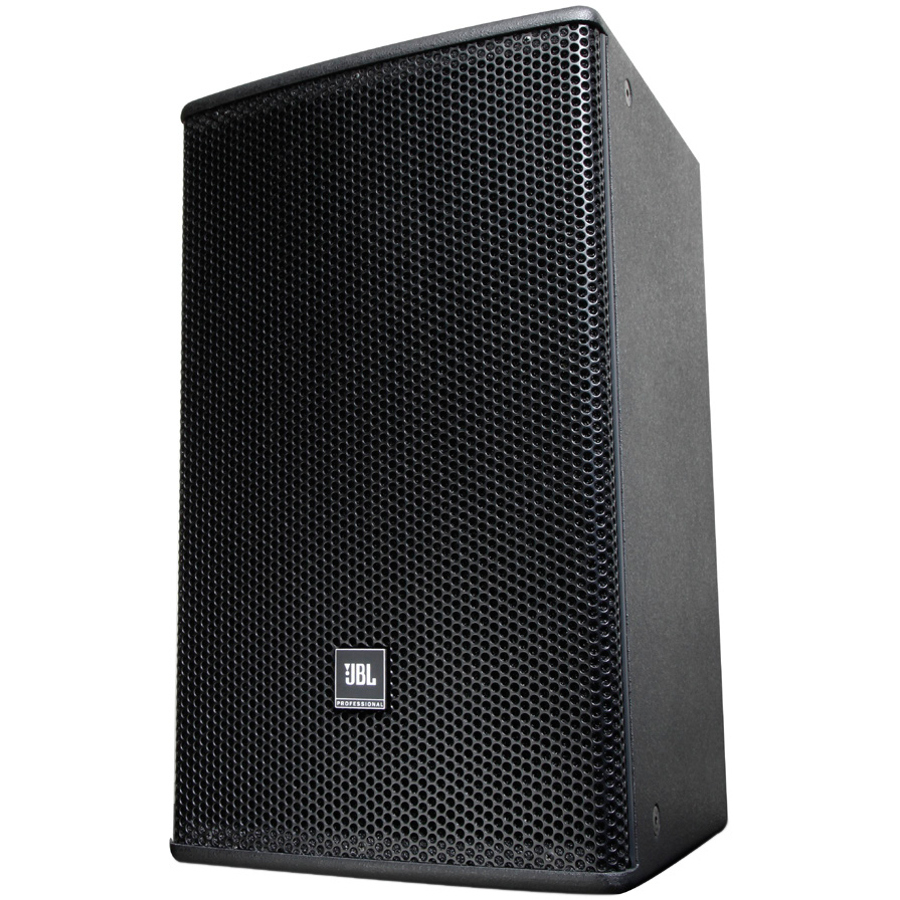

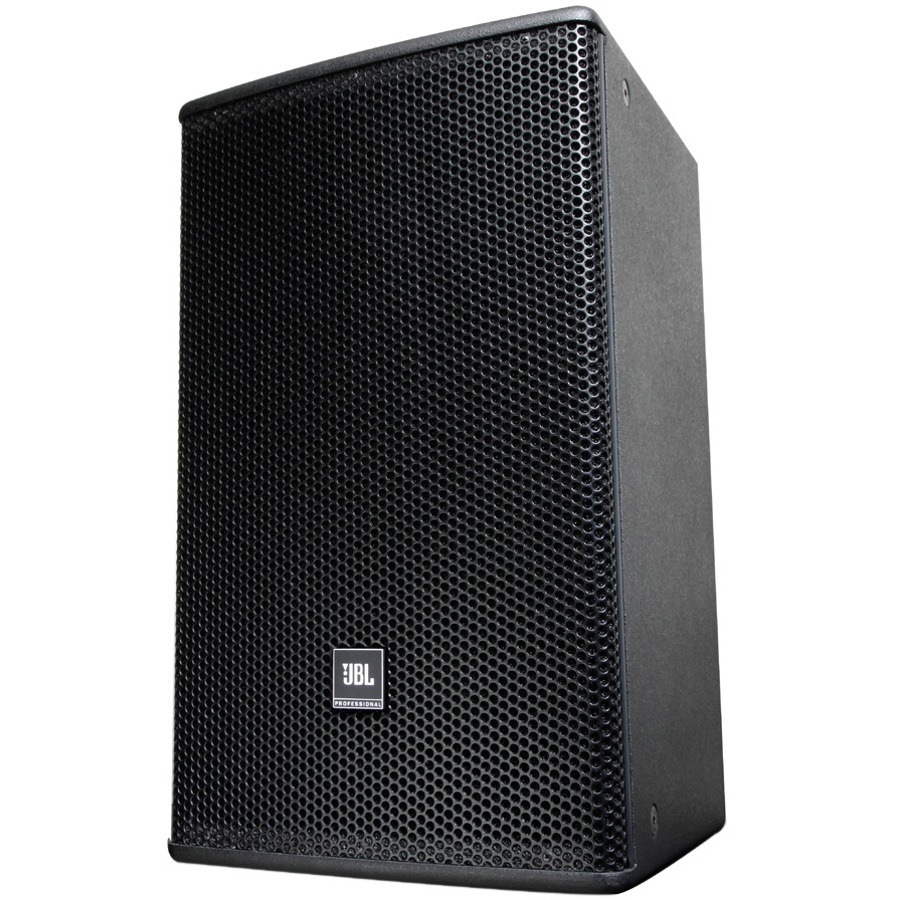

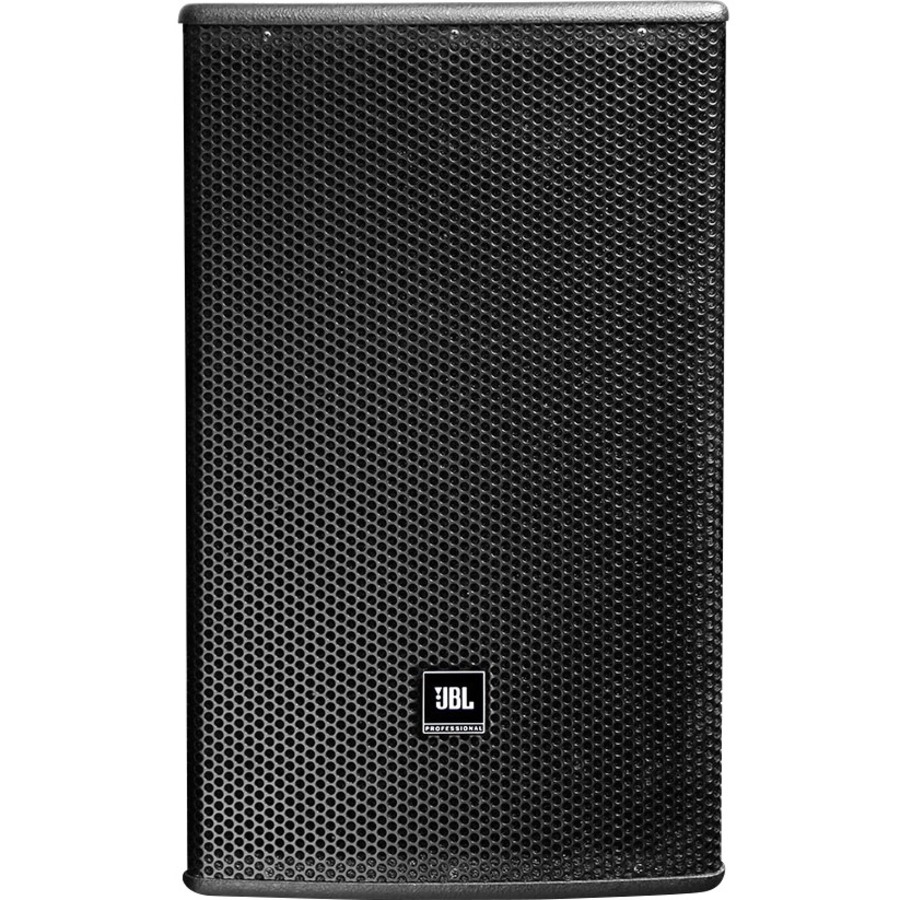

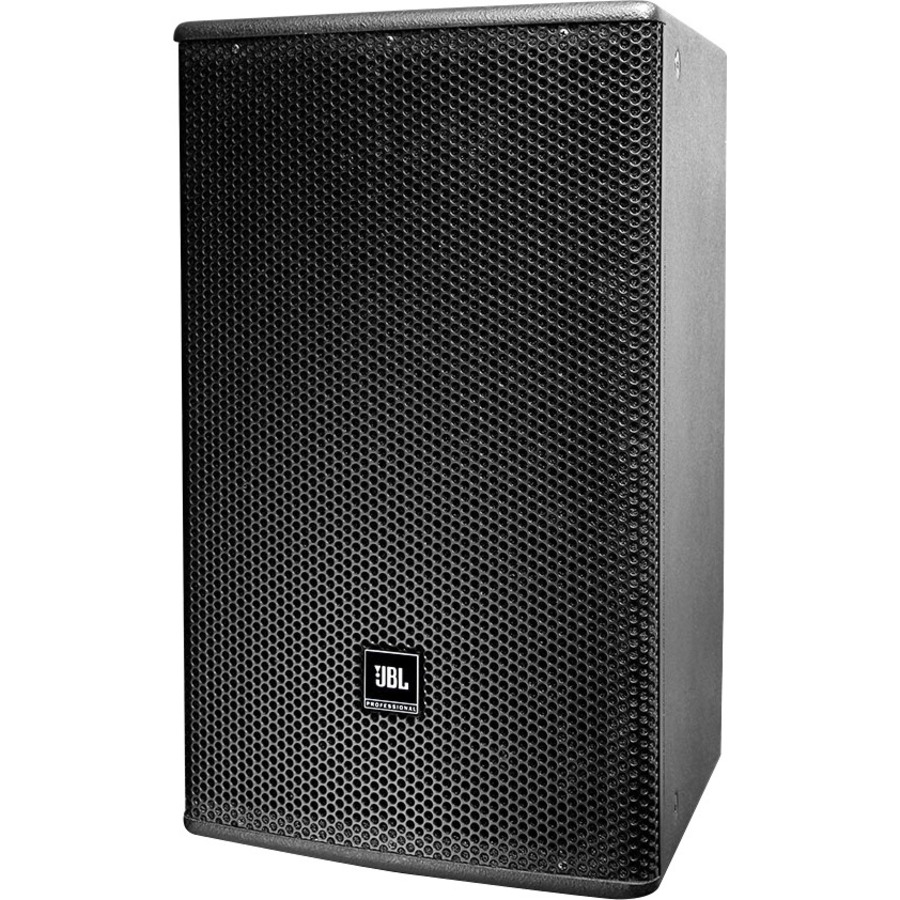

Two-Way Full-Range Loudspeaker with 1 x 12"" LF AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
About Harman International Industries
JBL Professional: Legendary Audio for Over 70 Years
At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
Highlights
Robust 15mm enclosure with black textured finish

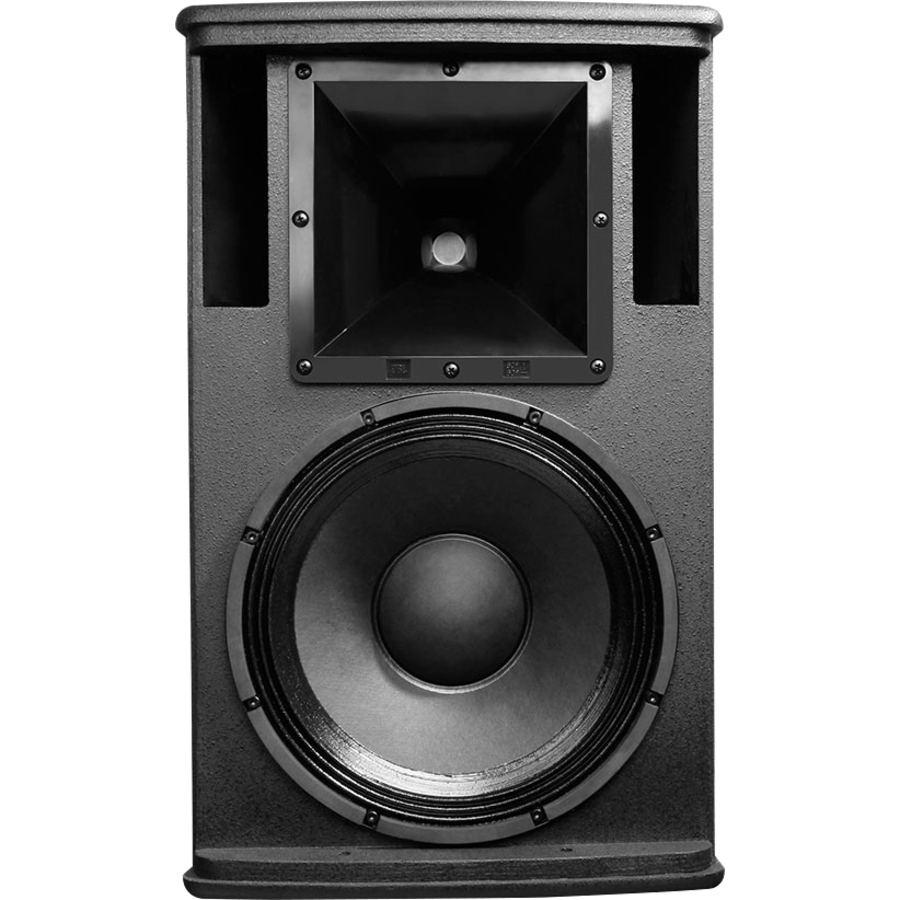

310 mm (12 in) LF transducer
60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5"") diaphragm compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AC266
Brand Name
JBL Professional
Product Model
AC266
Product Name
2-Way Full-Range Loudspeaker with 1 x 12" LF
Product Type
Speaker
Physical Characteristics
Product Color
Black Textured
Form Factor
Wall Mountable
Height
23.6"
Width
14.6"
Depth
15.43"
Weight (Approximate)
38.36 lb
Technical Information
Crossover Type
2-way
RMS Output Power
250 W
PMPO Output Power
1000 W
Woofer Driver Size
12.20"
Tweeter Driver Size
0.98"
Minimum Frequency Response
80 Hz
Maximum Frequency Response
18 kHz
Impedance
8 Ohm
Sensitivity
97 dB
Miscellaneous
Application/Usage
Club, Bar, House of Worship, Retail, Educational Facility, Hospitality, Presentation Room, Multi Media Space, Stage
