JBL Professional 4642A Floor Standing, In-wall Woofer - 2400 W RMS
Harman International Industries

JBL Professional 4642A Floor Standing, In-wall Woofer - 2400 W RMS

4800 W (PMPO) - 18" - 22 Hz to 35 Hz - 4 Ohm

SKU
4642A-GS
Category
Component Speakers

MSRP$3,338.75

$1,797.01

Save 46%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4642A-GS
Category
Component Speakers

Overview

Description:

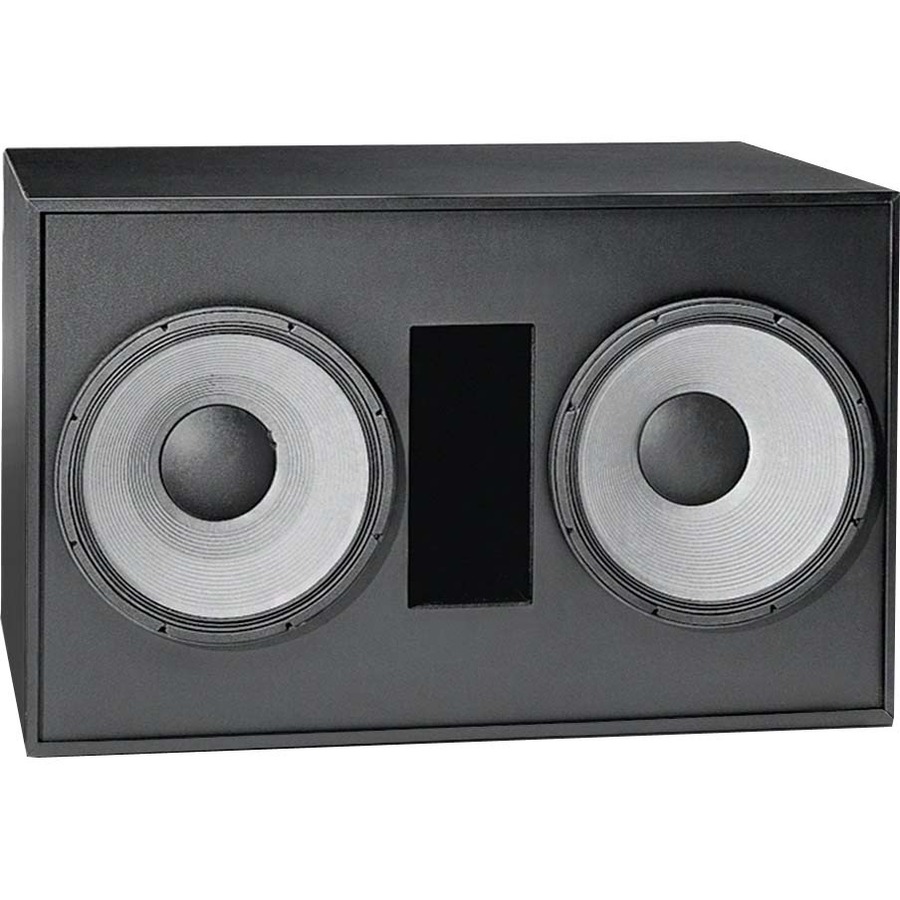

The JBL 4642A is a high quality subwoofer system, featuring a technologically advanced 460 mm (18 in) low frequency transducers mounted in a direct radiator, bass-reflex enclosure for smooth response to the lowest audible frequencies. The 4642A is ideal for low frequency augmentation of either analog or digital soundtracks in motion picture theaters and for general sound reinforcement applications. The 2241H transducer utilizes the patented Vented Gap Cooling (VGC) process, which pumps air through the magnetic gap and directly over and around the voice coil, providing immediate heat transfer and a reduction in operating temperature. This increases power handling while reducing power compression. Through the use of computer-aided magnet optimization and analysis techniques, JBL engineers were able to optimize magnet weight, flux density and field saturation, resulting in a 2.6 kg (6.5 lb) reduction in overall driver weight and a significant reduction in harmonic distortion. This magnet structure offers much of the weight advantage of rare earth magnet structures without the prohibitive cost, enabling the system to carry a 600-watt continuous AES pink noise power rating.

Highlights

  • 950 W (60 Vrms) AES 100-hour rating; 1200 W (69 Vrms) AES 2-hour rating
  • Usable response to 22 Hz (-10 dB) with no EQ; flat to 22 Hz (-3 dB) with external EQ
  • 2241H VGC? (Vented Gap Cooled) drivers provide long peak-to-peak excursion, high
  • sensitivity and high maximum SPL capability
  • SFG? (Symmetrical Field Geometry) magnet structure for low 2nd and 3rd harmonic
  • distortion
  • Approved by Lucasfilm, Ltd. for THX® installations

Specifications

Product TypeWoofer
Impedance4 Ohm
Manufacturer Part Number4642A-GS
Sensitivity100 dB
Weight (Approximate)211.64 lb
FeaturesBass Reflex
Form FactorFloor Standing, In-wall
ManufacturerHarman International Industries, Inc
Product Model4642A
Product Name4642A Dual 460 mm (18 in) Subwoofer System
Brand NameJBL Professional
Minimum Frequency Response22 Hz
Maximum Frequency Response35 Hz
RMS Output Power2400 W
PMPO Output Power4800 W
Subwoofer Height30"
Subwoofer Width47.99"
Subwoofer Depth24.02"
Woofer Diameter18.11"
Woofer Driver Size18"
