21.5" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 225 Nit - LED Backlight - Speakers - HDMI - USB - VGA - Black - 3 Year - USB Hub
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
2202L | Touchscreen Monitor
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You. | One for Your Customers.

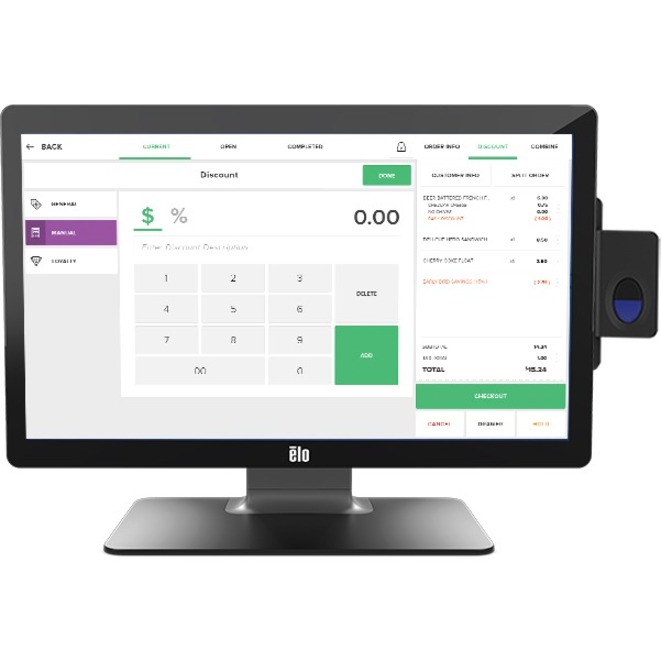

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
Limited Warranty: 3 Year
| Audio | |
|---|---|
| Speakers | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E992622 |
| Brand Name | Elo |
| Product Series | 02 |
| Product Model | 2202L |
| Product Name | 2202L 22" Touchscreen Monitor |
| Product Type | LED Touchscreen Monitor |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 4 |
| Number of Micro USB Upstream Ports | 4 |
| Physical Characteristics | |
| Color Family | Black |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| VESA Mount Standard | 100 x 100 |
| Height | 12.9" |
| Width | 20.7" |
| Depth | 1.7" |
| Height with Stand | 15.11" |
| Width with Stand | 20.74" |
| Depth with Stand | 7.61" |
| Weight (Approximate) | 10.47 lb |
| Weight with Stand (Approximate) | 14.88 lb |
| Power Description | |
| Operating Power Consumption | 16.78 W |
| Technical Information | |
| Screen Size Class | 22" |
| Viewable Screen Size | 21.5" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 14 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Wall Mountable, Pole Mount, Shelf Mount |
| Placement | Tabletop |
| Backlight Technology | LED |
| Features | On-screen Display (OSD), Cable Lock Slot, Anti-glare, Wide Viewing Angle, OSD/Power Lock |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Ingress Protection (IP) Rating | IPX1 |
| Impact Protection (IK) Rating | IK06 |
| Active Display Area (H x V) | 18.70" x 10.50" |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 225 Nit |
| Warranty | |
| Limited Warranty | 3 Year |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
