15.6" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 405 Nit - LED Backlight - Speakers - HDMI - USB - DisplayPort - USB Type-C - Black - 3 Year - USB Hub
MSRP$655.00
$632.68
Save 3%Special order — estimated available by August 27, 2026.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

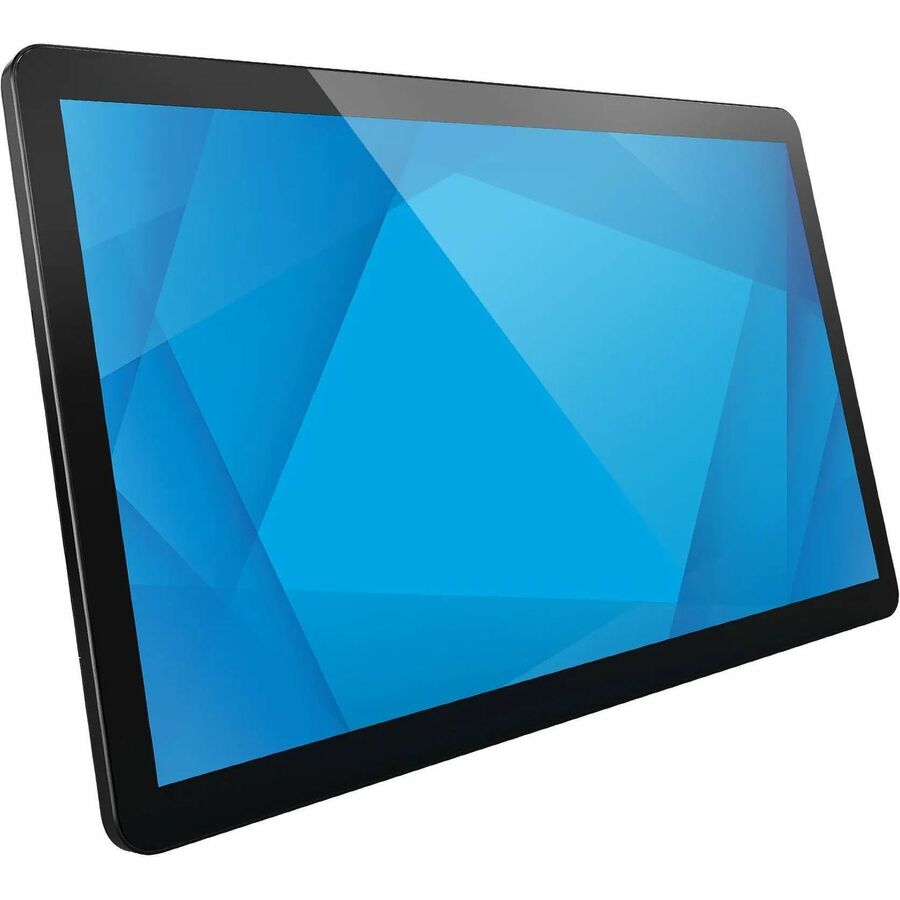

1504L 15-inch Touchscreen Monitor
The 1504L touch monitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.

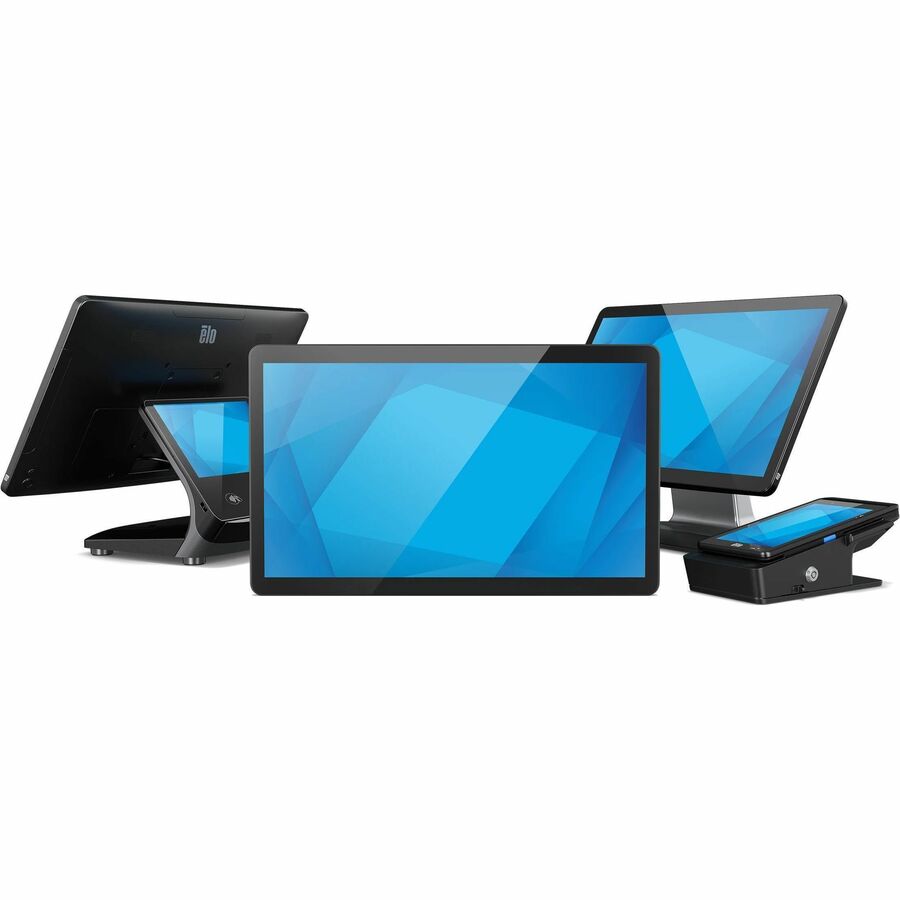

Create the perfect payment stack with the 15" touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7" , the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti-glare cover glass and low-blue light settings - the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.

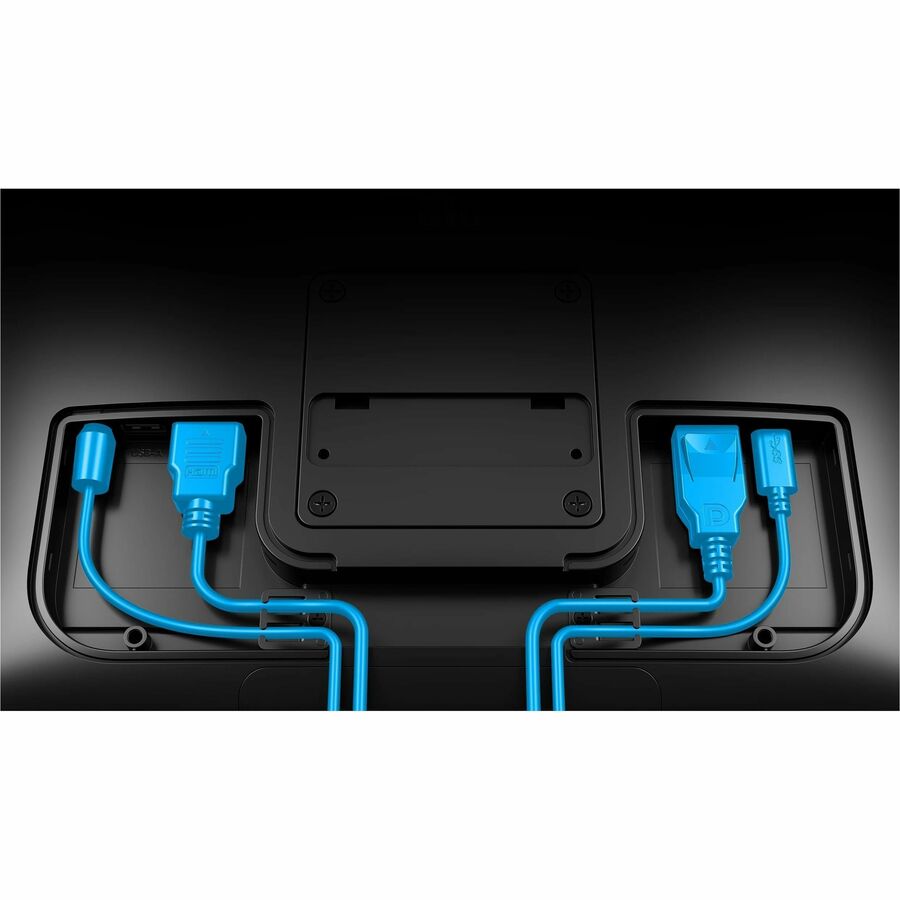

Secure yourcables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect® offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.

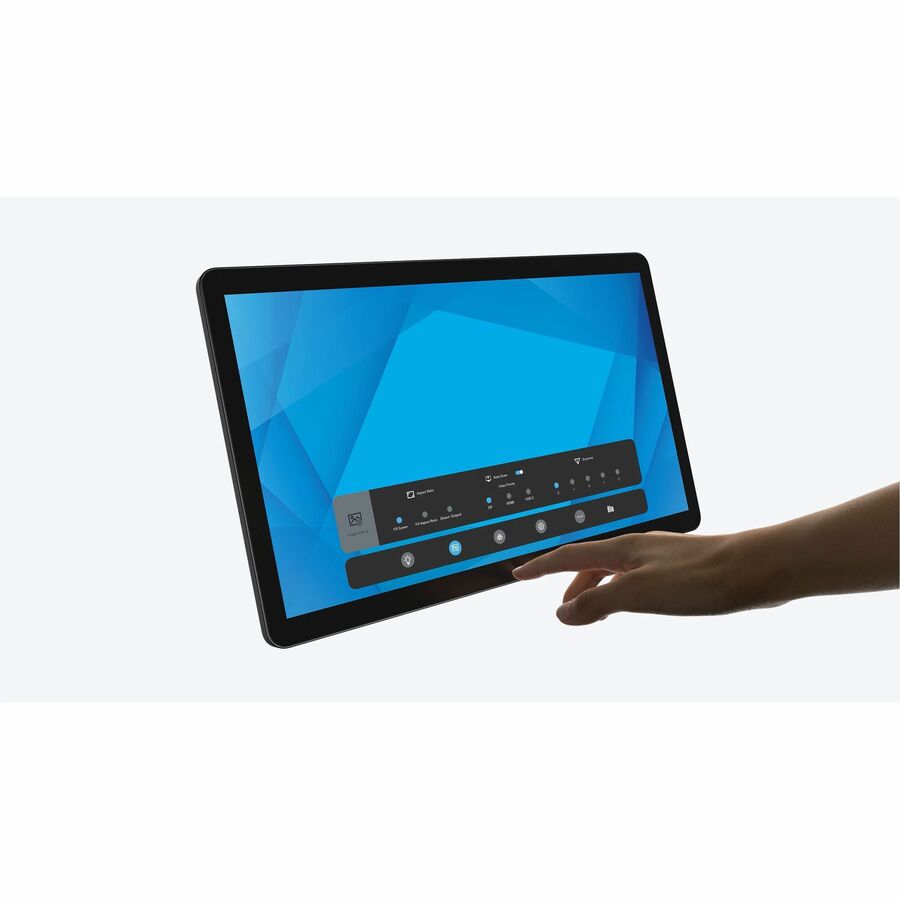

Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
Get peace of mind with EloCare SM .
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
• Advance Unit Replacement
• Extended Warranty
• Professional Services
Quality thatis built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
Limited Warranty: 3 Year
| Audio | |
|---|---|
| Speakers | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E969292 |
| Brand Name | Elo |
| Product Model | 1504L |
| Product Name | 1504L Touchscreen LED Monitor |
| Product Type | LED Touchscreen Monitor |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Total Number of HDMI Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of USB Ports | 6 |
| Total Number of USB Type-C Ports | 1 |
| Number of Micro USB Ports | 4 |
| Physical Characteristics | |
| Color Family | Black |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| VESA Mount Standard | 75 x 75, 100 x 100 |
| Height | 9" |
| Width | 14.6" |
| Depth | 1.1" |
| Weight (Approximate) | 3.74 lb |
| Weight with Stand (Approximate) | 6.39 lb |
| Power Description | |
| Maximum Power Consumption | 12.10 W |
| Technical Information | |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 25 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Features | Wide Viewing Angle, Anti-glare, On-screen Display (OSD), Color Temperature Selection, Low Blue Light, ComfortView, Scratch Resistant, On-screen Display (OSD) Lock |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Ingress Protection (IP) Rating | IP54 |
| Impact Protection (IK) Rating | IK08 |
| Active Display Area (H x V) | 13.50" x 7.60" |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 405 Nit |
| Warranty | |
| Limited Warranty | 3 Year |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
| Application/Usage | Point of Sale (POS) |
