(Intel Core i5 i5-1245UL 4.40 GHz - 16 GB DDR5 SDRAM - 256 GB SSD M.2 - Windows 10 IoT Enterprise LTSC (64-bit)
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Brilliant and beautiful, interactive platform.
• 10-touchTouchPro PCAP
• Fanless, P54rated design
• Full HD IPSTouchscreen
• Easy to cleanedge-to-edge glass
• 50,000MTBF
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

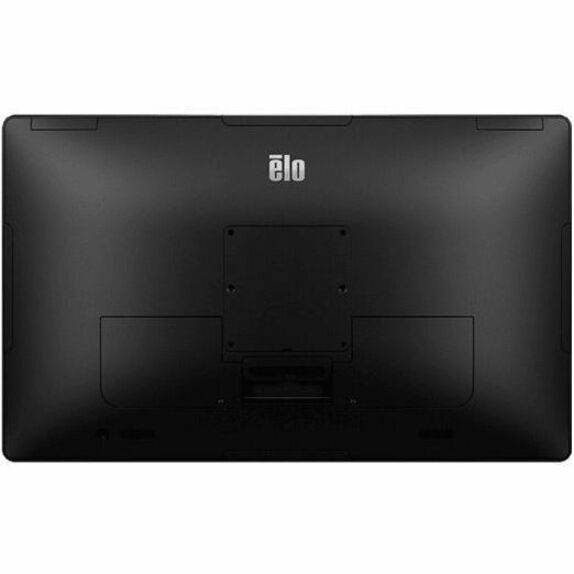

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.
Enhanced connectivity for all your accessories.
• USB-C full featured
• Gigabit LAN
• Powered RJ50 Serial
• 4x USB 3.0
• 4x Micro-USB Edge Connect
• WiFi & Bluetooth 5.2
Support for Linux.
For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
EloBridge | Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.
• ? Advance Unit Replacement
• Extended Warranty
• Professional Services
| Built-in Devices | |
|---|---|
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Display & Graphics | |
| Screen Size | 21.5" |
| Active Display Size (Horizontal) | 18.74" |
| Active Display Size (Vertical) | 10.54" |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Xe Graphics |
| Aspect Ratio | 16:9 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E457278 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 22.30 lb |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Model | i5-1245UL |
| Processor Speed | 4.40 GHz |
| Processor Cache | 12 MB |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design, Anti-glare |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
