Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
E432375
Category
POS Terminals
Overview
Completely redesigned | I-Series 3 Slate with Intel
Brilliant and beautiful, interactive platform.
10-touch TouchPro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF

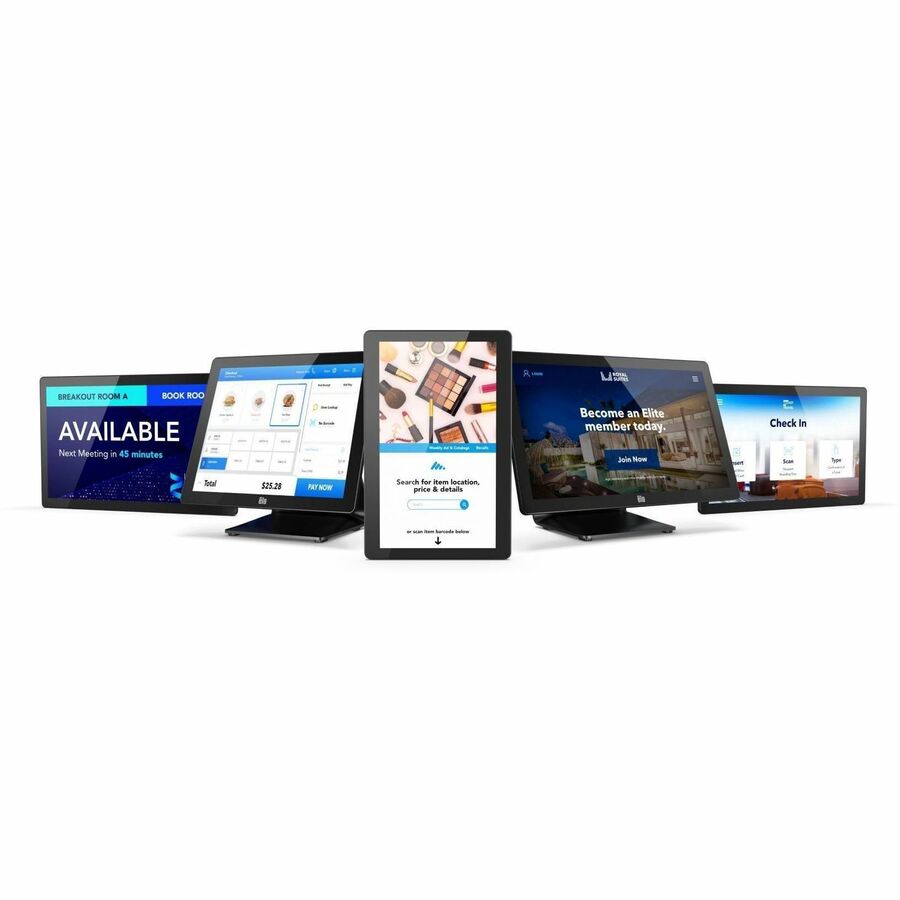

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

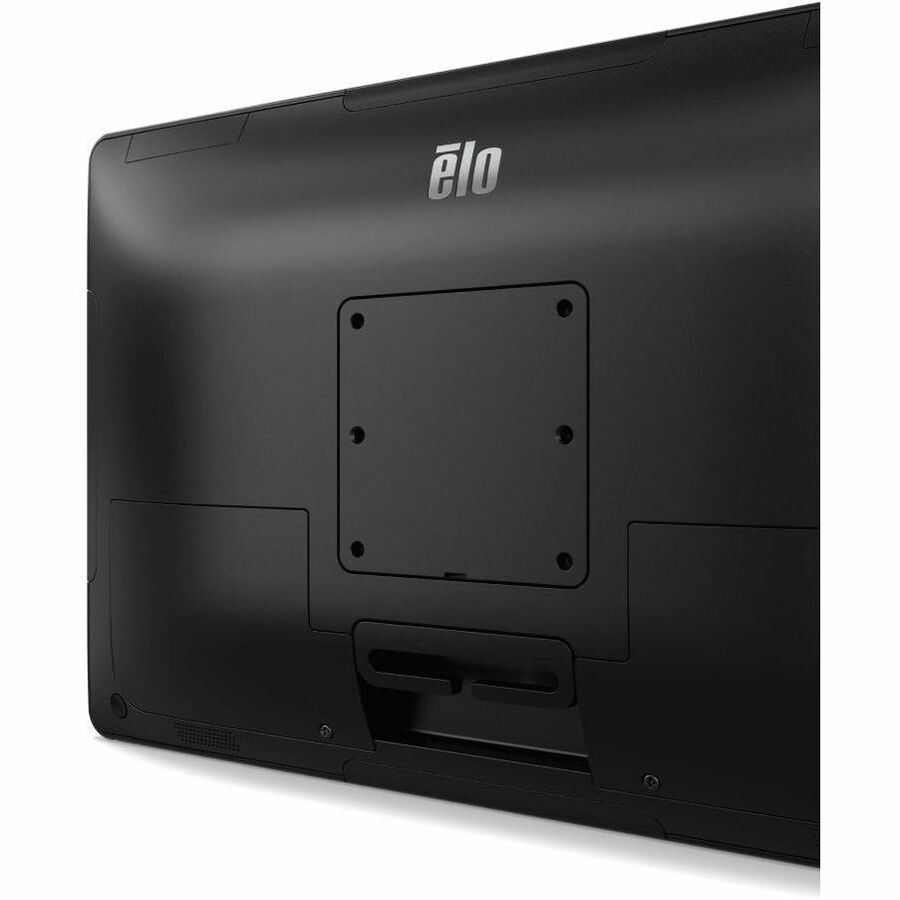

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Highlights
Touchscreen interface enables swift access
All that you do will look amazing on the all-in-one's 23.8" display
256 GB SSD provides ample space for important documents
The 8 GB DDR5 SDRAM memory allows you to multitask and run intensive applications lag-free
The fanless cooling architecture promotes noise-free
Specifications
Built-in Devices
Number of Speakers
2
Speaker Power
2 W
Display & Graphics
Screen Size
23.8"
Active Display Size (Horizontal)
20.75"
Active Display Size (Vertical)
11.67"
Display Screen Type
LED
Screen Mode
Full HD
Panel Technology
In-plane Switching Technology (IPS)
Touchscreen
Yes
Touchscreen Technology
Projected Capacitive
Multi-touch Screen
Yes
Number of Simultaneous Touch Points
10
Graphics Controller Manufacturer
Intel
Graphics Controller Model
UHD Graphics
Aspect Ratio
16:9
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Response Time
16 ms
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E432375
Brand Name
Elo
Product Line
I-Series 3
Product Name
I-Series 3 POS Terminal
Product Type
POS Terminal
Interfaces/Ports
USB
Yes
Powered USB
Yes
USB Type-C
Yes
Network (RJ-45)
Yes
Serial Port
Yes
RJ-50
Yes
Number of Micro USB 2.0 Ports
4
Number of USB 3.0 Ports
4
Number of USB Type C Ports
1
Memory
Standard Memory
8 GB
Maximum Memory Supported
64 GB
Memory Technology
DDR5 SDRAM
Network & Communication
Wireless LAN
Yes
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Color Family
Black
Product Color
Black
Mount Type
Table Mount
Weight (Approximate)
15.65 lb
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Celeron
Processor Model
7305L
Maximum Turbo Speed
1.10 GHz
Processor Cache
8 MB
Software
Operating System
Windows 10 IoT Enterprise LTSC (64-bit), Windows 11 IoT Enterprise LTSC (64-bit)
