Elo 22-inch EloPOS System
Intel Core i5 3.60 GHz - 16 GB DDR4 SDRAM - 256 GB SSD M.2/SATA - Windows 10 IoT Enterprise LTSC (64-bit)
- SKU
- E417915
- Category
- POS Terminals
MSRP$3,611.00
$3,312.34
Save 8%Back ordered — ships when restocked.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E417915
- Category
- POS Terminals
Overview
EloPOS? System | Modern. Modular. Made for Retail.

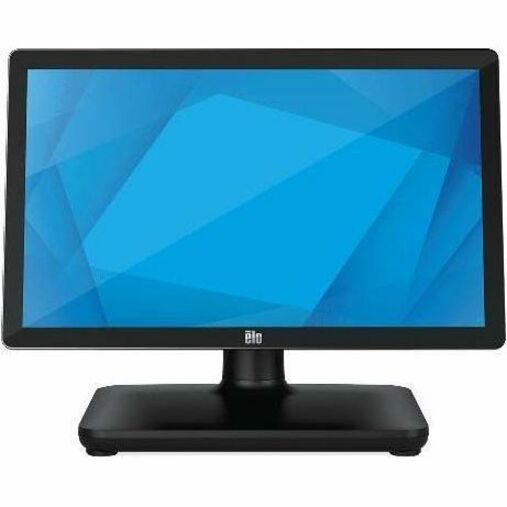

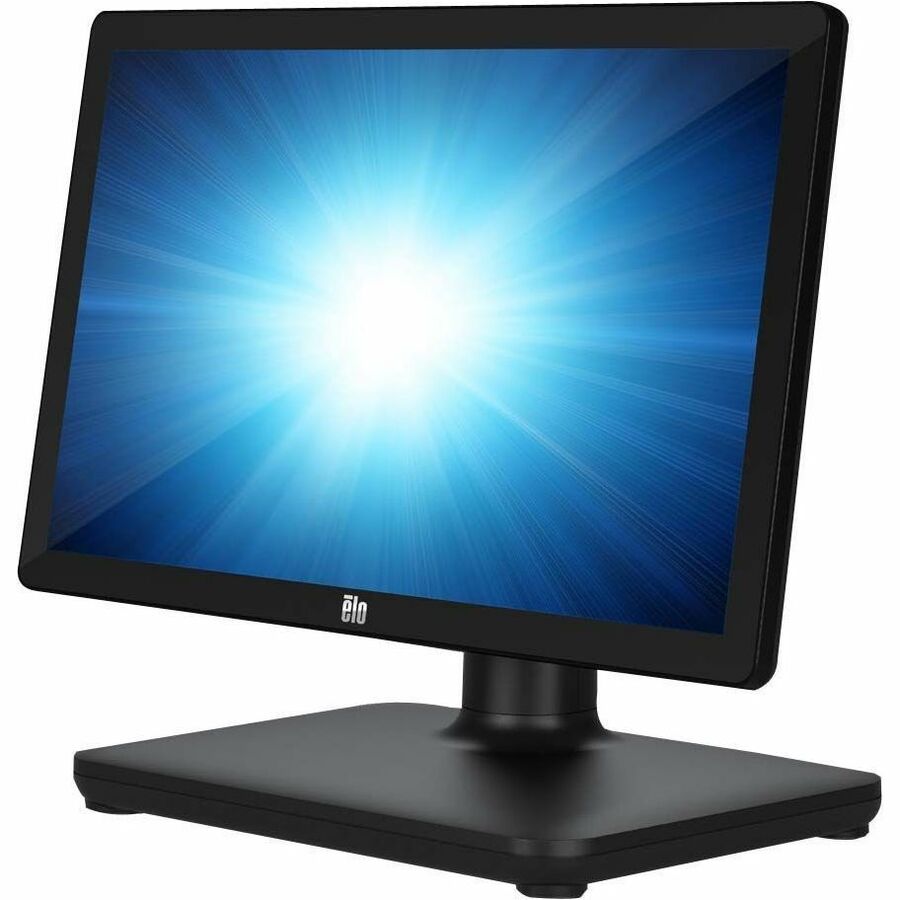

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo's standard 3-year warranty.

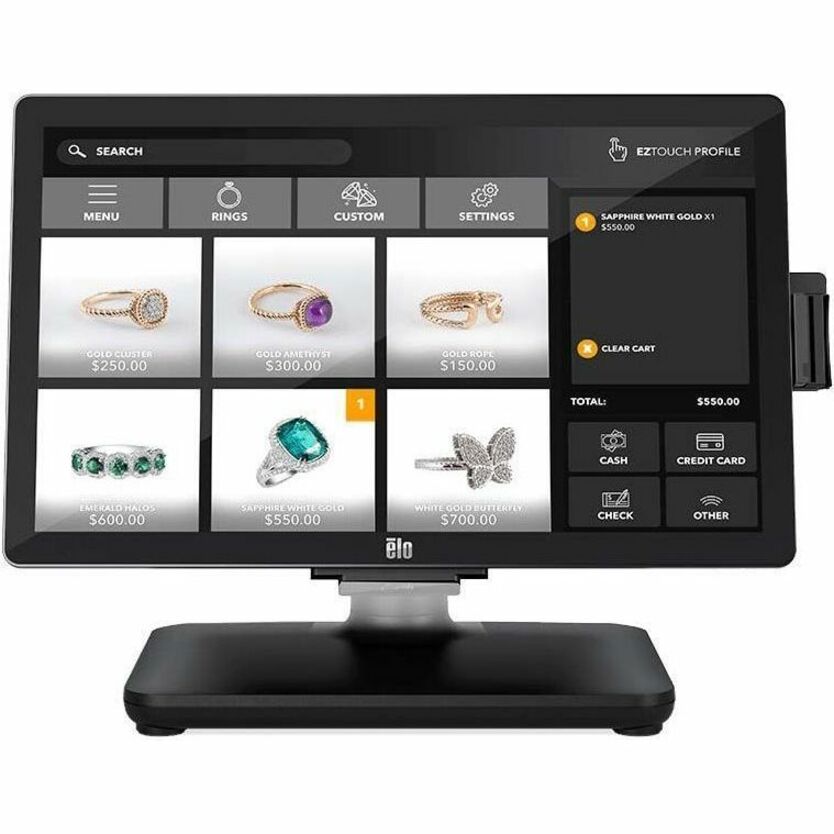

Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.

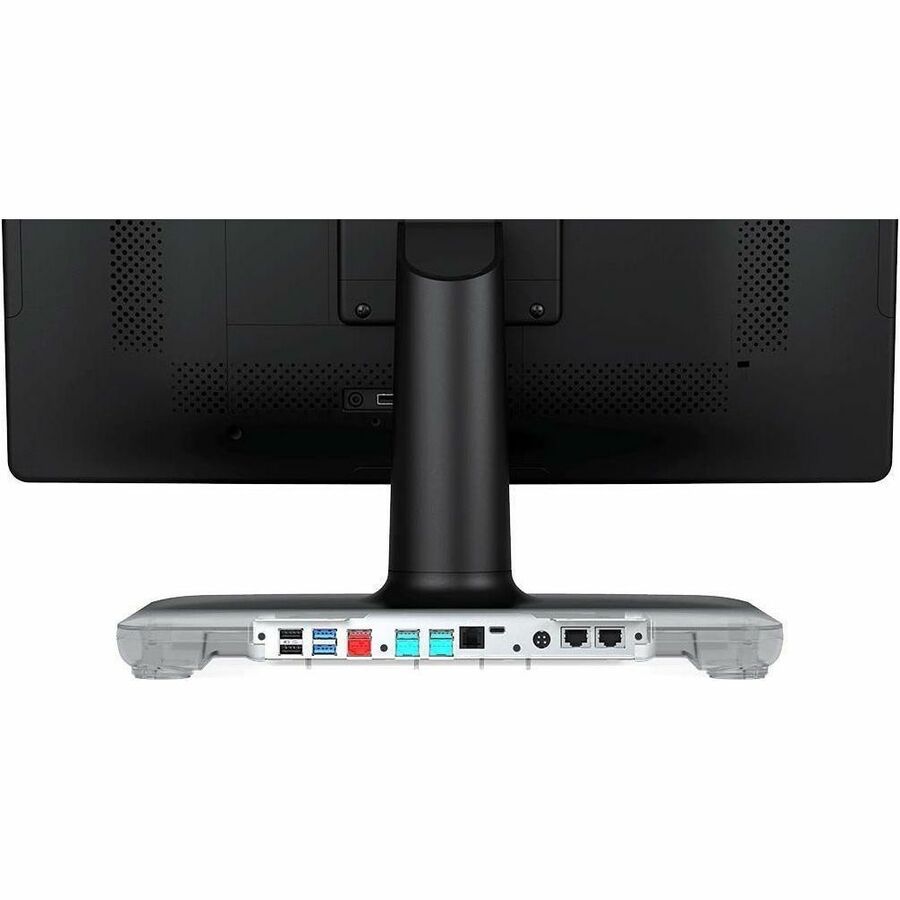

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

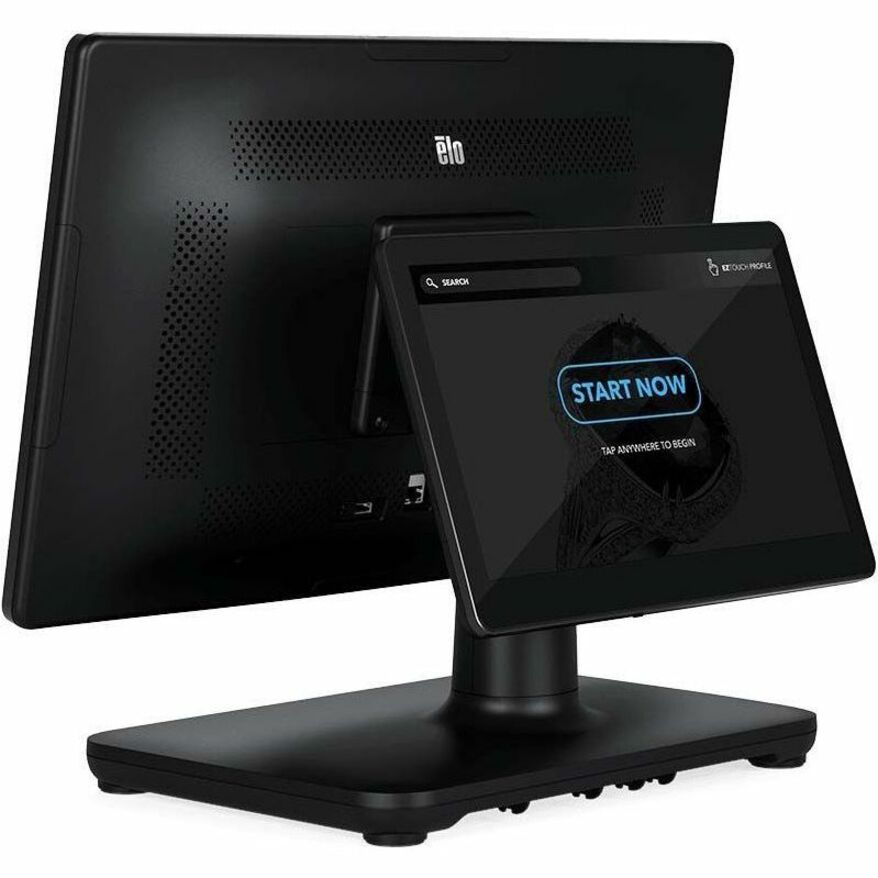

Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Highlights
- Touch panel gives your workforce ease
- Meet and exceed your business needs with intel core i5 3.60 GHz processor
- All that you do will look amazing on the all-in-one's 21.5" display
- 256 GB SSD provides you with enough space to store large files
- Built-in 16 GB DDR4 SDRAM memory for a crisp and detail display
Specifications
| Aspect Ratio | 16:9 |
|---|---|
| Package Contents |
|
| Product Type | POS Terminal |
| Contrast Ratio | 1,000:1 |
| Manufacturer Part Number | E417915 |
| Response Time | 14 ms |
| Limited Warranty | 3 Year |
| Standard Memory | 16 GB |
| Weight (Approximate) | 19.60 lb |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Color Supported | 16.7 Million Colors |
| Features | Anti-glare |
| Form Factor | All-in-One |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | E417915 |
| Product Name | 22-inch EloPOS System |
| Mount Type | Wall Mountable |
| Processor Speed | 3.60 GHz |
| Processor Type | Core i5 |
| Product Line | EloPOS |
| Screen Size | 21.5" |
| Brand Name | Elo |
| Memory Technology | DDR4 SDRAM |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Environmentally Friendly | Yes |
| Touchscreen | Yes |
| Number of Speakers | 2 |
| Processor Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 630 |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Display Screen Type | TFT |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/SATA |
| Touchscreen Technology | Projected Capacitive |
| Bluetooth Standard | Bluetooth 5.0 |
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 3 |
| Multi-touch Screen | Yes |
| Cash Drawer Port | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Energy Star | Yes |
| USB Type-C | Yes |
| Number of USB 2.0 Ports (Rear) | 2 |
| Speaker Power | 2 W |
| Product Color | Black |
| Color Family | Black |
| Energy Efficiency Certification | ENERGY STAR 7.1 |
| Active Display Size (Horizontal) | 18.74" |
| Active Display Size (Vertical) | 10.54" |
| Number of Simultaneous Touch Points | 10 |
| Number of USB Type C Ports | 1 |
