Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
E157163
Category
POS Terminals
Overview
Completely redesigned | I-Series 3 Slate with Intel
Brilliant and beautiful, interactive platform.
10-touch TouchPro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

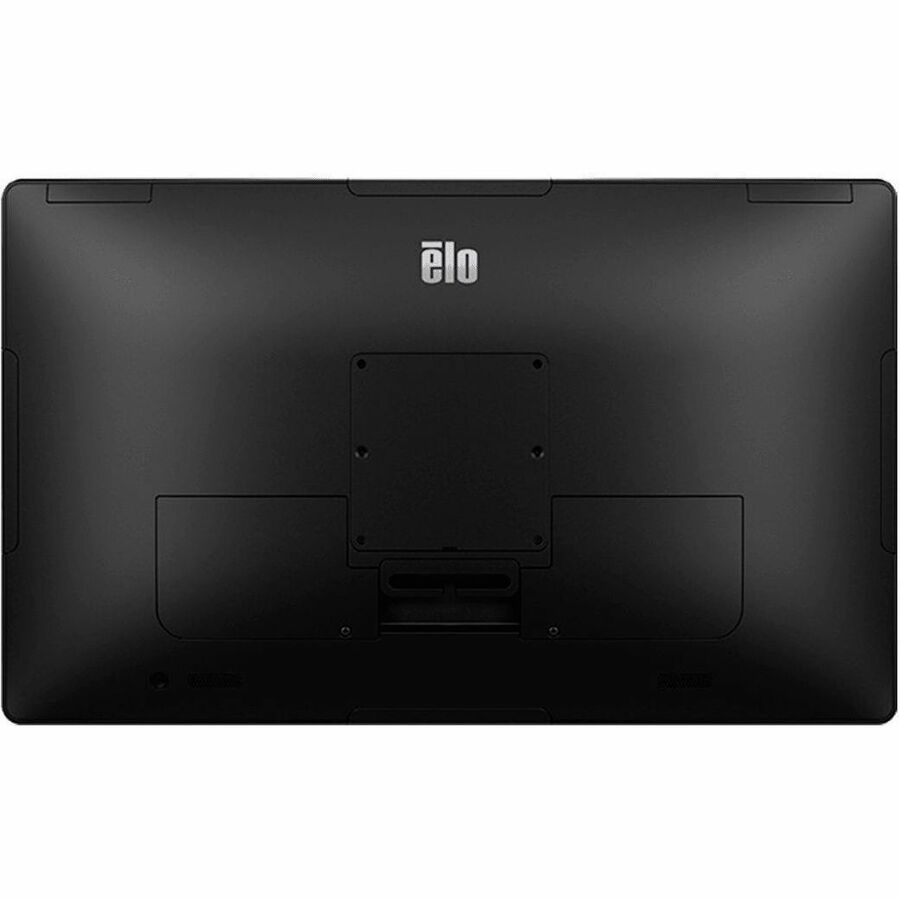

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Highlights
Touch panel gives your workforce ease
The 23.8" diagonal display empowers you to work on your terminal with suitability
256 GB SSD provides ample space for important documents
With 16 GB DDR5 SDRAM memory
The fanless cooling architecture promotes noise-free
Specifications
Built-in Devices
Number of Speakers
2
Speaker Power
2 W
Display & Graphics
Screen Size
23.8"
Active Display Size (Horizontal)
20.75"
Active Display Size (Vertical)
11.67"
Display Screen Type
LED
Screen Mode
Full HD
Panel Technology
In-plane Switching Technology (IPS)
Touchscreen
Yes
Touchscreen Technology
Projected Capacitive
Multi-touch Screen
Yes
Number of Simultaneous Touch Points
10
Graphics Controller Manufacturer
Intel
Graphics Controller Model
UHD Graphics
Aspect Ratio
16:9
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Response Time
16 ms
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E157163
Brand Name
Elo
Product Line
I-Series 3
Product Name
I-Series 3 POS Terminal
Product Type
POS Terminal
Interfaces/Ports
USB
Yes
Powered USB
Yes
USB Type-C
Yes
Network (RJ-45)
Yes
Serial Port
Yes
RJ-50
Yes
Number of Micro USB 2.0 Ports
4
Number of USB 3.0 Ports
4
Number of USB Type C Ports
1
Memory
Standard Memory
16 GB
Memory Technology
DDR5 SDRAM
Network & Communication
Wireless LAN
Yes
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Color Family
Black
Product Color
Black
Mount Type
Table Mount
Weight (Approximate)
15.65 lb
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Core i5
Processor Model
i5-1245UL
Maximum Turbo Speed
4.40 GHz
Processor Cache
12 MB
vPro Technology
Yes
Software
Operating System
Windows 10 IoT Enterprise LTSC (64-bit), Windows 11 IoT Enterprise LTSC (64-bit), Windows 10 Enterprise LTSC 2021
