For Computer, DVR, Switch, PDU, Patch Panel, Server, UPS - 18U Rack Height32.50" Rack Depth - Wall Mountable Enclosed Cabinet - Gray - Metal, Steel - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity
MSRP$3,144.08
$2,434.43
Save 23%In stock: 18
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

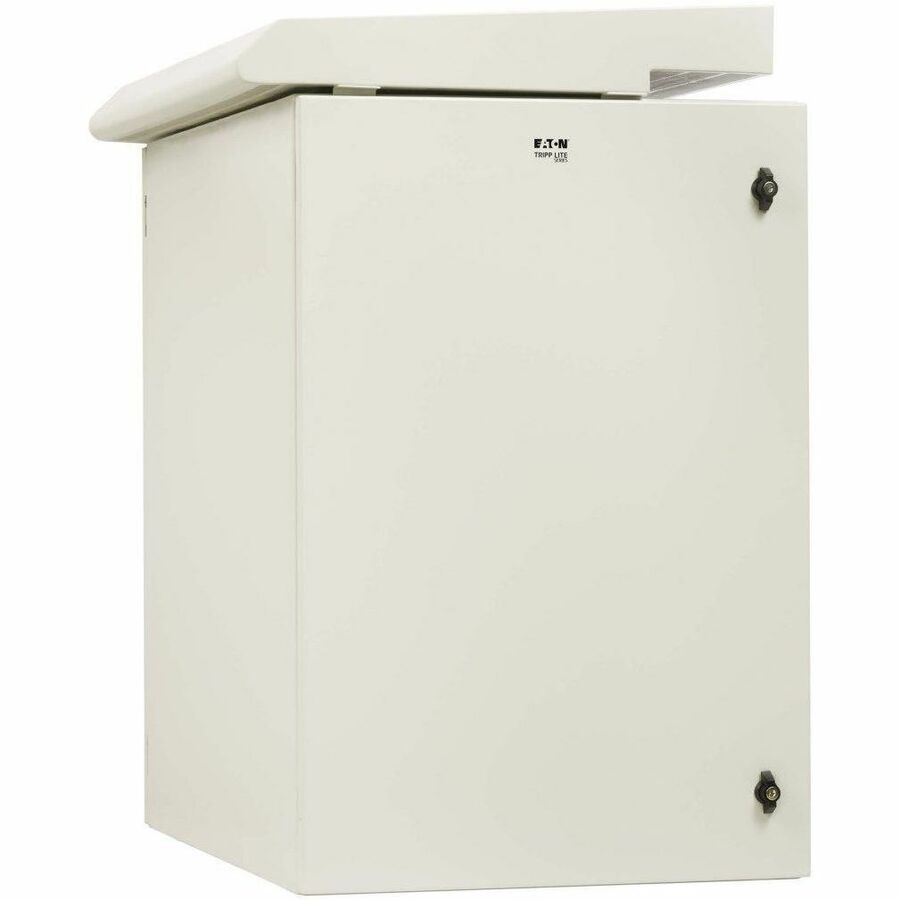

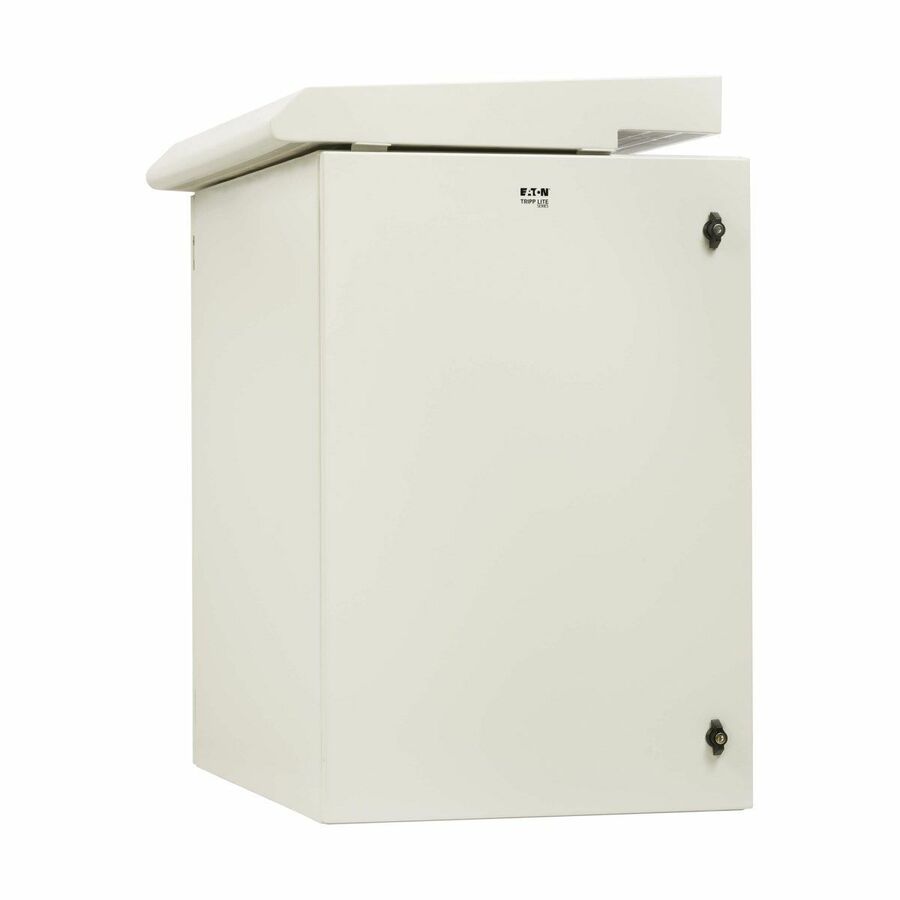

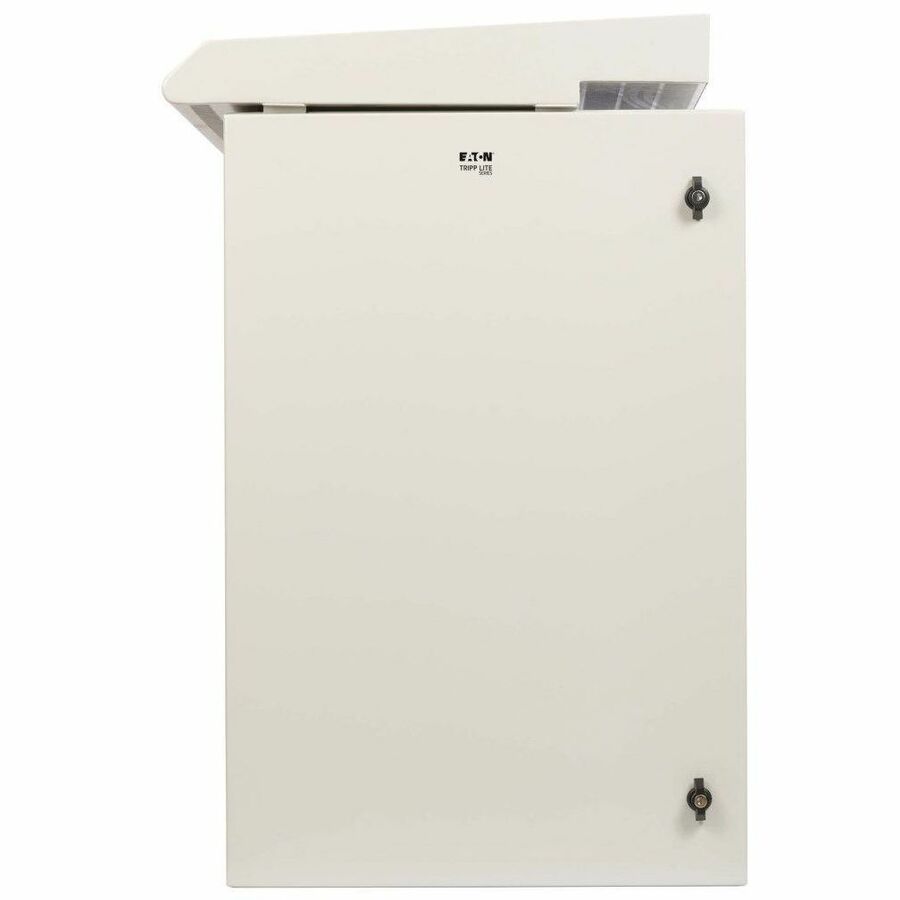

Heavy-Duty Wall-Mount Enclosure Houses Rack Equipment up to 32.5 in. Deep
This SmartRack® industrial enclosure is designed to house 18U of 19-inch rack-mount equipment, such as UPS systems and related battery packs and cabling. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN3RG18UHD has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG18UHD protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed doors allow easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation

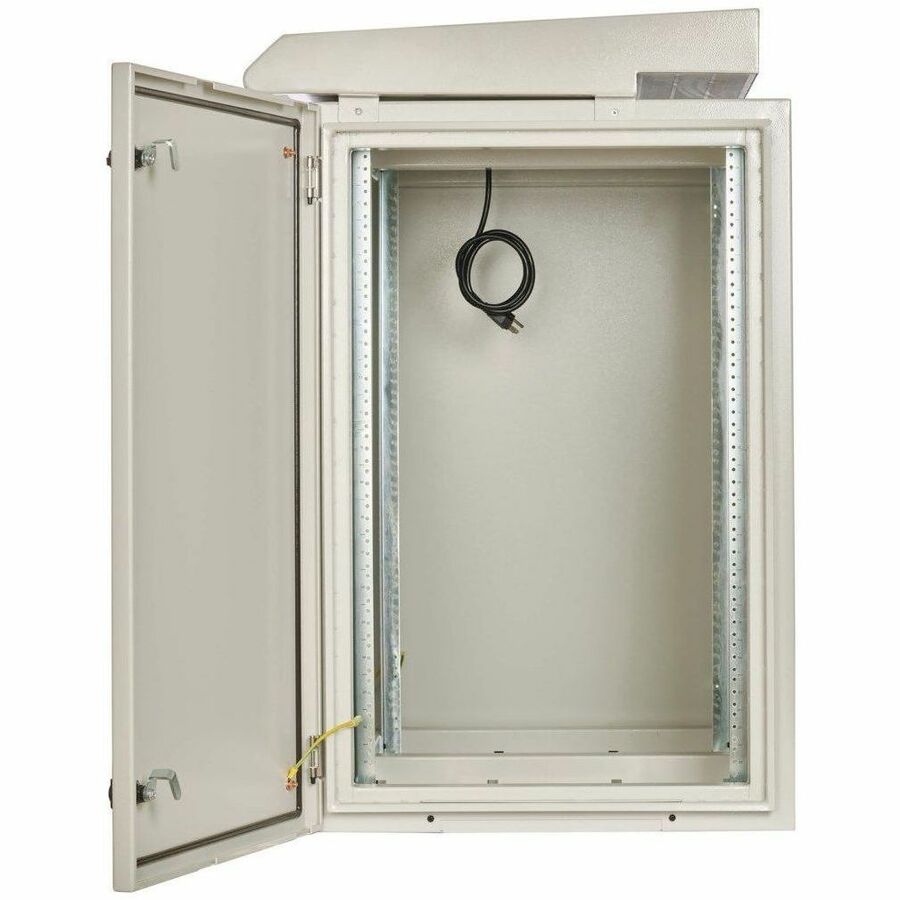

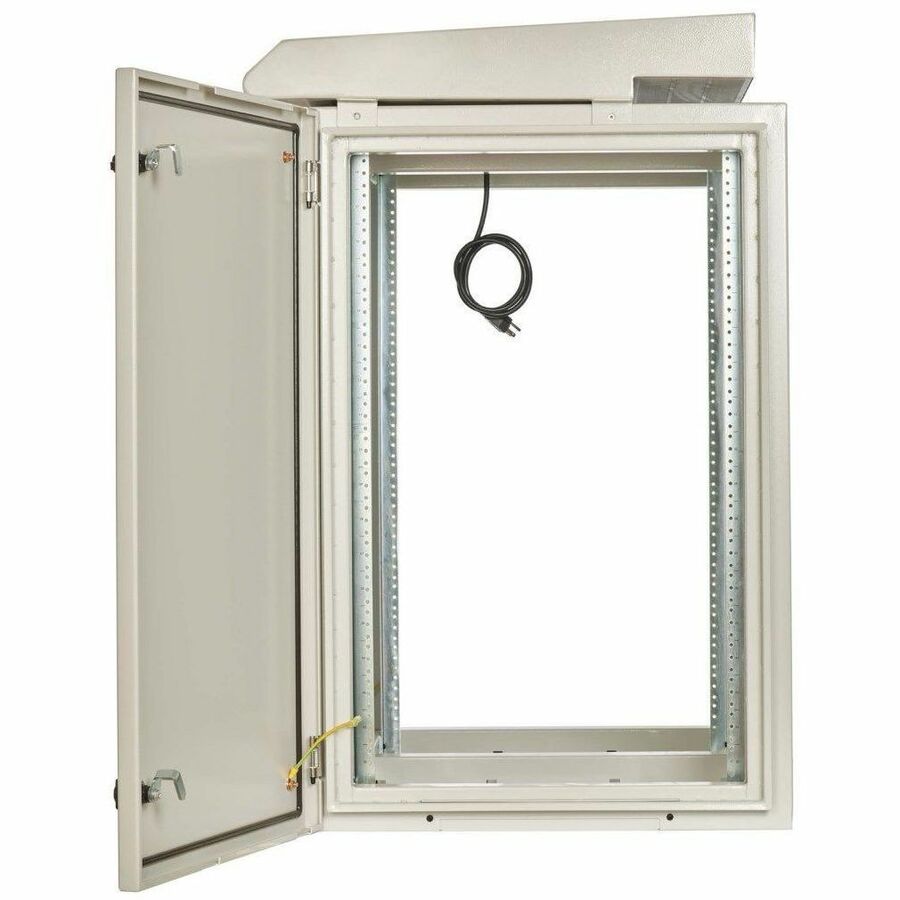

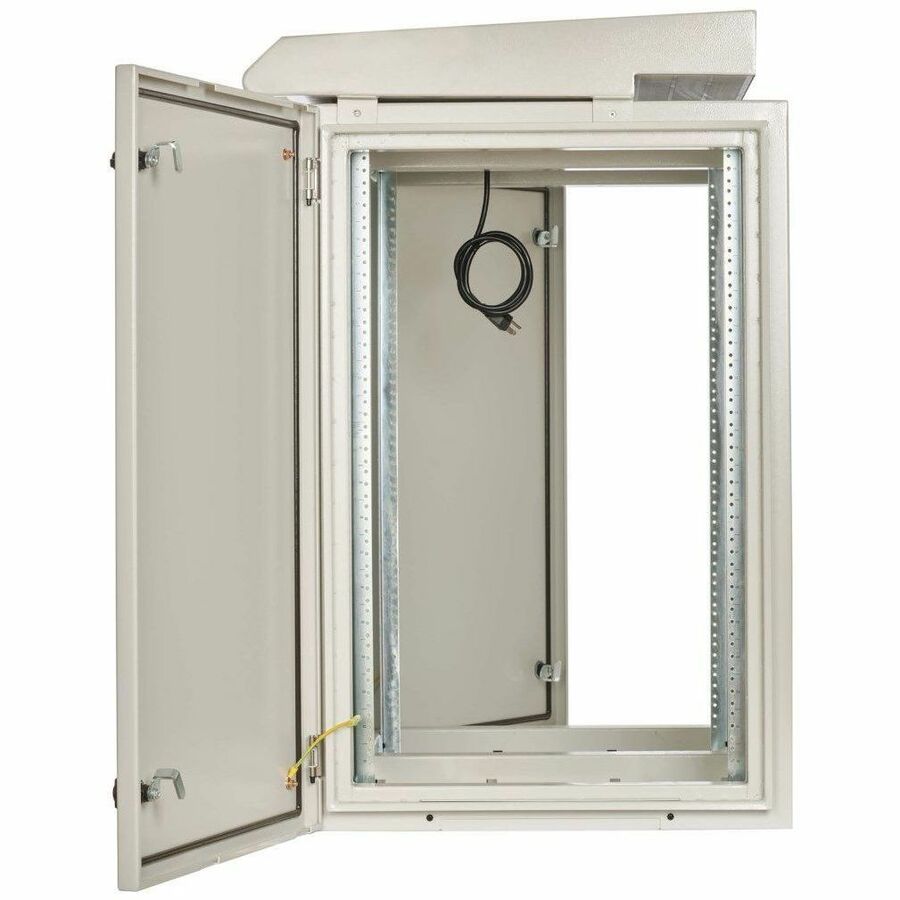

This 18U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 32.5 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN3RG18UHD |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRN3RG18UHD |
| Product Name | SmartRack SRN3RG18UHD Rack Mount Enclosure |
| Product Type | Rack Mount Enclosure |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Gray |
| Product Color | Gray |
| Product Material | Metal, Steel |
| Maximum Weight Capacity | 200 lb |
| Static/Stationary Weight Capacity | 200 lb |
| Height | 40.3" |
| Width | 26.9" |
| Depth | 36.2" |
| Rack Height | 18U |
| Rack Depth | 32.50" |
| Weight (Approximate) | 259.55 lb |
| Power Description | |
| Plug/Connector Type | NEMA 5-15P |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Computer, DVR, Switch, PDU, Patch Panel, Server, UPS |
| Features | Snow Resistant, Moisture Resistant, Lockable Door, Damage Resistant, Tamper Resistant, Anti-theft, Cable Management, Adjustable Mounting Rails, Debris Resistant, Heavy Duty, Rain Resistant |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
