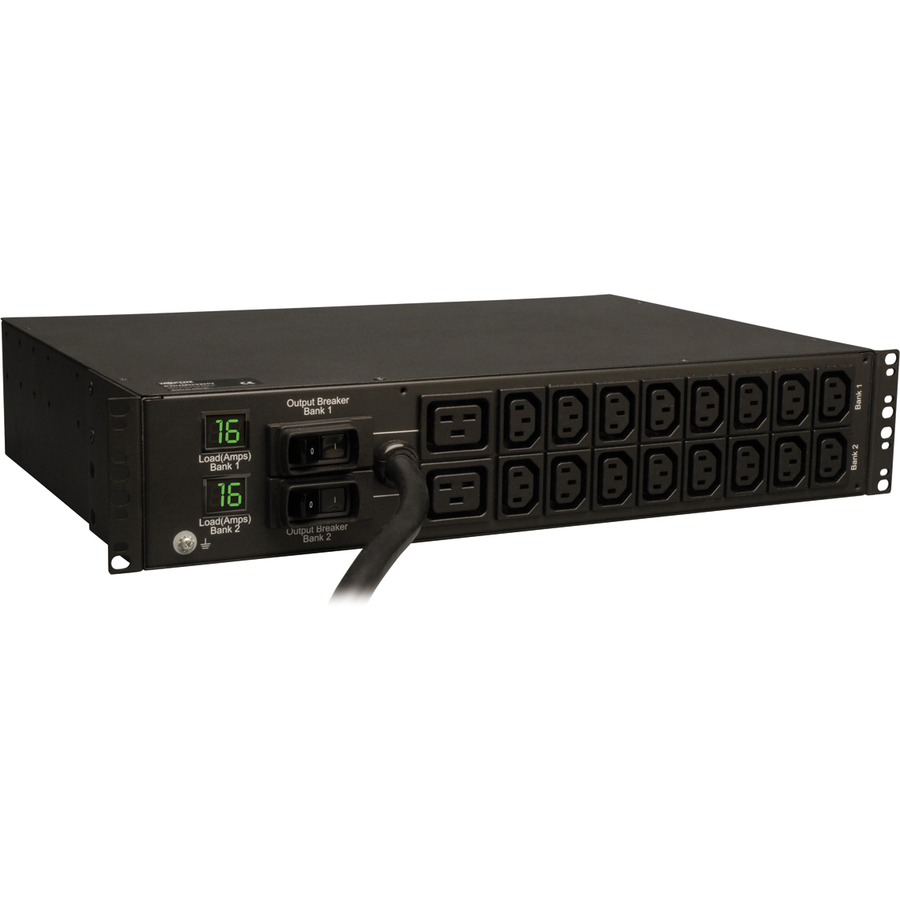

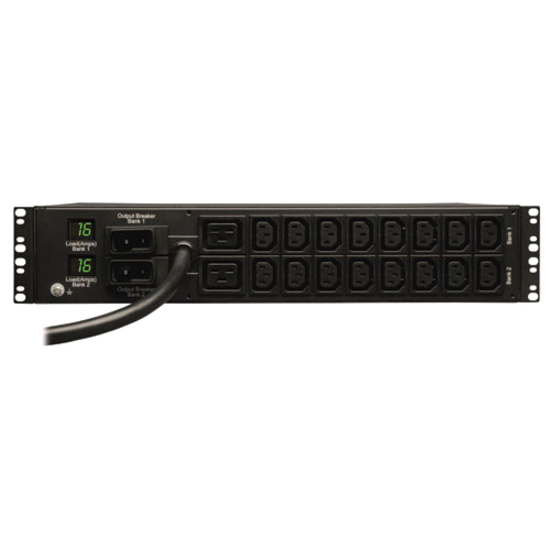

Eaton Tripp Lite Series 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.

More from the Manufacturer

Reliable Network-Grade 230V Power Distribution

With a rugged all-metal housing, the PDUMH32HV is well-equipped for power distribution in rack enclosures and network closets. It provides 230V power to 18 total outlets (16 x C13, 2 x C19) in two separately breakered and metered 16A load banks. This PDU has an IEC-309 32A Blue (2P+E) plug with a 12 ft. power cord for placement flexibility. The front-panel has a grounding lug.

Digital Load Meters and Versatile Mounting Options

Two load meters provide the real-time load level (in amps) of connected equipment in each output load bank. The meters help ensure that the PDU is used at maximum capacity without danger of overload. If the current drawn by the equipment connected to the PDU ever exceeds the maximum rating, a built-in circuit breaker will trip to prevent possible damage to your equipment.

The PDUMH32HV has removable mounting flanges that support 2U (horizontal) mounting in 2- and 4-post racks. It’s also suitable for wall-mounting and under-counter mounting. The housing is reversible to face the front or back of the rack.

2-Year Warranty From a Leading Manufacturer

The PDUMH32HV comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
