1920 x 1440 - 165 MHzMaximum Video Bandwidth - Audio Line In - 1 x HDMI Out - VGA In
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler saves you money on costly computer upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The built-in scaler allows you to display a rich high-definition signal in your home audio/video setups, media presentations or digital signage using your tried-and-true analog source equipment. The unit is ready to use right from the box with no software or drivers required.
Connect the unit's female VGA video and 3.5 mm mini-stereo audio ports to your computer and the female HDMI port to your HDMI projector, monitor or television. The unit automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the button on the unit. In addition to high-definition video resolutions up to 1080p, the P116-000-HDSC1 supports computer video resolutions up to 1920 x 1440 (@ 60 Hz), HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel). More from the Manufacturer
Convenient Plug-and-Play Setup and 2-Year Warranty

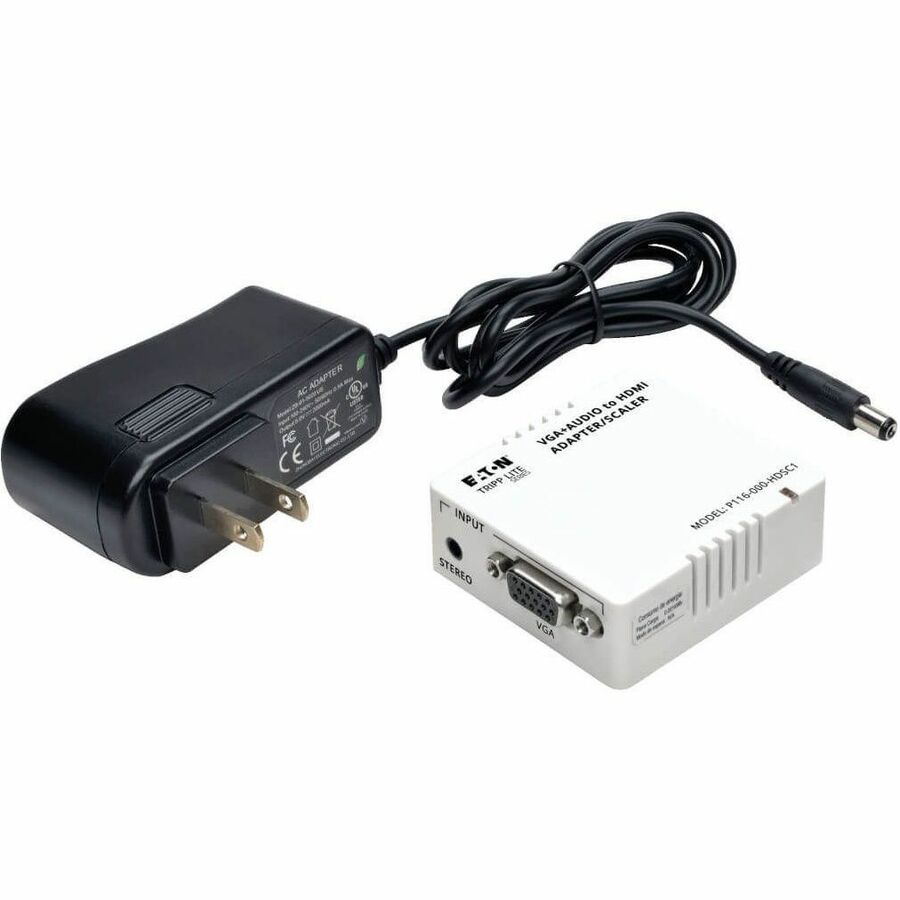

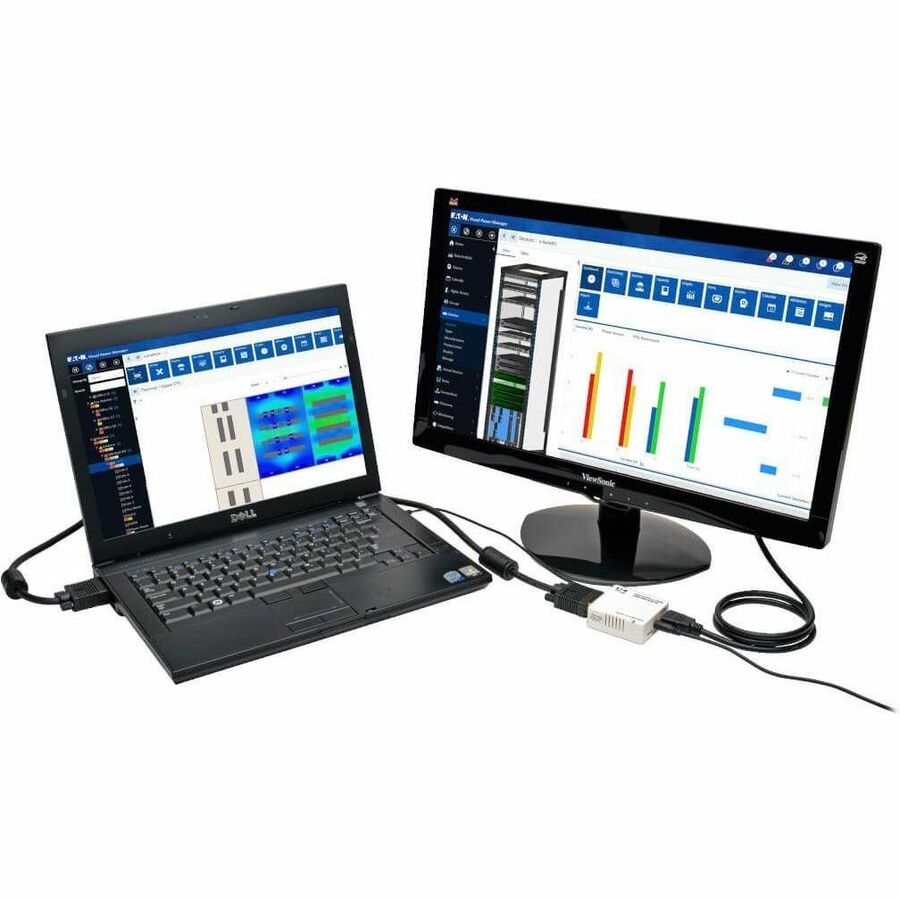

With no software or drivers to install, the P116-000-HDSC1’s plug-and-play setup gets your application up and running quickly. Connect your computer’s VGA and 3.5 mm mini-stereo audio ports to the P116-000-HDSC1 and connect the HDMI output to your HDMI display. Attach the included external power supply and you’re ready to go.
The P116-000-HDSC1 comes backed by a two-year warranty. It’s manufactured in compliance with RoHS specifications restricting the use of hazardous substances.
Built-In Scaler for HDMI Output in 720p or 1080p

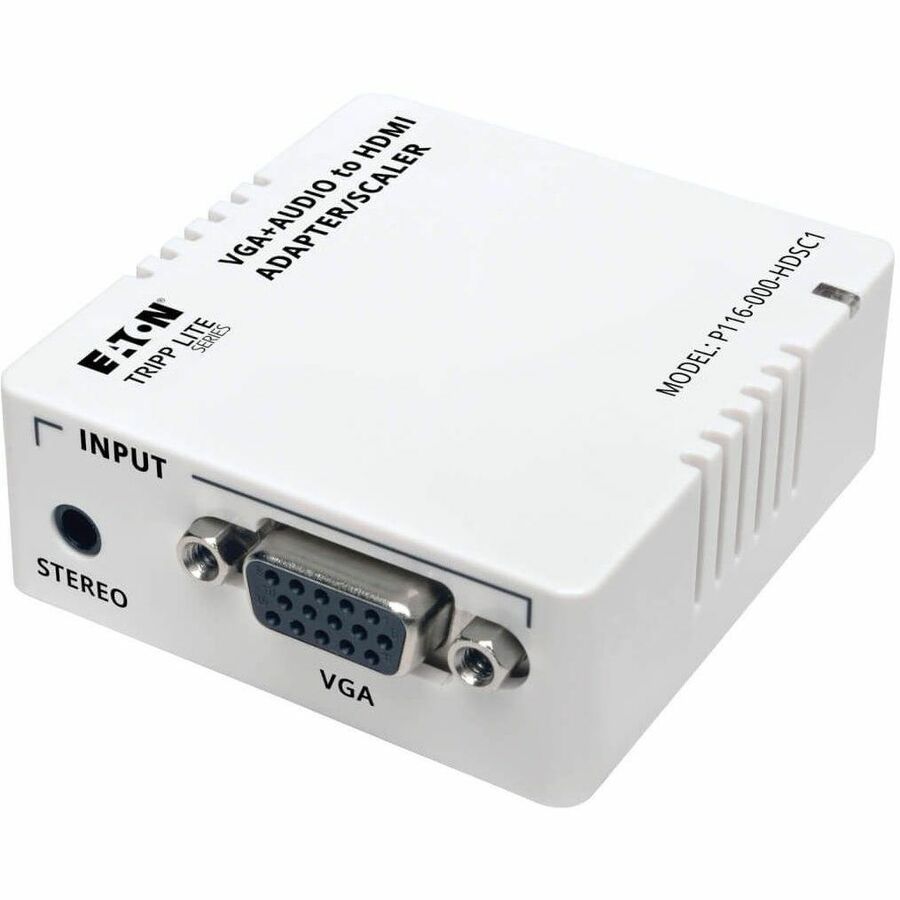

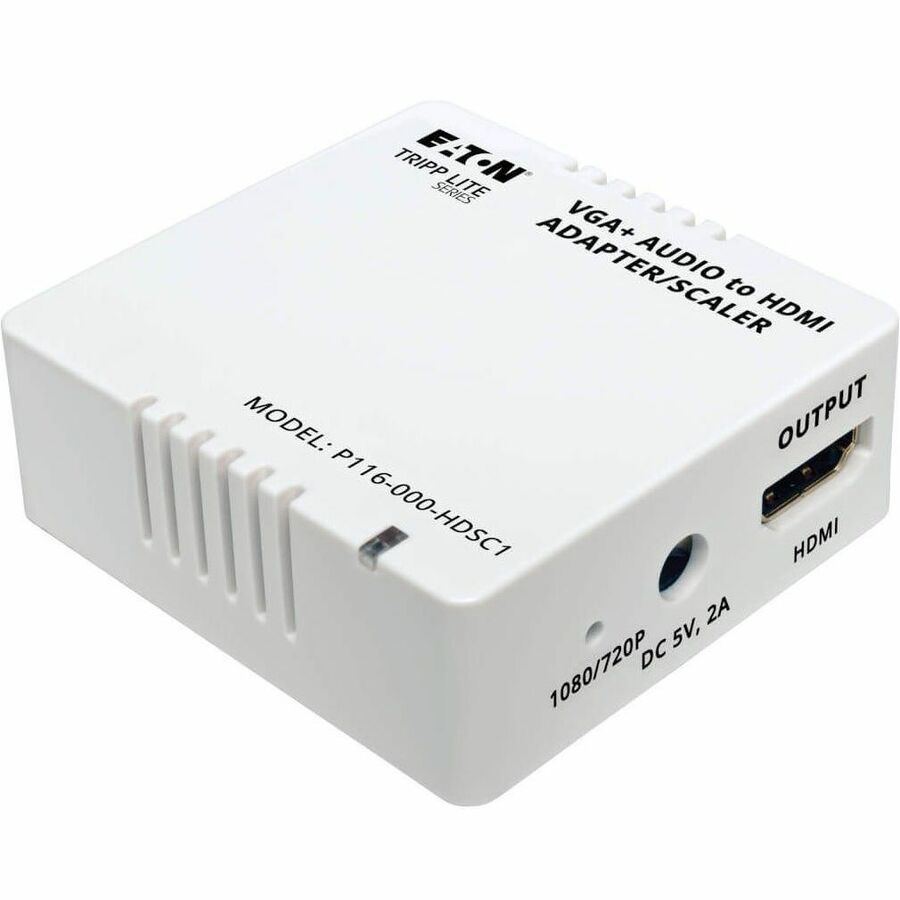

The P116-000-HDSC1 has a VGA (HD15) female input, a 3.5 mm mini-stereo audio input and an HDMI female output. It supports computer input video resolutions up to 1920 x 1440 (60 Hz). A built-in scaler allows you to view the output in either 720p or 1080p on your HD display. To toggle between the resolutions, use a small, pointed object to press the button on the unit. The P116-000-HDSC1 supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P116-000-HDSC1 |
| Brand Name | Tripp Lite series |
| Product Model | P116-000-HDSC1 |
| Product Name | VGA with Audio to HDMI Converter/Scaler |
| Product Type | Signal Converter |
| Interfaces/Ports | |
| Audio Line In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| Number of Audio Line In | 1 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
| Physical Characteristics | |
| Product Color | White |
| Height | 0.8" |
| Width | 2.2" |
| Depth | 2.4" |
| Weight (Approximate) | 13.44 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Maximum Video Bandwidth | 165 MHz |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
