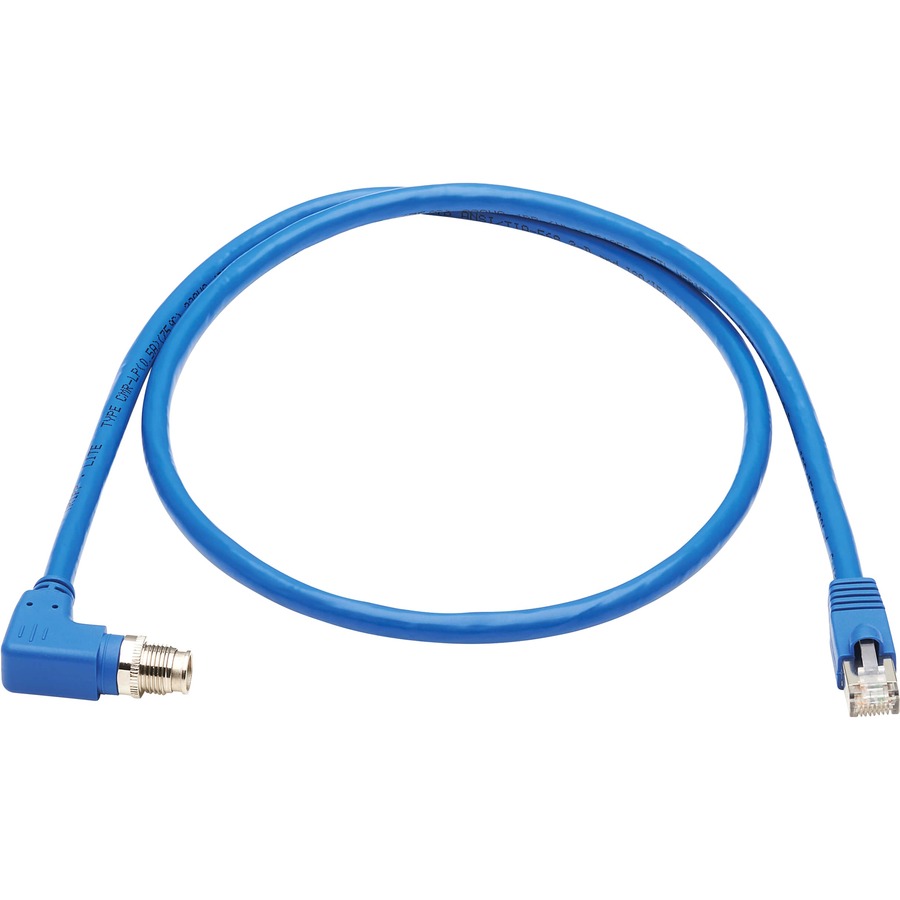

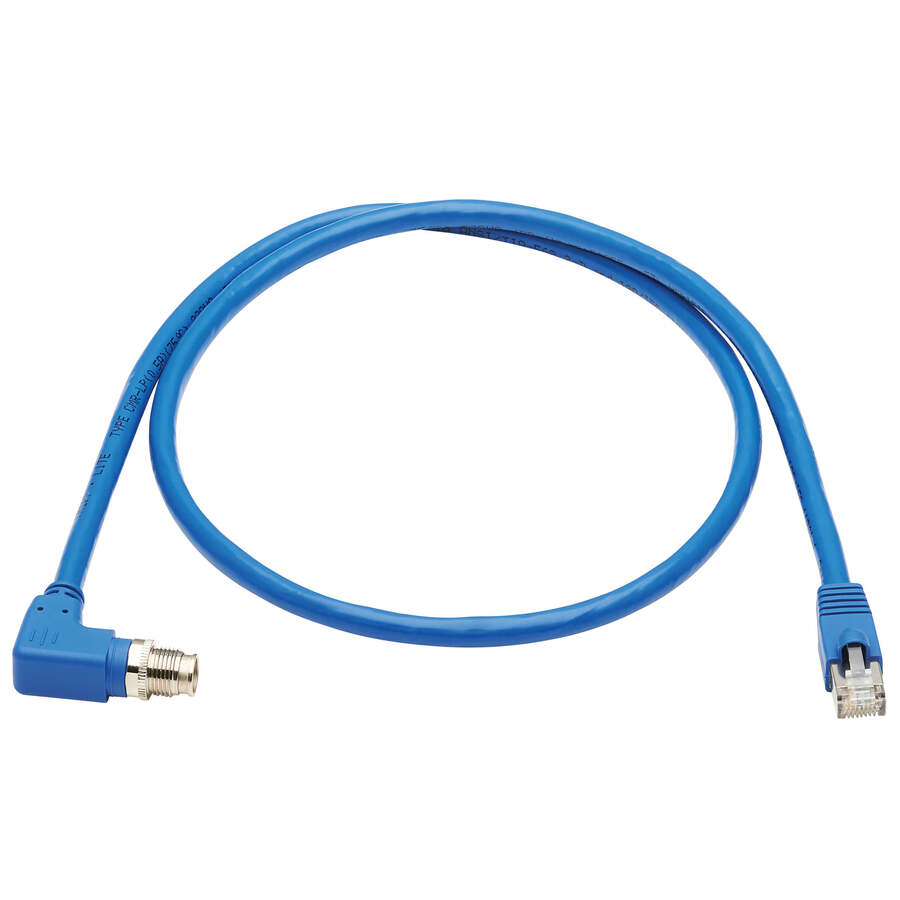

6.56 ft Category 6a Network Cable for Network Device, Controller, Switch, Security Device, Surveillance Camera, VoIP Device, Access Control Device - First End: 1 x M12-X Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Shielding - CMR-LP - 23 AWG - Blue - TAA Compliant
MSRP$74.00
$68.08
Save 8%Special order — expected back in stock the week of Sep 7–13.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Cat6a M12 Cable Recommended for Industrial and Other Harsh Environments
This M12 X-Code cable connects 10 GbE networks in wet/humid environments, places subject to vibration and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, airports, railways and machine shops. The circular M12 connector with 12-millimeter locking thread is especially designed for washdown and corrosive applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, transportation and food/beverage facilities.
IP68 Rating Denotes Resistance to Dust and Water
The IP68 rating means the M12 connector end is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this Cat6a cable supports high-power 60W PoE, it can supply the power to operate compatible data, voice, security and audio/video PoE devices, such as surveillance cameras, VoIP telephones and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, as well as installing separate power and data cables. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
CMR-LP Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the NM12-6A4-02M-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.

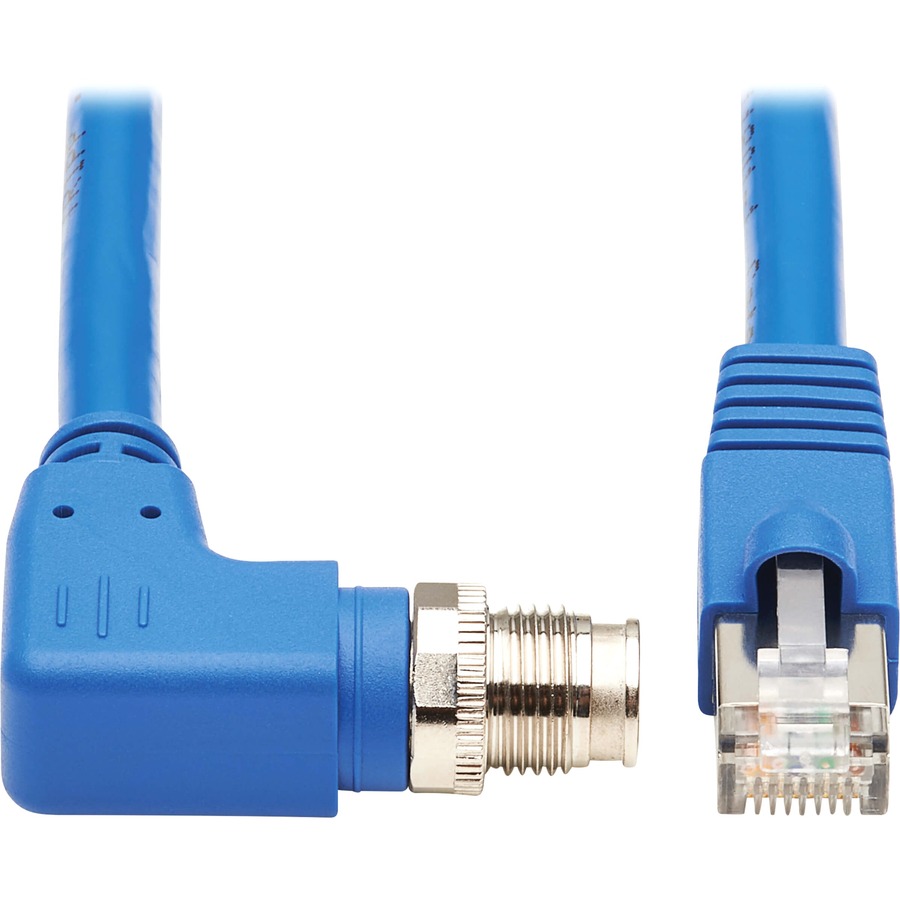

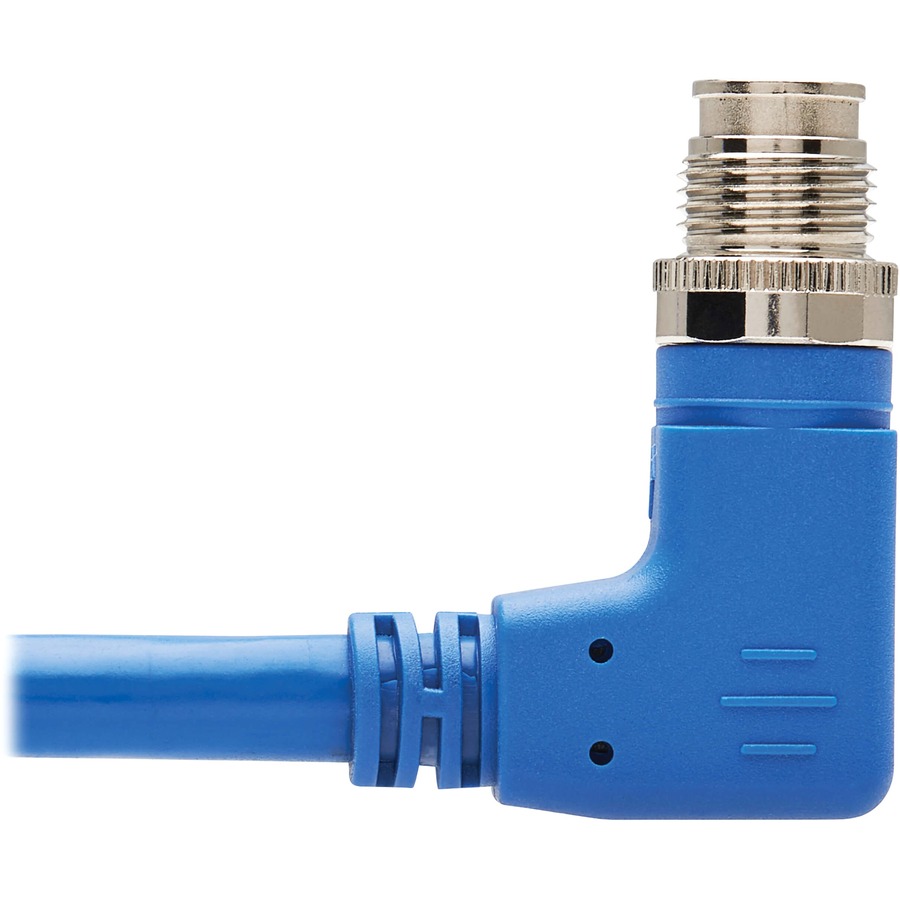

Right-Angle Plug Makes Connecting in Tight Spaces Easier

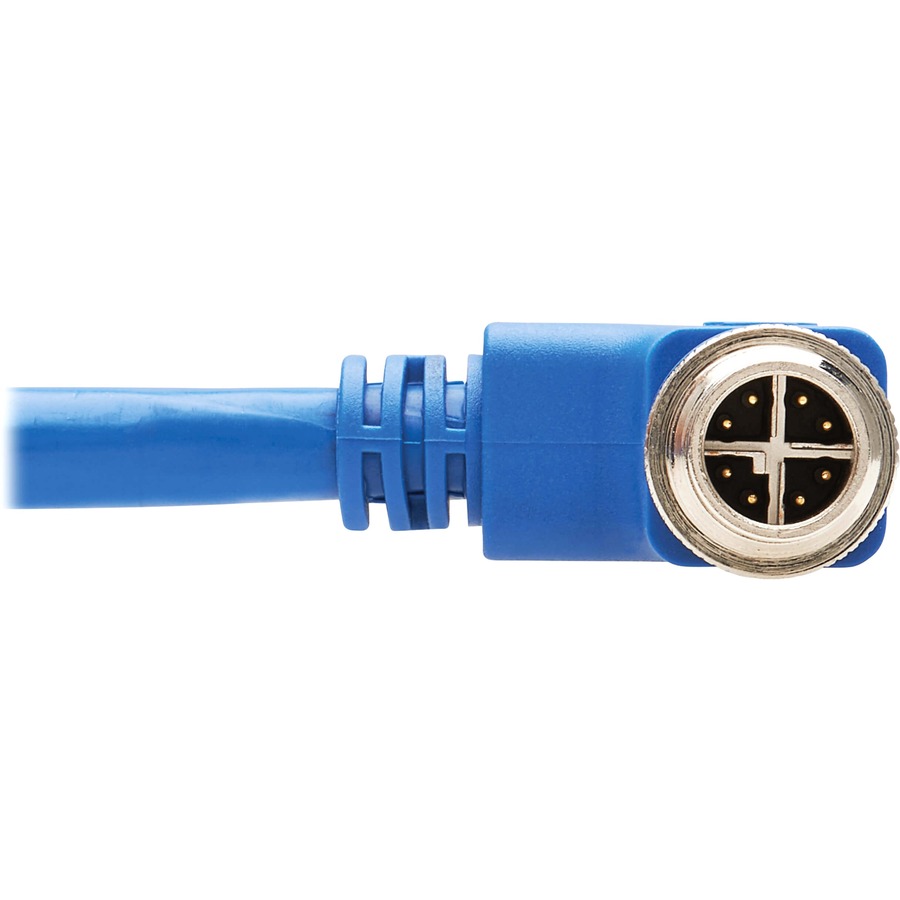

The M12 connector is designed at a space-saving right angle, making it easy to install in confined spaces, such as a crowded equipment rack or a network device located flush against a wall. The right-angle construction also relieves strain on the cable and connector and prevents the cable from bending awkwardly.
Colored Blue to Avoid Misidentification That Can Cause Costly Downtime
This Cat6a F/UTP copper cable features a blue PVC jacket that allows easy, fast identification in field devices, controllers and switches and helps prevent the cable from becoming inadvertently disconnected.
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NM12-6A4-02M-BL |
| Brand Name | Tripp Lite series |
| Product Model | NM12-6A4-02M-BL |
| Product Name | NM12-6A4-02M-BL Cat.6a Network Cable |
| Product Type | Network Cable |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Length | 6.56 ft |

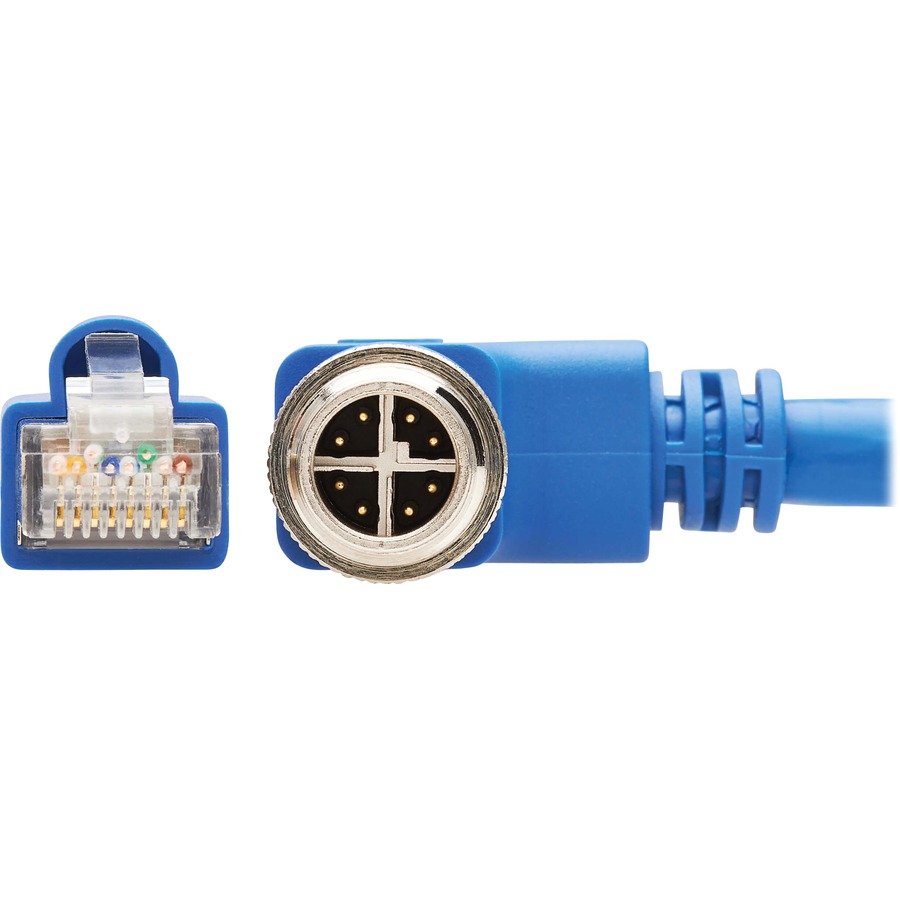

| Connector Type on First End | M12-X Network - Male |
| Connector on First End Details | 1 x M12-X Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Shielding | Yes |
| Jacket Type | CMR-LP |
| Device Supported | Network Device, Controller, Switch, Security Device, Surveillance Camera, VoIP Device, Access Control Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | PoE, Vibration Resistant, Moisture Resistant, Temperature Resistant, Dust Resistant, Water Resistant, Lockable, Corrosion Resistant, Damage Resistant, PoE++, Right-angled Connector, Strain Relief, Bend Resistant |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
