For Optical Network, Data Networking, Server, Switching Network - 1 x 10GBase-SR Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR0.40 km Maximum Distance - Hot-swappable
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

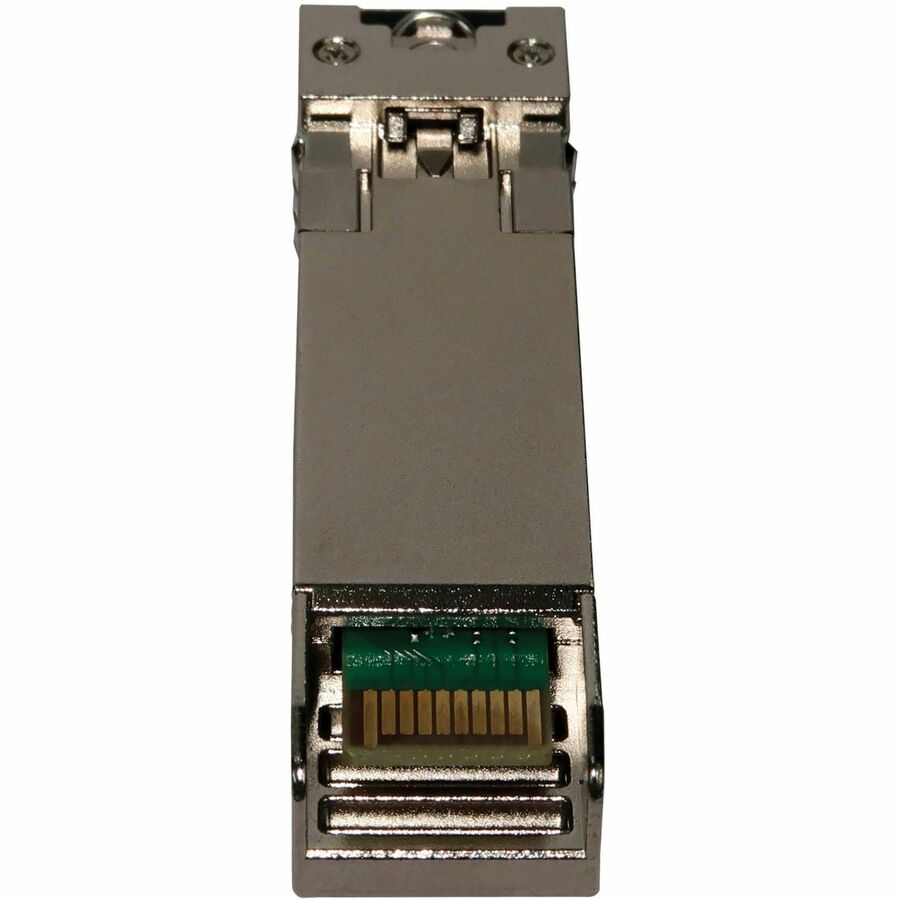

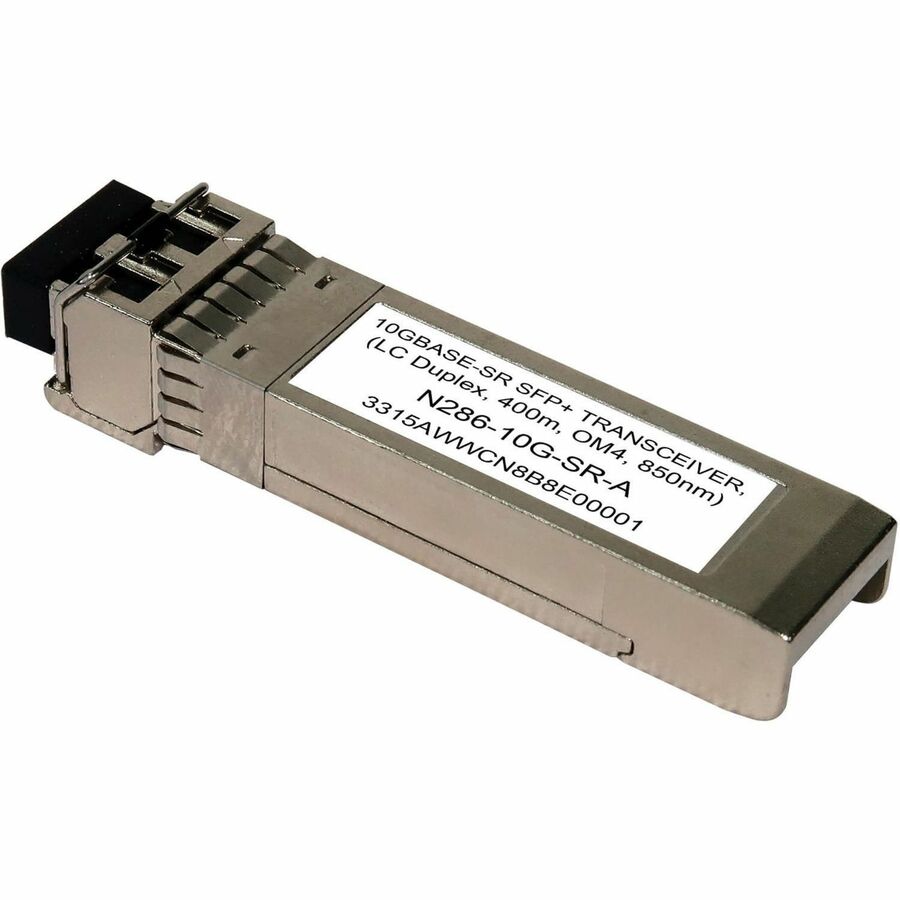

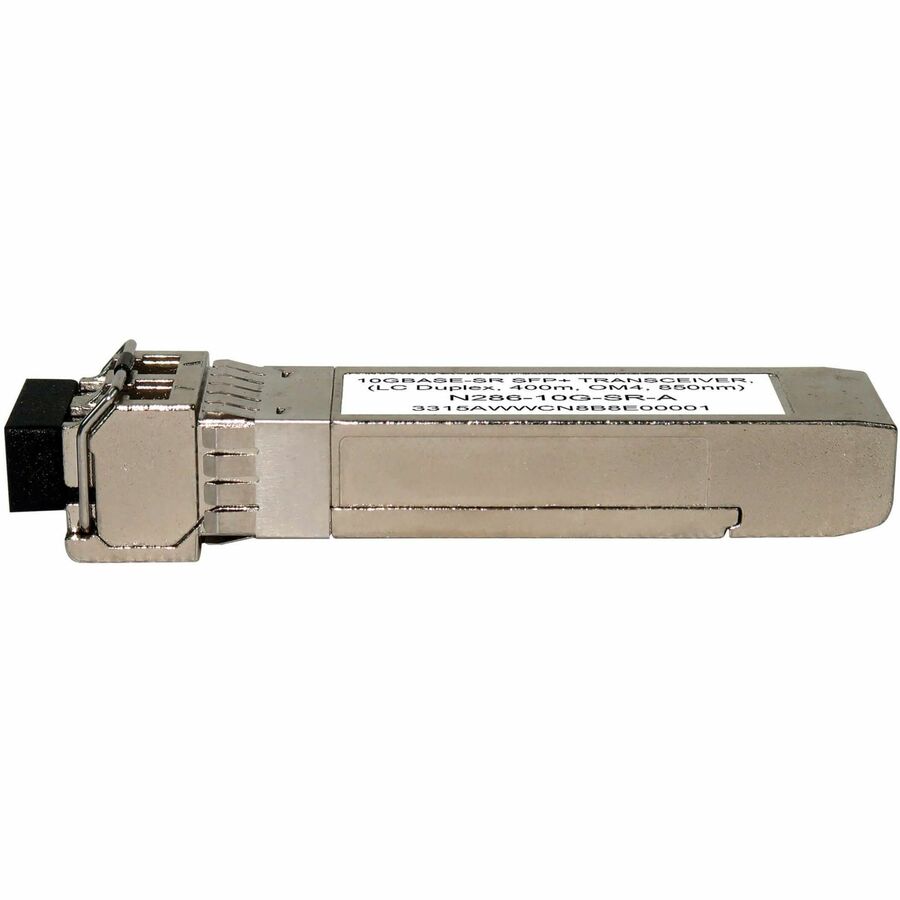

SFP+ Transceiver for Connecting to Your Arista Network Switch or Server
This SFP+ transceiver allows you to connect a multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength and supports bi-directional Gigabit Ethernet communication up to 10 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Arista SFP-10G-SR Transceiver Module
The MSA-compliant N286-10G-SR-A functions just like the equivalent Arista SFP-10G-SR transceiver module and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the SFP-10G-SR.
Hot-Swappable for Installation Without Network Interruption

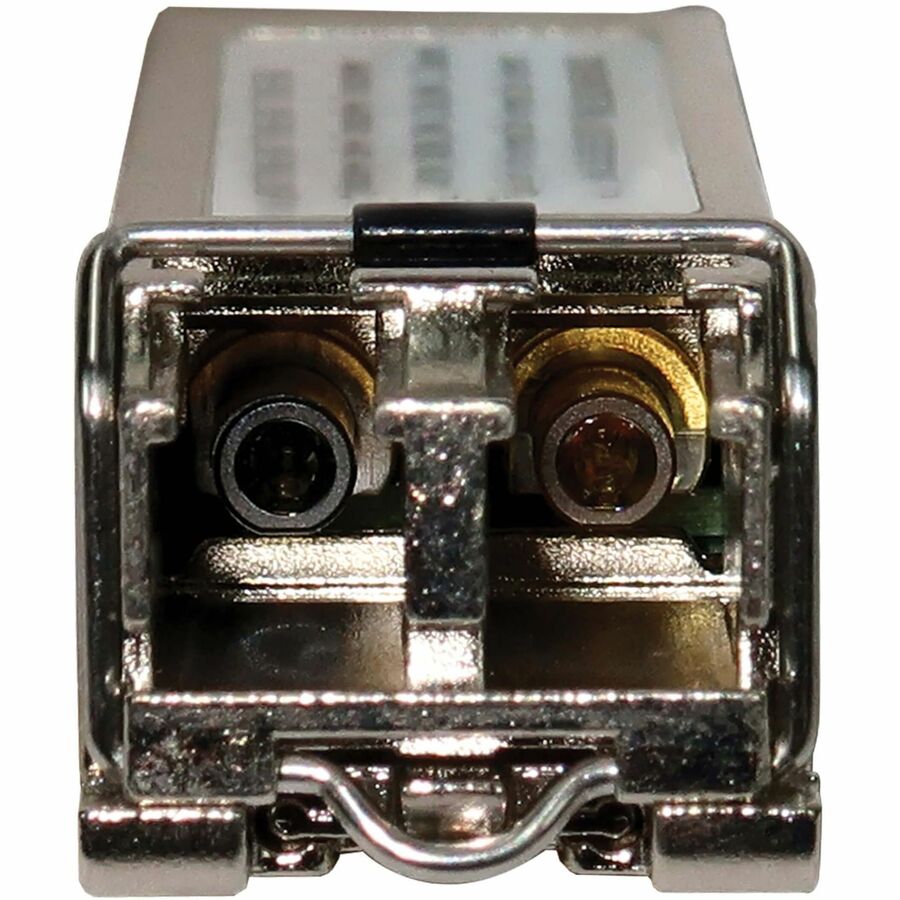

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Arista network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
S-Class Transceiver Highly Recommended for Enterprise Networks
This S-class fiber transceiver module is better suited for enterprise network runs of shorter distances than other standard modules. The N286-10G-SR-A supports Ethernet protocol and operates within commercial temperature ranges (0 to 70°C).
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N286-10G-SR-A |
| Brand Name | Tripp Lite series |
| Product Model | N286-10G-SR-A |
| Product Name | Arista N286-10G-SR-A SFP+ Module |
| Product Type | SFP+ |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Maximum Distance Supported | 0.40 km |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.7" |
| Width | 3.1" |
| Depth | 5.7" |
| Weight (Approximate) | 0.11 lb |
| Technical Information | |
| Application/Usage | Optical Network, Data Networking, Server, Switching Network |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
