Overview

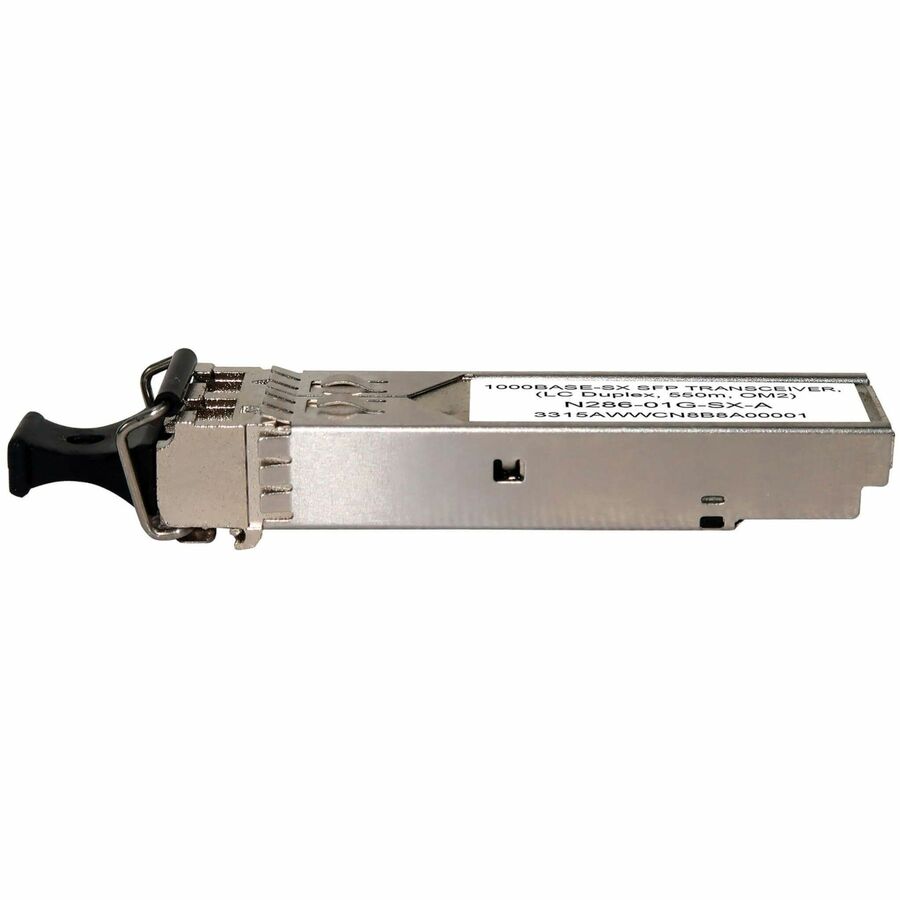

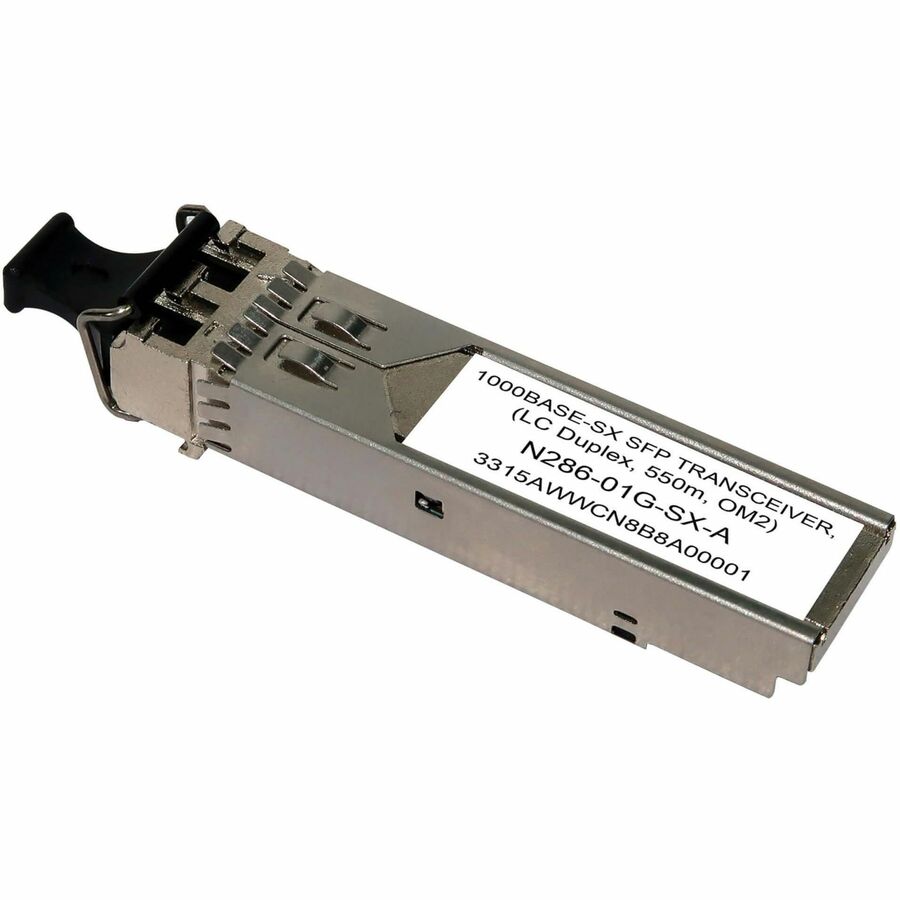

SFP Transceiver for Connecting to Your Arista Network Switch or Server
This SFP transceiver allows you to connect a multimode fiber optic cable to a 1.25 Gbps network router, server or switch. It transmits data up to 550 meters (1804 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Arista SFP-1G-SX Transceiver Module
The MSA-compliant N286-01G-SX-A functions just like the equivalent Arista SFP-1G-SX transceiver module and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the SFP-1G-SX.
Hot-Swappable for Installation Without Network Interruption

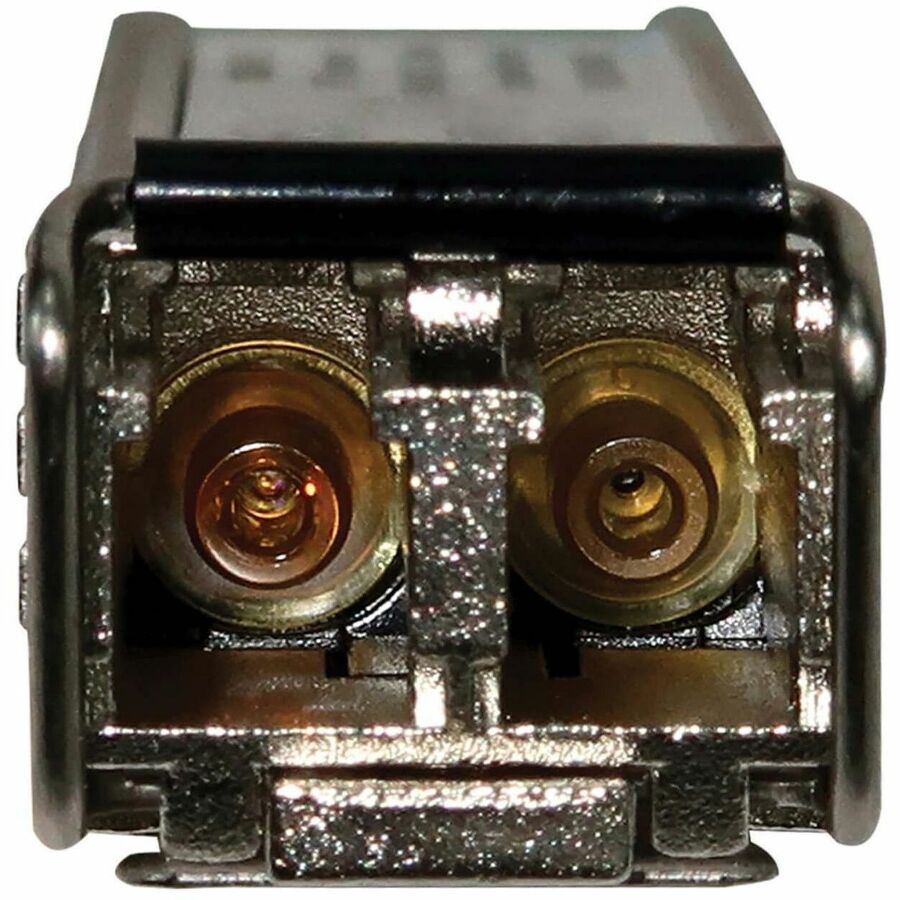

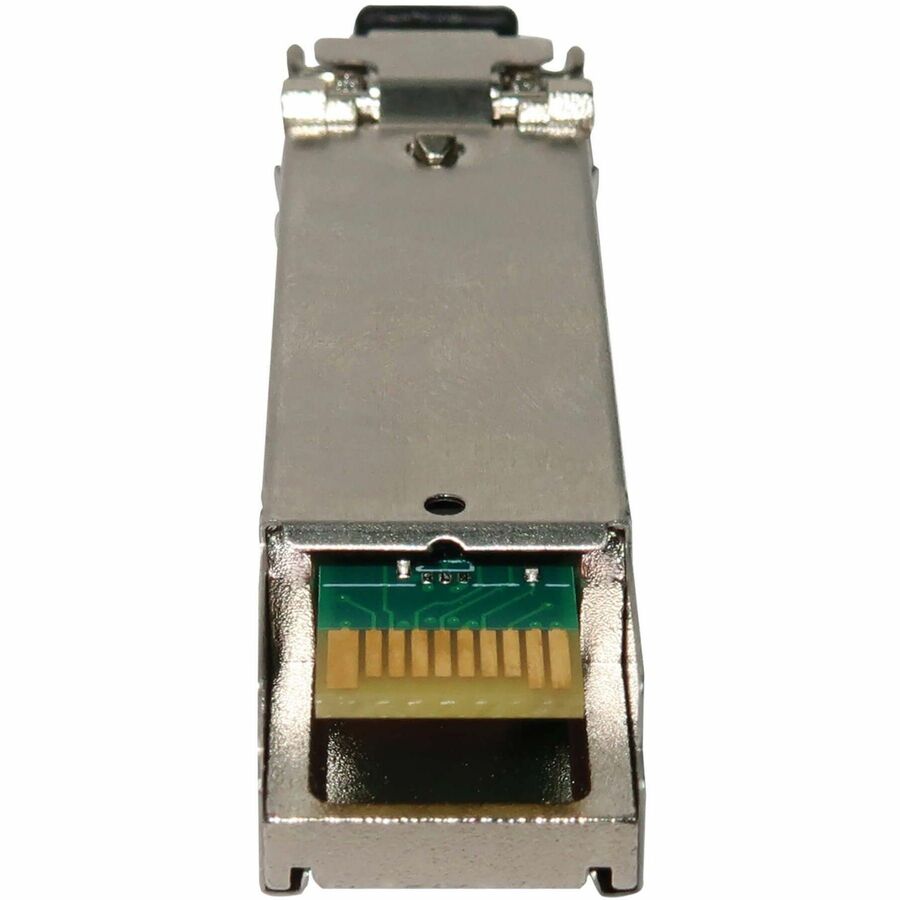

This input/output device is fully hot-swappable, so you can install it without a potentially costly 1.25 Gbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Arista network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately).
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
SFP is the single answer to all your desired and specified application execution needs
With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
1.25 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
Hot-swappable form factor for added reliability and dependability
SFP with optical network application/usage for maximum productivity and usability
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N286-01G-SX-A
Brand Name
Tripp Lite series
Product Model
N286-01G-SX-A
Product Name
Arista SFP Module
Product Type
SFP
Interfaces/Ports
Total Number of Ports
1
Connector Type
LC
Interfaces/Ports Details
1 x 1000Base-SX Network
Media & Performance
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Ethernet Technology
1.25 Gigabit Ethernet
Network Technology
1000Base-SX
Maximum Distance Supported
0.55 km
Physical Characteristics
Form Factor
Hot-swappable
Height
0.7"
Width
3.1"
Depth
5.7"
Weight (Approximate)
0.11 lb
Technical Information
Application/Usage
Optical Network, Data Networking, Server, Switching Network
