CyberPower M1100XL Medical UPS Systems
CyberPower Systems

CyberPower M1100XL Medical UPS Systems

1100VA/880W, 120 VAC, NEMA 5-15P-HG, Mini-Tower, 6 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

SKU
M1100XL
Category
General Purpose UPS

MSRP$979.95

$757.55

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M1100XL
Category
General Purpose UPS

Overview

The CyberPower M1100XL medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M1100XL has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M1100XL also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.

Highlights

  • Capacity: 1100VA / 880W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC

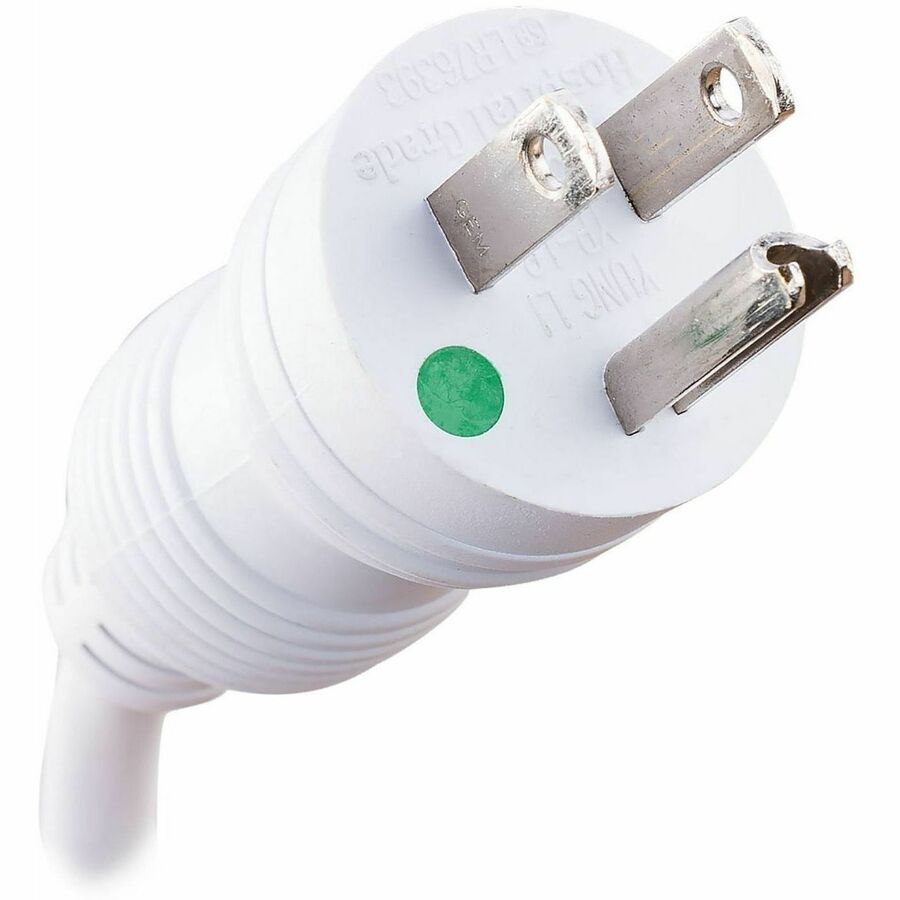

  • Plug type & cord: NEMA 5-15P-HG, 6 ft. cord

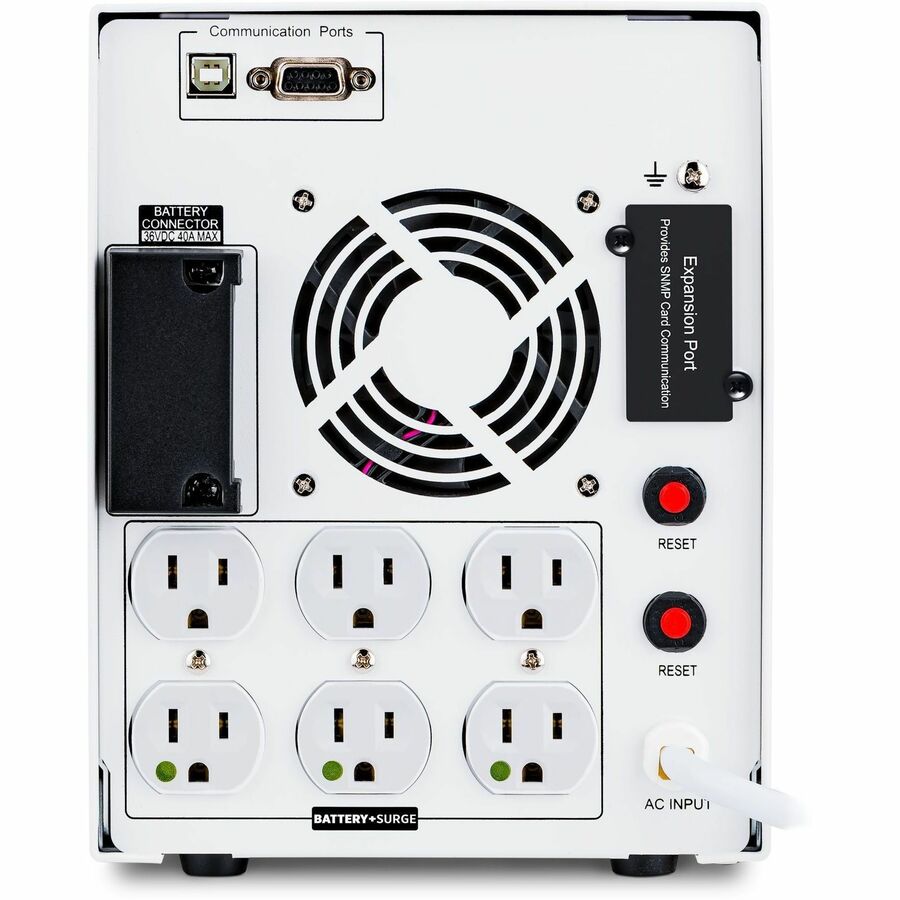

  • Outlet types: 6 × NEMA 5-15R-HG
  • Communication ports: USB
  • Management software: PowerPanel® Business Edition
  • Warranty: 3 year
  • Connected Equipment Guarantee: $400,000

Specifications

Application/UsageHospital, Healthcare, Medical, Lab Equipment
Battery ChemistryLead Acid
Package Contents
  • M1100XL Medical Grade 1100VA/880W UPS
  • User Manual
  • USB A+B Type Cable
  • Serial Cable
Product TypeLine-interactive UPS
Circuit BreakerYes
DisplayLCD
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberM1100XL
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)54 lb
FeaturesAudible Alarm
Form FactorMini-tower
Status IndicatorsLED Indicators Power On
ManufacturerCyberPower Systems, Inc
Product ModelM1100XL
Product NameM1100XL Hospital/Medical UPS Systems
Overload ProtectionYes
Surge Energy Rating1445 J
Surge SuppressionYes
Waveform TypeSimulated Sine Wave
Product SeriesHospital/Medical Power
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P-HG
Input Voltage Range90 V AC - 150 V AC
Output Frequency60 Hz
AlarmBattery Mode
Country of OriginChina
Cord Length6 ft
Height8.70"
Width6.70"
Depth17"
Input Frequency57 Hz, 63 Hz
Battery Size12V
Receptacle TypeNEMA 5-15R-HG
Environmentally FriendlyYes
Battery Capacity9000 mAh
USBYes
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries3
Backup/Run Time (Half Load)25 Minute
Backup/Run Time (Full Load)10 Minute
Battery CharacteristicsSealed
Load Capacity (VA)1100 VA
Load Capacity (Watt)880 W
EMI/RFI Noise FilterYes
Replaceable BatteryYes
Energy StarYes
AVRYes
Energy SavingGreenPower UPS? Bypass Technology
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Number of Battery & Surge Outlets6
Storage Temperature5°F (-15°C) - 113°F (45°C)
Transfer Time10 ms
Typical Battery Recharge Time8 Hour
Product ColorWhite
Output Power Factor0.8
Receptacle Detail6 x NEMA 5-15R-HG
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
