PCI Express x4 - 640 MB/s, 60 MB/s, 1.50 MB/s, 192 kB/s - 4 USB Port(s) - 4 USB 3.0 Port(s) - PC
SKU
Category
USB/Firewire Adapters
$298.29
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 19 and Nov 23, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
USB/Firewire Adapters
Overview

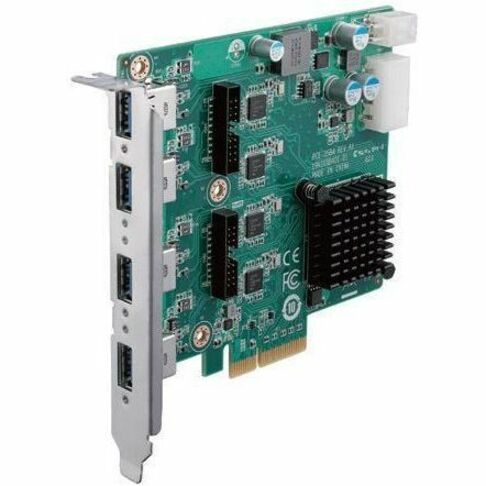

PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas µPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.
Warranty
Limited Warranty: 24 Month
Highlights
Four USB 3.0 host controllers
Supports 1500mA Max. current per port
Supports four or eight USB 3.0 ports
Compliant with USB 3.0 specification and Intel® xHCI specification, revision 1.0
PCI Express x4 interface
Supports Microsoft Windows 7/8.1/10 and Linux operating systems
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
PCE-USB4-00A1E
Brand Name
Advantech
Product Model
PCE-USB4
Product Name
PCIe x4, 4-port USB 3.0 Expansion Card
Product Type
USB Adapter
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
USB Version
3.0
USB Connector Type
Type-A
Media & Performance
Data Transfer Rate
640 MB/s, 60 MB/s, 1.50 MB/s, 192 kB/s
Physical Characteristics
Height
4.4"
Length
4.6"
Software
Operating System Supported
Windows 7, Windows 8.1, Windows 10, Linux
Technical Information
Host Interface
PCI Express x4
Warranty
Limited Warranty
24 Month
Miscellaneous
Platform Supported
PC
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
