Advantech 1-port Device Server with Fiber and WT
Twisted Pair, Optical Fiber - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX, 100Base-FX - Fast Ethernet - DIN Rail Mountable, Wall Mountable
- SKU
- EKI-1521I-SC-A
- Category
- Terminal & Device Servers
$541.42
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-1521I-SC-A
- Category
- Terminal & Device Servers
Overview

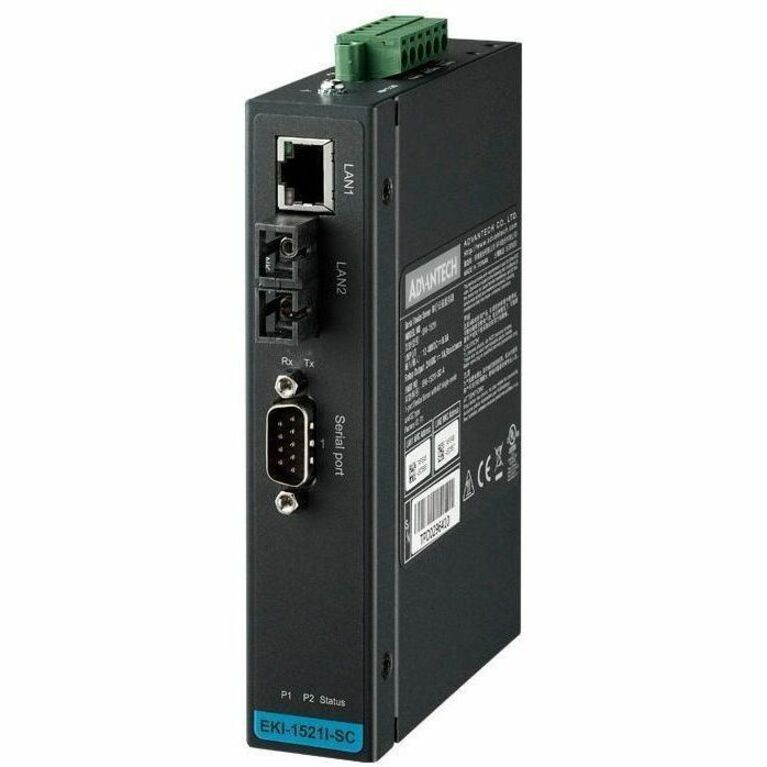

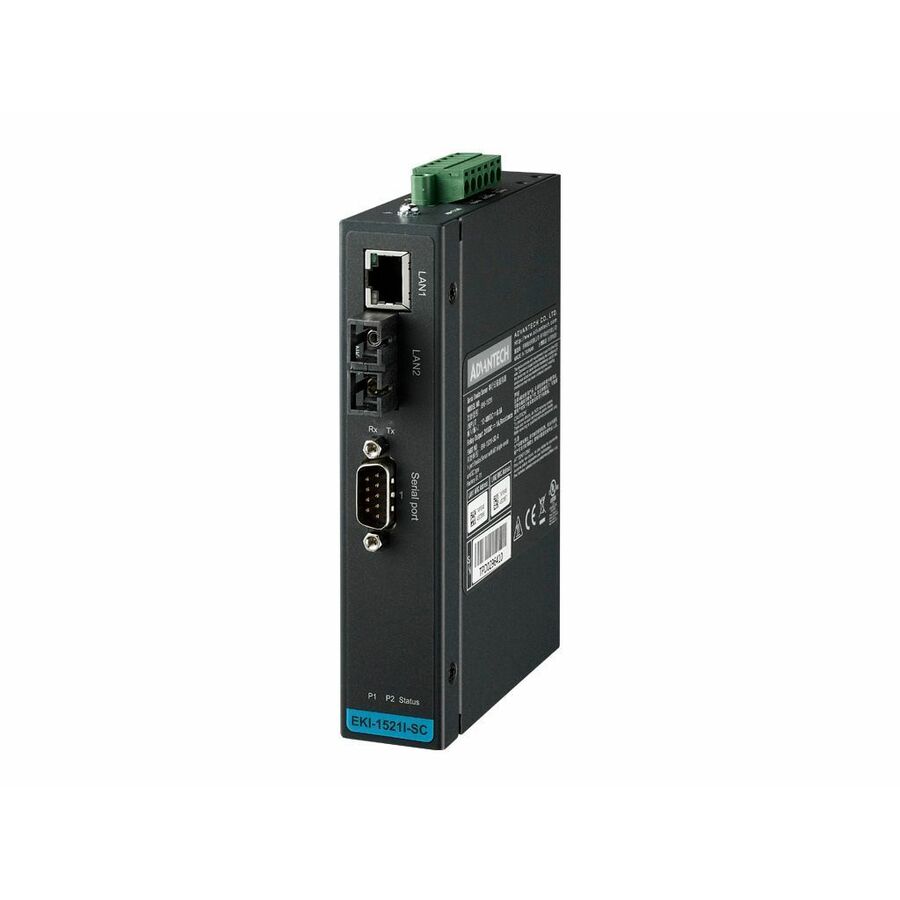

The EKI-1521I-SC feature one Ethernet port with RJ45 connector and one fiber port with SC connector to provide a redundant network mechanism that guarantees Ethernet network reliability. These serial device servers are designed to connect RS-232/422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI- 1521 ensure compatibility in network software using a standard network API. Moreover, serial devices can be made communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.
Highlights
- 1 x 10/100 Mbps Ethernet ports and 1 x 100 Mbps Fiber port for LAN redundancy
- Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
- Supports up to 921.6 kbps and any baud rate setting
- Allows a maximum of 5 hosts to access one serial port
- Allows a maximum of 16 hosts to be accessed in TCP client mode
- Built-in 15-kV ESD protection for all serial signals
- Provides rich configuration methods including Windows utility, Telnet console, and web browser
- Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
- Automatic RS-485 direction control
- Supports line-to-line (2 kV) and line-to-ground (4 kV) surge protection
- Support a wide operating temperature
Specifications
| Product Type | Device Server |
|---|---|
| Input Voltage | 12 V DC, 48 V DC |
| Manufacturer Part Number | EKI-1521I-SC-A |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 14.82 oz |
| Connectivity Technology | Wired |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-1521I-SC |
| Product Name | 1-port Device Server with Fiber and WT |
| Power Consumption | 4 W |
| Brand Name | Advantech |
| Plug/Connector Type | Terminal Block |
| Input Voltage Range | 12 V DC - 48 V DC |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.8" |
| Network Standard | 10/100Base-TX, 100Base-FX |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Number of Serial Ports | 1 |
| Total Number of Network Ports | 2 |
| Data Link Protocols | TCP/IP, UDP, HTTP, ARP |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
