Genuine 4XEM through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Cable Extenders
Overview

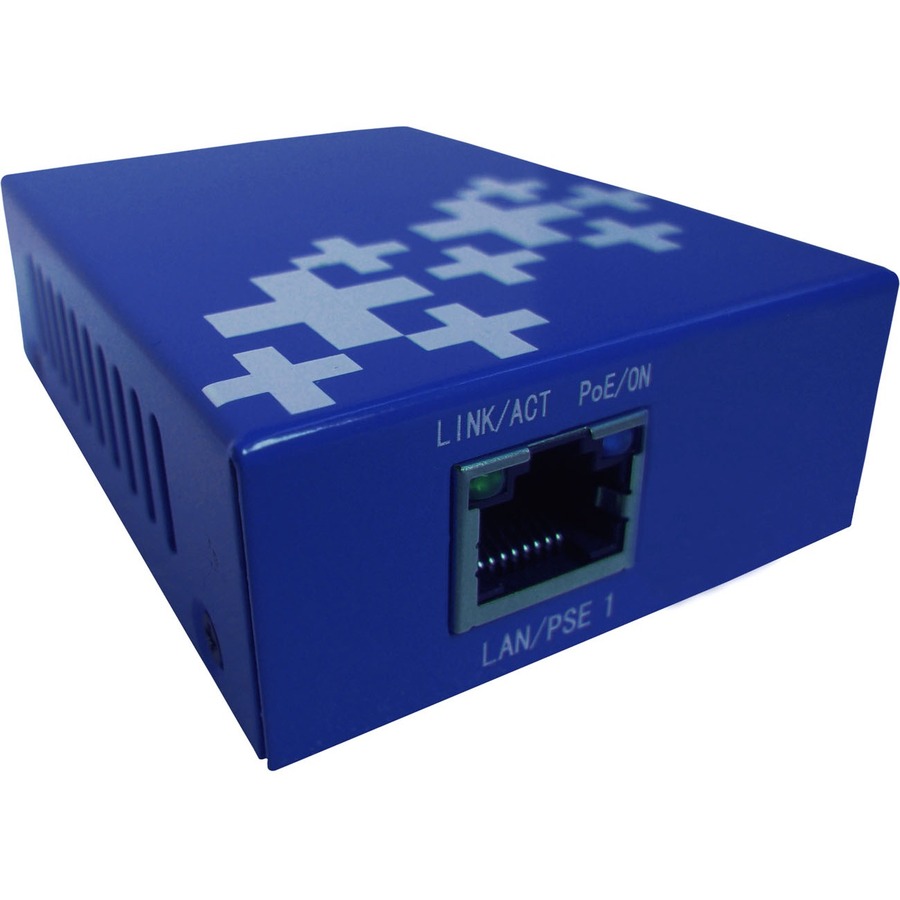

Deliver both data and power over Ethernet and beyond 100 meters to a PoE network device with 4XEM'S 100M 10/100 PoE Extender. This durable and high quality PoE Extender supports 10/100Mbps data rates and delivers IEEE 802.3 at power levels up to 25.5W. Powered via PoE inputs, the extender does not require local power. Simply plug and play with no configuration required. Multiple extenders can be cascaded to reach up to 500 meters. Go long!
Problem it solves: Cost effective solution to easily get juice to a network camera, IP phone or other network powered device beyond the 100 meter PoE limit.
4XEM gear is respected industry wide for its high performance, premium quality and durability.
Warranty
Limited Warranty: 1 Year
About 4XEM
Our mission at 4XEM is to provide customized hardware accessories that empower our customers with innovative and reliable solutions, simplifying connectivity, and enhancing productivity. We strive towards recognizing and supplying the latest connectivity and IT products to support the ever-growing digital world. By focusing on the needs of our customers, we now supply over 1,00 unique products with no sign of slowing down. Our Core Values: We Care - We work to make your life easier. Strive for Excellence – Committed to best in class customer service and product quality. Responsive – Providing assistance within 24 hours. Problem Solvers - It's in our name. Our products and work ethic are designed to do just that. How can we help you today?
Videos
4XEM 1-Port PoE Extender
Specifications
General Information
Manufacturer
4XEM Corporation
Manufacturer Part Number
4XLS101
Brand Name
4XEM
Product Name
1-Port PoE Extender
Product Type
Network Extender
Physical Characteristics
Height
1"
Width
2.5"
Length
3.4"
Warranty
Limited Warranty
1 Year
Miscellaneous
Additional Information
PoE Functions PoE standard IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet / PSE PoE Pin definition Endspan?12?36? Defaulting Midspan?45?78? Optional PoE ports Max Watts: 15.4 Watts Max Watts: 25.5 Watts Hardware Ports 2x10/100M Auto-sensing (LS101) 3x10/100M Auto-sensing (LS102) 5x10/100M Auto-sensing (LS105) Cabling Cat.5 UPT cable ??100m? LED indicator Power, Link, Act, PoE Dimension(L*W*H) 86mm*64mm*25mm Enviornment Working Temp.: 0??55? Storage Temp: -40??70? Operating Humidity: 10%?90%,Non-condensing Storage Humidity: 5%?90% Non-condensing Power PoE inputs Watts Max 5 W Network Function Standards IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at CSMA/CD, TCP/IP Function Compatible with IEEE 802.3af PD devices PoE power priority Wire-speed forwarding IEEE802.3X Full duplex flow control and Backpressure Half duplex flow control
